KOPPACE 3.5X-90X Autofocus HDMI Microscope | Includes 0.5X & 2.0X Barlow Lens
Product Description
Specification:
KP-7045T05-AF200 | Autofocus camera |
Optical Enlargement | 3.5X-90X |

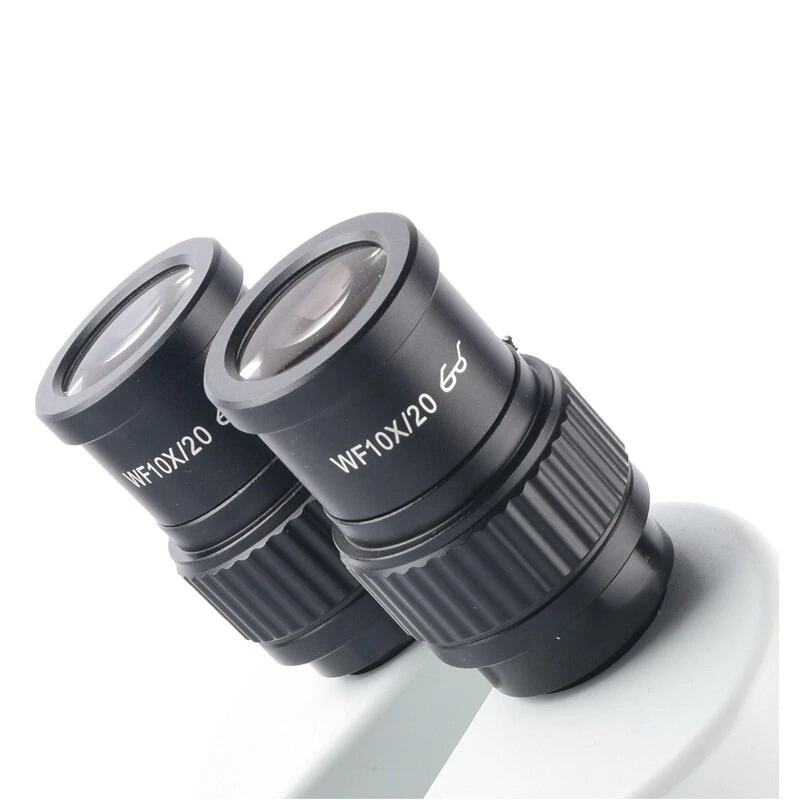

Eyepiece | High eyespots wide-field eyepiece WF10X/20 |

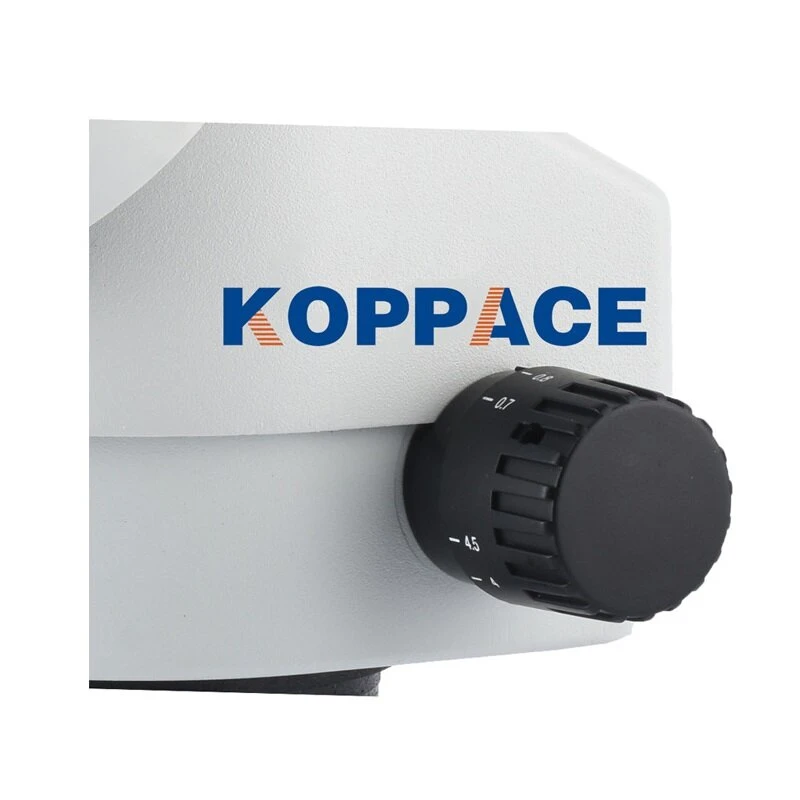

Zoom lens | 0.7X-4.5X |
Viewing Head | Trinocular observation head inclined at 45??.The pupil distance adjusting range 54mm-76mm |
Working Distance | 30mm-165mm |
Auxiliary lens | 0.5X/165mm,2X/30mm |
Focusing bracket | Focusing handwheel tightness is adjustable,lifting range 50mm |
Dual arm bracket | Lifting range: 275mm,base column 210*260*51mm, lens diameter 32mm, |

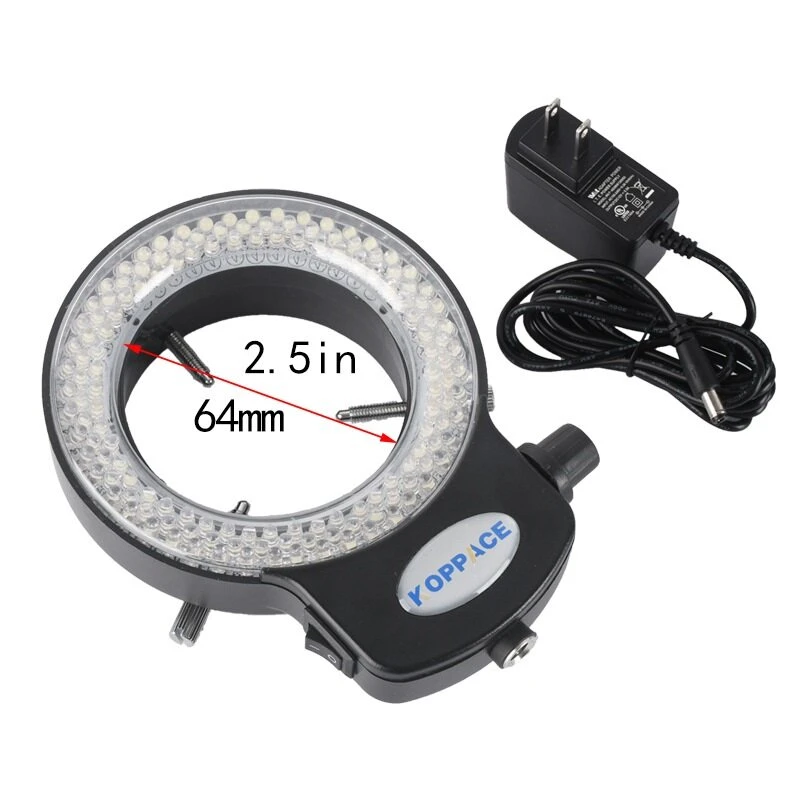

LED light source | LED Qty 144,Internal diameter size 64mm,Diameter size 94mm,Input voltage AC90??240V,Maximum output power 4.5W,Voltage 12V0.5A |
Camera interface | Dedicated interface 0.5X CTV |
Image resolution | 1920x1080 |
Pixel | 2 megapixel Autofocus camera |
Pixel Size | 2.74??m ?? 2.75??m |
Frame rate | 60fps |
Brightness control | Auto/manual |
White Balance | Manual operation,automatic |
Color | R/G/B adjustable |
Image freezing | Support |
OSD | Support |
Cross cursor | Support multi-color,size adjustable |
Transverse and vertical line | Support multi-color,4 pcs of transverse lines/vertical lines,movable |
Lens | C |
Power supply | DC-5V/1A |
Note:1. Simultaneous observation through the eyepiece and trinocular port without switching, and imaging can be synchronized.2. This autofocus camera cannot store images.
Package includes:

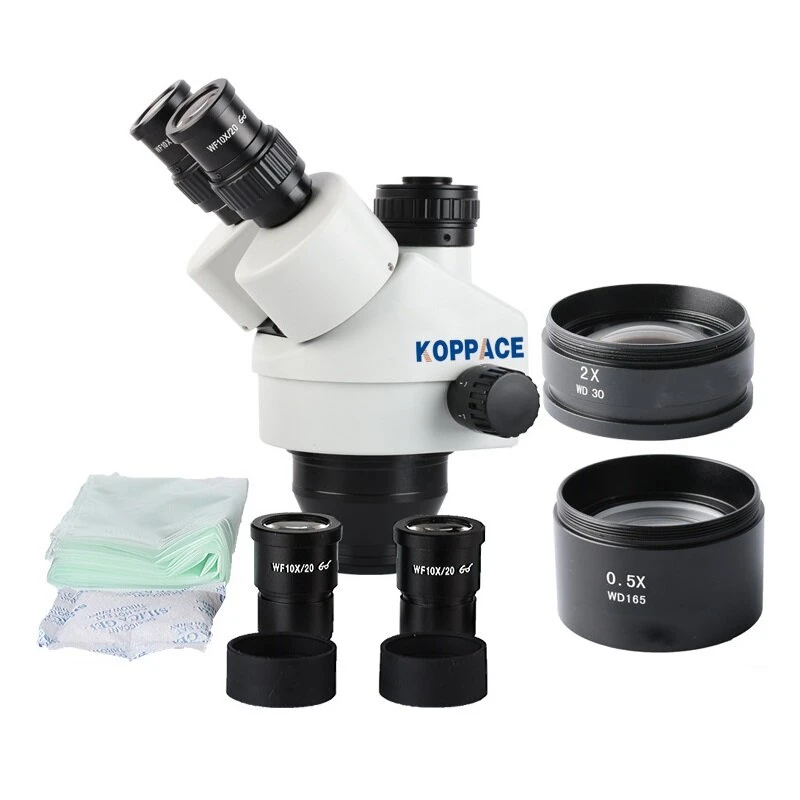

Eyepiece WF10X/20 one pair Focus rack *1Eye guards one pairTrinocular zoom lens *1LED ring light *1Pillar stand and Base Plate *1Dust cover *10.5X Auxiliary lens *12X Auxiliary lens *1Dual arm bracket *1Dedicated interface 0.5X CTV Auto Focus Camera *1HDMI high definition line *1The camera power adapter *1Mouse *1
