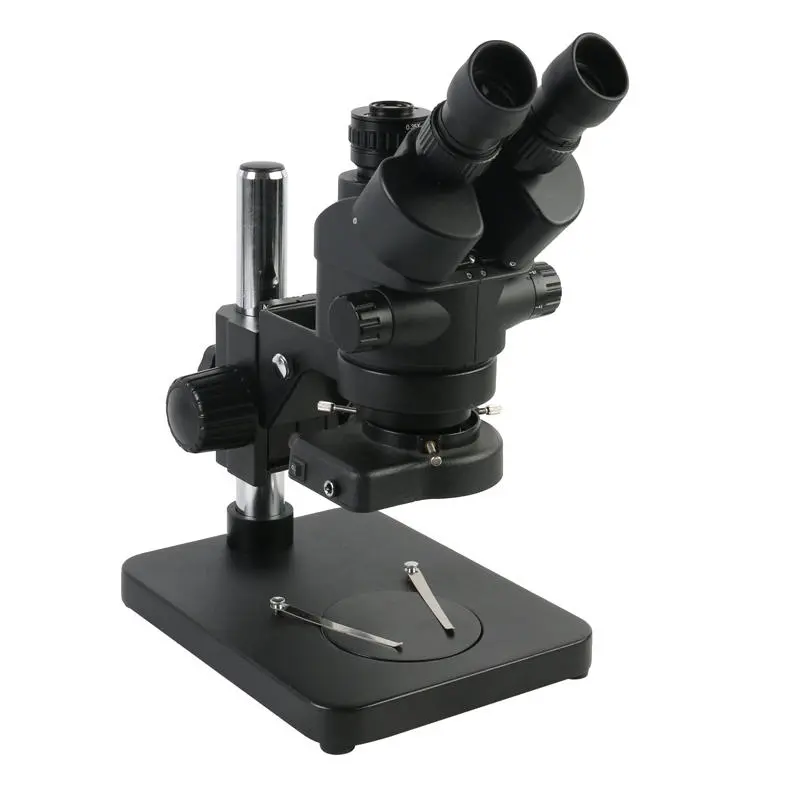

AmScope 7X-45X Trinocular Stereo Microscope - HDMI USB 38MP Camera & 0.5x 2.0x Lens
$581.00
$715.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

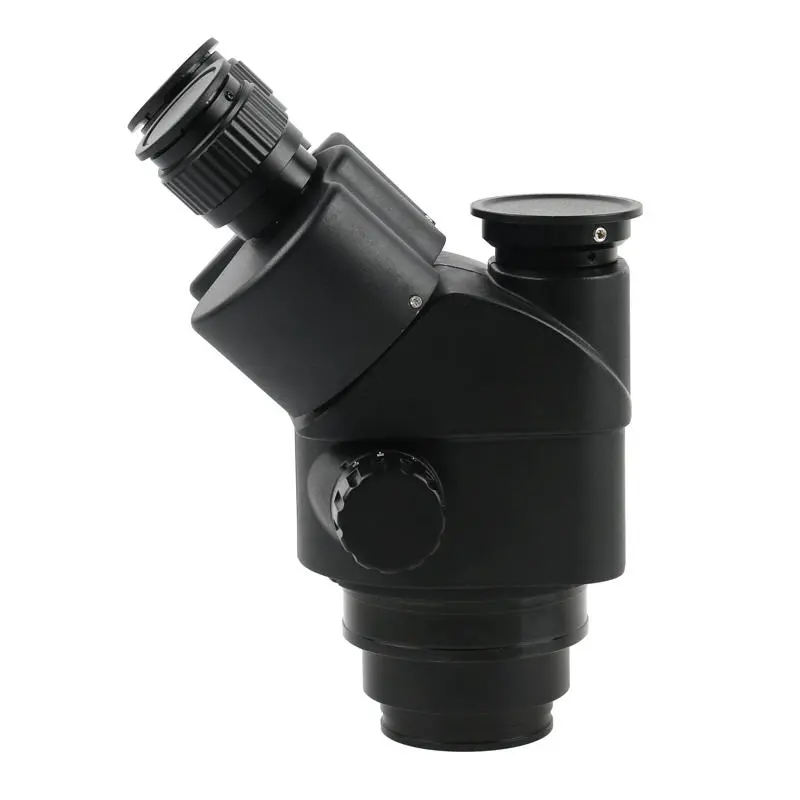

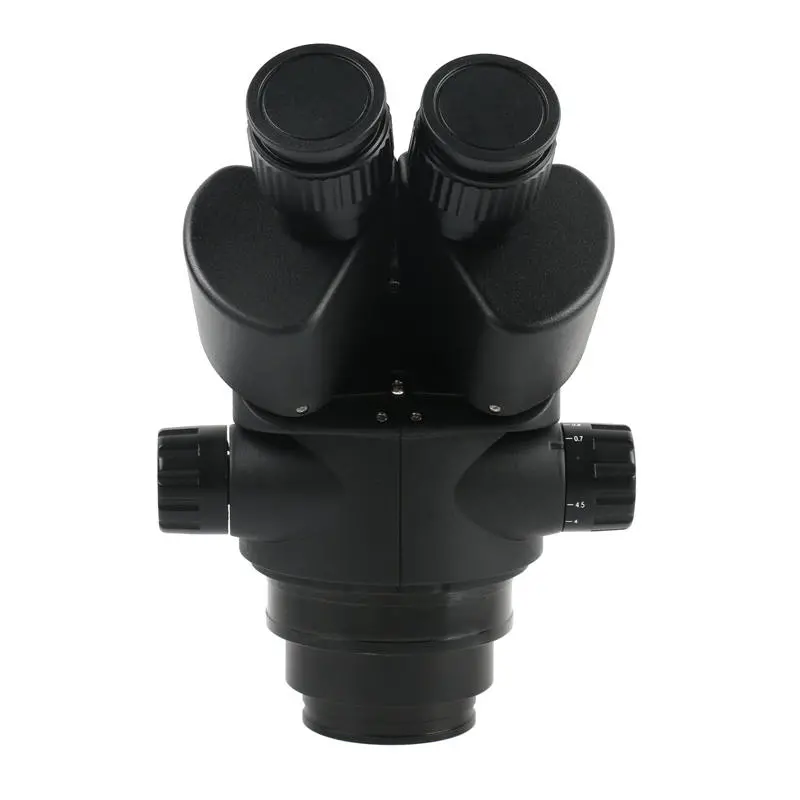

Features: 7X to 45X Continuous Zoom Magnification Power 45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces Trinocular port for adding photo or video capability 30mm Super Widefield WF10X Eyepieces with 20mm Field of View High Resolution with Great Flatness and Contrast Sharp Stereo Erect Images over a Wide Field View Crystal Clear Original True Color Images Large Working Distance Accurate Alignment Ensuring a Fatigue-Free Viewing Full Optical Glass Elements Precise Ground Glass Lens All Metal Mechanical Components Adjustable Interpupillary Distance Manufactured under ISO 9001 Quality Control Standard Specifications: Head: 45-degree inclined 360-degree swiveling trinocular simul-focal Eyepiece: 30mm super widefield high-eyepoint WF10X/20 Objective: 0.7-4.5X Zoom Range: 6.5:1 Trinocular Port: 23mm photo port Interpupillary Distance: 2-1/8" to 3"(54-76mm) Field of View: 1-1/4" (33mm) Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm) Head Mounting Size: 3" (76mm) diameter Accessory Mounting Size: 1-7/8" (48mm female thread) diameter 144 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination The brightness of 0-100%Adjustable,high brightness Variable intensity control Power input: 100-240V, 50-60HZ Suit for the dia of the lens: 30mm-160mm Sensor :CMOS Optical format:1/2.3 inch pixel size:1.335??m x1.335??m Interface:HDMI(Type A).USB(Type B).TF Card Image resolution:21MegaPixel Video record resolution:2K@30FPS 1080p@60FPS HDMI resoltion:1920x1080p 60FPS Can output with USB at the same time HDMI scale:Support 4:3,16:9,16:10 screen USB2.0(Drive free):1920x1080@30FPS 1280x720@30FPS 640x480@30FPS Can output with HDMI at the same time TF card:MAX 64GB AiWiB:WiB color correction/Auto/Manual R.G.B value setting independent Exposure:Auto/Manual.AE value can set Cross lines:8lines.Can set color& width& position Scale mark lines:2lines. Dotted lines:2lines.Can set color& width& position Sharpness Contrast Color gain:Support Mono Negative:Support Mirror:Horizontal vertical mirror Language:English/simplified Chinese Digital Zoom:Support IR remoter:Support Voltage in:DC 12V 55-21mm size Power consumption:MAX 0.15W 12V,0.12A Lens interface:C/CS?? Net weight:180g Gross weight:400g Camera size:74x74x35mm Packaging size:160x100x80mm Questions Solution: LCD no video or flicker 1.Check power supply. Check green LED be onlight. Press PowerKey to Up it. 2.Check lens cover. Increase the lighting. LCD have black bar Image warp 1.change resolution of LCD 2.change resolution of camera Have dirty spot 1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser Package Included: 1 x Trinocular Stereo Zoom Head(Working distance is about 10cm) 1 x Pair of Super Widefield 10X20MM Eyepieces 1 x Pair of Eye-Guards 1 x Dust Cover 1 x 144-LED Ring Light 1 x Stand 1 x 76mm Focusing Holder 1 x HDMI USB Video Camera 1 x HDMI Cable 1 x USB Cable 1 x IR Remote control 1 x Power Supply Adapter (EU/AU) 1 x 0.5X C-mount Adapter (Optional)1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm) 1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm) 1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens) 1 x Adjustable Metal Arm
Details Pictures:
