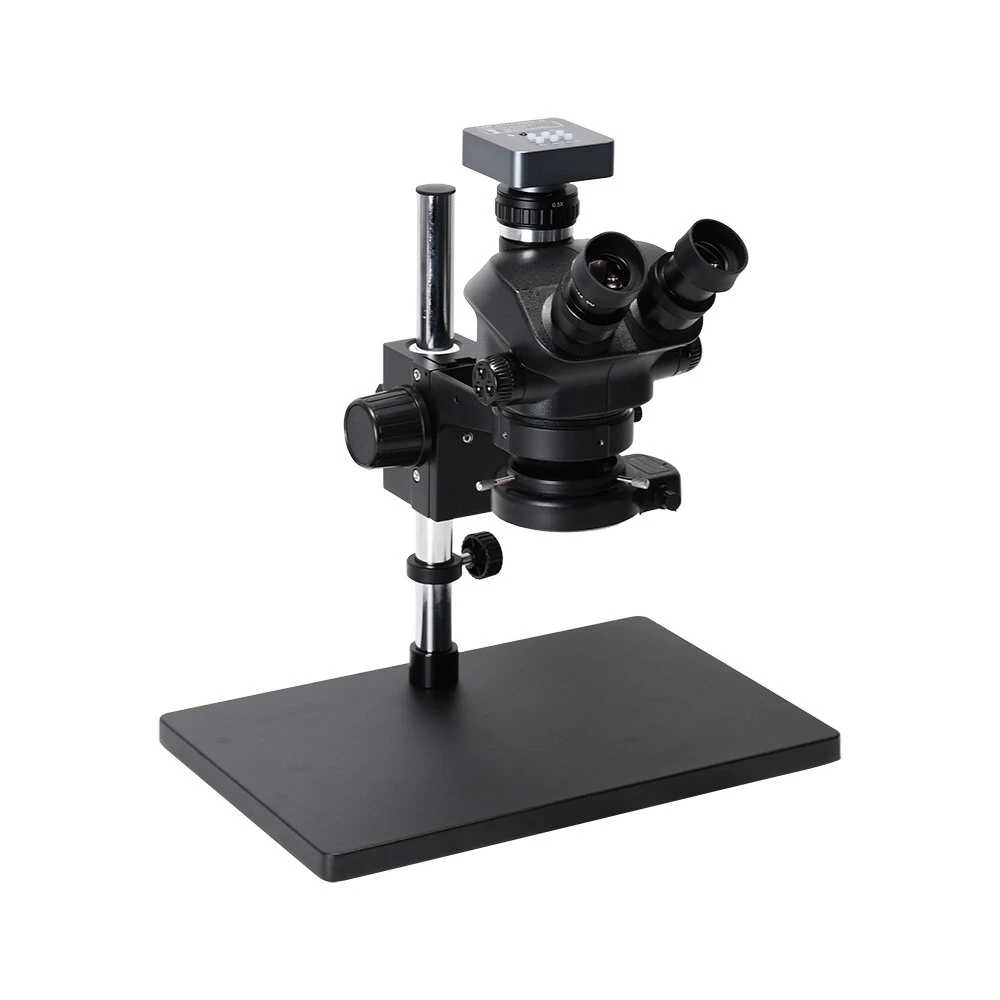

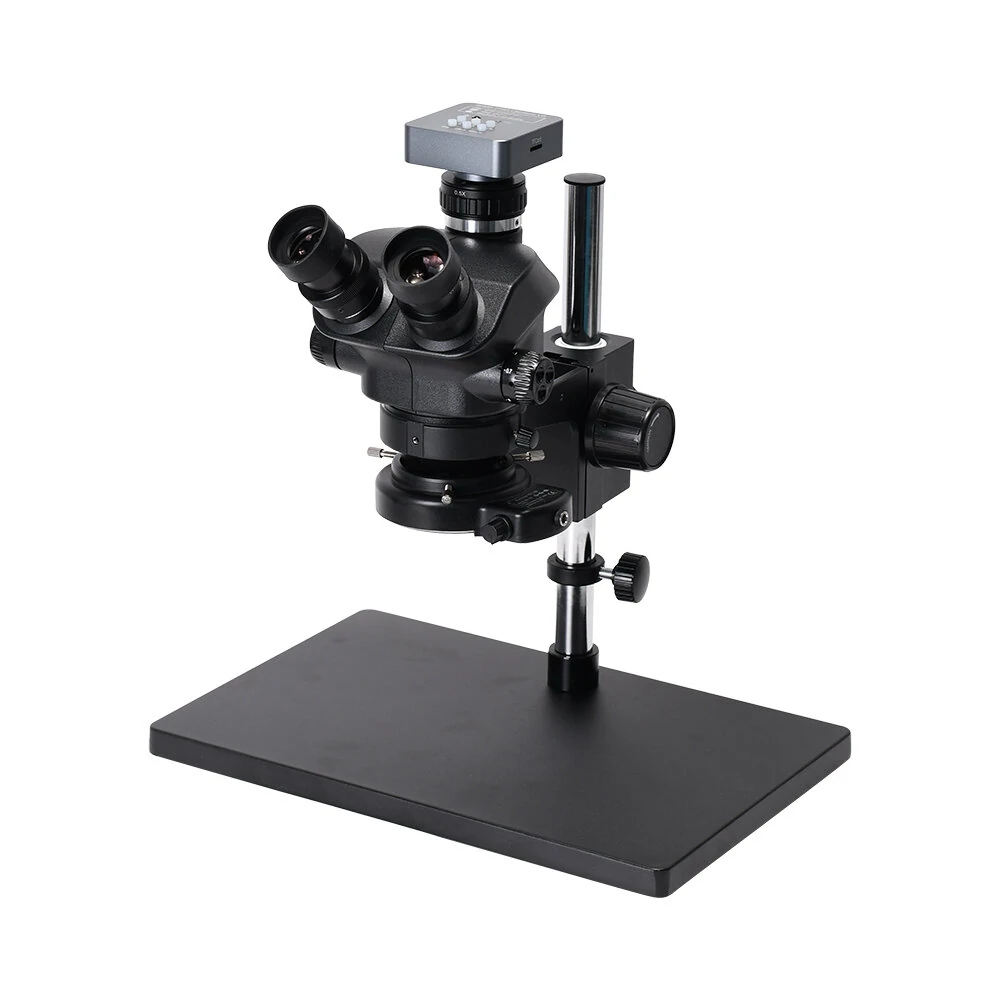

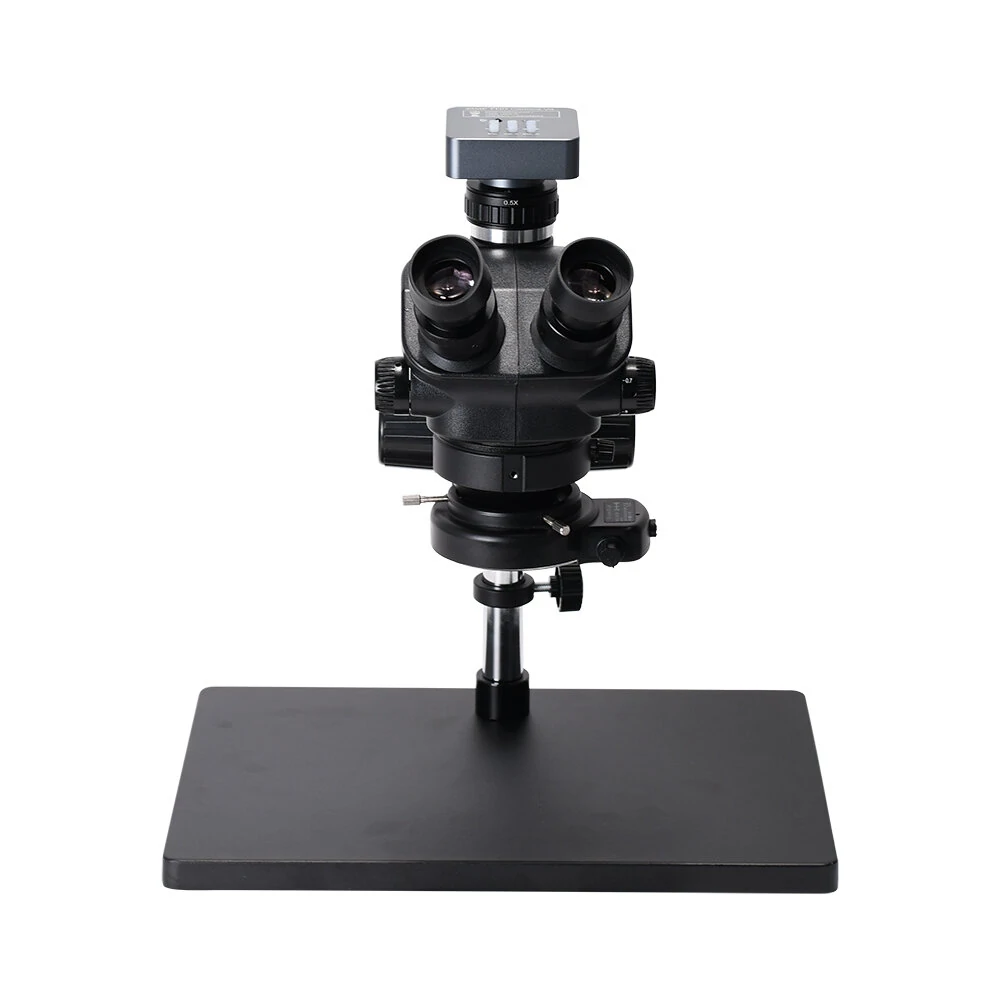

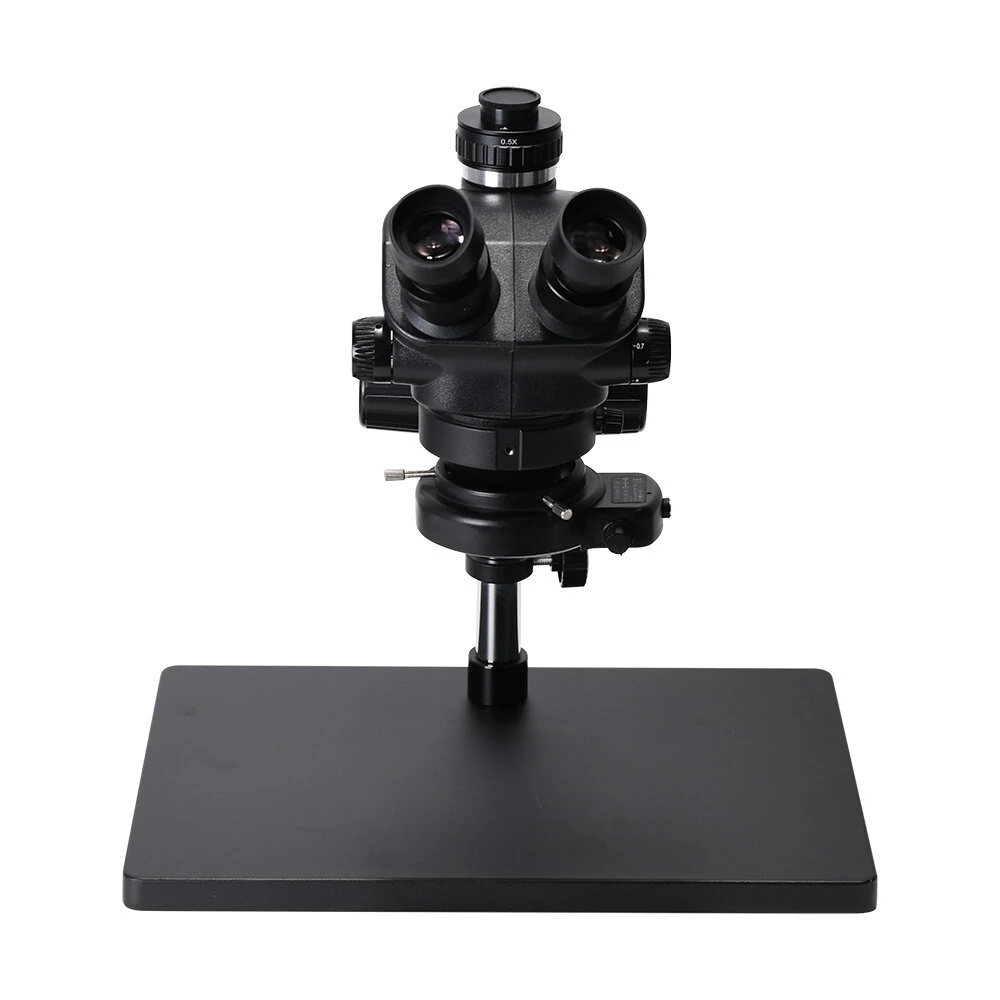

AmScope 48MP 3.5X-100X Trinocular Stereo Microscope | Zoom Lens & Large Stand
Product Description
Features of product:
1. The PC terminal can support a variety of system operations-Windows XP/7/8/10 system.
2. This 48MP industrial microscope camera is suitable for repairing industry.
3. Adopt sturdy all-metal column, all-metal table frame, high-quality metal shell, sturdy and durable, and long service life.
4. The binocular headband is used to rotate the eye tube with a 45-degree tilt and 360-degree rotation, which has a clear three-dimensional upright image with a wide field of view and a crystal clear original true color microscope image.
5. Comes with 7X-100X C-mount zoom lens for industrial microscope camera. 7X-100X zoom magnification, high resolution, high flatness and high contrast, make the image clearer and sharper.
6. Equipped with all-optical glass elements, precision frosted glass lenses, all-metal chrome-plated mechanical parts, binocular tubes with adjustable diopter, and adjustable interpupillary distance.
7. Excellent stereo inspection microscope with adjustable intensity 144-LED ring light, which can provide ultra-wide field optics, 7X-100X zoom magnification and cold light illumination system. It is an ideal instrument for industrial inspection and/or biological laboratory applications. It is a right-hand man for gemologists, manufacturing engineers, dental laboratory technicians, and workers in the electronics and semiconductor industries.
Parameters of product:
- Head: 360-degree rotatable 45-degree tilt binoculars
- Eyepiece: 30mm super wide-angle high eye point WF10X/22MM
- Objective lens zoom range: 0.35X-10X, using Barlow lens
- Working distance: 4" (100mm)
- Diopter adjustment: +/- 5dp
- Interpupillary distance: 2-3/16"-2-15/16"(55-75mm)
- Disc: Diameter 3-3/4" (95mm)
- Bracket: (375 x 245 x 340mm)
- Power input: 110-240V, 50-60HZ, automatic switching
- Accessories: Pair of eye masks
- Weight: 5.8kg
Features of the camera:
Item Type | Microscope Camera |
Module | 1135 |
Sensor | 48MP CMOS |
Optical Format | 1/2.3 inch |
Pixel Size | 1.335??mx1.335??m |
Interface | HDMI (Type A). USB (Type B). Small memory card |
HDMI Image Resolution | 48MP |
Video Resolution | 2K at 30FPS 1080p at 60FPS |
HDMI Resolution | 1920 x 1080p 60FPS |
HDMI Scale | Support 4: 3,16: 9,16: 10 screen |
Small Memory Card | Up to 128GB (not included) |
AWB | AWB color correction/automatic/manual R.G.B value setting independent |
USB2.0 (Drive Free) | 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS |
Exposure | Automatic/manual. AE value can be set |
Cross Line | 8 lines, color, width, position can be set |
Scale Line | 2 lines |
Dotted Line | 2 lines, color, width, position can be set |
Sharpness Contrast Color Gain | Support |
Mono Negative Film | Support |
Mirror | Horizontal and vertical mirror |
Language | English/Simplified Chinese/French/Spanish/Japanese/German And other languages |
Digital Zoom | Support |
Infrared Remote Control | Support |
Voltage Input | DC 12V |
Power Supply Voltage | Input: AC100-240V Output: DC12V |
Power Consumption | Maximum 0.15W 12V, 0.12A |
Lens Interface | C/CS port |
Remote Control Battery | 1 x 2302 button battery (delivered without battery) |
Features of 144 LED adjustable compact microscope ring light:
Service life | 100,000 hours |
Power input | 100-240V, 50-60HZ, automatic switching |
Inner diameter of ring light | 1.0" (27mm) |
Total outer diameter | 1.77" (45mm) |
Working distance | 27mm-45mm |
| |
Package included:
1 x Trinocular Stereo Zoom Head
1 x Microscope camera
1 x Pair of Super WF 10X22mm Eyepieces
1 x 144-LED Ring Light with Adapter
1 x Pillar Table Stand
1 x Focusing Rack
1 x Pair of Eye-Guards
1 x Dust Cover
1 x 0.5 C-mount Adapter
1 x 2X Microscope Auxiliary Objective Lens
1 x 0.5X Microscope Auxiliary Objective Lens
2 x Power Supply
1 x USB Cable
1 x High Definition Multimedia Interface Cable
1 x Software CD
1 x Remote Control (Battery Not Included)
