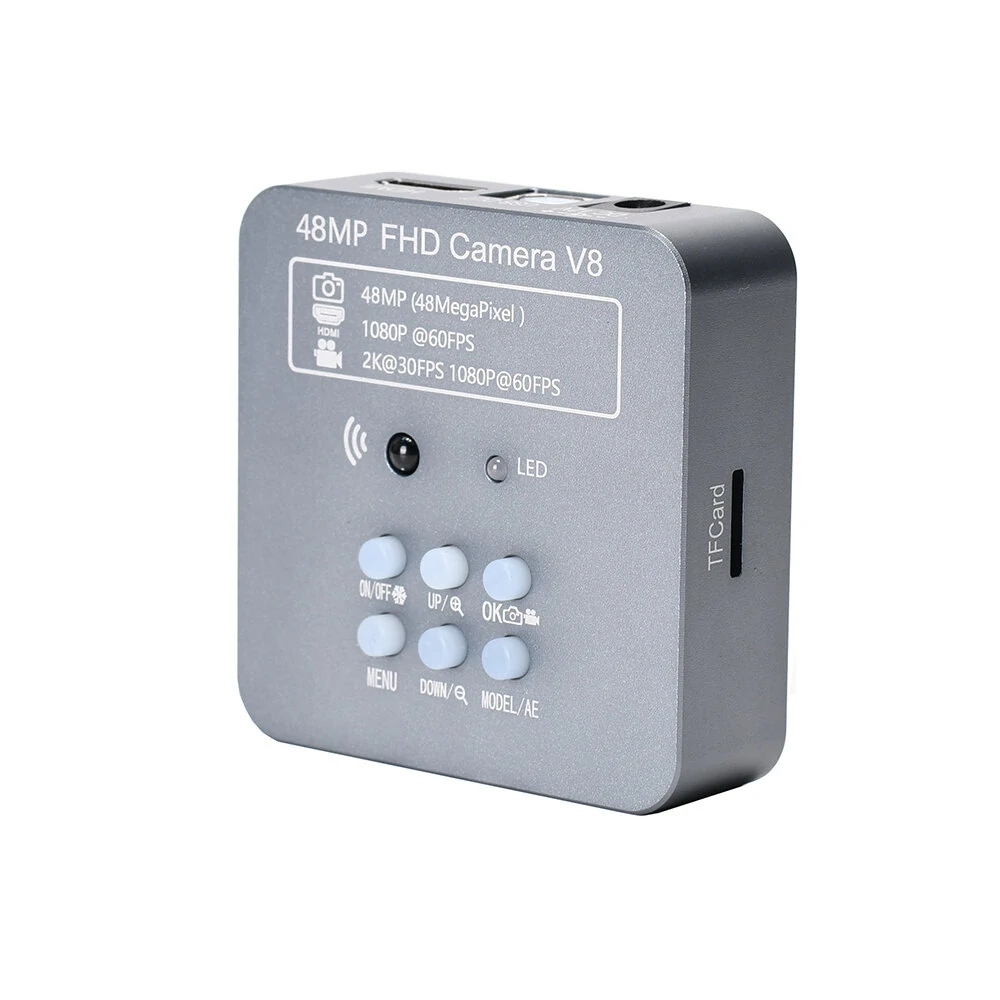

48MP 1080P 60FPS Digital Microscope Camera - 2K HD Magnifier for Phone PCB Repair

Product Description

Feature:

1. PC supports for multiple system, supports for Windows XP/7/8/10 system.

2. This 48MP industrial microscope camera is suitable for repairing industry.

3. Adopts high quality metal housing, sturdy, durable and has long life.

4. High resolution and dual output, which makes it more convenient to use.

Camera Specification:

Item Type: Microscope Camera

Module: 1135

Sensor: 48MP CMOS

Optical Format: 1/2.3 inch

Pixel Size: 1.335??mx1.335??m

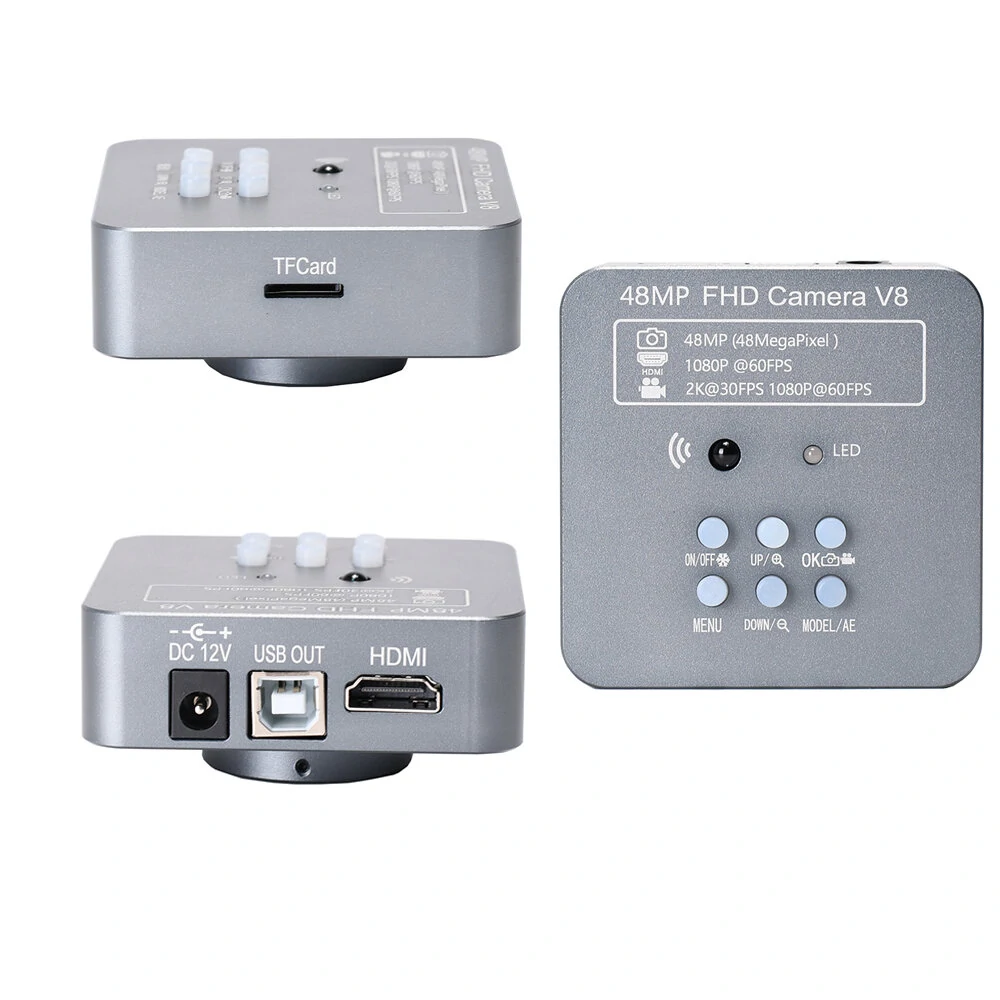

Interface: HDMI (Type A). USB (Type B). Small memory card

HDMI Image Resolution: 48MP

Video Resolution: 2.7K at 30FPS 1080p at 60FPS

HDMI Resolution: 1920 x 1080p 60FPS

HDMI Scale: Support 4: 3,16: 9,16: 10 screen

USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS

Small Memory Card: Up to 128GB (not included)

AWB: AWB color correction/automatic/manual

R.G.B value setting independent

Exposure: Automatic/manual. AE value can be set

Cross Line: 8 lines, color, width, position can be set

Scale Line: 2 lines.

Dotted Line: 2 lines, color, width, position can be set

Sharpness Contrast Color Gain: Support

Mono Negative Film: Support

Mirror: Horizontal and vertical mirror

Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.

Digital Zoom: Support

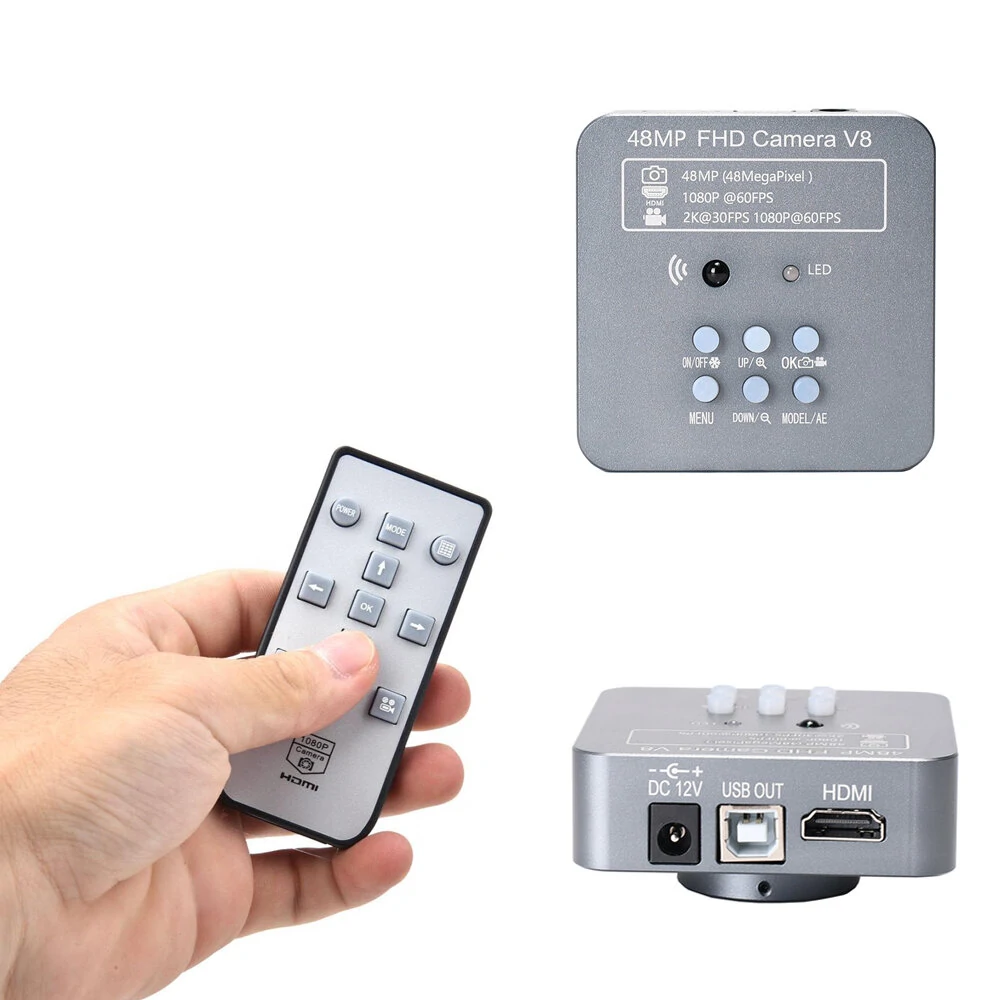

Infrared Remote Control: Support

Voltage Input: DC 12V

Power Supply Voltage: Input: AC100-240V

Output: DC12V

Power Consumption: Maximum 0.15W 12V, 0.12A

Lens Interface: C/CS port

Remote Control Battery: 1 x 2302 button battery (delivered without battery)

Noting:

1: PC Support: Windows XP / 7/8/10 system

2: When use USB connection, please make sure no TF card in the camera, TF card storage is only for HDMI output. USB output will be storage in PC.

3: when connect the camera with computer, just plug the USB line is OK (no need to use the power supply)

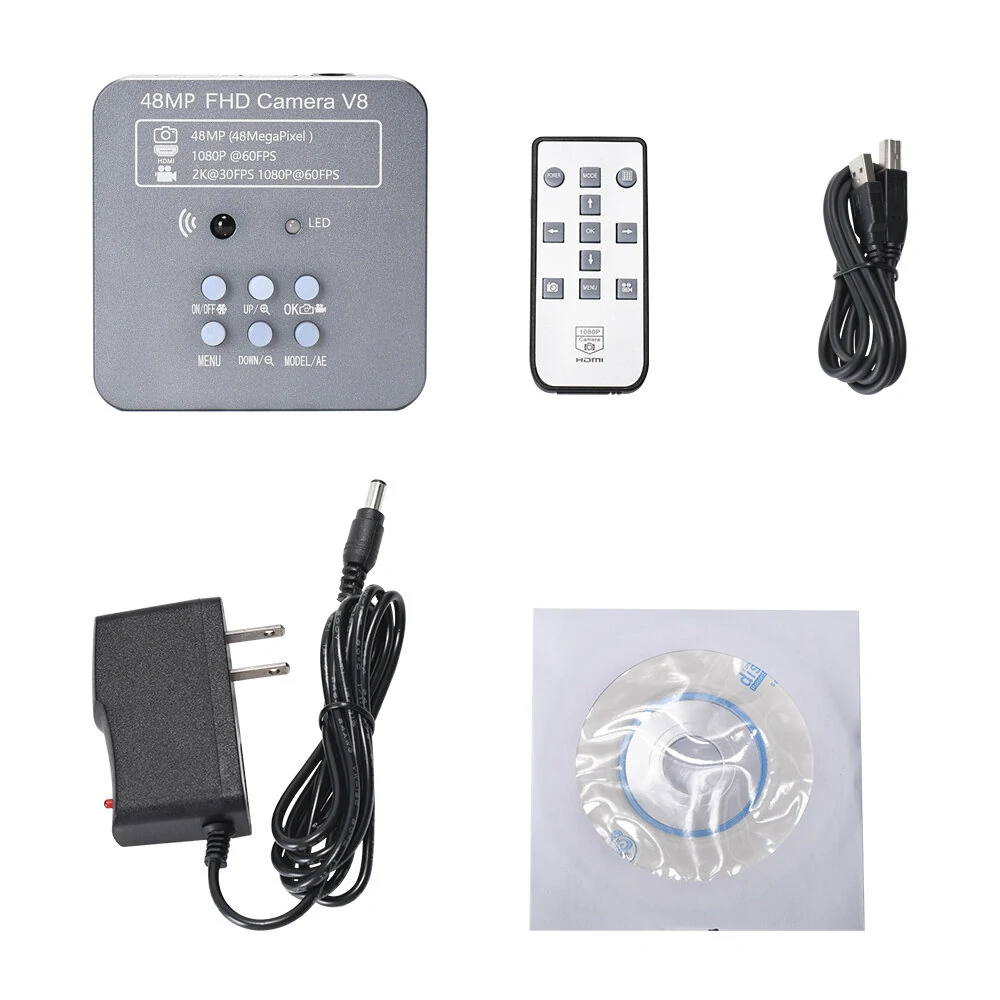

Package including:

1 x Microscope Camera

1 x Power supply.

1 x USB cable

1 x Remote control
