HAYEAR Digital Microscope - 21MP 60FPS Video for Soldering | HDMI USB
$291.00
$358.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

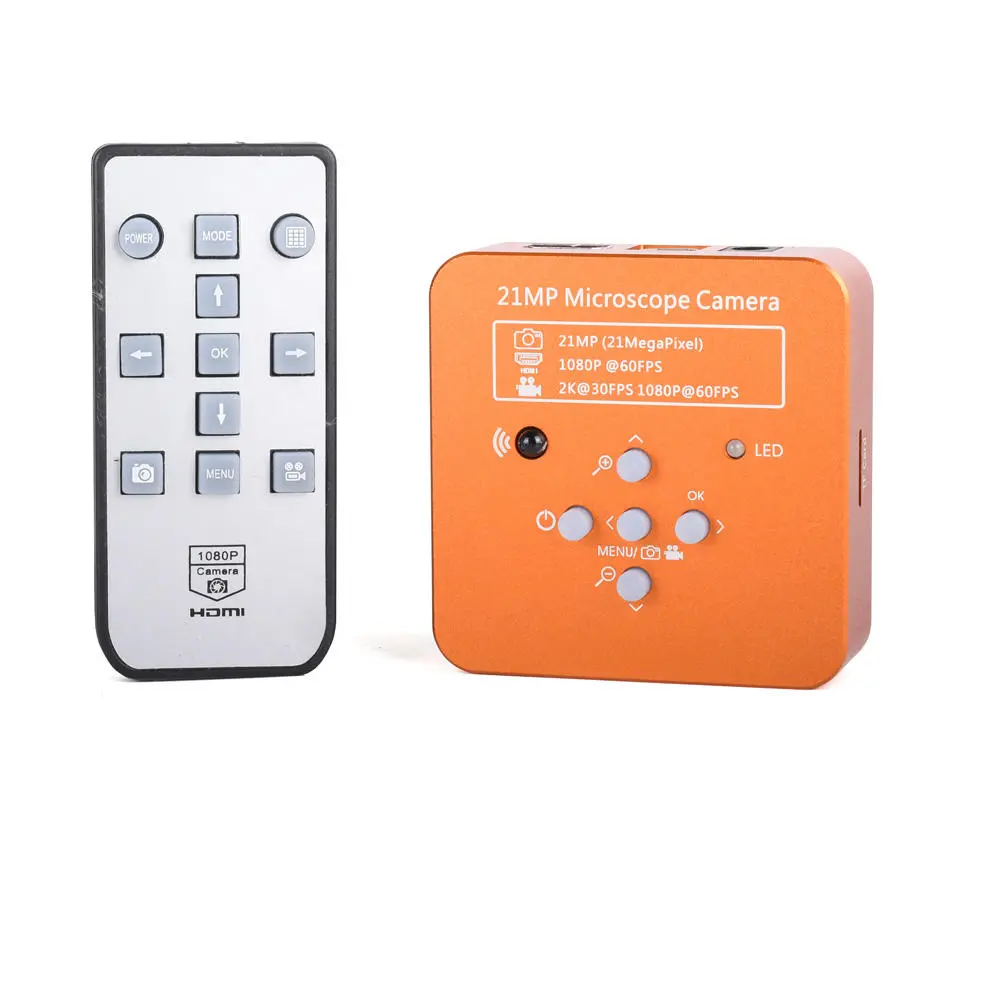

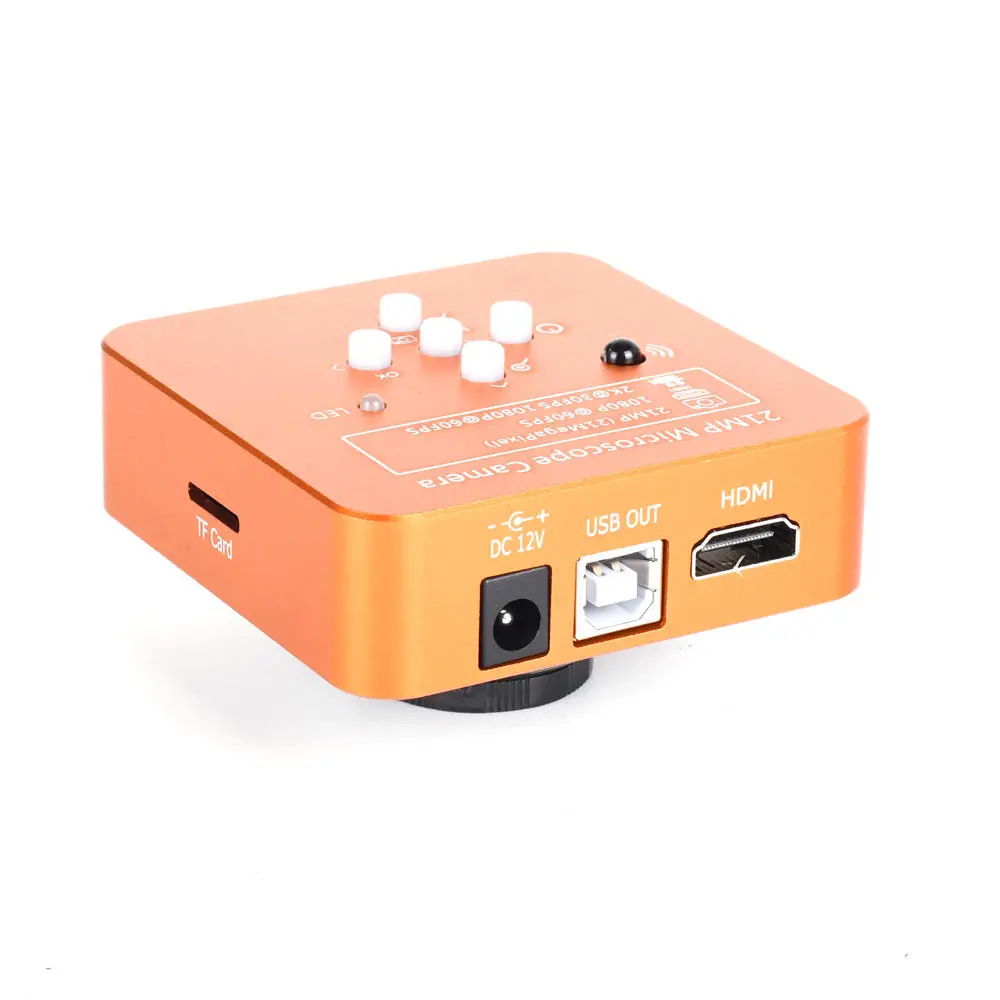

Feature: Module:FHD216 Sensor Panasoni1c:21 MegaPixel, 21 million pixels CMOS Optical format:1/2.3 inch pixel size:1.335??m x1.335??m Interface:HDMI(Type A).USB(Type B).TF Card Image resolution:21MegaPixel Video record resolution:2K@30FPS 1080p@60FPS HDMI resoltion:1920*1080p 60FPS Can output with USB at the same time HDMI scale:Support 4:3,16:9,16:10 screen USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS Can output with HDMI at the same time TF card:MAX 64GB AWB: color correction/Auto/Manual R.G.B value setting independent Exposure:Auto/Manual.AE value can set Cross lines:8lines.Can set color& width& position Scale mark lines:2lines. Dotted lines:2lines.Can set color& width& position Sharpness Contrast Color gain:Support Mono Negative:Support Mirror:Horizontal vertical mirror Language:English/simplified Chinese Digital Zoom:Support IR remoter:Support Voltage in:DC 12V 55-21mm size Power consumption:MAX 0.15W 12V,0.12A Lens interface:C/CS Net weight:180g Gross weight:400g Camera size:74*74*35mm Packaging size:160*100*80mm Questions Solution:LCD no video or flicker 1.Check power supply. Check green LED be onlight. Press PowerKey to Up it. 2.Check lens cover. Increase the lighting. LCD have black bar Image warp 1.change resolution of LCD 2.change resolution of camera Have dirty spot 1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser C-mount Lens
Magnification Power by 0.12 - 2X (about 8X - 130X on the display) Work distance: 100mm Visual field :2.4mm-32mm Size: 115mm(L) * 40mm(DIA) Weight: 210g 56 LED Adjustable Compact Microscope Ring Light

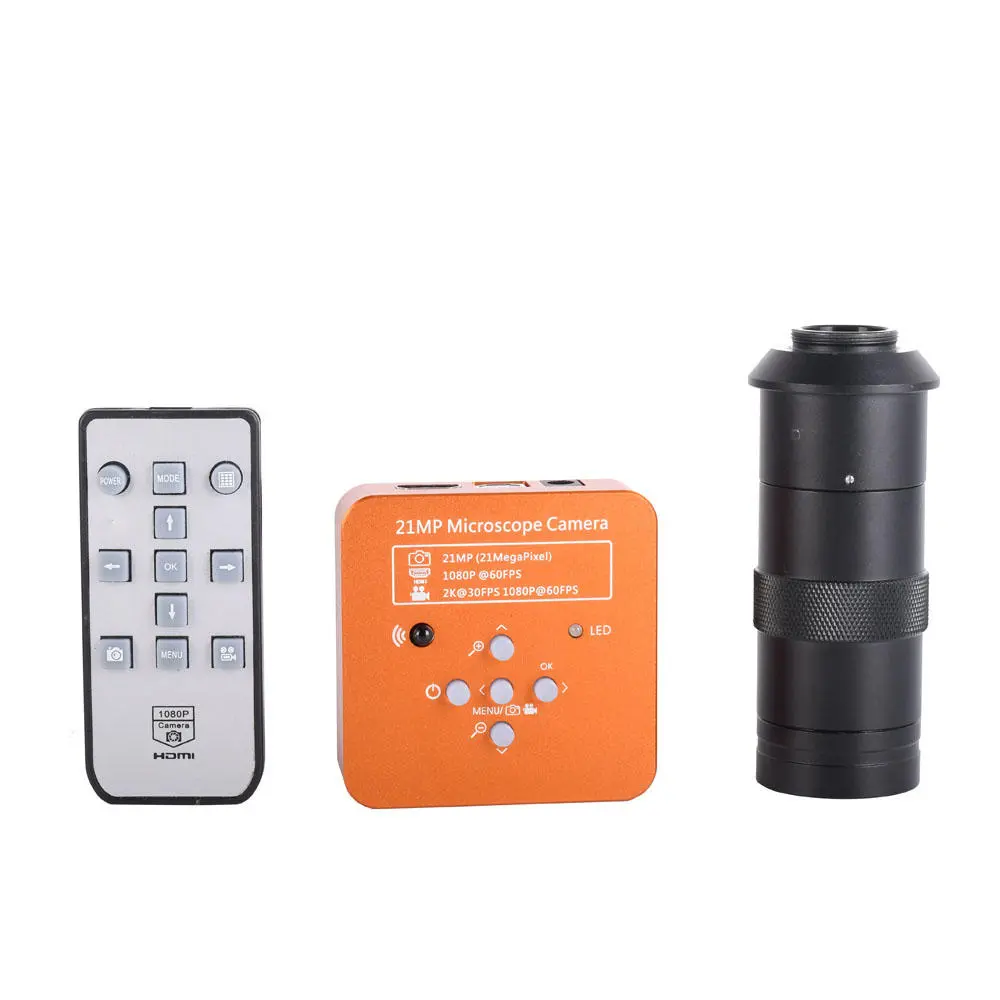

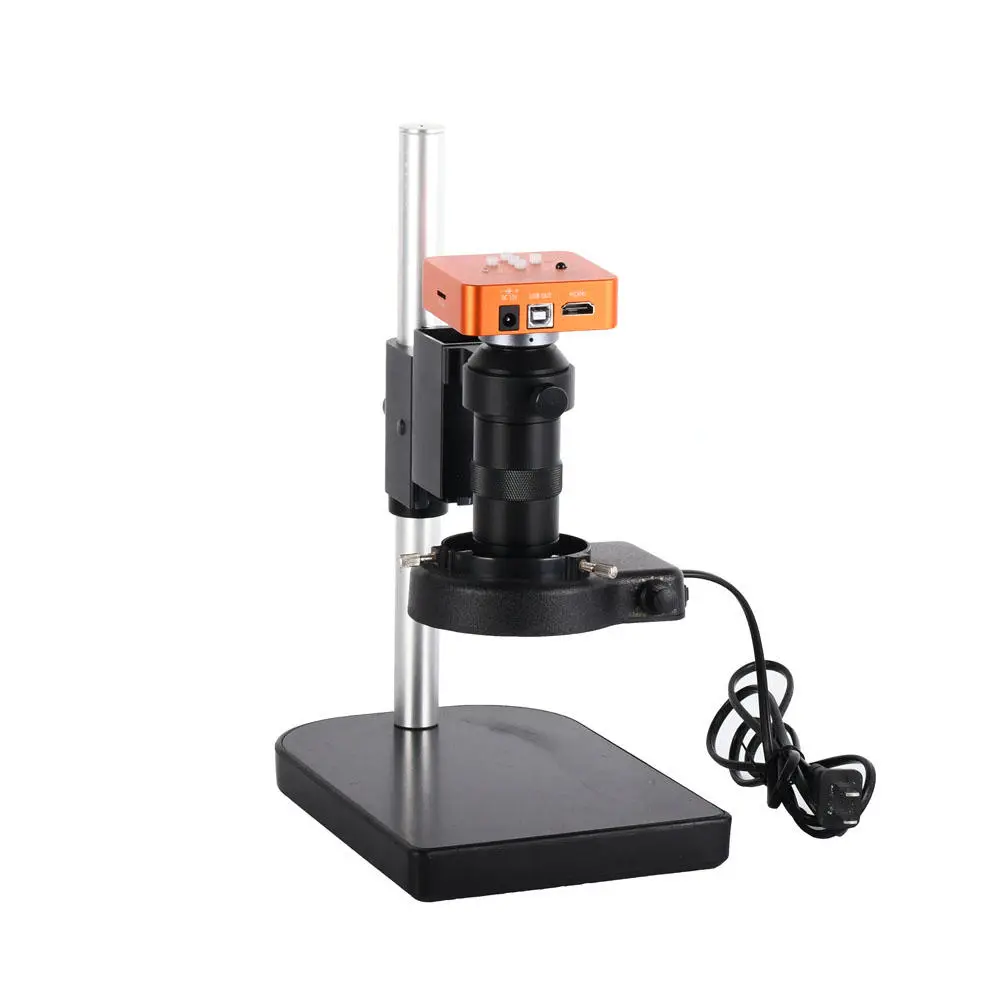

Provides intense and focused shadow-free illumination 56 bright white LED bulbs Lighting direction changeable Variable intensity control Intense and focused shadow-free illumination 100,000 hours of life Power input: 100-240V, 50-60HZ, auto switching Inside diameter of the ring light: 1.0" (27mm) Overall outside diameter: 1.77" (45mm) Working Distance: 27mm-45mm Packing including: 1 x HDMI Video Camera 1 x HDMI Cable 1 x USB Cable 1 x IR Remote control 1 x Power Supply Adapter (EU/AU) 1 x Adjustable 56 LED lights 1 x 130X Zoom C-mount Lens 1 x Camera Stand
Note: We will send you a plug adapter according to your country
Detail Pictures:
Customer Reviews
No reviews yet. Be the first to review this product!
