UNI-T UT25CL-T Handheld Cable Locator | 33KHz Signal & 480V Voltage Test

Product Description

Specifications:
Model: UT25CL-T
Output Signal Frequency: 33KHz
External Voltage Recognition Range: 8-480V
External Voltage Recognition Frequency Range: AC: 50-60Hz
External Voltage Measurement Accuracy: ??2.5%+3deg
Display Mode: LCD
Power Supply Mode: 1.5V, AA alkaline batteries*6
Overvoltage Rating: CAT III 480V
Dimensions: 1899648mm (transmitter + receiver), 2266838mm (receiver)
Weight: 528g (transmitter + receiver), 354g (receiver)

Features:

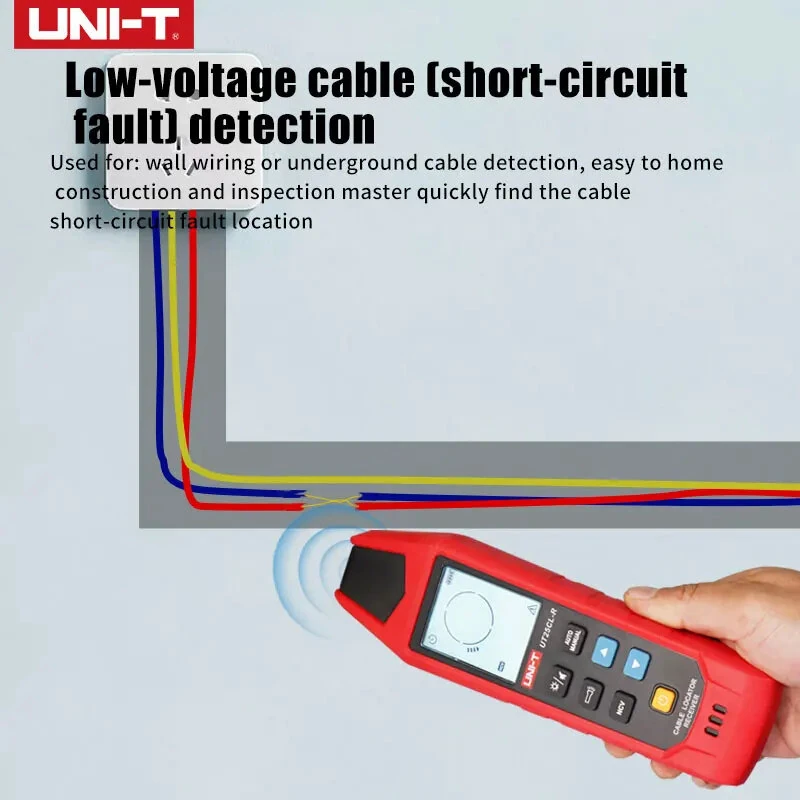

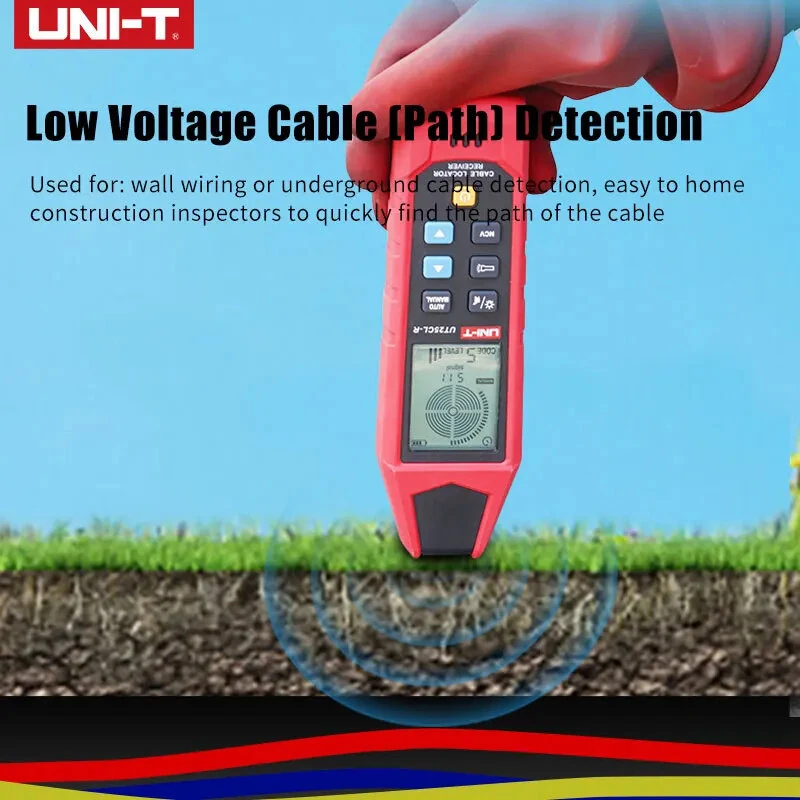

Accurate Test: Utilizes a 33KHz output signal frequency for precise underground cable path tracing and voltage recognition ranging from 8V to 480V.

Enhanced Safety: Equipped with a CAT III 480V overvoltage rating and 480V DC/AC maximum dielectric strength for safe operation in high-voltage environments.

User-friendly Design: Features an LCD display with backlight, automatic power-off function, and manual sensitivity adjustment for ease of use in various settings.

Versatile Testing: Supports unipolar and bipolar testing under power up to 480V, as well as line find mode with positioning depths of 0-2.5m for flexible application.

Comprehensive Accessories: Comes with test probes, dual inline test cables, alligator clips, an auxiliary grounding nail, and both Chinese and English manuals for complete setup and operation.

Package Included:

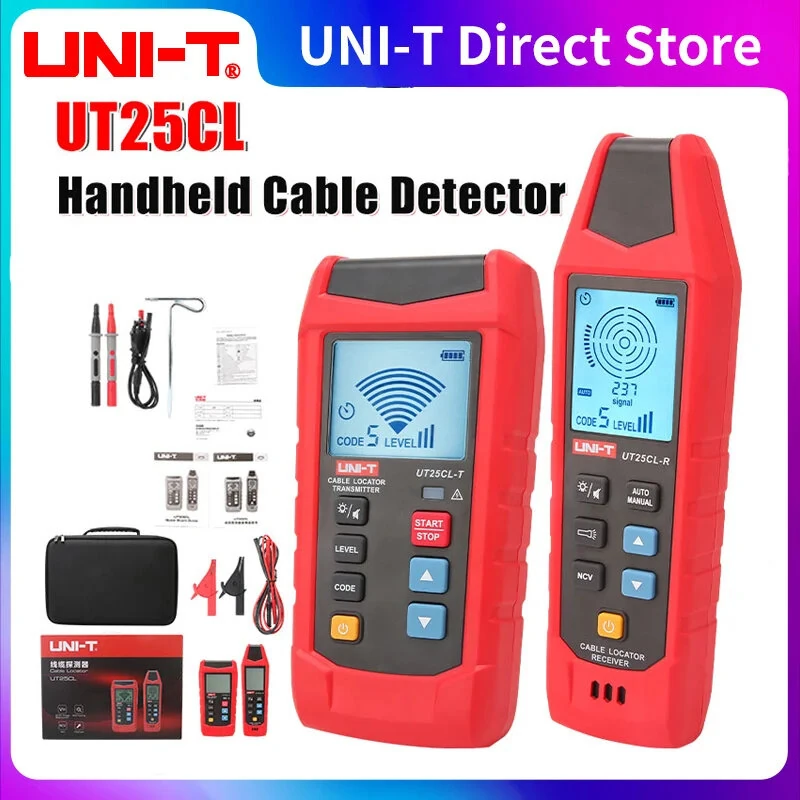

1 x UT25CL-T transmitter
1 x UT25CL-R receiver
6 x 1.5V AAA Batteries
6 x 1.5V AA Batteries
2 x Test Probes (Red + Black)
2 x Dual Inline Test Cables (Red + Black)
2 x Alligator Clips (Red + Black)
1 x European Plug Cable
1 x Auxiliary Grounding Nail
1 x Chinese Safety Manual
1 x English Safety Manual
