Product Description
Description: TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on. It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc.??Please note that this is basic version which doesn't have TDR/OPM/VFL/ Tone Tracker function Features: Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2. Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance). Supports Modem emulation and simulating login to Internet. Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test). Supports all multi-protocol, PPPoE. Connects to CO via alligator clip or RJ11. Rechargeable Li-ion Battery. Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL). Data memory fuction. LCD display, Menu operation. Auto shut off if no any operation on keyboard. Compliant with all known DSLAMs. Software management. Simple, portable and money-saved.

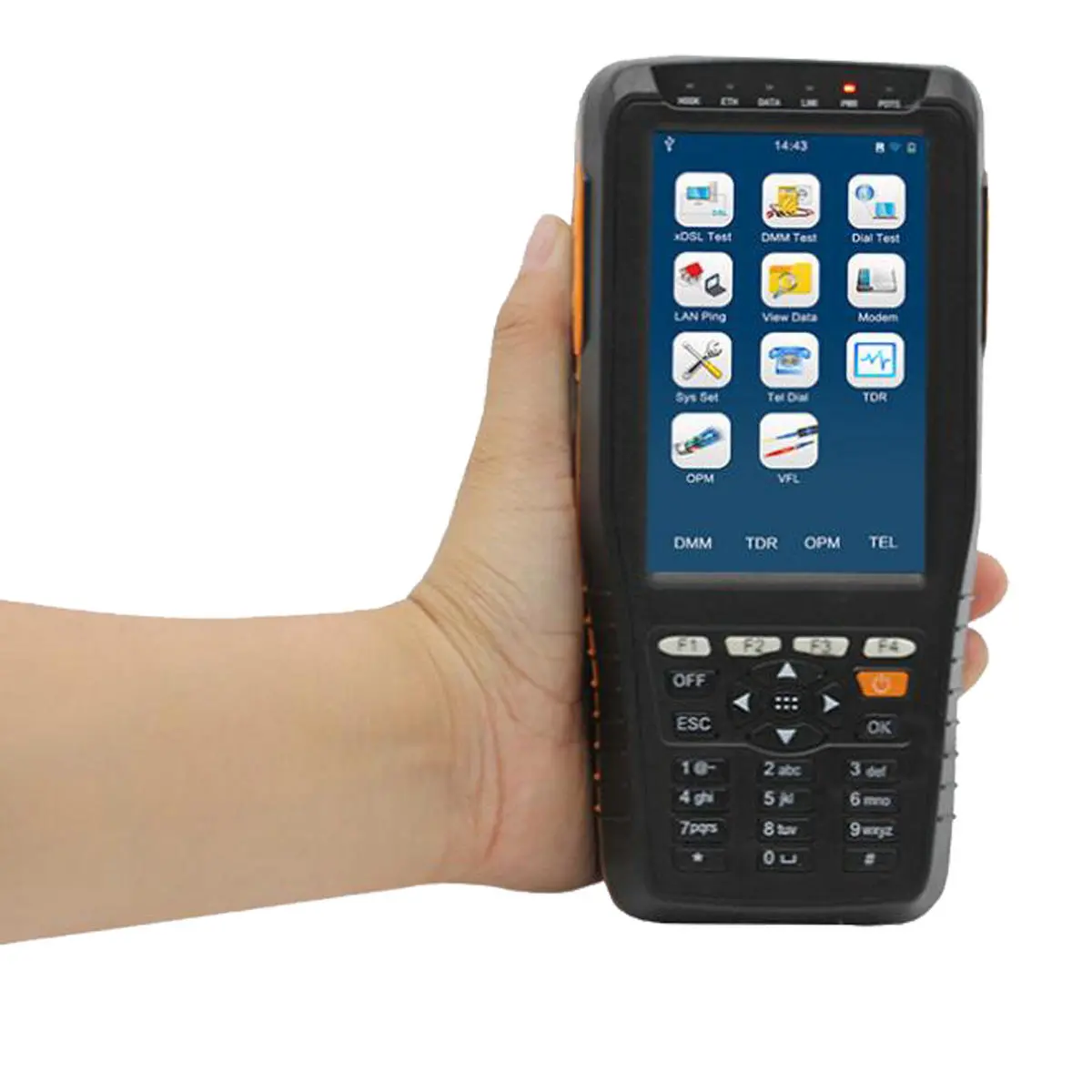

Main Functions: DSL Physical layer test . Modem Emulation (Replace the user Modem completely). PPPoE Dialing (RFC1683,RFC2684,RFC2516). Telephone Function. DMM Test. Ping Function (WAN & LAN). Data upload to computer and software management. Setup system parameter: backlight time, shut off automatically time without operation, press tone. Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on. Check dangerous voltage.
Specifications:
Name: VDSL VDSL2 tester Power Supply: Internal Rechargeable 7200mAH Li-ion battery Battery Duration:4 to 5 hours Working temperature :10-40??C Working moisture :5%-90% Size:170mm ?? 70mm ?? 52mm
ADSL2+ Standards: ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs),ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L, Up channel rate: 0~1.2Mbps Down channel rate: 0~24Mbps Up/Down attenuation : 0~63.5dB Up/Down noise margin: 0~32dB Output power: Available Error test: CRC, FEC, HEC, NCD, LOS Display DSL connect mode: Available Display channel bit map: Available
ADSL Standards: ITU G.992.1 (G.dmt), ITU G.992.2(G.lite), ITU G.994.1(G.hs), ANSI T1.413 Issue # 2 Up channel rate: 0~1Mbps Down channel rate: 0~8Mbps Up/Down attenuation : 0~63.5dB Up/Down noise margin: 0~32dB Output power : Available Error test: LCD, OCD, HEC, FEC, CRC Display DSL connect mode: Available Display channel bit map: Available
VDSL2 Be compatible with ADSL2+, ADSL standard. DSL line attenuation, DSL line noise margin, DSL line up/down channel speed (Inter/Fast mode), DSL line up/down maximum rate, DMT sub channel bit number: 0~15, and each sub channel frequency points DSL line error number (CRC, HEC, FEC, LCD, OCD) DSL line local output power DSLAM information Error Code Second Impulse Noise Protection (INP) Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
Package Included:

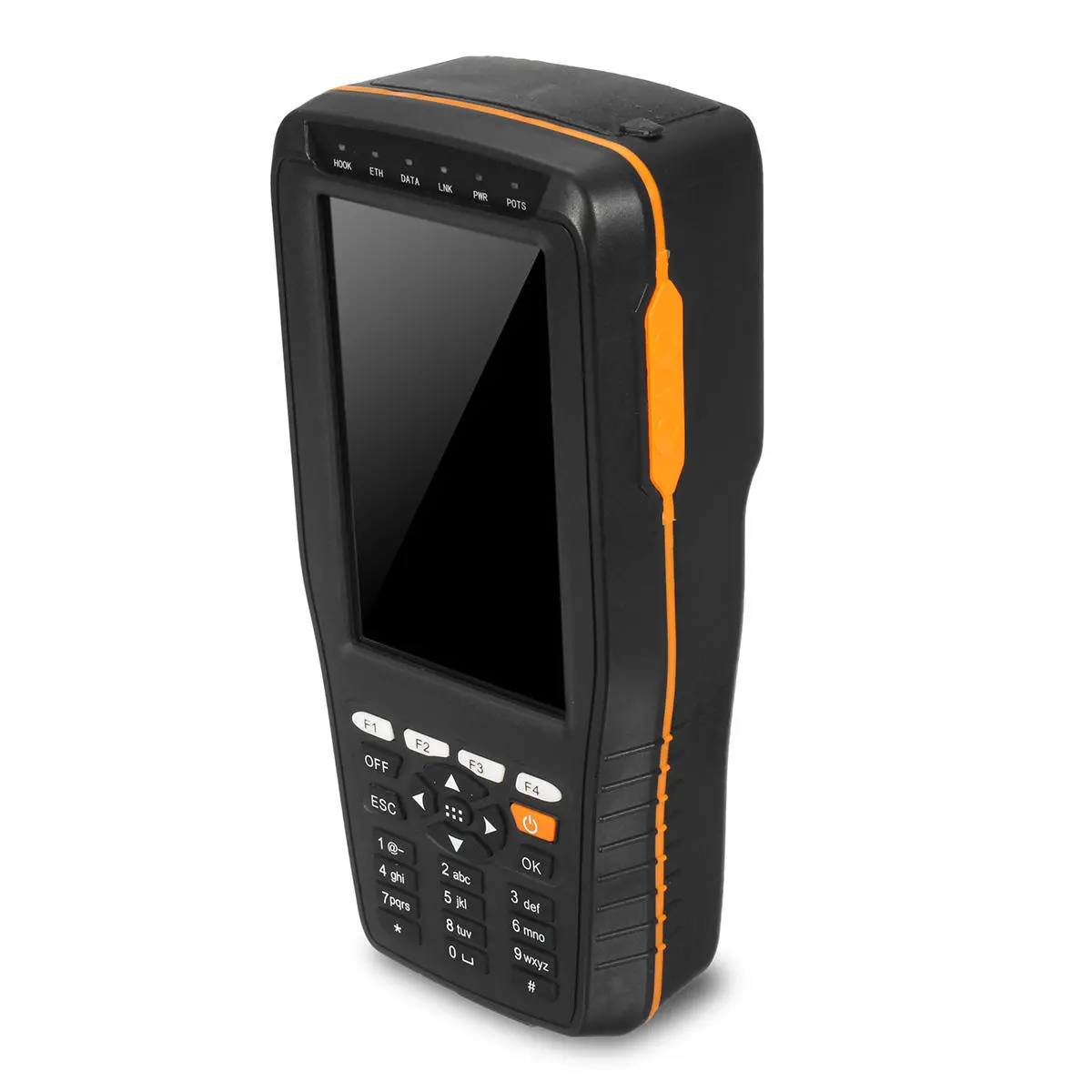

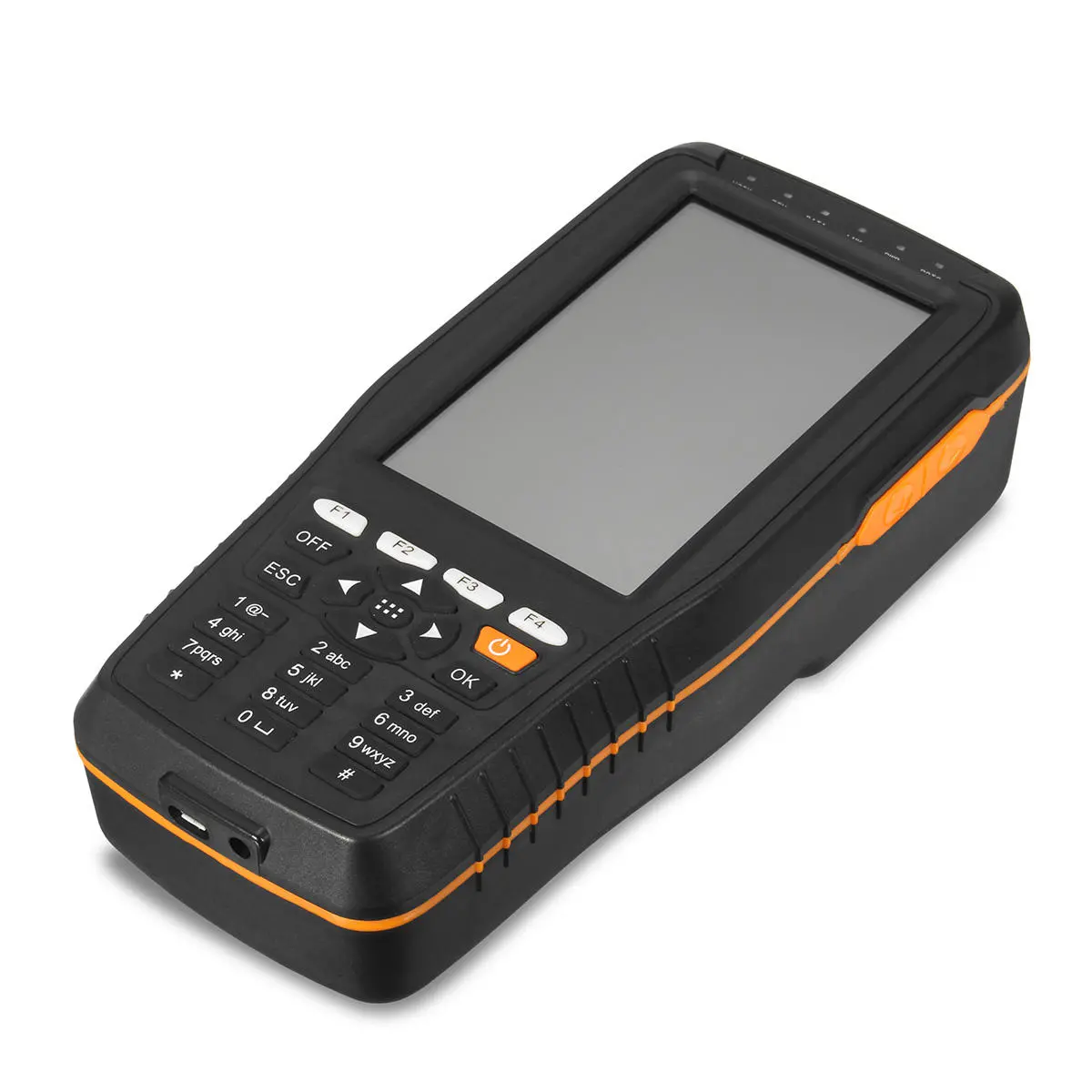

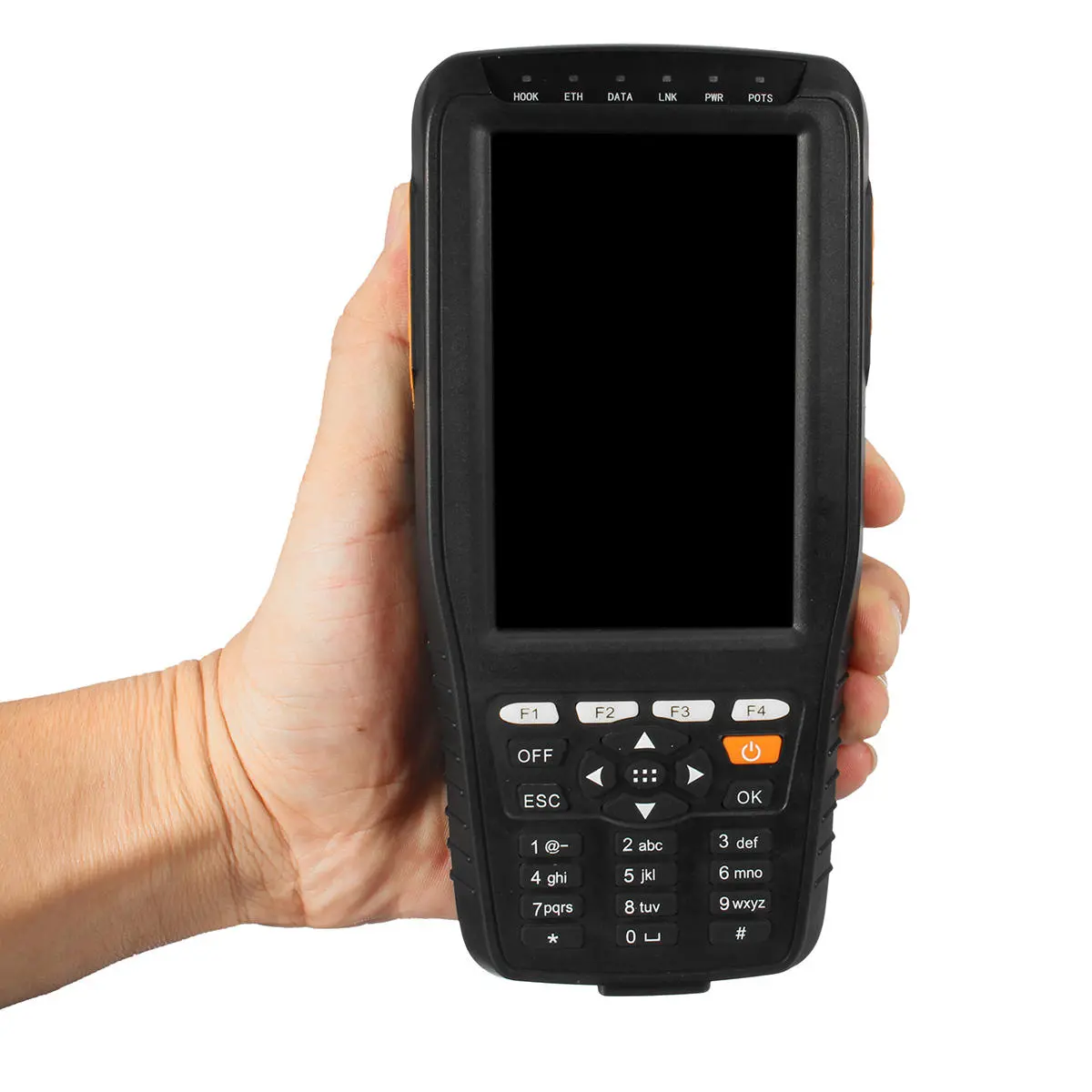

1 x TM-600 VDSL VDSL2 Tester
1 x Full Set Accessories(Shown as Pictures)
Detail Pictures:
