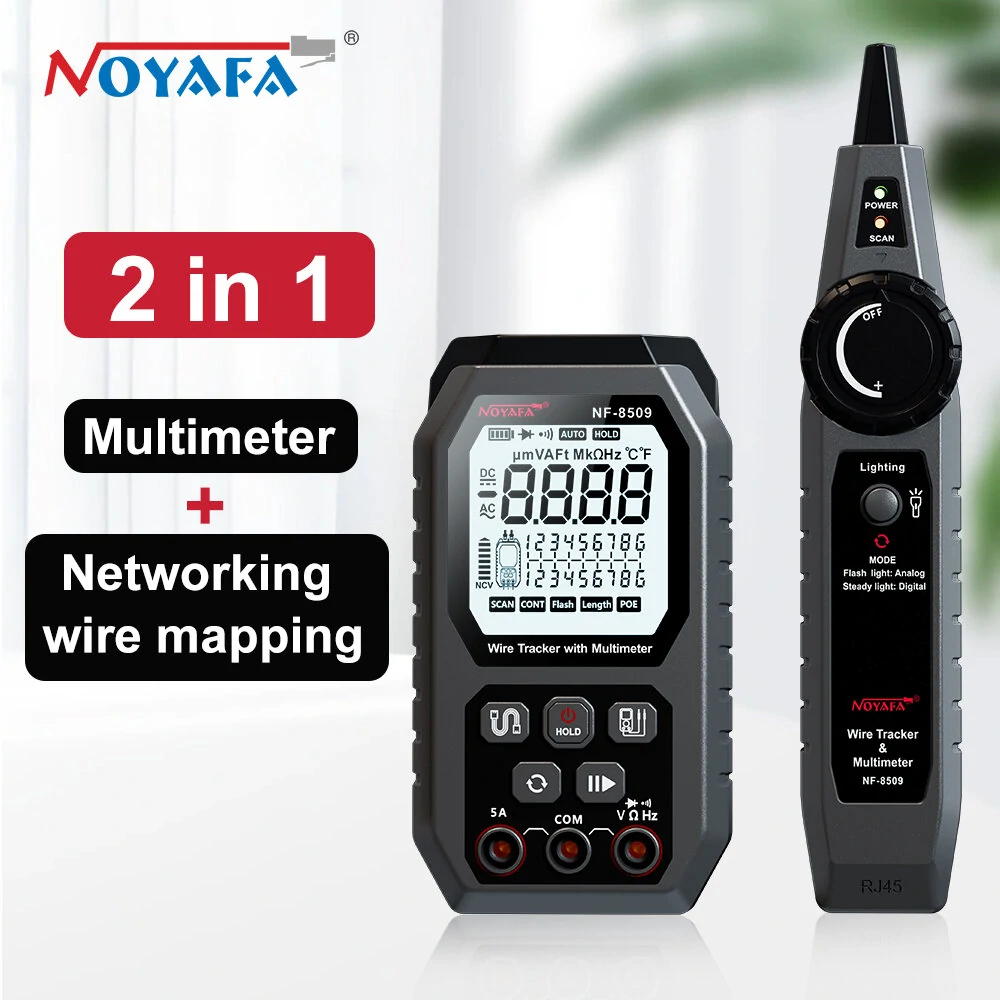

NOYAFA NF-8509 2-in-1 Network Cable Tester | Wiremap POE Length NCV | Multimeter

Product Description

Specifications:

Model:NF-8509

Transmitter Wire mapping test Max.distance of 2.000m

Wire scanning RJ45 600m

Wire length test 5-200m(??3m)

Port flashing test 10M/100M/1,000M

POE4-core/8-core power supply detection

POE voltage detection

Continuity test Detect The connectivity performance of ofwires andvariousconductorsThebuzzer will sound when resistance is below 50??

Identify the polarity and forward voltage dropofdiodes(0-3.3V)

NCV function Inductive voltage detector(0-4 levels)

Resistance measurement :600??-60M??(accuracy:??1.0%+5)

AC/DCvoltage measurement :600mV-610V(DCaccuracy:??0.5%+3 ACaccuracy:+0.5%+3)

measurement:1mA-3ADC(accuracy:??0.8%+3)

Frequency:0-10MHz(accuracy:??1.0%+3)

Power:3.7V/1,500mAlithium battery

Ambient

temperature display ??

Dimensions 137.5x76x34mm

ReceiverL ED light ??

Telephone function ??

Power DC 9V(exclusive)

Maximum

working current?Q150mA

Dimensions204.9x38x29mm

Function:

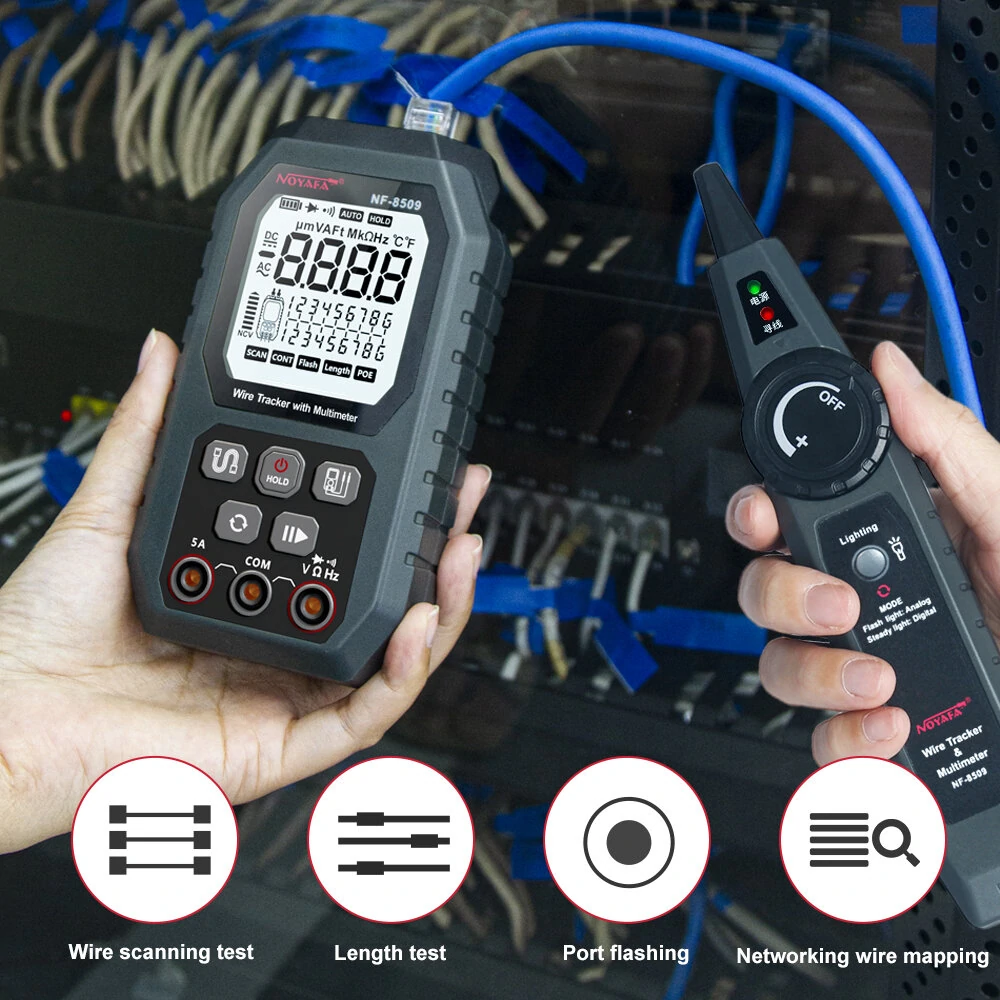

1. Network cable testing functions:Cable length test,wire continuity test,wire scan test,POE Test and prot flash

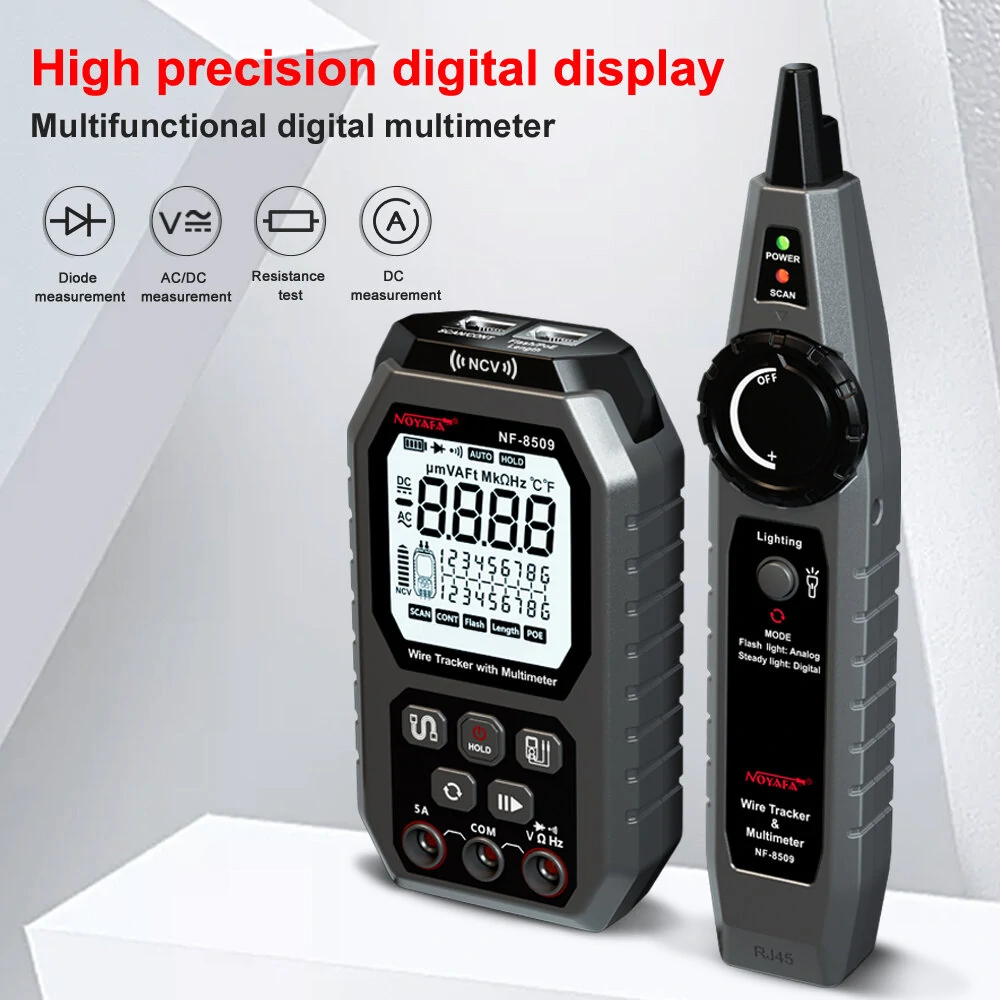

2. Digital Multimeter Functions:Ac/Dc Voltage Test,Continuity Test,Diode Test,Temperature Test,Ncv Test,Resistance Test,Ac/Dc Current Test

Note:Wire Scan is enabled by default after turn on the device

Package Included:

1 x Emitter

1 x Receiver

2 x Multimeter pen

1 x Carry bag

1 x Type-c USB

1 x Earphone

1 x Cable adaptors

1 x User manual
