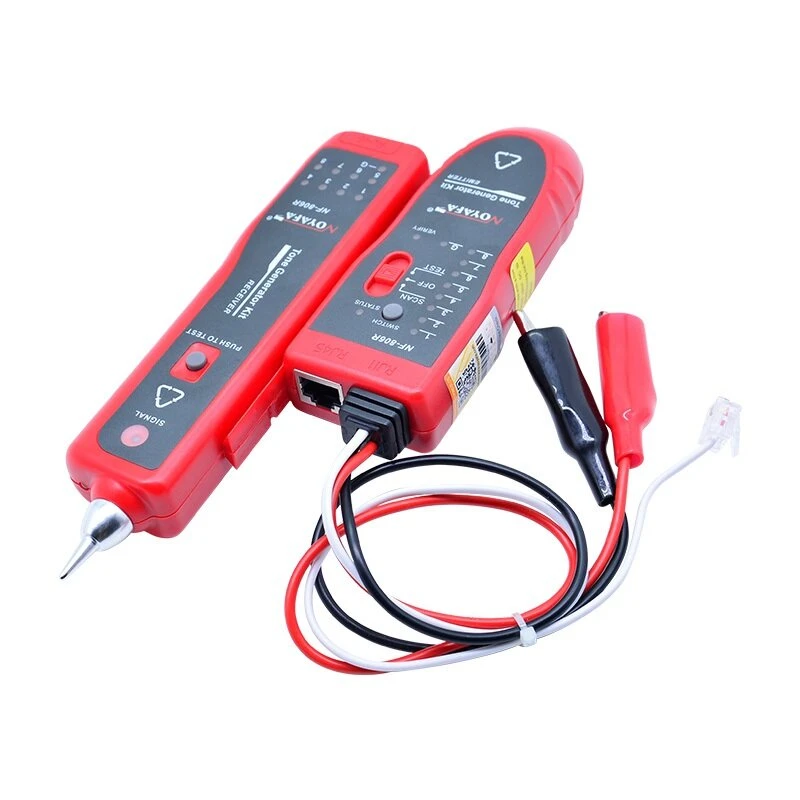

NOYAFA NF-806R Network Cable Tester - Fault Locator for UTP STP RJ45 RJ11 with Alligator Clip
$55.00
$67.18
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features: 1. Check and find the needed cables among so many cables in one time. 2. Continuity test for Lan cables,such as breakage, open, short, cross.. 3. Visible indication: pin-to-pin cable map for individual cable (not by pairs). 4. Transmitter with RJ11 connector and pair of alligator clips. 5. Low Voltage alarm function. 6. Used on single conductors, twisted pairs, telephone cable and ed-energized electrical wiring7. Earphone permits use in noisy environments. 8. LED light assists use in dark corners.Specifications:
| Transmitter | |||
| Tone frequency | 1KHz | ||
| Max. distance of transmission | Up to 2 kilometers | ||
| Max. working current | Less than 10mA | ||
| Volume Regulate Function | Audio volume level control | ||
| Tone mode | 2 Tones, adjustable | ||
| Compatible connectors | RJ45, cable clip with RJ11 connector | ||
| Max. signal voltage | 8Vp-p | ||
| LED lights display | Wiremap, tone, tracing | ||
| Battery Type | DC9.0V??NEDA 1604/6F22) x 1pc | ||
| Dimensions (LxWxD) | 15 x 3.7 x 2cm | ||
| Receiver | |||
| Frequency | 1KHz | ||
| The Max. working current | Less than 30mA | ||
| Earphone jack | 1 | ||
| Battery Type | DC9.0V??NEDA 1604/6F22) x1pc | ||
| Dimensions (LxWxD) | 12.2 x 4.5 x 2.3cm | ||

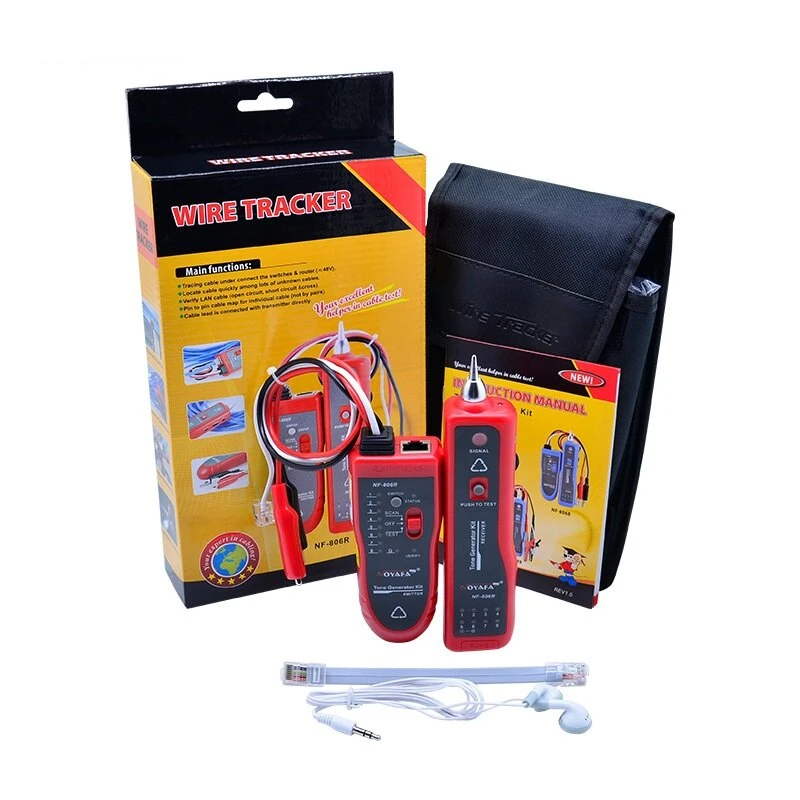

Package includes:
Transmitter * 1(Battery not included)Receiver * 1 (Battery not included)Cable clips * 1set
Telephone cable adaptor * 1set
Network cable adaptor * 1 set
Earphone * 1 set
User manual * 1 set
Carry case * 1set
Gift box * 1 set

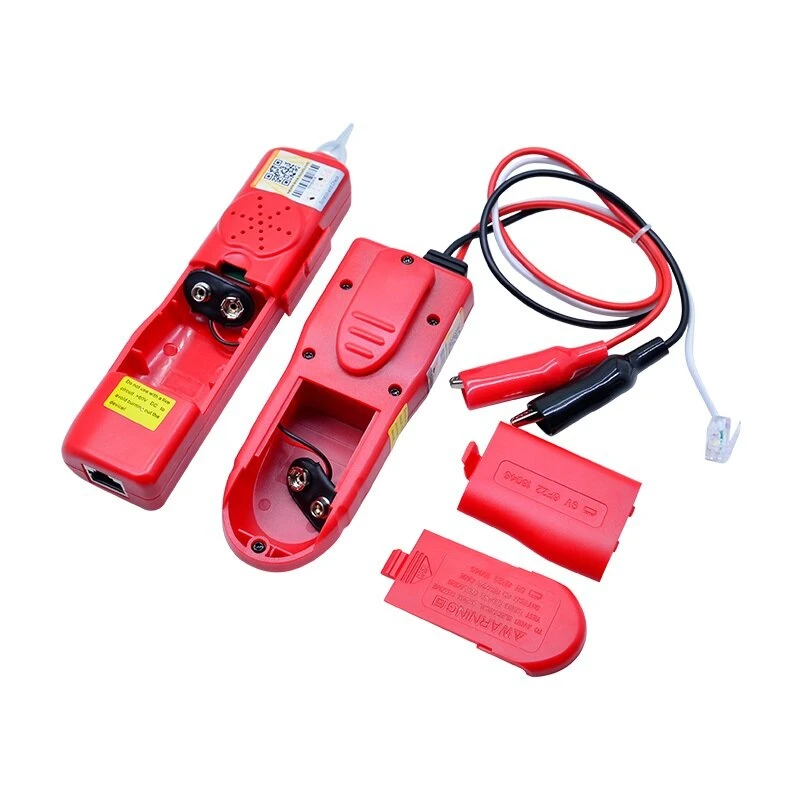

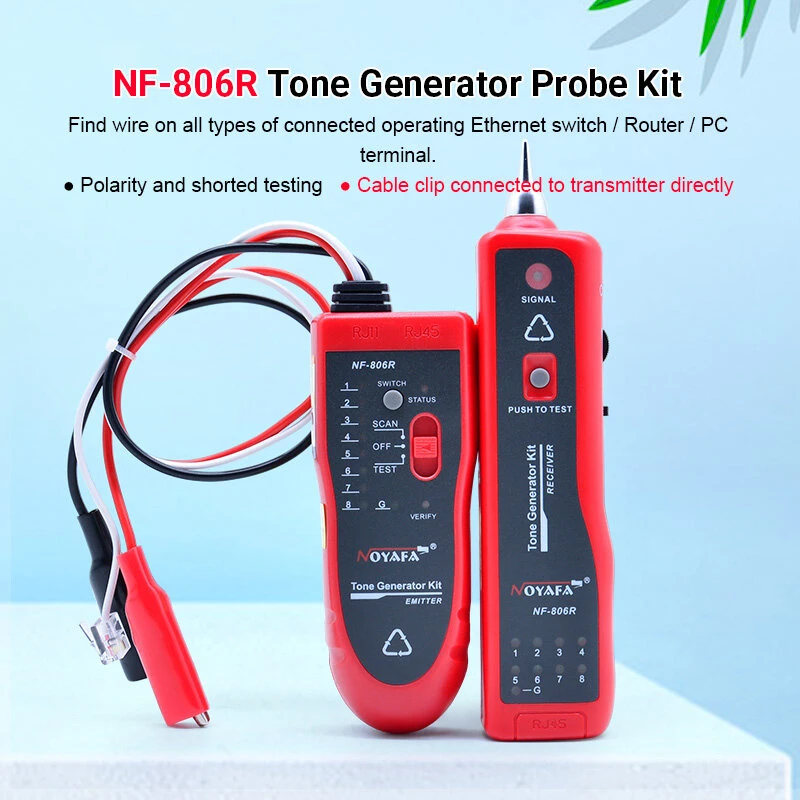

Details picture:
