NanoVNA V2 Antenna Analyzer - 3G Vector Network Analyzer with 4 Inch Touch Screen

Product Description

Description

This 3G Vector Network Analyzer with 4.0 inch touching screen and the measurement frequency ranges is 50KHz~3GHz, if you need it, come and have a try, it will not let you down.

Features:

Made of fine quality material, practical, has a long service time, you do not need to change it .

Portable and compact, easy to operate and carry, also easy to storage.

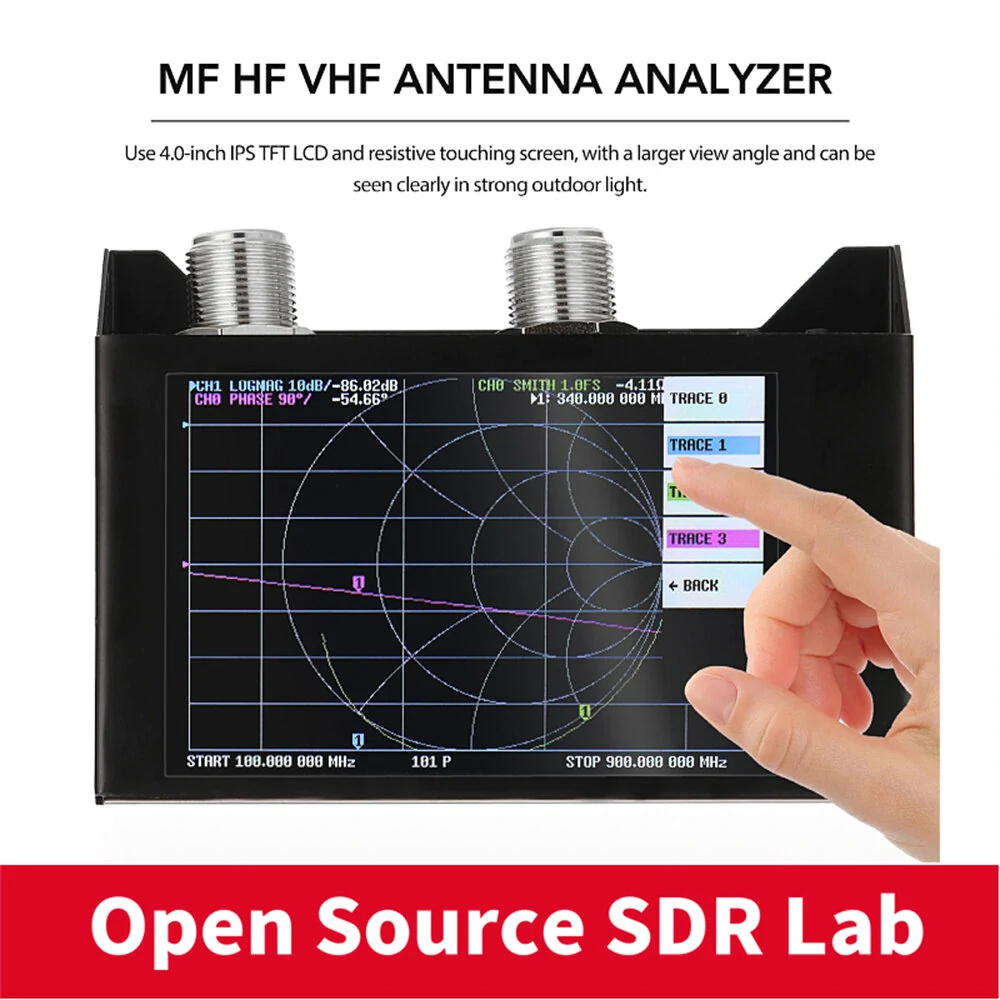

4.0 inch TFT LCD touching screen display. let you see the data more clearly.

Measurement frequency ranges is 50KHz~3GHz, has a wide applications.

High stability, high sensitivity and high accuracy, greatly improved performance.

EVA storage bag is convenient for storage and carrying.

Specifications:

Main material: PCB+iron

Color: black

Battery: 1 * lithium battery, 3000mAh (included)

Measurement frequency range: 50KHz-3GHz

Frequency tolerance: ??2ppm

Frequency stability: ??0.5ppm

System dynamic ranges (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)

S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)

Sweeping rate: 100 points / second

Display: 4.0 inch, 320 * 480

USB interface: Micro USB

Power supply: USB, maximum recharging current 1A

Battery connector: JST-XH 2.54mm

Maximum sweeping points (on device): 201

Maximum sweeping points (USB): 1024

Port 2 return loss (1.5GHz): 20dB typ

Port 2 return loss (3GHz): 13dB MIN

Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in

Item weight: 368g / 13.0ounce

Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in

Package weight: 972g / 2.1lb

Note:

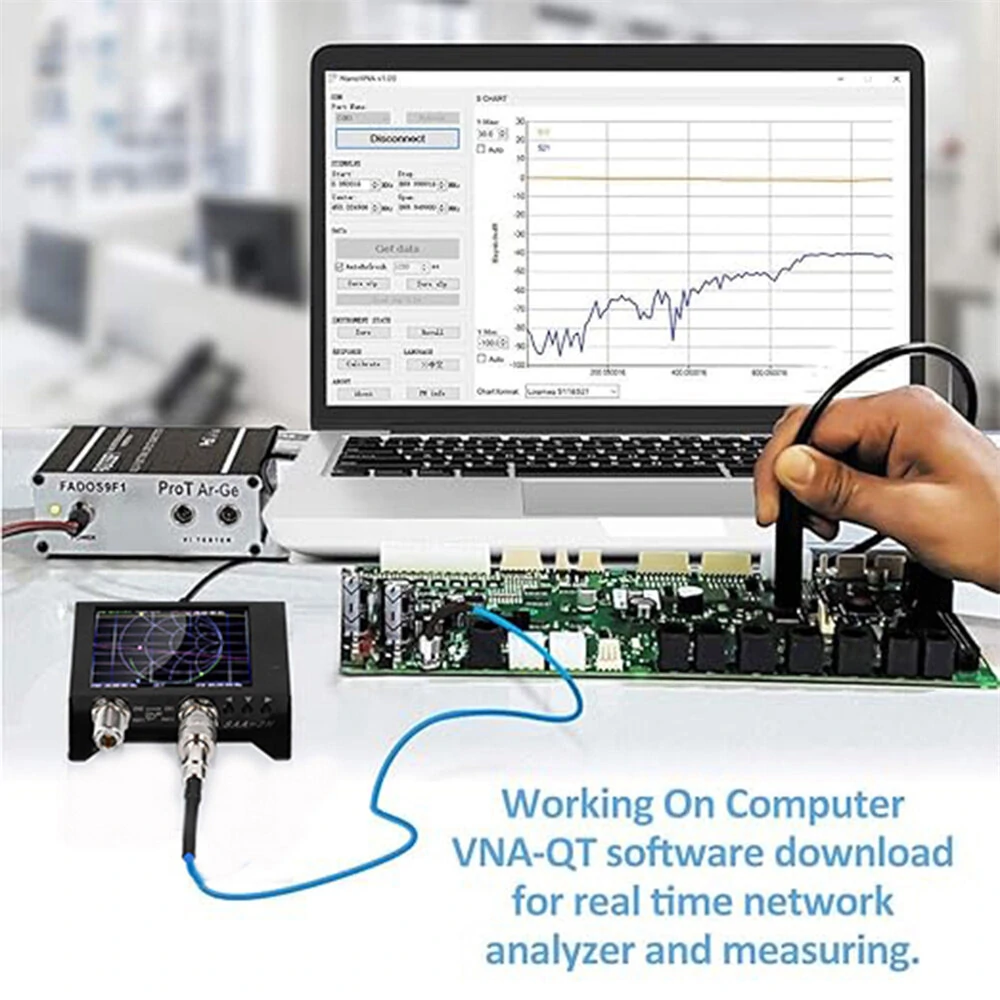

VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases

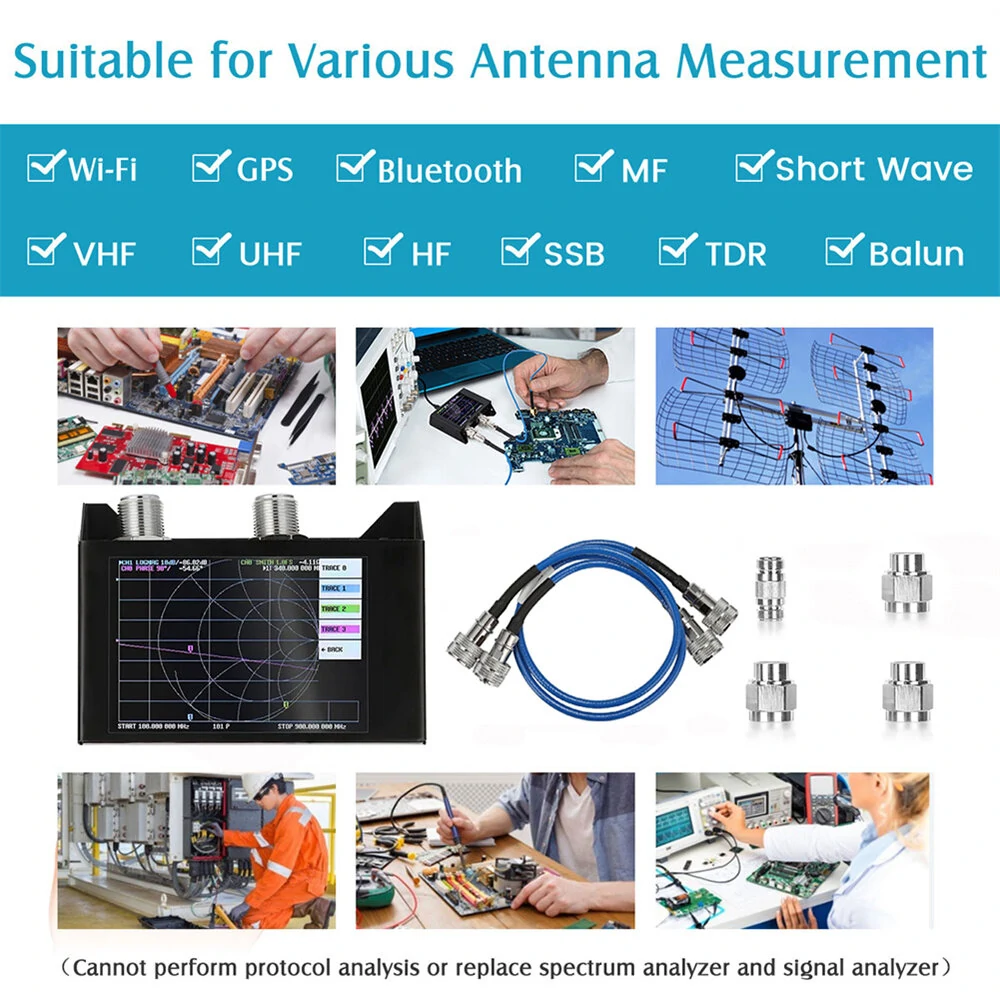

Packing included:

1 x SAA-2N Host

1 x Micro USB Data Cable

2 x 500mm N-type Male to Male RG142-PUR RF Cable

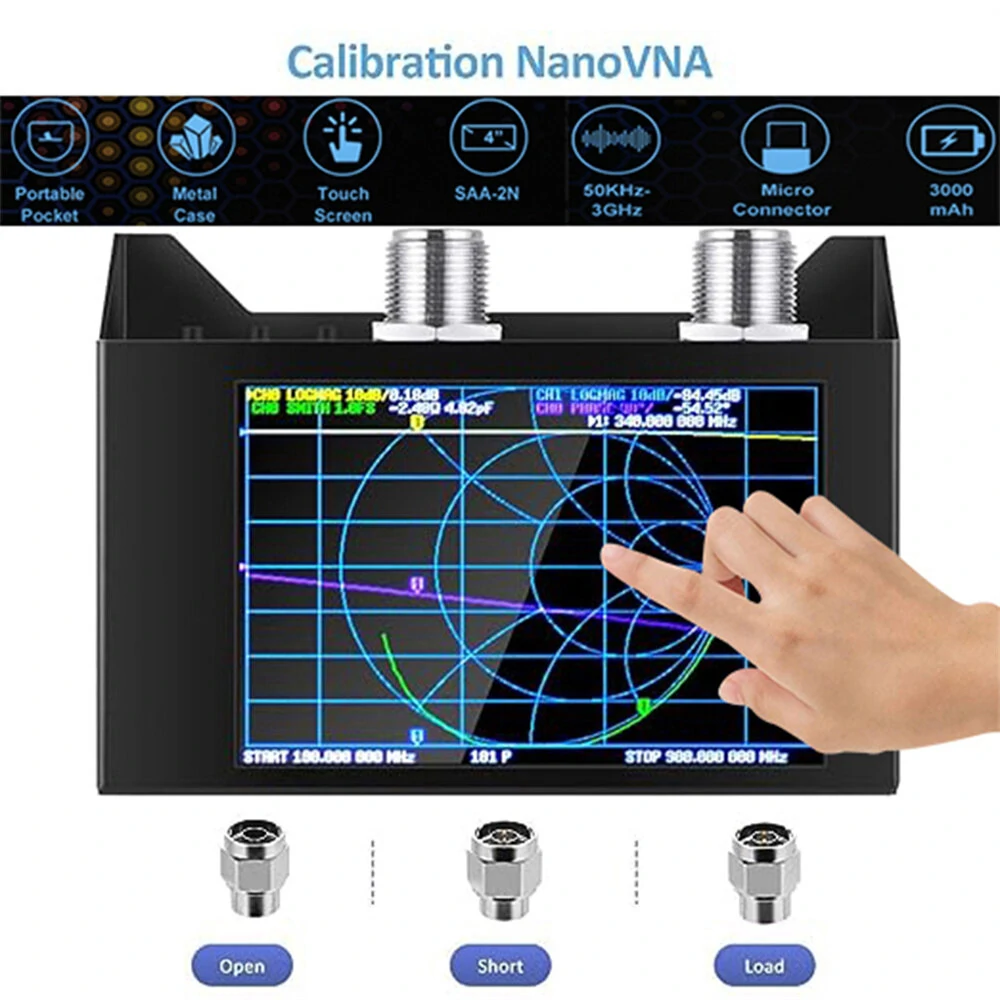

1 x N-type Male Calibration Kit-OPEN

1 x N-type Male Calibration Kit-SHORT

1 x N-type Male Calibration Kit-LOAD

1 x N-type Female to Female Connector

1 x EVA Storage Bag

1 x Touching Screen Paddle and Lanyard
