IPC 9310S Wifi Touchscreen Video Surveillance Tester - 5-in-1 CCTV Tester with HDMI Output
$278.00
$342.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:
1. Switch between horizontal and vertical screens to browse images. The images are bigger, clearer and more intuitive.2. Capacitive touch + button + virtual mouse, multiple optional operations3. Support 4K H265 / H264 / MPEG4 main stream video live broadcast4. IP detection speed version, faster, more accurate, full network segment IP blind test, intelligent recognition of the completion of camera startup5. One-click video output image in seconds, faster and more compatible6. Extreme speed ONVIF can modify camera IP, image parameters, code stream, resolution7. ONVIF server, can be used as a network ONVIF camera, can be used to test the recorder.8. Support one-click batch activation of Hikvision Dahua cameras, batch IP modification, and channel name modification.9. Can run IPC mobile phone or tablet mobile client software10. Support camera private protocol customization11. Built-in wireless WIFI function, can test wireless network camera, can update software by networking12. All videos can be taken, recorded, and played back13. CVBS analog video image display, PTZ PTZ control, image zoom, camera, video, playback14. 12V 3A high current DC power output15. Support PoE switch voltage detection16. Support standard PoE power supply, comply with IEEE802.3at (25.5W) standard17. Support network cable to line test, test network cable continuity and line order18. Support network cable TDR breakpoint quality detection, can detect network cable attenuation, impedance, reflectivity and delay offset19. Support coaxial HD AHD / TVI / CVI, maximum support 8M, support coaxial video control to call camera menu20. Support lens simulation function21. Support focus detection, image quality detection, for camera focus debugging
Specifications:
Product Model IPC9310S HD Video Surveillance TesterTouch screen 4 inch G + G structure capacitive screenLCD screen 4 inch resolution 800 ?? 480 IPS HD full viewing angleEthernet port 10 / 100M / 1000M adaptiveWIFI built-in wireless WIFI, speed 150MH.265 main stream test new hard decoding, support H.265 main stream playback camera image, support resolution 4KIP camera test ONVIF (supports PTZ operation of PTZ), mainstream IPC tool customization for mainstream brands, private protocol for playing images, support for almost all brand cameras in the marketCVBS analog monitoring test 1 CVBS analog input, support PAL / NTSC system adaptiveLens simulation simulates "2.8 / 3.6 / 4/6/8/12/16 / 25mm" lens screen display areaFocus information test camera focus information, image quality detectionIP detection IP address of the entire network segment IP detection cameraHikvision SADP tool Hikvision camera batch activation, batch IP modification, user name, password can be modifiedDahua testing tools Dahua camera batch activation, batch IP modification, IP modification across network segments, user name and password modificationTVI4.0 video signal test 1 TVI IN BNC input, support resolution 720p25 / 30/50 / 60fps 1080p25 / 30fps2048 ?? 1536/18/25 / 30fps 2688 ?? 1520 / 15fps 2560 ?? 1944 / 12.5 / 20fps2592 ?? 1944 / 12.5 / 20fps 3840 ?? 2160 / 15fpsCVI4.0 video signal test 1 CVI IN BNC input, support resolution 720p25 / 30/50 / 60fps 1080p25 / 30fps2560 ?? 1440/25 / 30fpsAHD4.0 video signal test 1 AHD IN BNC input, support resolution 720p25 / 30/50 / 60fps 1080p25 / 30fps2048 ?? 1536/18/25 / 30fps 2688 ?? 1520 / 15fps 2560 ?? 1944 / 12.5 / 20fps2592 ?? 1944 / 12.5 / 20fpsPoE power output 48V PoE power output, maximum power 25.5WTake photos, record videos, and play back all video images. Take photos and record videos. Support H264 encoding storagePoE / PSE voltage test shows the display range of power supply voltage and line connectionTDR quality test of network cable Test parameters such as status, length, attenuation, quality, impedance, delay deviation of network cableUTP network cable test Tests the connection order and continuity of any two lines with the Internet cablePTZ control supports over 30 protocols including Pelco-D / P, etc.DC 12V power output 12V DC output, the maximum current is 3A, which is the temporary power supply for the cameraRS485 serial tool can accept, send arbitrary data or hex dataCharger DC 12V / 2ABuilt-in 7.4V polymer lithium battery, 3000mAh capacity, can be used for 8-10 hoursSimplified Chinese, Traditional Chinese, EnglishInternal SD storage space 8GWorking temperature -10 ??-+ 50 ??Working humidity 30%-90%230mm ?? 103mm ?? 38mmWeight: 0.5kg
Package included:
1 x Instrument host1 x Charging power DC12V 2A1 x Polymer lithium battery (7.4V 3200mAh) (Built-in)1 x BNC connection1 x RS485 connection1 x Power output conversion line1 x Lanyard1 x Toolkit
Precautions:?? When using this instrument, please observe the local rules for electrical use, and avoid using it in places where electrical appliances are not allowed, such as hospitals and gas stations.?? When using this instrument, please use the original accessories to avoid product damage caused by the use of non-certified accessories.?? The accessories attached to this instrument are only suitable for the use of its own equipment, please do not use it for other purposes, so as to avoid unexpected accidents.?? Do not expose this product to rain or moisture, as it may cause performance degradation or damage.?? Do not expose the exposed part of the instrument to dust or liquid.?? Do not bump or shake the device violently during transportation and use, otherwise the components will be damaged and the product will not work properly.?? Please do not leave when charging the device. If you find that the battery is very hot, please cut off the power immediately, and the charging time should not exceed 10 hours.?? Do not plug in any interface of the instrument while it is powered on.?? Do not use in places with high humidity. If the device gets wet, disconnect the power and other cables immediately.?? Do not use in environments containing flammable gases.?? Do not disassemble the instrument or repair the instrument parts by yourself. If disassembly is required, please contact our technicians.?? Do not use in strong electromagnetic interference environment.?? Do not touch the instrument with wet hands or wet objects.?? Do not use detergent, please use a dry cloth to wipe off the dirt. If the dirt is difficult to remove, you can moisten a soft cloth with water or neutral detergent, wipe it thoroughly after wringing.

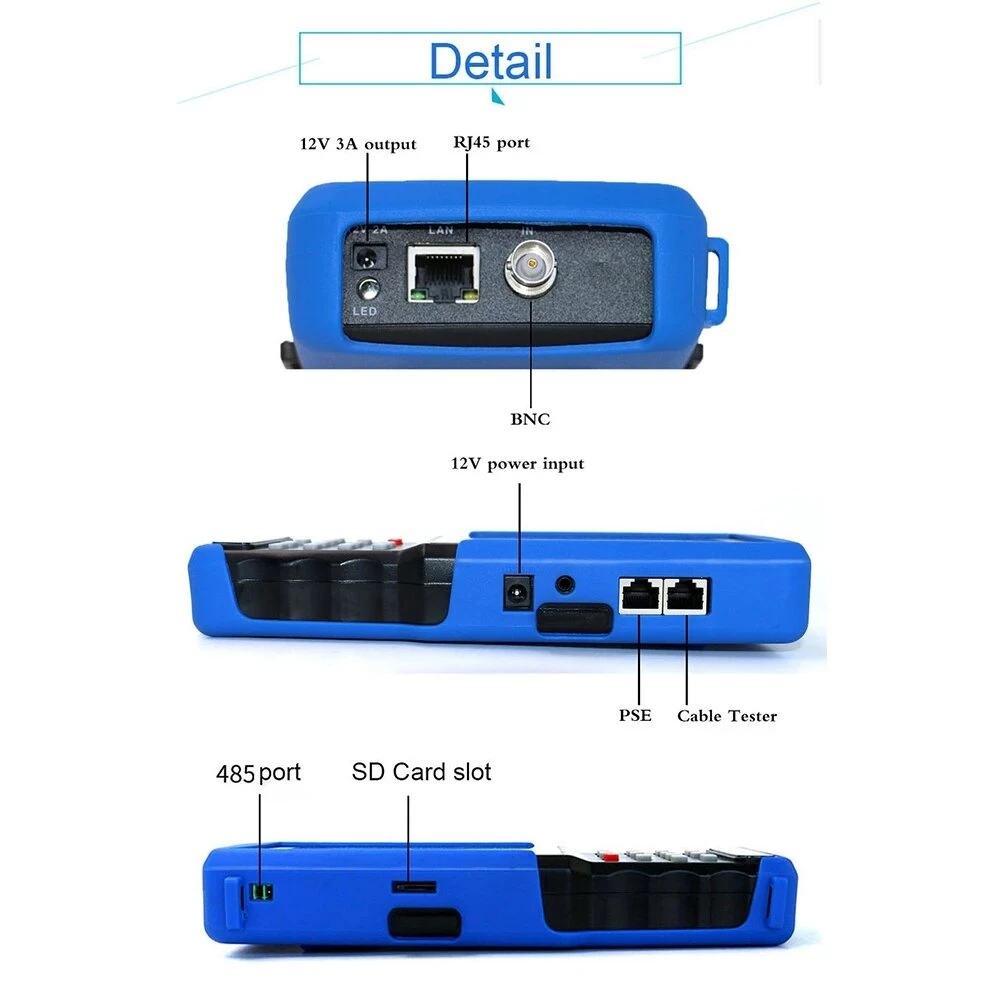

Details picture:
