ANENG M469D Network Cable Tester - RJ45 RJ11 RJ12 CAT5 UTP LAN Pairing Tool
$21.00
$25.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
?Feature:

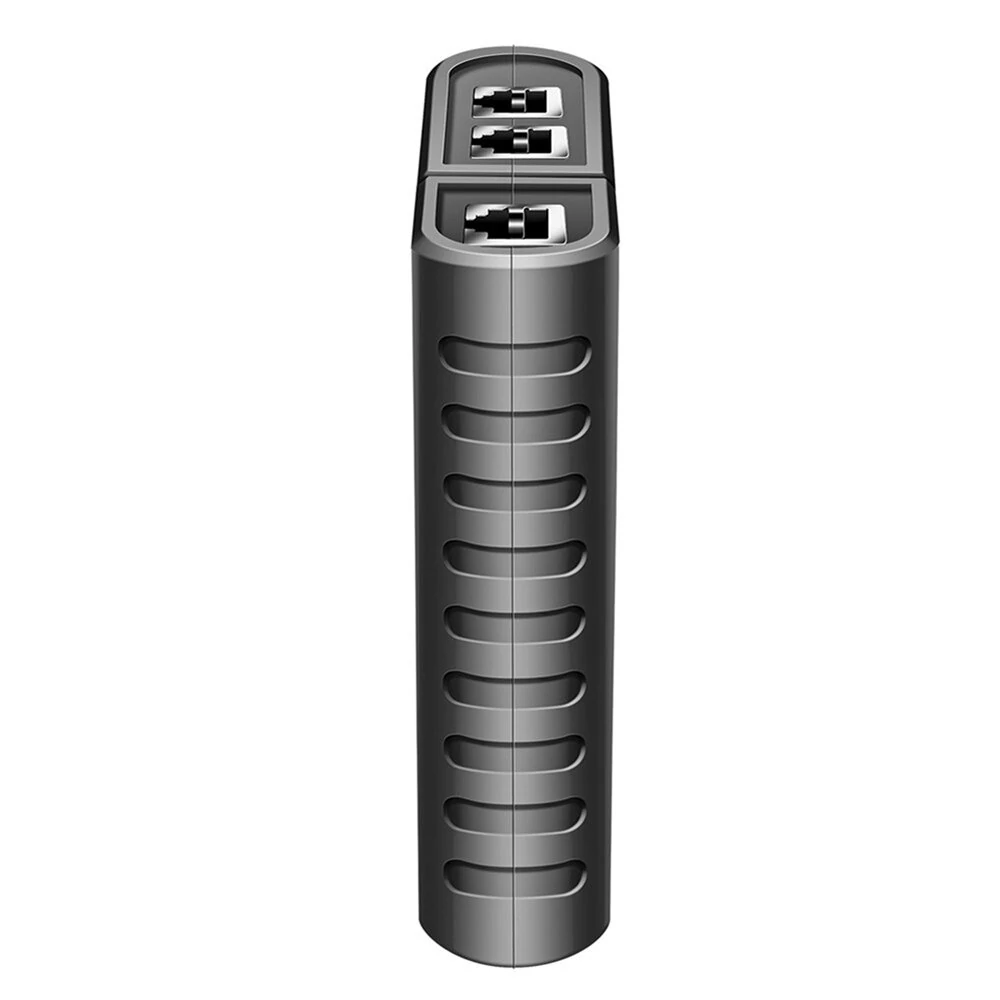

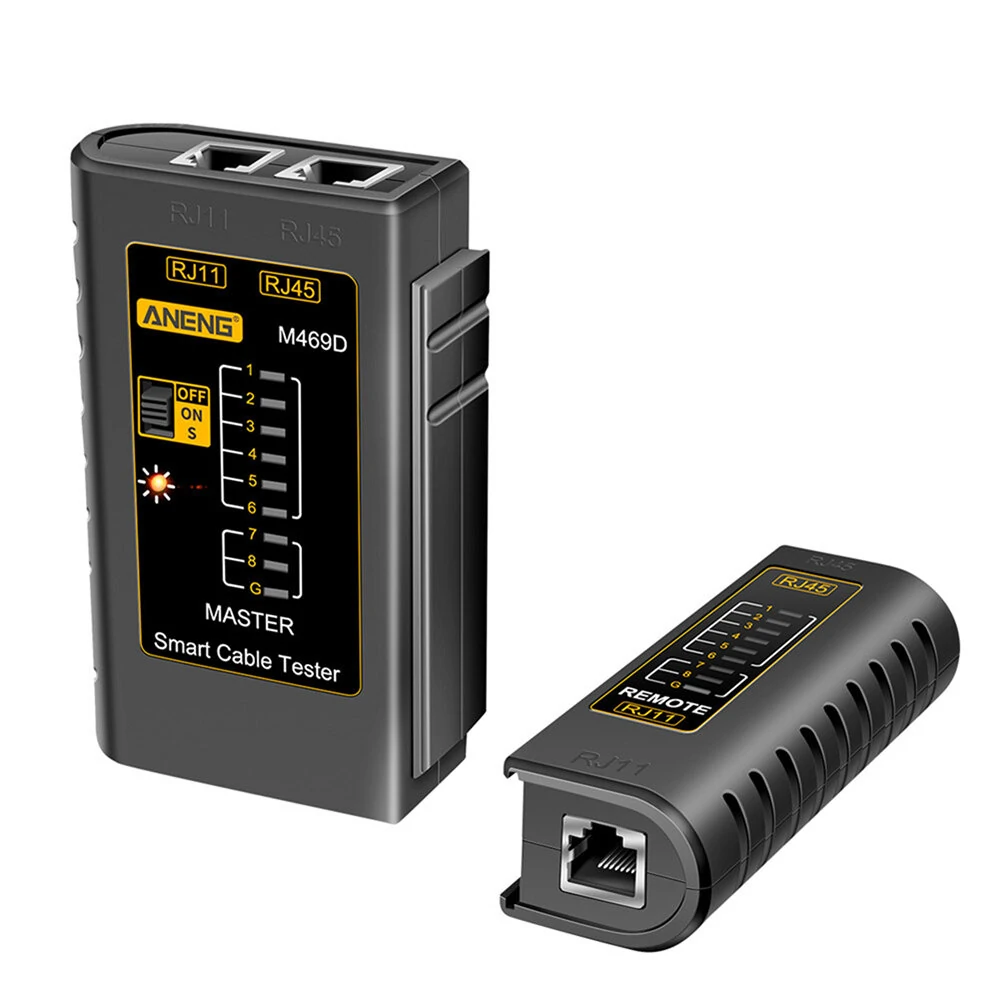

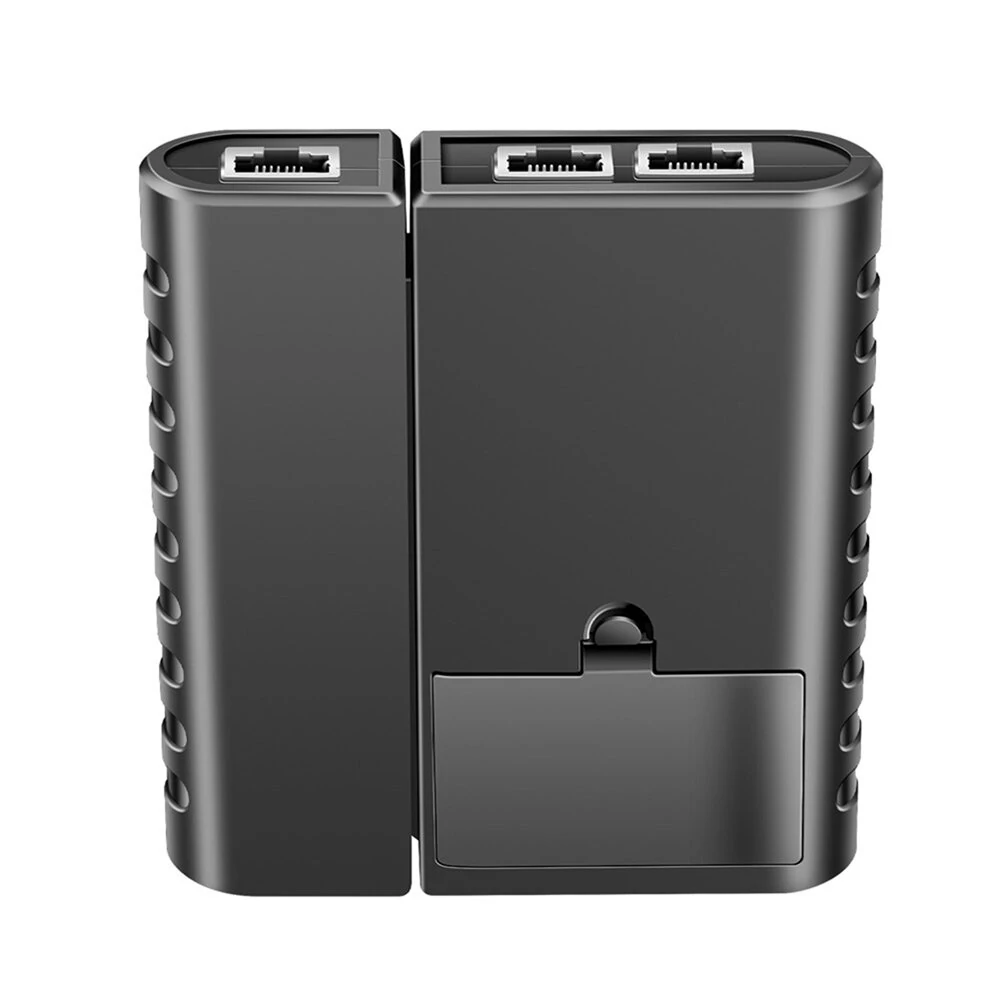

?? Network Cable Pairing Instrument:Be suitable for checking on/ off state of the line, shielded network cable testing, and long-distance testing.?? Removable Split Structure:Easy to separate or combine the 2 parts for meeting various needs, easy to operate.?? Free Choice of Two Speeds: The default boot is a constant speed test, and the fast S gear can be adjusted manually.?? Crystal Head On-Off Test: It can test 2-core, 4-core, 6-chip telephone lines; testing different cores, the corresponding lights are on.?? Widely Applicability:Applicable to RJ11, RJ45, telephone lines, router, optical modem, etc., widely used in network communication maintenance, wiring network engineering monitoring line maintenance.
Specifications:
| Brand | ANENG |
| Model | M469D |
| Product Type | Network Cable Tester |
| Color | Black |
| Material | ABS Resin |
| Interface Port | 2* RJ45 + 1* RJ11 |
| Power Supply | 2 x 9V 6F22 Battery (not included) |
| Size (L*W*H) | 97 x 27 x 103mm |
| Weight | 98g |

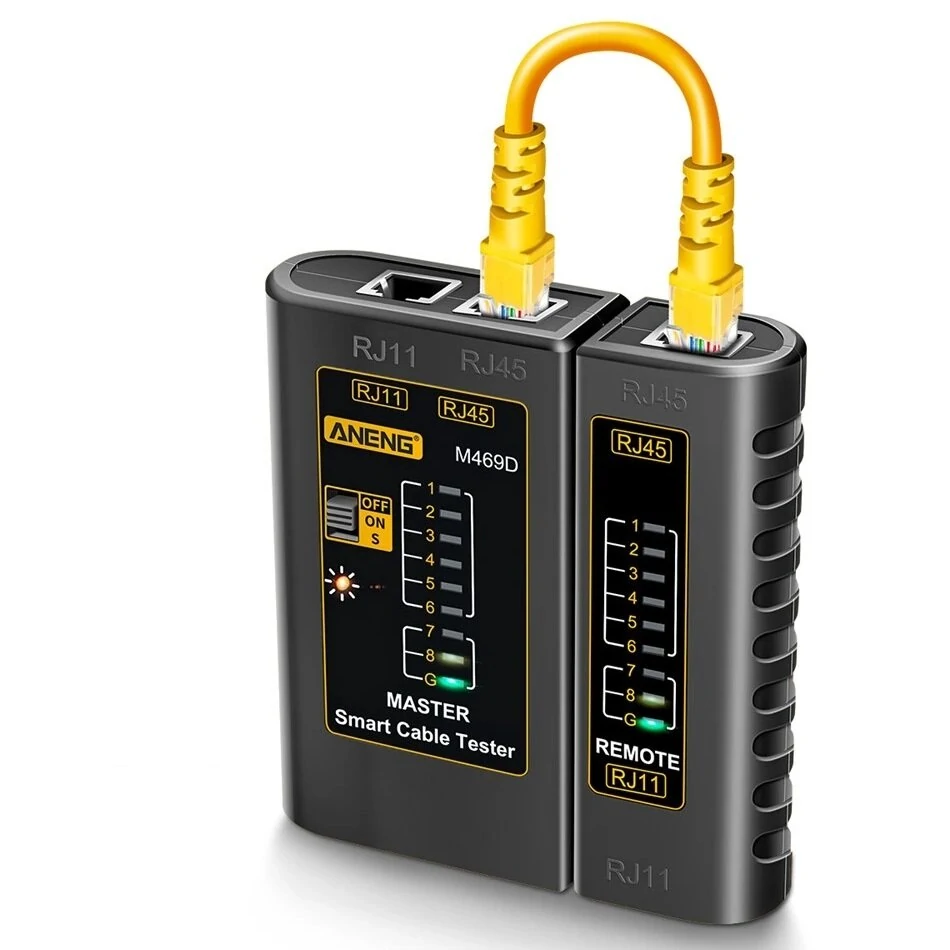

Double Twist Cable Test:Turn on the power. (S is slow auto grade, My Manuals.) Place the cables in the main tester and in the remote tester. The lights of the main tester will turn on continuously from 1 to G.Main tester: 1-2-3-4-5-6-7-8-GRemote tester: 1-2-3-4-5-6-7-8-G RJ45 1-2-3-4-5-6 RJ11
The Following are Abnormal Connections:1. If a cable, for example, the NO.3 cable is in open circuit, the two NO.3 lights of the main tester and the remote tester will not turn on.
2. If several wires are not connected, several lights will not turn on respectively. If fewer than two wires are connected, neither light is on.3. If two ends of a cable are cluttered, for example, NO.2 and NO.4, then displayed in:Main tester: 1-2-3-4-5-6-7-8-GRemote tester: 1-4-3-5-6-7-8-G4. If two cables are short-circuited, none of the corresponding lights are on in the remote tester while the main tester does not change. If there are three cables short-circuited, none of the corresponding cables are turned on.5. If you test patch panels or wall plate panels, two cables that can be combined with each other (RJ45) will be connected to the tester.If you test cables from the same axes, BNC turns on when the cable works.
Note: The 9V reduplicated battery is used in this tester. It is advised that the battery changed if there is any weak light appears. (Battery is not included)
Package Included:
1 x ANENG M469D Network Cable Tester1 x User Manual
