ANCEL PB500 Automotive Diagnostic Tool - Circuit Tester, 7 Test Modes, Dual Display

Product Description

Features:

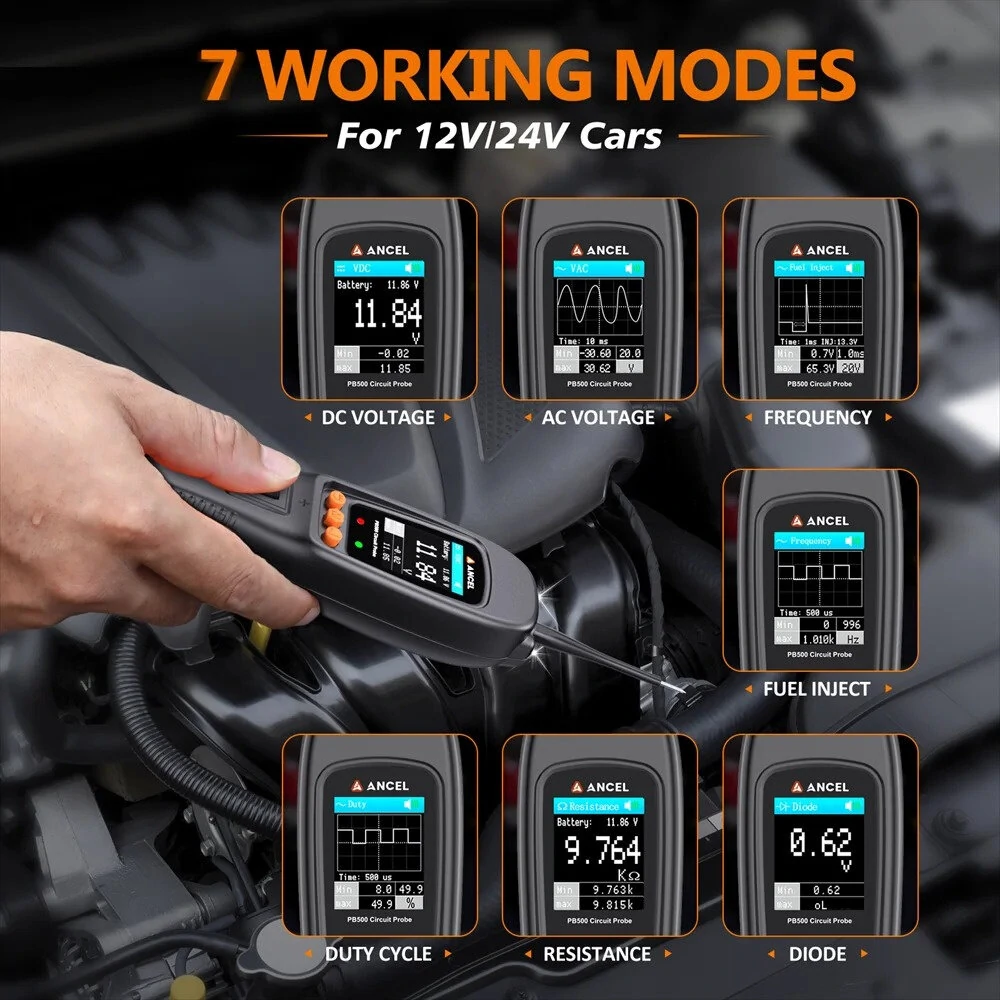

Multi-Functional: The ANCEL PB500 Circuit Tester is capable of performing 7 tests which include DC Voltage, AC Voltage, Frequency, Duty Cycle, Fuel Injection Circuit Detection, Resistance, and Diode.

Dual Display Mode: Users can easily switch between the Waveform display mode and the Digital Display mode in four of the test modes.

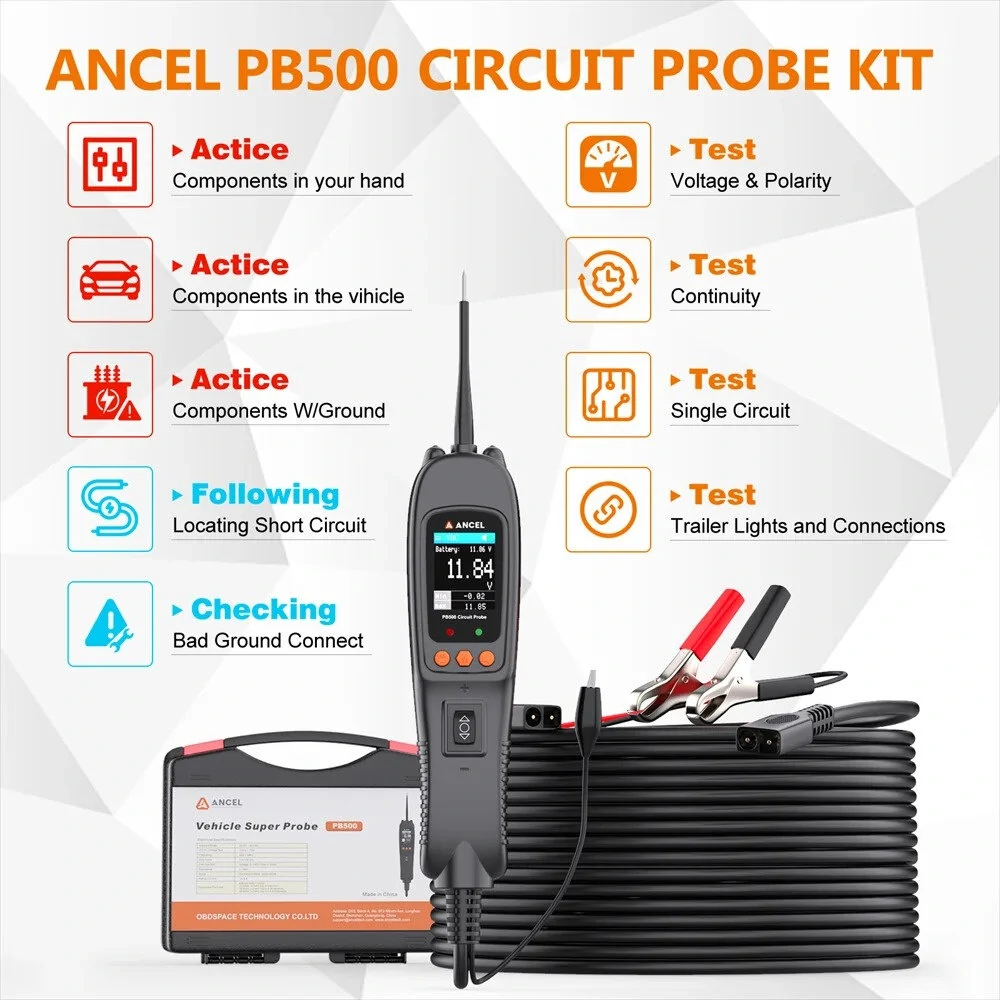

User-Friendly: The circuit tester quickly diagnoses 12-24V automotive electrical systems, showing battery voltage readings and aiding to establish circuit polarity instantly.

Advanced Testing Capabilities: The device assists users in tracking and pinpointing short circuits without utilizing external fuses, and tests bad ground contacts instantly.

Safe and Protected: The device is short-circuit protected with an internal circuit breaker that trips when overloaded to shield the instrument, while still allowing other functions of the tool to remain active.

Specifications:

Supply Voltage: 8V DC to 30V DC

DC/AC Voltage Test: -110V to 110V

Frequency: 0Hz to 1Mhz

Duty Cycle: 0.0~100.0%

Fuel Injection Voltage: 0~180V, Time: 0~25ms

Resistance: 0~1M?

Diode: Germanium diode, silicon diode

Rating Current: 1A to 8 A

Operating Temperature: -10 to +60??

Storage Temperature: -20 to +70??

Dimensions (LWH): 200mm52mm39mm

Net Weight: 1.2Kg

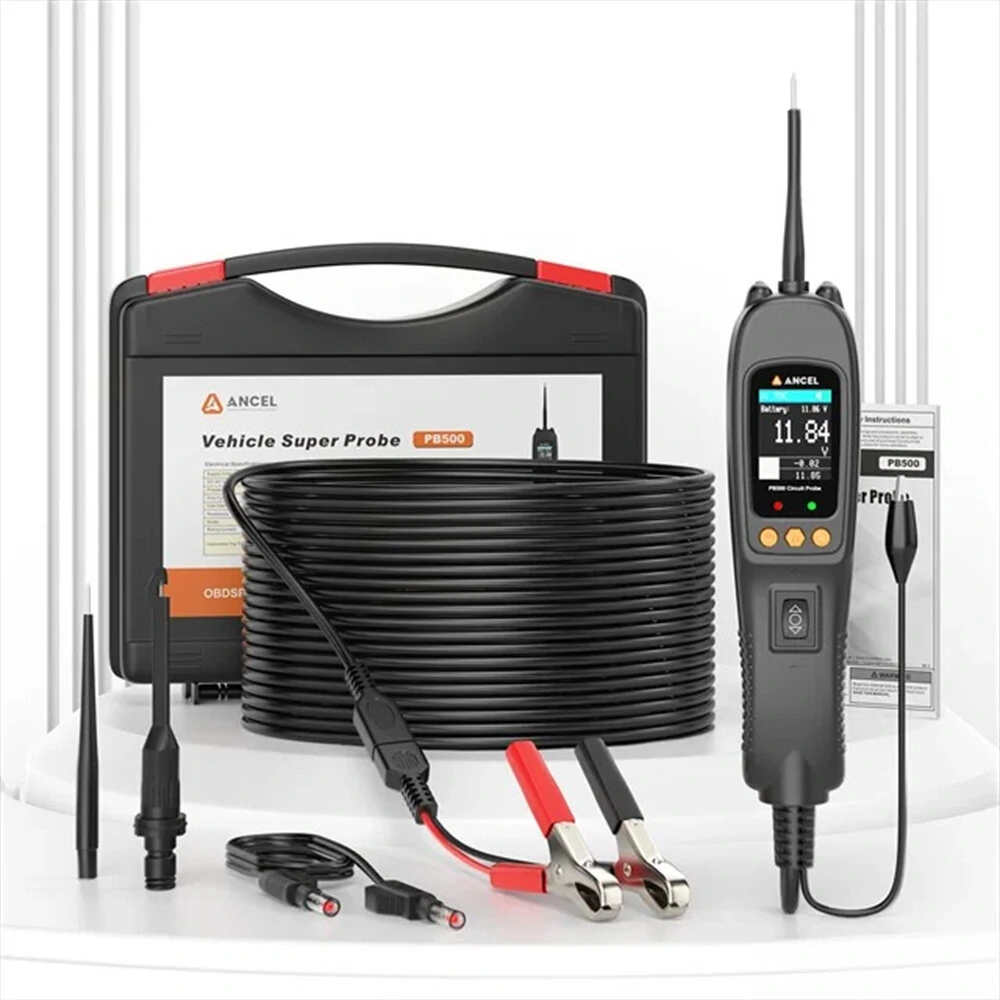

Package Included:

1 x Vehicle Super Probe

1 x Probe Tip

1 x Crochet Hook

1 x Crochet Hook Extension Cable

1 x Battery Clamp Cable

1 x User??s Manual

1 x Rugged Blow Molded Case
