UYIGAO UA5169 Digital Paint Thickness Gauge | Handheld Car Meter 0-1300um Fe/NF Probe
$173.00
$212.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Easy to operate, quickly measure the thickness of the plated and coated sheet on metal.The symbol Fe indicates magnetic substrate and NF indicates non-magnetic substrate with automatic detecting the metal properties.With ??m/mil measuring units switchable and V-Grooves on probe for small cylindrical parts.2 calibration modes: zero calibration and multi-points calibration.With two measuring mode: CON(continuous) and SNG(single) measurement mode.Built-in precision sensor probe, and uses principles of electro-magnetic induction and the backset current effect, which automatically detects the attribute of substrates.Widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.Large LCD display, easy for you to read the results clearly.Portable design, light in weight, small and fitted size for your palm.
Specification:
Model: UA5169Brand Name: UYIGAO Color: Grey Material: ABS PlasticSensor Probe Type: Fe / NFWorking Principle: Magnetic Induction(Fe) / Backset Current(NF)Range: 0~1300um, 0~51.2milUnits: ??m, milAccuracy: ??(3%+2??m), ??(3%+0.08mil)Resolution: 0.1??m, 0.01milCalibration Points: ZERO/50??m/100??m/250??m/500??m/1000??mMinimum Curvature Range(Half the diameter) of Convex Side: 1.5mm Minimum Curvature Range(Half the diameter) Concave: 25mmMinimum Measuring Area: Diameter 6mmMinimum Thickness of Substrate: 0.5mm(0.02") (Fe) / 0.3mm(0.012") (NF)Operation Temperature: 0~40??(32~104??)Working Humidity: 20%~90%RHPower Supply: 1 * 9V 6F22 Battery(NOT Included)Item Size: 130 * 65 * 32mmItem Weight: 100 / 3.53oz
Package includes:
1 * Coating Thickness Gauge (Battery not included)1 * Iron Substrate1 * Aluminum Substrate1 * Protective Carrying Bag5 * Thickness Calibration Foil1 * User Manual

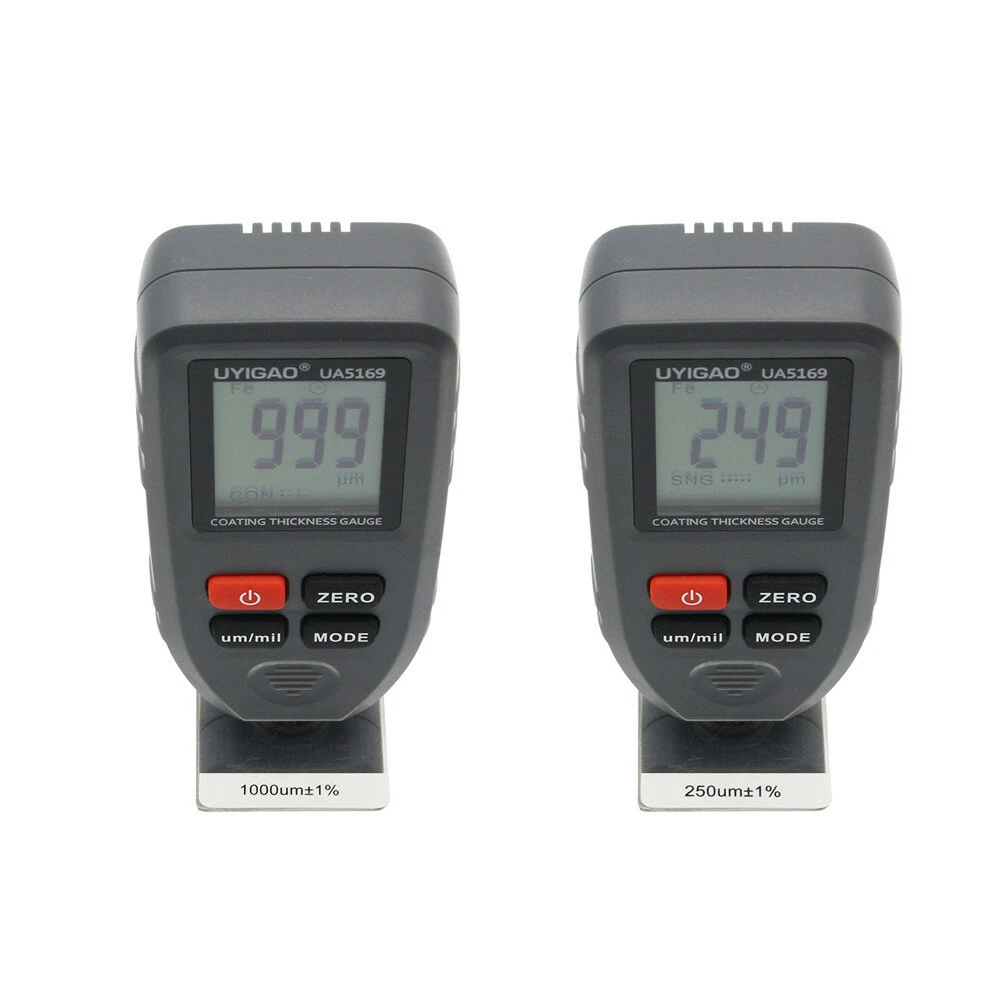

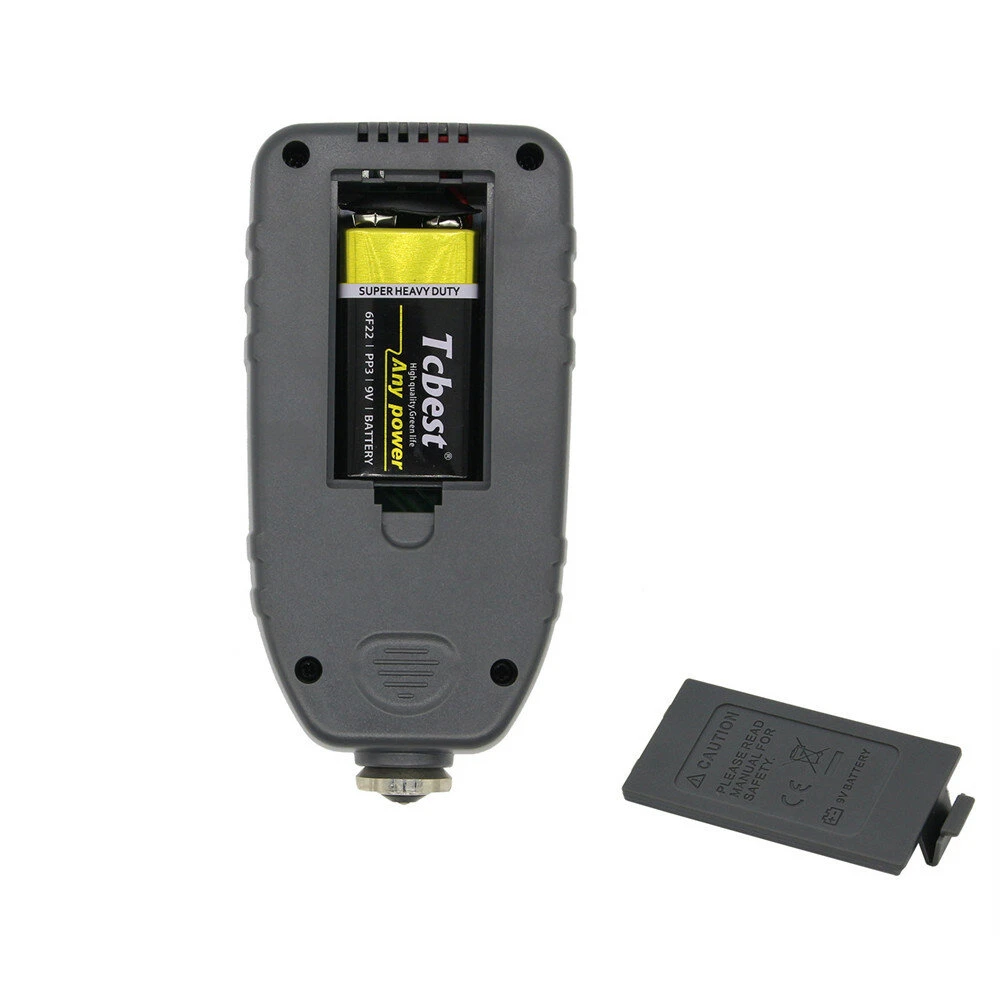

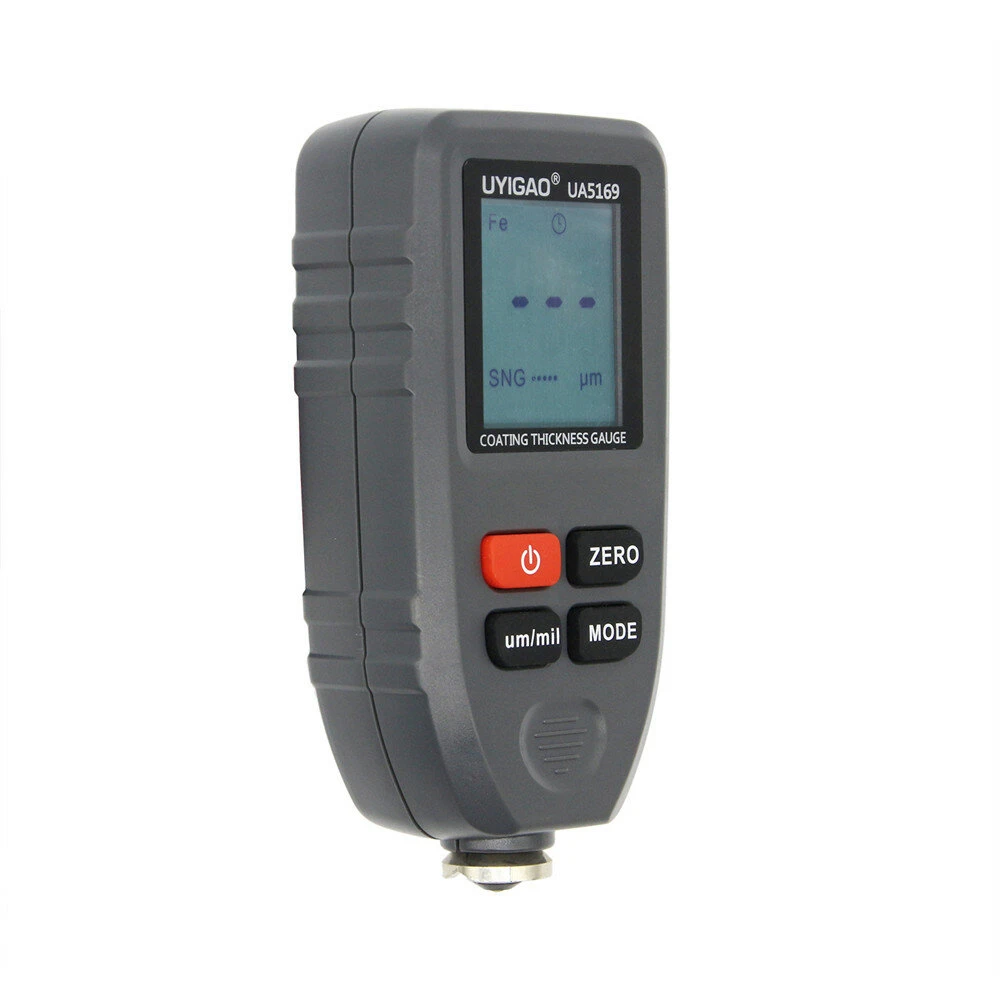

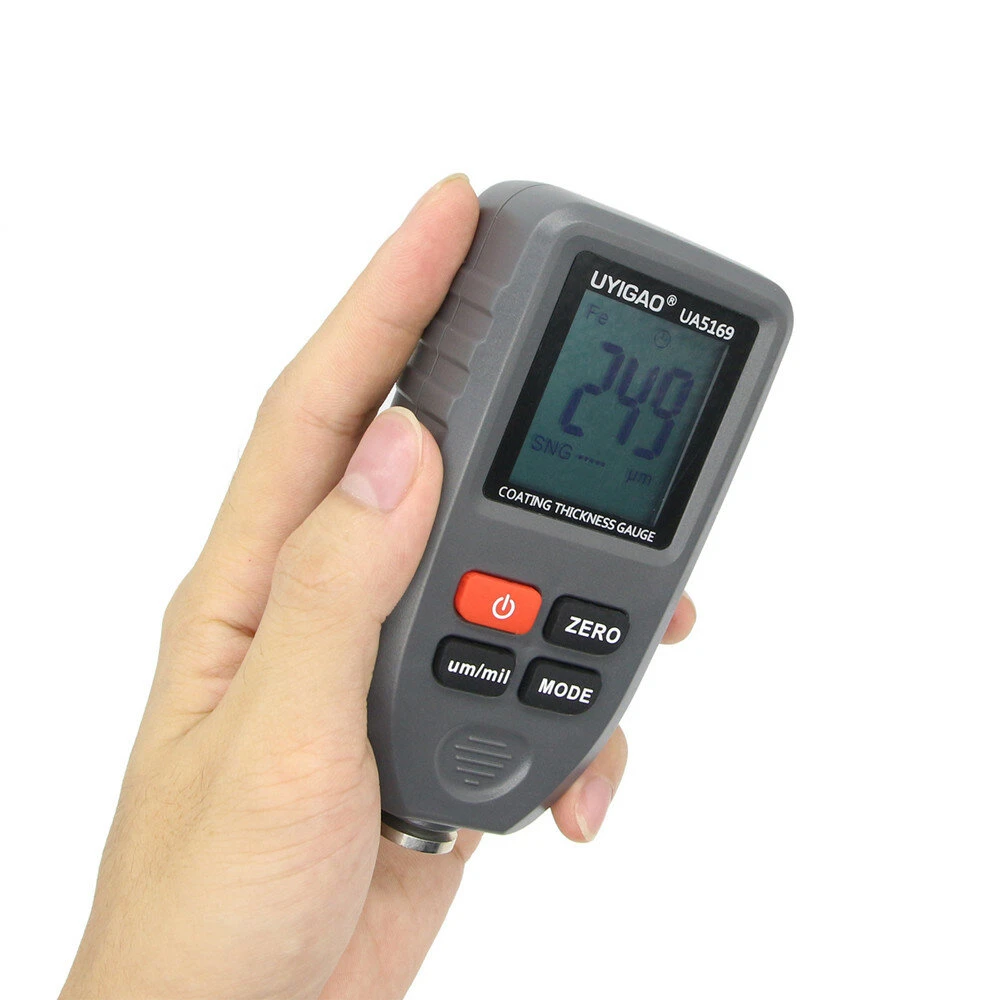

Details picture:
