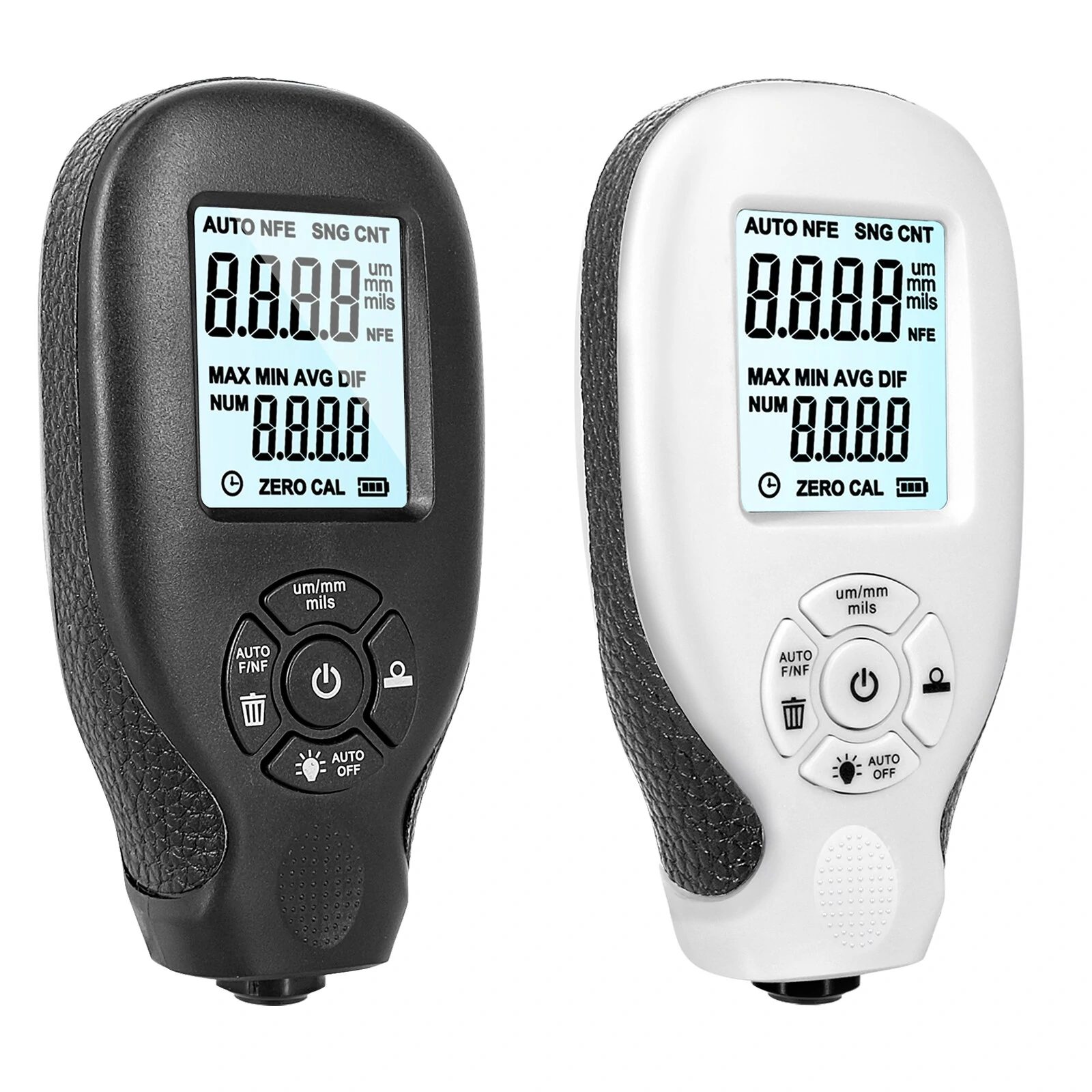

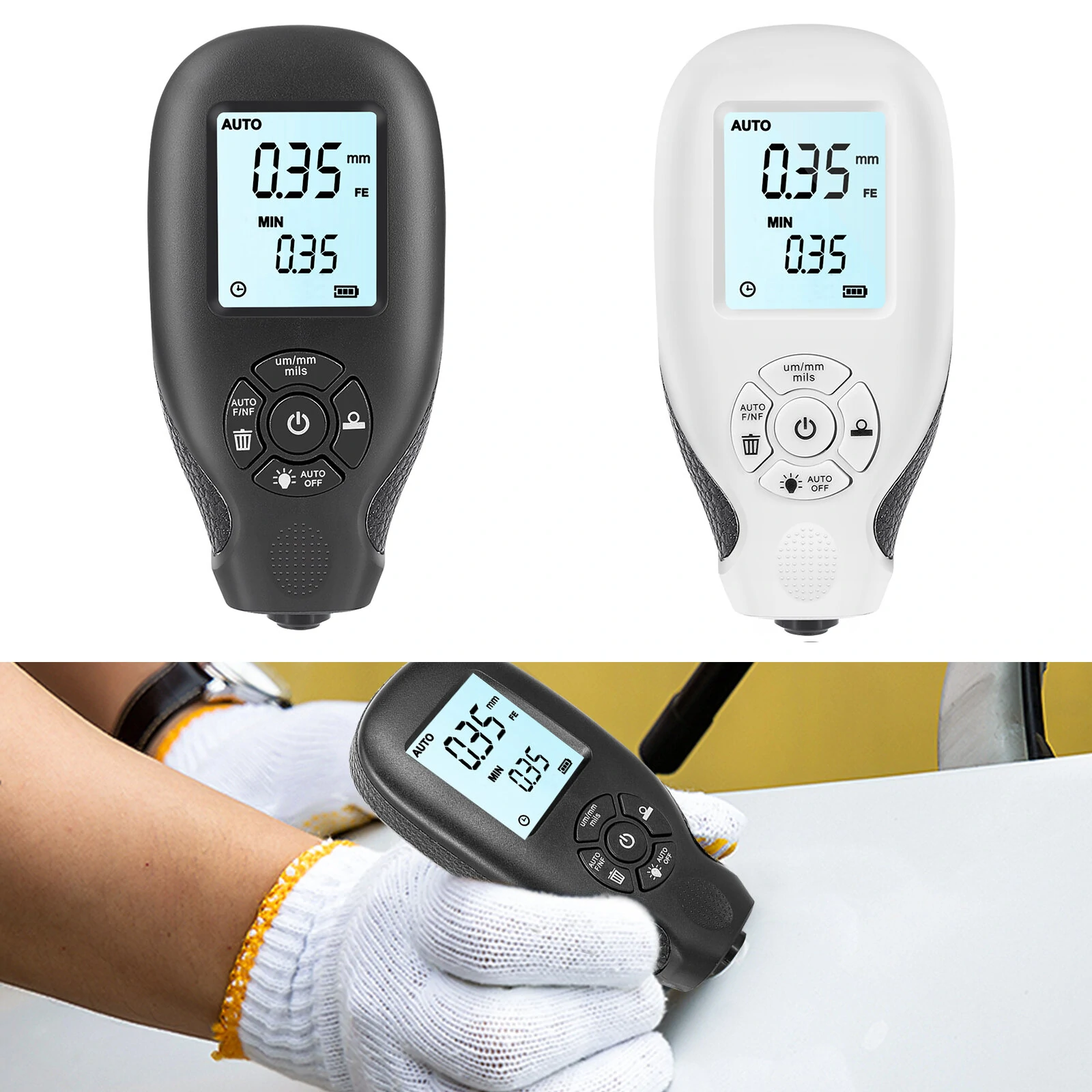

HW300 Digital Thickness Gauge - Ultrasonic Film & Coating Meter with LCD Backlight
$25.00
$30.38
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

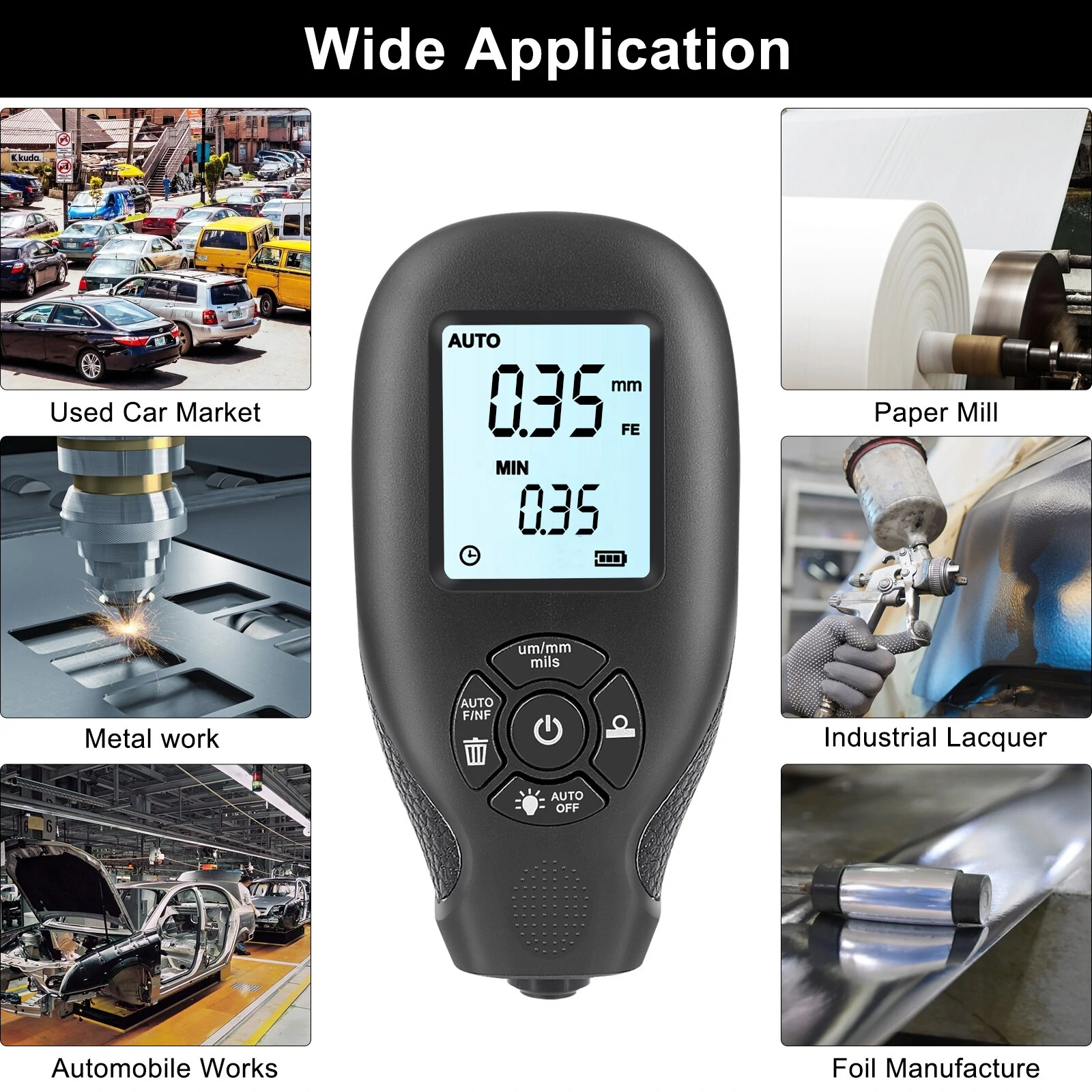

Description:It is used to measure the thickness of electroplated and coated plates on metals, such as paint/chrome on steel, paint and anodized coatings on aluminum/copper. The gauge uses a precision integrated probe, and uses the principles of electromagnetic induction and current effects to automatically detect the properties of the substrate. The gauge is designed to non-destructively measure the thickness of coatings and paints. It is an indispensable material for material surface treatment. It is widely used in manufacturing, metal processing, chemical industry, and commodity inspection fields. It can also work stably in laboratories, workshops and outdoors.
Features:

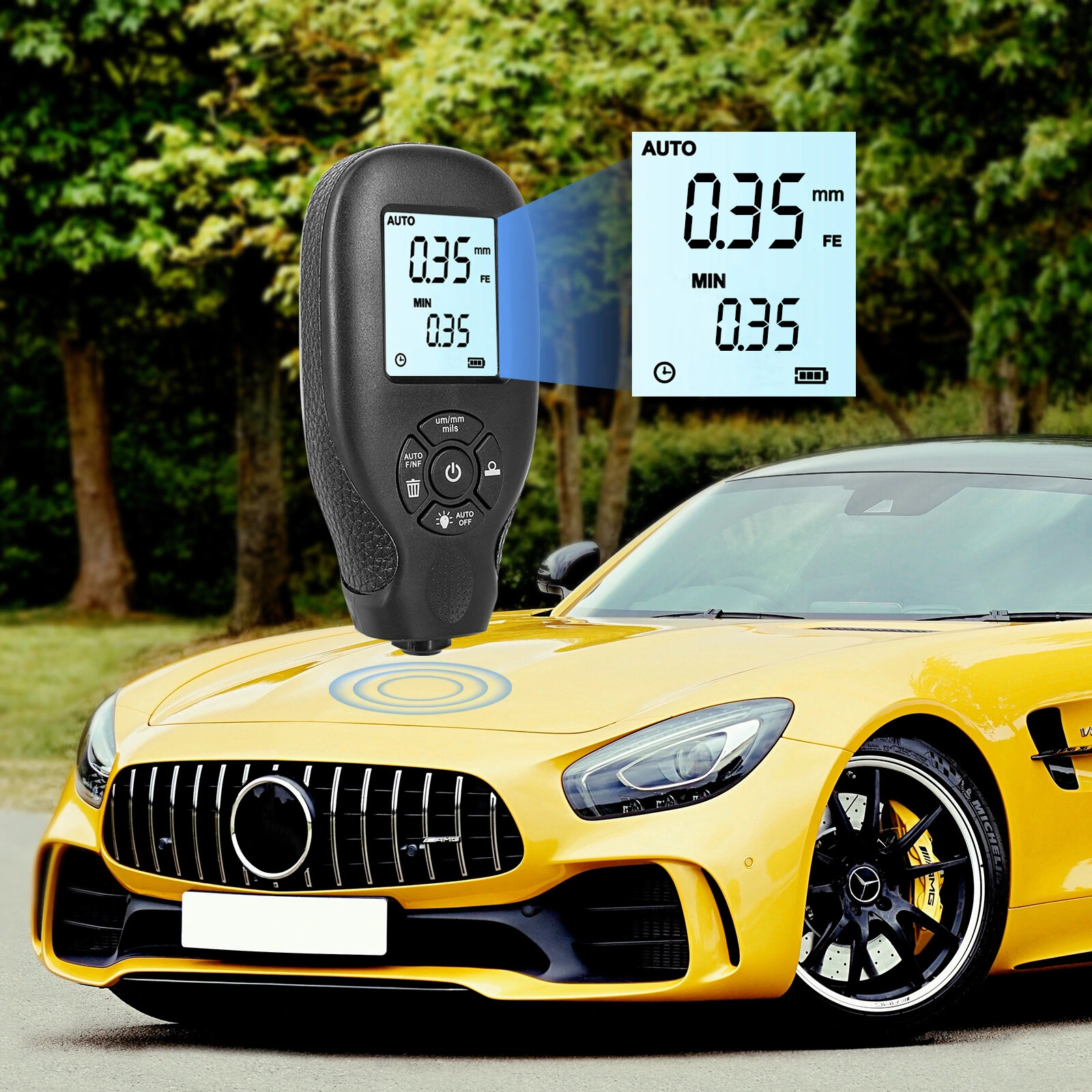

1. Battery Included: The Battery has been put inside already. Please remember to take off the insulate strip before use.2. Working Environment: Please don't use this device under 0 degrees Celsius! Since most of cars are made of steel and the paint thickness is about 0.1- 0.15mm/0.004-0.006in. So if you get a result of 0.00mm or 0.01mm, it is an acceptable error.3. Not for Metallic Paint: The device is not available in measuring metallic paint on car or similar objects.4. Not for Home Appliances: This device couldn??t be used for testing your home appliances (including refrigerator, oven, microwave oven, etc)5. Service Environment: Used under auto test mode or on object with steel substrate ??(10% of reading + 0.10mm).
Specification:
Name: HW300 Coating Thickness GaugeMaterial: ABSResolution: 0.01mm/1milMeasuring range: ABOUT 0-2000UMMeasurement accuracy: ??(3%+1UM)Power supply: 2 X 1.5V AAA batteriesOperating temperature: -10 degrees Celsius 50 degrees CelsiusPacking size: about 115 x 58 x 36mm/4.56 x 2.30 x 1.43inProduct size: about 110 x 52 x 25mm/4.37 x 2.07 x 0.99inPackaging weight: about 102gProduct weight: about 85g
Package included:
1 x Digital Thickness Gauge1 x Manual1 x Calibration sheet1 x Packaging box
