HTI HT-750 Digital Pressure Gauge - Electronic Manifold Refrigeration Meter

Product Description

>>Please click here to download the HT-750 product manual<<

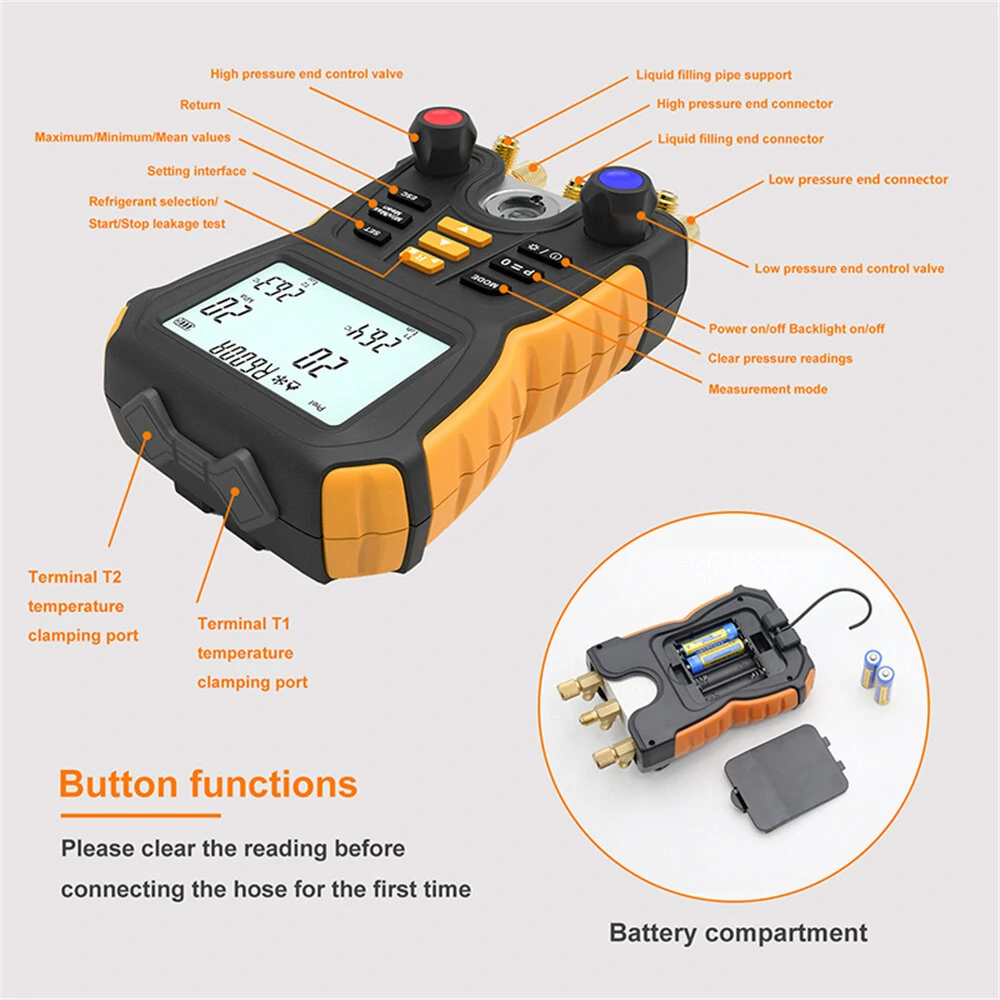

Features:

Easy to read data and accuratly display;

rubber gloves can protect the pressure gauge from damage;

glass observation holes, users can observe the flow of refrigerant at any time.



Specification:

Model: HT-750

Pressure accuracy: ??0.5%FS

Ambient humidity: 10%RH~90%RH

Temperature range: -10-200?? / 14-392?H

Overload pressure: 6500Kpa/6.5Mpa/940psi/65bar

Pressure resolution: 1Kpa??0.01bar??0.1psi??0.001Mpa??negative pressure 0.01Mpa??

Temperature resolution: 0.1??/0.1?H

Temperature accuracy: ??(1??+1digit)

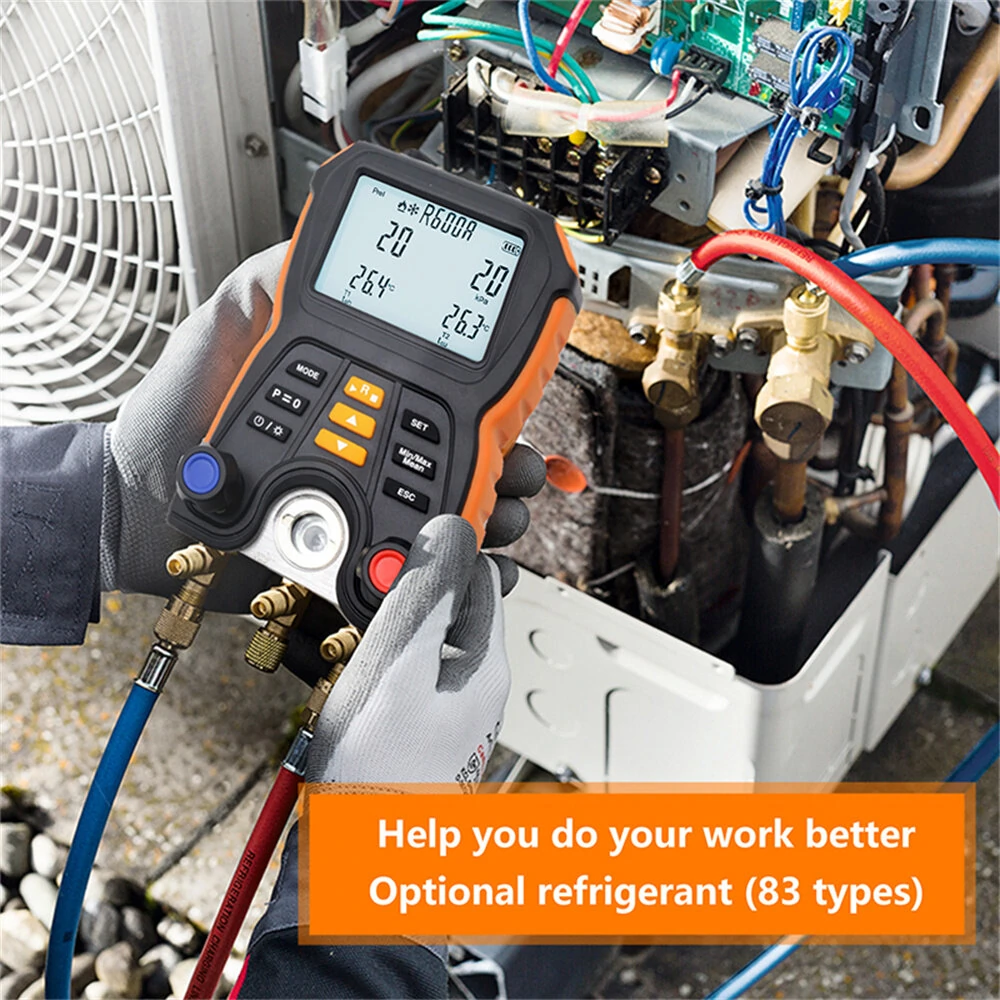

Refrigerant type: 83

Optional refrigerants: R11, R12, R124, R125, R1270, R13, R134A,R14, R141b, R142b, R143A, R152A, R170, R21, R218, R22, R227E, R23, R236E, R245C, R245, R290, R32, R401A, R402A, R402b, R403A, R403b, R404A, R405A, R406A, R407A, R410b, R11A, R411b, R412A, R413A, R414A, R415A, R415b, R416A, R417A, R418A, R419A, R420A, R421A, R421b, R422A, R422b, R422C, R422d, R423A, R424A, R425A, R426A, R427A, R428A, R50, R500, R501, R502, R503, R504, R508b, R509A, R600, R600A, R717

Operating temperature: 0-45??

Storage temperature: -20~60??

Product Size: 204x116x65mm



Package Included:

1 x tool box

3 x hoses

2 x clips

1 x user manual
