XKC-Y25-PNP 24V Non-Contact Liquid Level Sensor | Stick Type Water Detector Switch
$16.00
$19.57
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Intelligent non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it won't be influenced by container wall thickness when detecting the liquid level in a airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid level of various toxic substances, acid, alkali and all kinds liquid in high pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of container. Features:Non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities. Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection. Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life. High stability, high sensitivity, strong anit-interference ability make sure it won't be affected by electromagnet, special designed to deal with power frequency interference and common mode interference. Compatible with most 24V power adapter. Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 13mm or more induction distance. Testing is accurate and stable and boiling water level can be detected. Liquid, powder, particles can all be detected. Adjustable sensitivity. Specifications:
Model: XKC-Y25-PNP Output: PNP Input Voltage (InVCC): DC 24V Current: 5mA Output Voltage (high level): InVCC Output Voltage (low level): 0V Output Current: 1~100mA Response Time: 500mS Operating Temperature: 0~105?? Induction Thickness (sensitivity): 0~13 mm Communication: RS485 Humidity: 5%~100% Material: ABS Ingress Protection: IP67 Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes:
1 X XKC-Y25-PNP Liquid Level Sensor

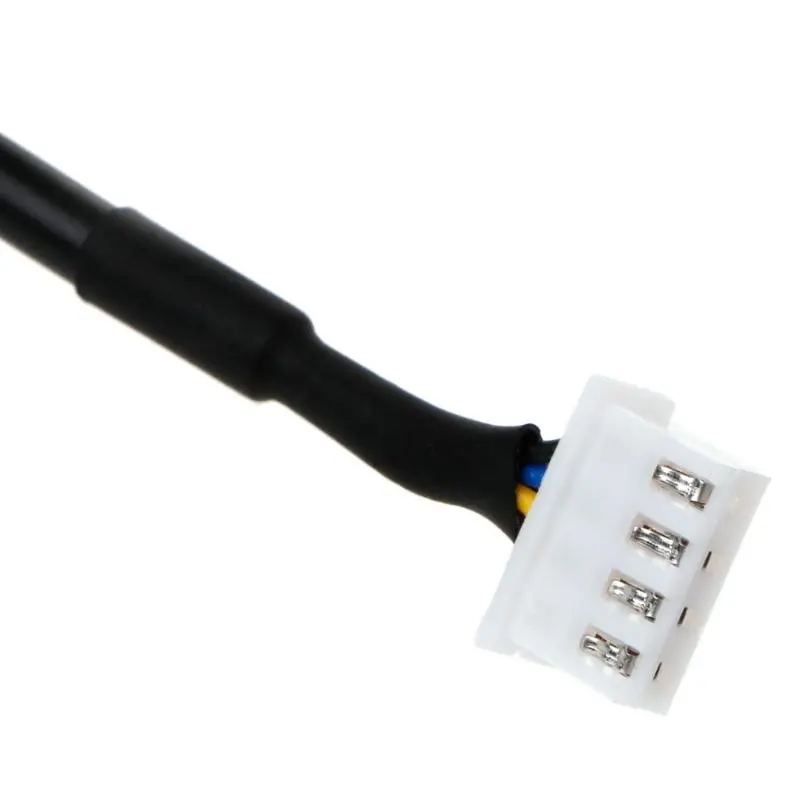

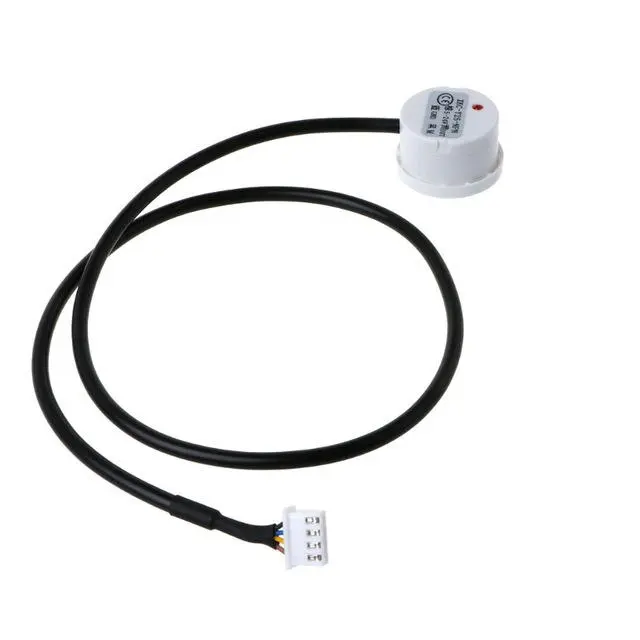

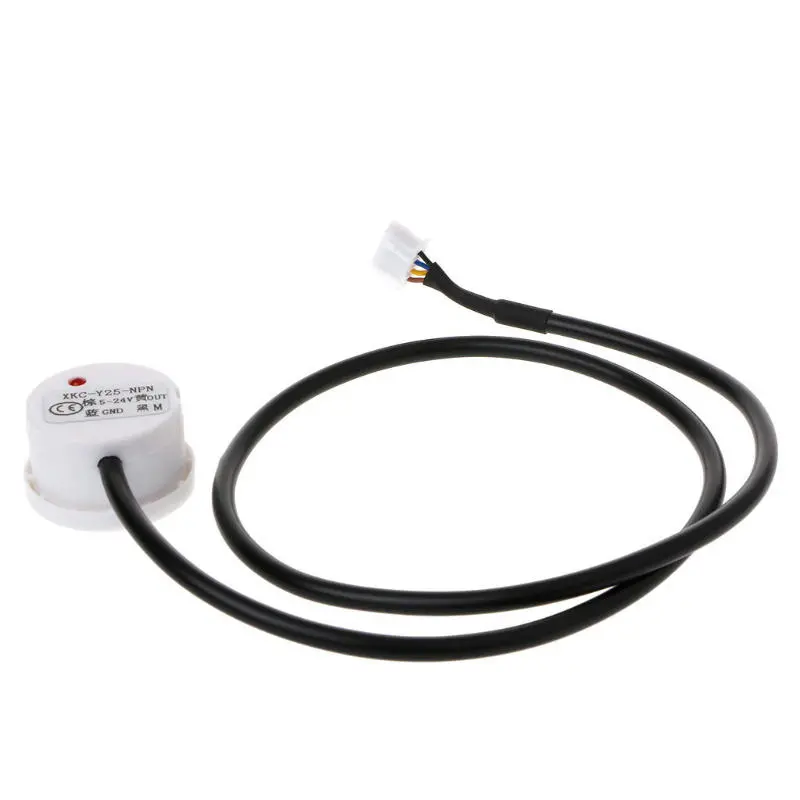

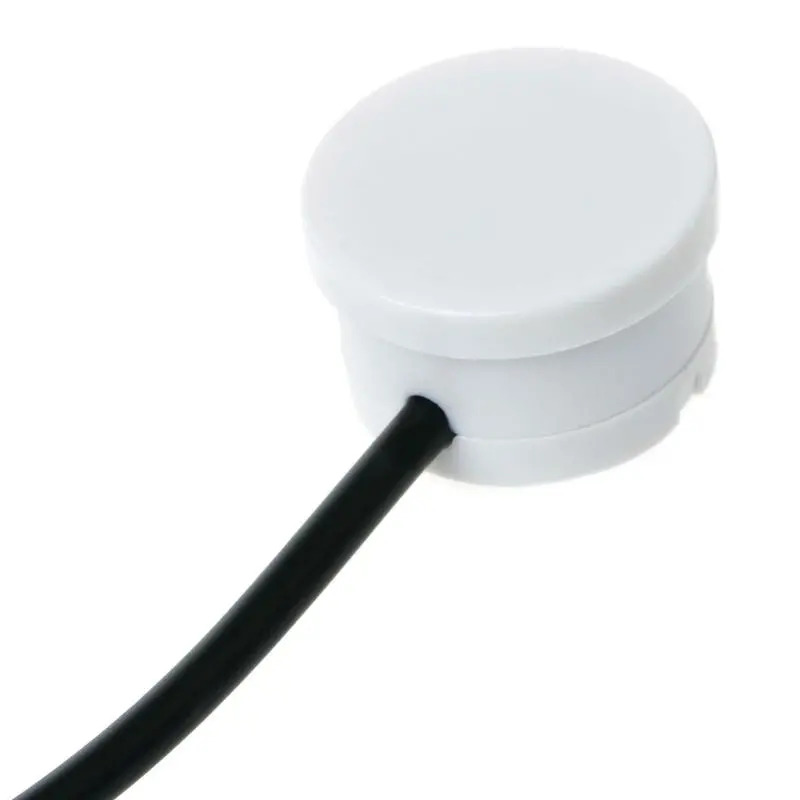

Details pictures:
