Tektronix HP Oscilloscope Probe - 300MHz 5KV High Voltage with Accessories
$108.00
$132.46
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
?Description:1. The main body is grounded, stable and reliable.2. The probe is completely grounded by injection molding, which greatly extends the service life of the grounding wire.3. The BNC (Q9) material is equipped with an insulating sheath on the outside of the BNC to improve the safety level.4. The probe is usually used in the oscilloscope with BNC interface on the market.
Note:When connecting the probe to any input channel for the first time, you need to check the probe to match the probe with the input channel. An uncompensated or uncompensated probe will cause measurement errors or errors.1. Set the software to choose X10. Set the probe attenuation coefficient X10 and connect the probe to the CH1 channel. If using a hook probe, make sure that the probe is in close contact with CH1. Connect the probe tip to the signal output connector of the probe compensator, and connect the reference lead clip to the ground connector of the probe compensator.2. Check the shape of the displayed waveform to determine whether the probe compensation is correct, turn on CH1, and then press the "AUTO" button.3. Check the shape of the displayed waveform to determine whether the probe compensation is correct.
Specification:
Model | P2301B | P2301C | |
Bandwidth | 300MHz | ||
Rise time | 1.15ns | ||
Attenuation Ratio | 10X | 100X | |
Input Resistance | 1X : 1M????2% | 100X : 100M????2% | |
Input Capacitance | 10X : 12pF-16pF | 100X : 6.5pF | |
Maximum Input | 10X : 600 Working Voltage(Vp-p) | 100X : 500 Working Voltage(Vp-p)CAT II | |
Compensation Range | 10~30pF | 10~20pF | |
Operation Environment | -15?75?? ,0?80%RH | ||
Storage Environment | -20~60?? ,0?90%RH | ||
Length | 130??2cm | ||
Weight | About 75g | ||
Package included:

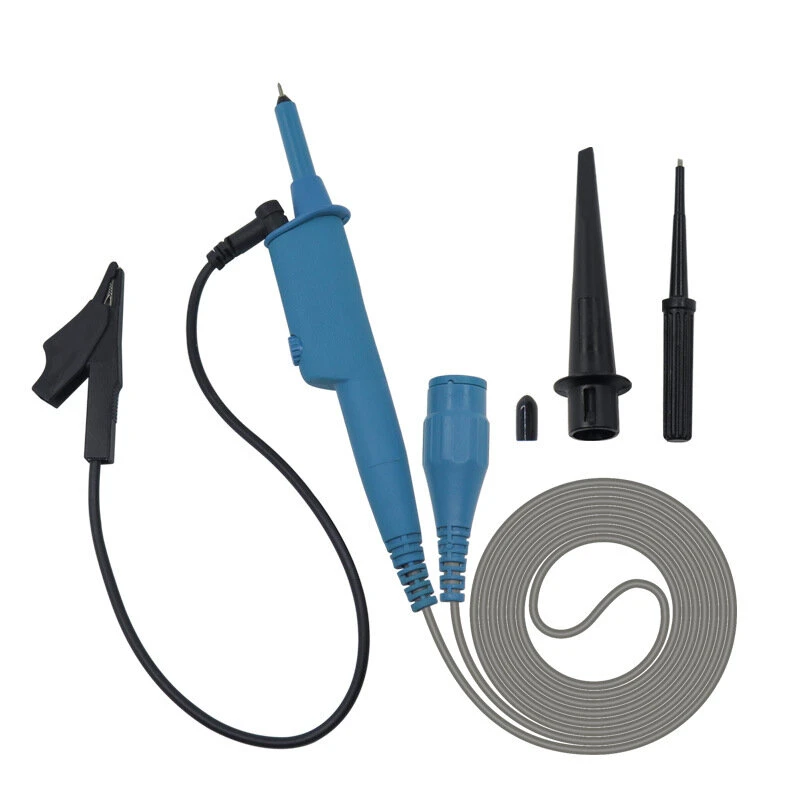

1 x P2300B/P2300C Oscilloscope Probe
Details Pictures:
