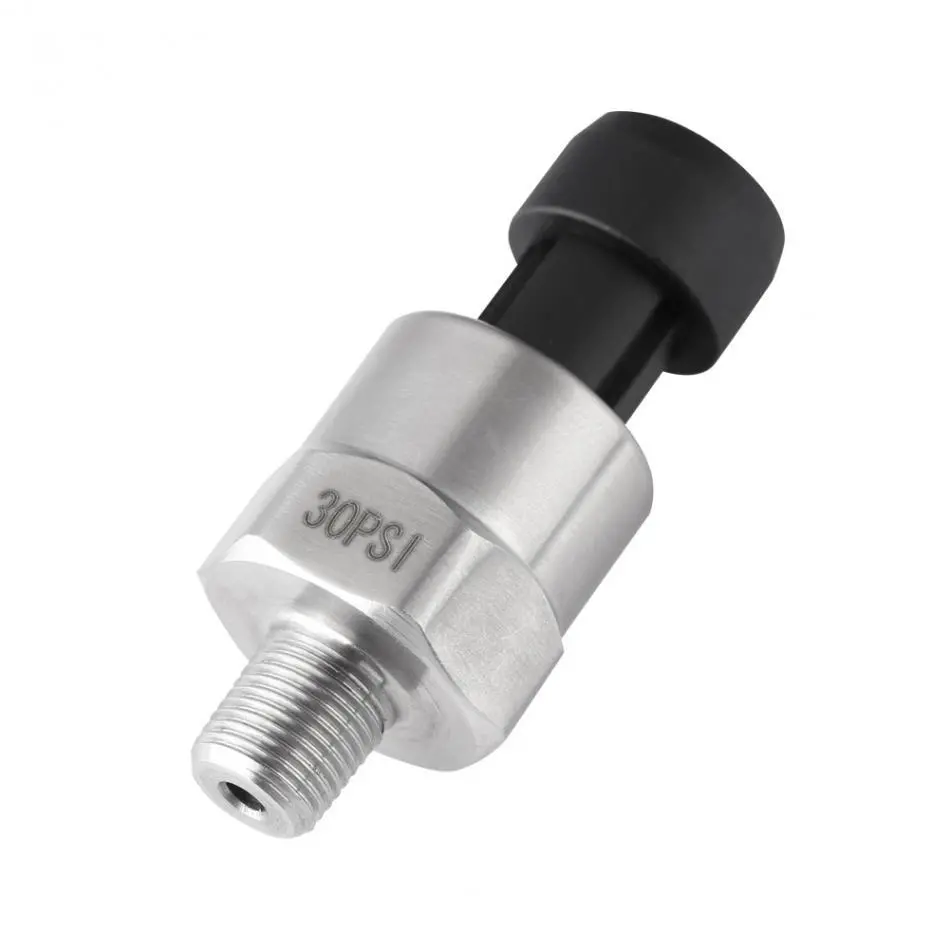

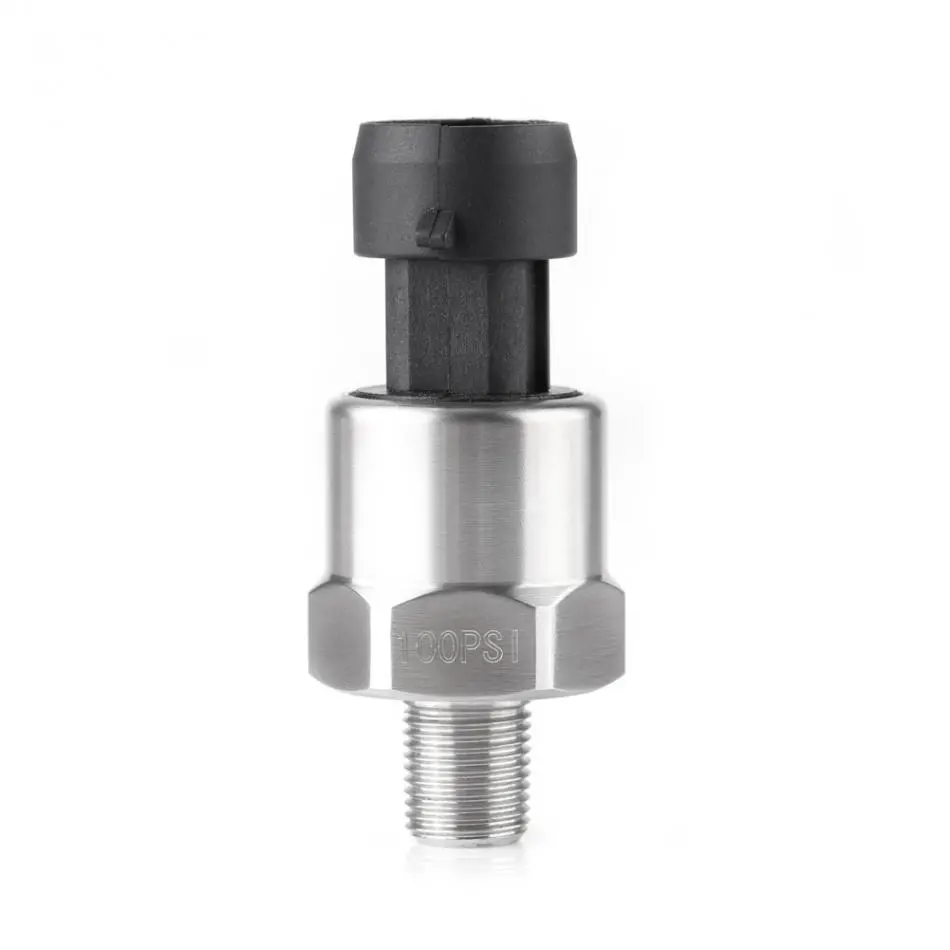

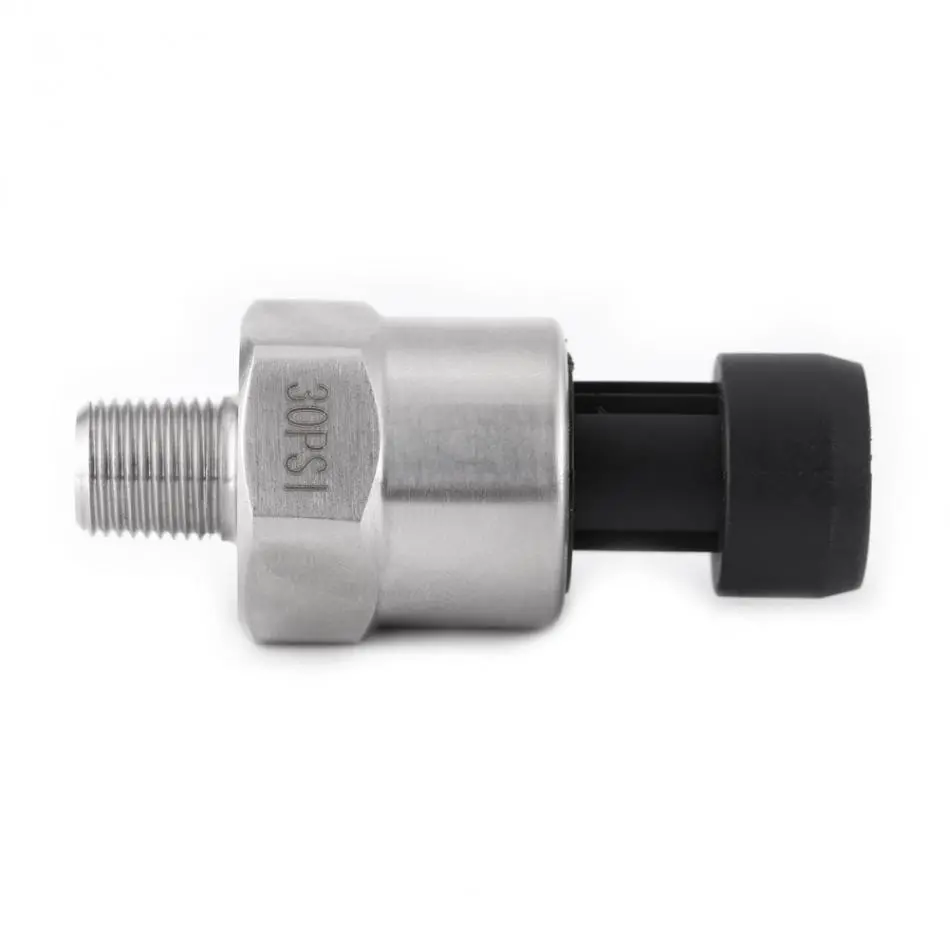

Stainless Steel Pressure Sensor - 5V DC 1/8NPT Thread for Oil Fuel Air Water

Product Description

Features: It's an advance pressure transducer than traditional mechanical pressure transducer. ??2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range. Light weight and small size, convenient to install and operate. It has complete surge voltage protection function. Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc. Specifications: Material: Stainless steel Voltage: DC 5V Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional) Thread Type: 1/8" NPT 30 psi Input: 0-30 psi Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V. Accuracy: within 2% of reading (full scale). Thread: 1/8"-27 NPT. Wiring Connector: Water sealed quick disconnect. Mating connector is included. Wiring: Red for +5V; Black for ground; Blue for signal output. 100 psi Input: 0-100 psi Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V. Accuracy: within 2% of reading (full scale). Thread: 1/8"-27 NPT Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included. Wiring: Red for +5V; Black for ground; Blue for signal output. 150 psi Input: 0-150 psi Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V Accuracy: +/-0.5%FS Thread: 1/8" NPT Wiring: Red for +5V; Black for ground; Green for signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40??~+120?? Compensation Temperature: 0??~+80?? Protection Class: IP67 Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: ??(supply power-6.5V/0.02A)?? Long-term Stability: Less than 0.1%FS/year Temperature Effect on Zero: Typical:0.02%FS/??; Maximum:0.05%FS/?? Temperature Effect on Sensitivity: Typical: 0.02%FS/??; Maximum: 0.05%FS/?? Shock Resistance: 1000g Anti-Shock: ??+/-0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: ??1ms Insulation Resistance: >100m?? 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50051-1 200 psi Input: 0-200 psi Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V Working Temperature: -40~+125?? Accuracy: ??1%FS Thread: 1/8"-27 NPT Overload Capacity: 2 times of rated pressure Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: ??(supply power-6.5V/0.02A)?? Long-term Stability: ?? 0.2%FS/year Temperature Effect on Zero: Typical: ??0.02%FS/??; Maximum: ??0.05%FS/?? Temperature Effect on Sensitivity: Typical: ??0.02%FS/??; Maximum: ??0.05%FS/?? Shock Resistance: 100g Anti-Shock: ?ܡ?0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: ??1ms Insulation Resistance: >100m?? 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3 Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included. Wiring: Red for IN+; Black for GND; Green for OUT. 300 psi Input: 0-300 psi Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V Accuracy: +/-0.5%FS Thread: 1/8" NPT Wiring: Red: +5V; Black: ground; Green: signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40~+120?? Compensation Temperature: 0??~+80?? Protection Class: IP67 Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: ?? (supply power-6.5V/0.02A)?? Long-term stability: Less than 0.1%FS/year Temperature Effect on Zero: Typical: 0.02%FS/??; Maximum: 0.05%FS/?? Temperature Effect on Sensitivity: Typical:0.02%FS/??; Maximum:0.05%FS/?? Shock Resistance: 1000g Anti-Shock: ??+/-0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: ??1ms Insulation Resistance: >100m?? 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50051-1. 500 psi Input: 0-500 psi (Gauge Pressure) Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V. Accuracy: +/-1%FS Thread: 1/8" NPT Wiring: Red for +5V; Black for ground; Yellow (Green) for signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40??~+120?? Compensation Temperature: 0??~+80?? Protection Class: IP67 Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: ?? (supply power-6.5V/0.02A)?? Long-term stability: Less than 0.1%FS/year Temperature Effect on Zero: Typical: 0.02%FS/??; Maximum: 0.05%FS/?? Temperature Effect on Sensitivity: Typical: 0.02%FS/??; Maximum:0.05%FS/?? Shock Resistance: 1000g Anti-Shock: ??+/-0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: ??1ms Insulation Resistance: >100m?? 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50051-1. Package Includes:

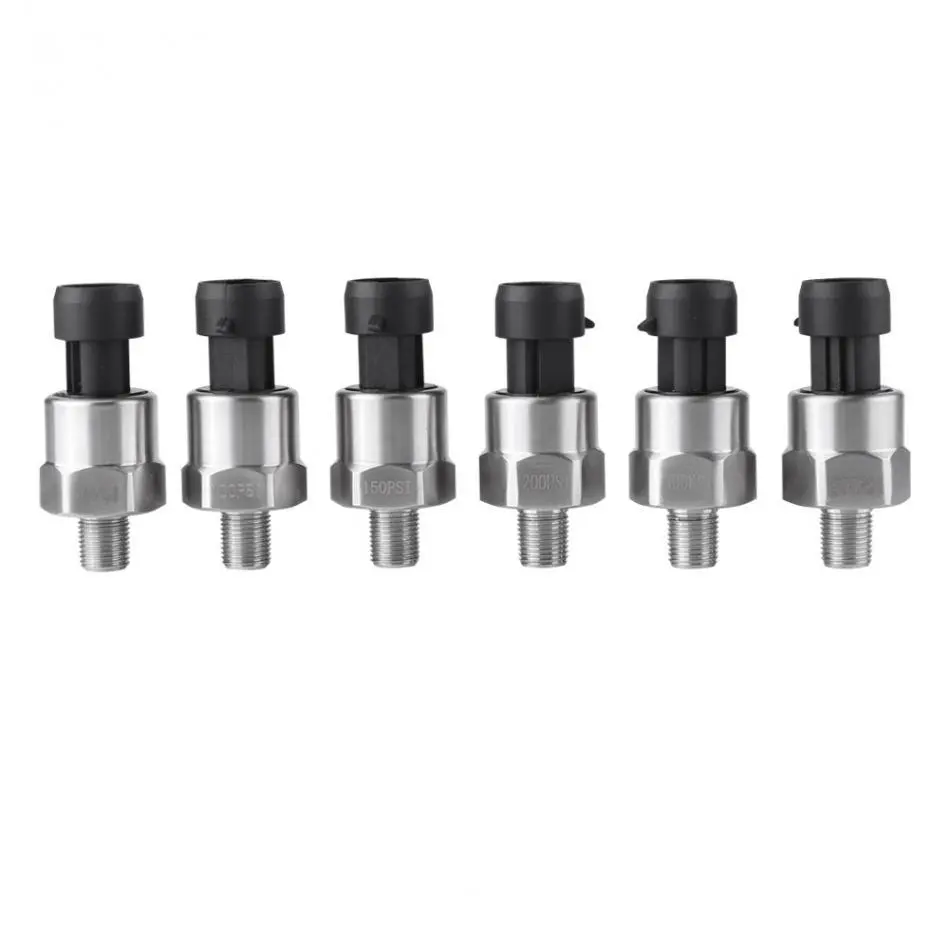

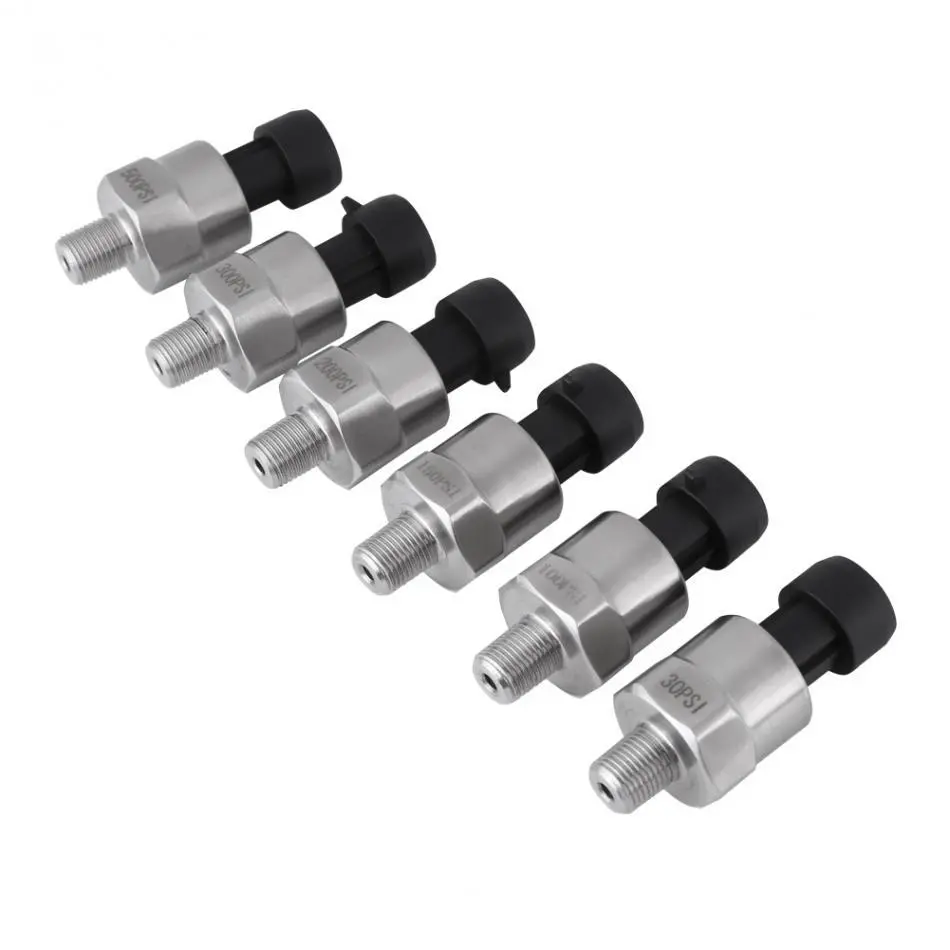

1 x Pressure Transducer (With cable) Details pictures:
