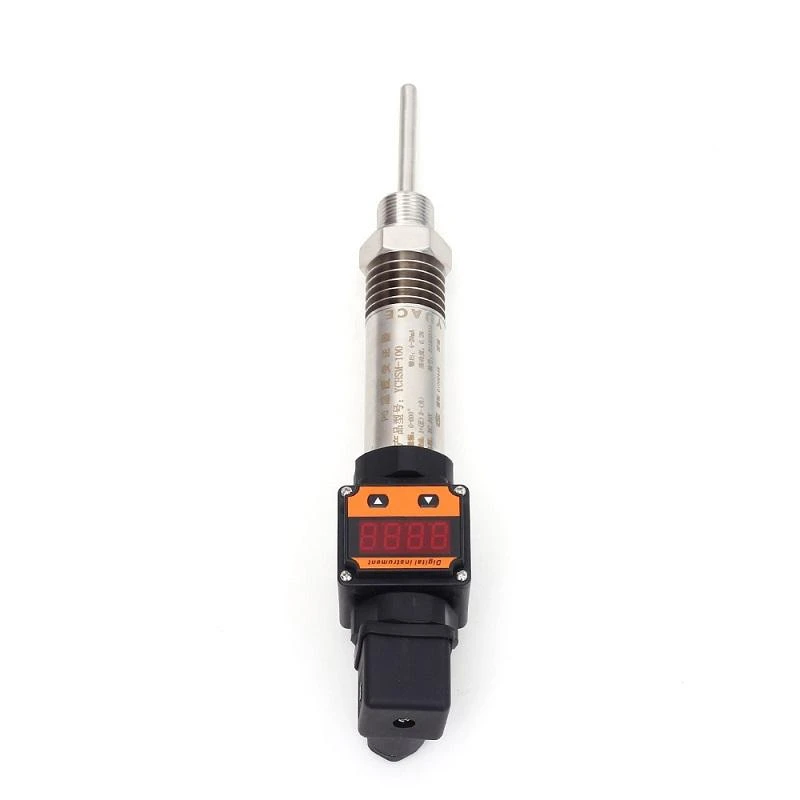

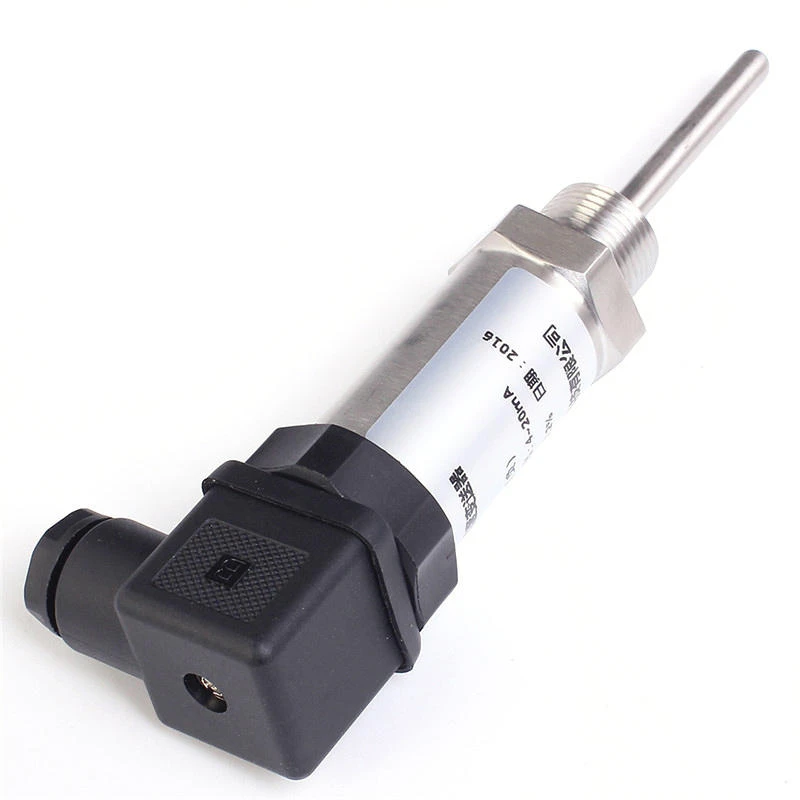

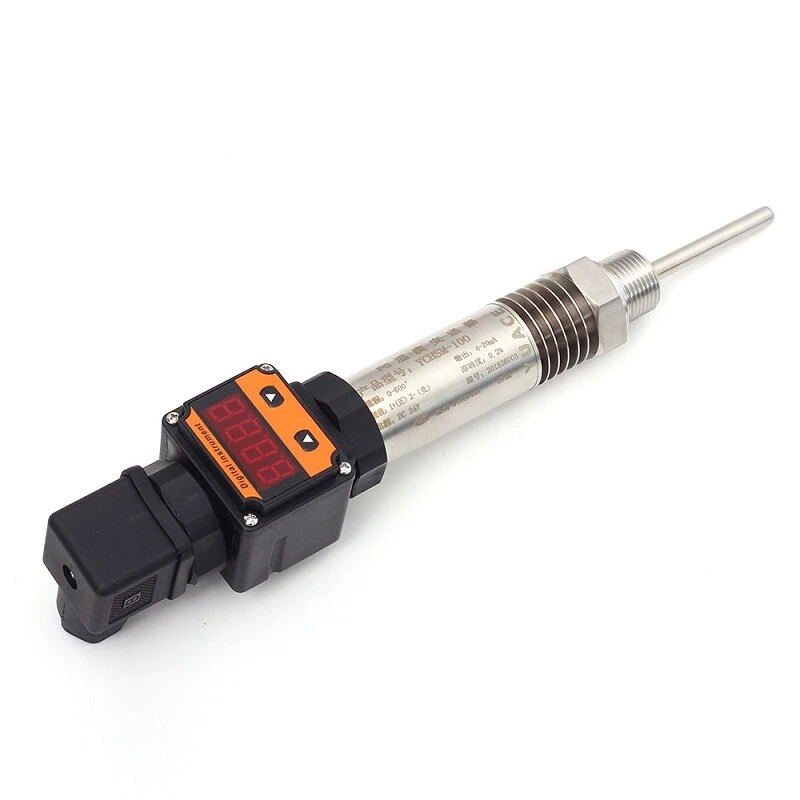

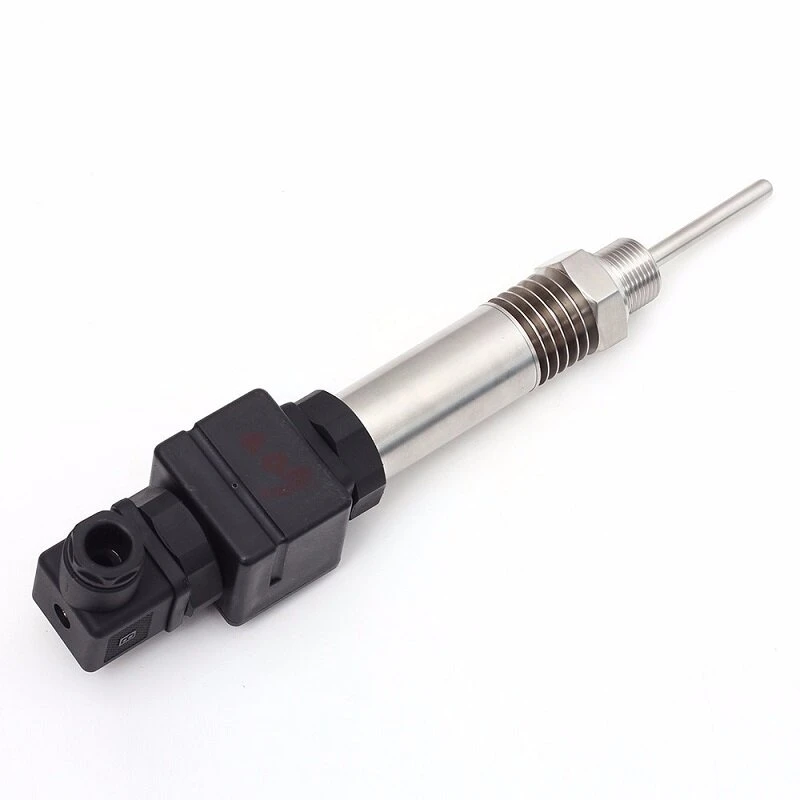

PT100 Sensor Module - 4-20mA Temperature Transmitter with LED Display
$49.00
$60.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description: It is a perfect combination of temperature sensor and transmitter. It converts the temperature signal in the range of 0~600?? into 4~20mA DC electric signal to the display, DCS, regulator and recorder in a very simple way. It to achieve accurate measurement and control of temperature. The integrated temperature transmitter is a new generation of temperature measurement and control for modern industrial sites and research institutes. It is an essential product for distributed systems and digital bus systems. Features: 1.LED shows current temperature; 2.Measuring temperature range is wide; 3.Low power consumption; 4.Stainless steel material; 5.High precision detection; 6.Rapid response; 7.High temperature resistance; 8.Waterproof Hessman; Specification: 1.Product Name:4-20mA LED Integrated Temperature Transmitter 2.Working Voltage:DC 24V 3.Measuring temperature range:0~600??/0-100 ?? 4.Dielectric strength:100M ohm/250VDC 5.Precision:0.2% 6.Response time:<=30s 7.Probe diameter:6mm 8.Probe length:50mm 9.Thread:M20x15mm 10.Output signal:4~20mA 11.Sensor:PT100. 12.Shell Material:PA66 13>.Power:<0.5W 14.Working Temperature range:-40??~85?? 15.Working Humidity range:0%-95%RH 16.Size:245 x 63 x 42mm Application:1.On-site temperature measurement process control 2.Computer measurement and control system 3.Instrumentation 4.Industrial production Package includes: 1 x 4-20mA 0~600?? LED Integrated Temperature Transmitter OR 1 x No LED Temperature Transmitter Details Pictures:
