Hantek HT8050 High Voltage Differential Probe | 100-240V 1/50 1/500 Oscilloscope
$222.00
$273.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:HT8000 Series high voltage insulated probe adopts the differential input mode. It is mainly used in the place that needs high voltage insulation measurement.
This series of high voltage insulated probe has two options of attenuation, 1/50 and 1/500. The difference module measurement range is 130V (DC + peakAC) and 1300V (DC + peakAC).
This series of high voltage insulated probe has over range warning function, indicates by red LED light.
This series of high voltage insulated probe has small and beautiful appearance, sturdy and durable structure, good stability, reliability and accuracy.
Specification:
| Electrical Performance | ||
| Model Number | HT8050 | |
| Bandwidth(-3dB) | 50MHz | |
| Rise time | 7ns | |
| Accuracy | ??2% | |
| Attenuation Ratio | 1/50,1/500 | |
| Imput Impedance | Single-ended to ground:4M?? Between two imput ends:8M?? | |
| Imput Capacitance | Single-ended to ground:7pF Between two imput ends:3.5pF | |
| Maximum Difference Measurement Voltage | 1/50:130V(DC+peakAC) 1/500:1300V(DC+peakAC) | |
| Maximum Common Mode Input Voltage | 1000Vrms,CATII 600Vrms,CATIII | |
| Noise | 1/50:??1.5mVrms 1/500:??1mVrms | |
| Linearity | ??1% | |
| Delay Time | 20ns??1ns | |
| CMRR | DC:??80dB 100Hz:??60dB 1MHz:??50dB | |
| Over Range Warning Voltage Threshold | 1/50:140V??4V(DC+peakAC) 1/500:1400V??40V(DC+peakAC) | |
| Power Adapter Output Power | DC9V,1000mA | |
| Power Adapter Input Power | AC100-240V,50-60Hz | |
| Machinery Specification | ||
| Length of Output Cable | About 90cm | |
| Gator Clip | About 85*40*13(mm) | |
| Finger Pin | About 160*45*13(mm) | |

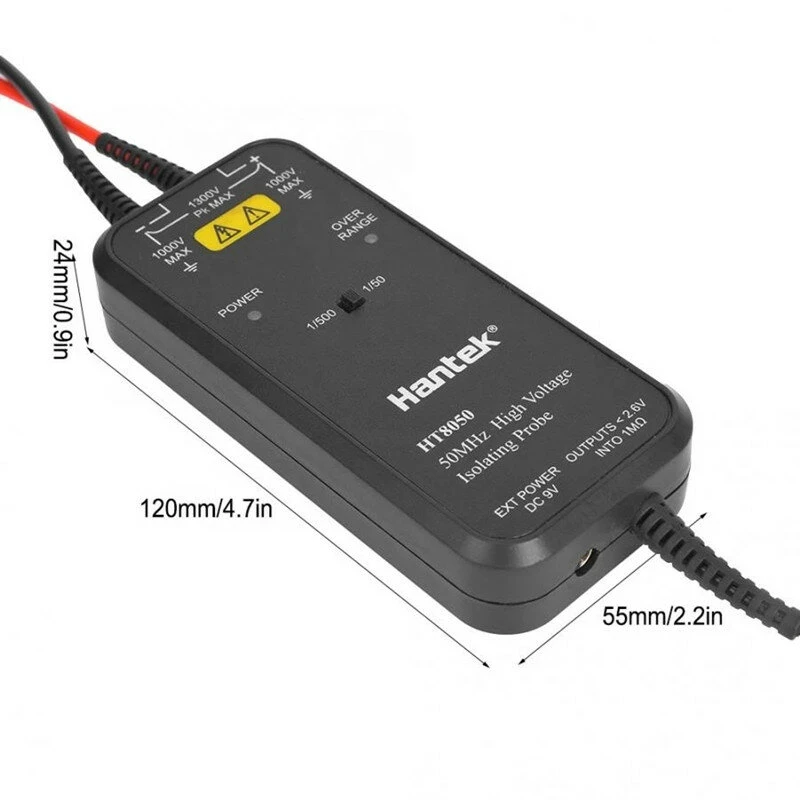

| Probe Body | 120*55*24(mm) | |
| Weight | 160g | |
| Environmental Characteristics | ||
| Working Temperature | 0-40?? | |
| Storage Temperature | -10-45?? | |
| Working Humidity | 85%RH | |
| Storage Humidity | 90%RH | |
| Working Altitude | 3000m | |
| Storage Altitude | 12000m | |
Package includes:
1 x Oscilloscope Probe1 x US Plug

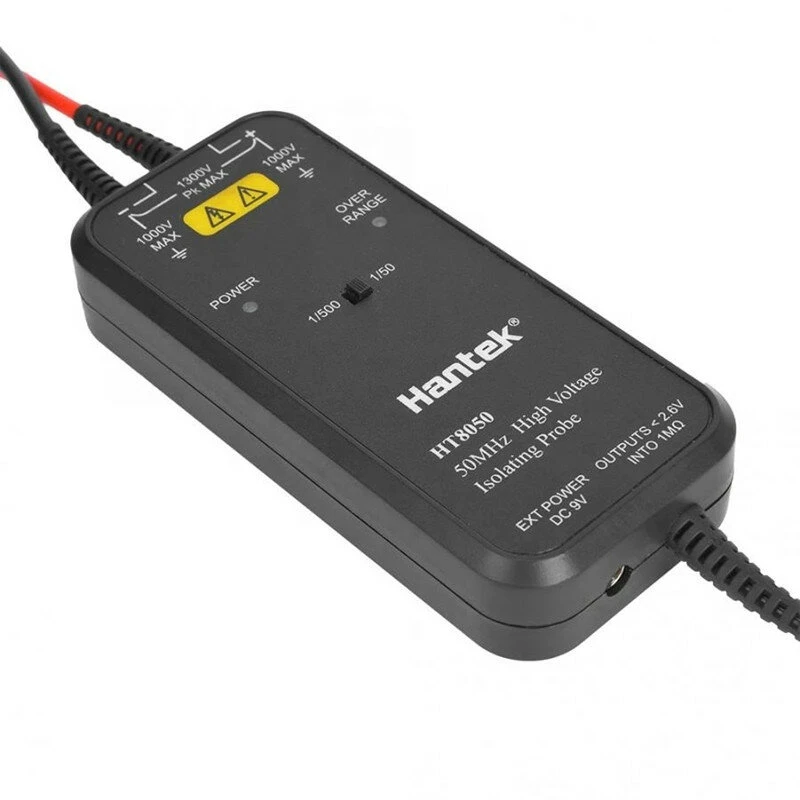

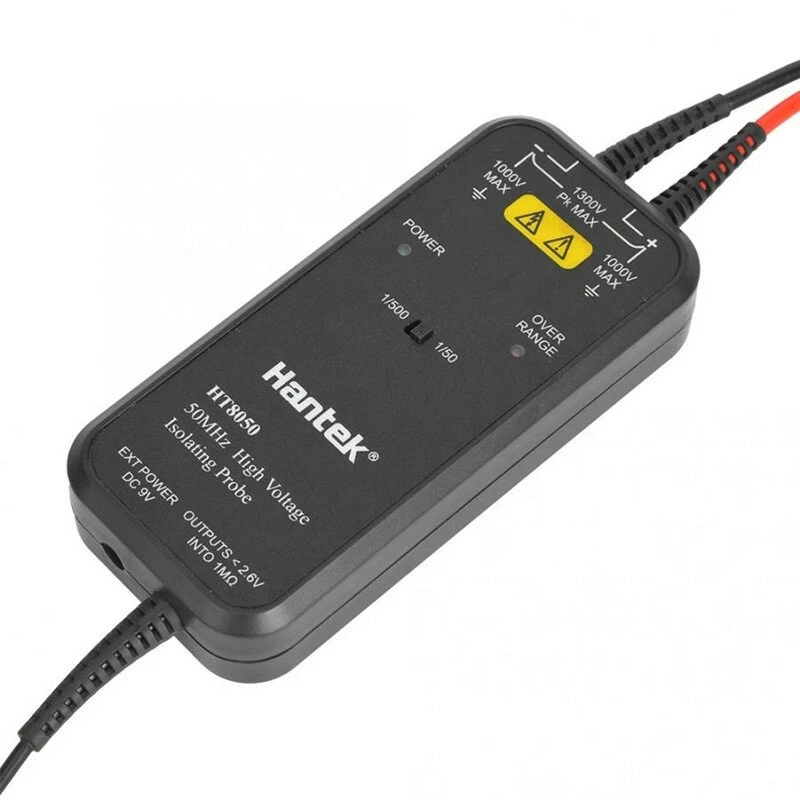

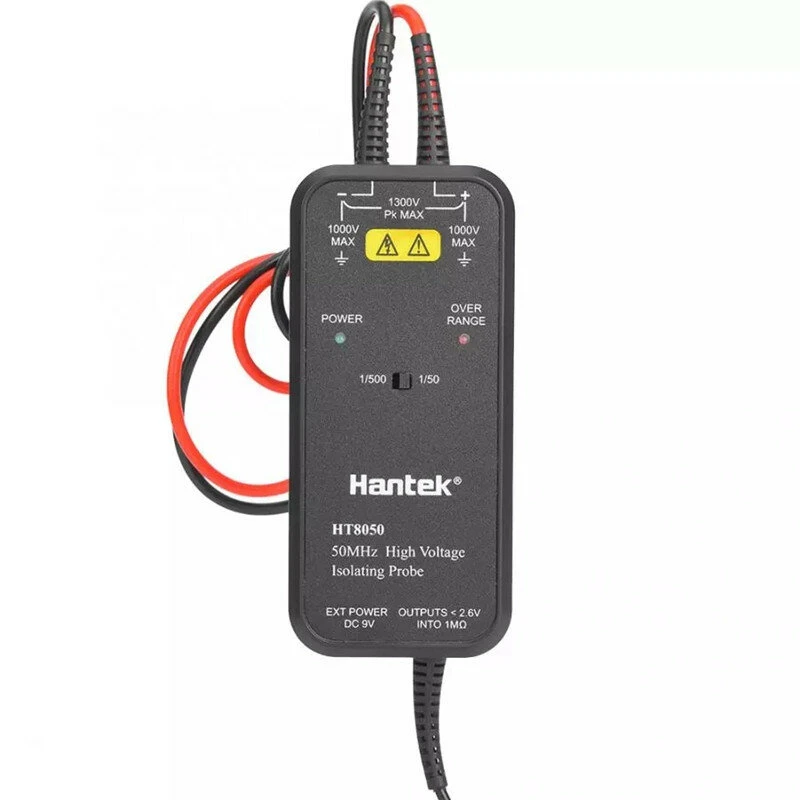

Details picture:
