FTTH SC UPC Fiber Optic Fast Adapter - 100pcs Single-mode Straight Tail Connectors
Product Description
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
Specification:
Color: Blue (SC UPC )
Length: 55mm/50mm(option)
ITEM | Technical Parameters |
Applicable for | Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) 125??m ( 657A & 657B ) |
Tight buffer diameter | 250??m |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ?? 0.3dB(1310nm & 1550nm) |
Return loss | >55db |
Fastening strength of naked fiber | >5N |
Fastening strength of naked fiber holder | >10N |
Tensile strength | >50N |
Using temperature | -40~+75??C |
On-line tensile strength (20 N) | IL ?? 0.5dB RL ?? 5dB |
Mechanical durability (500 times) | IL ?? 0.5dB RL ?? 5dB |
Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ?? 0 |
Package Includes:

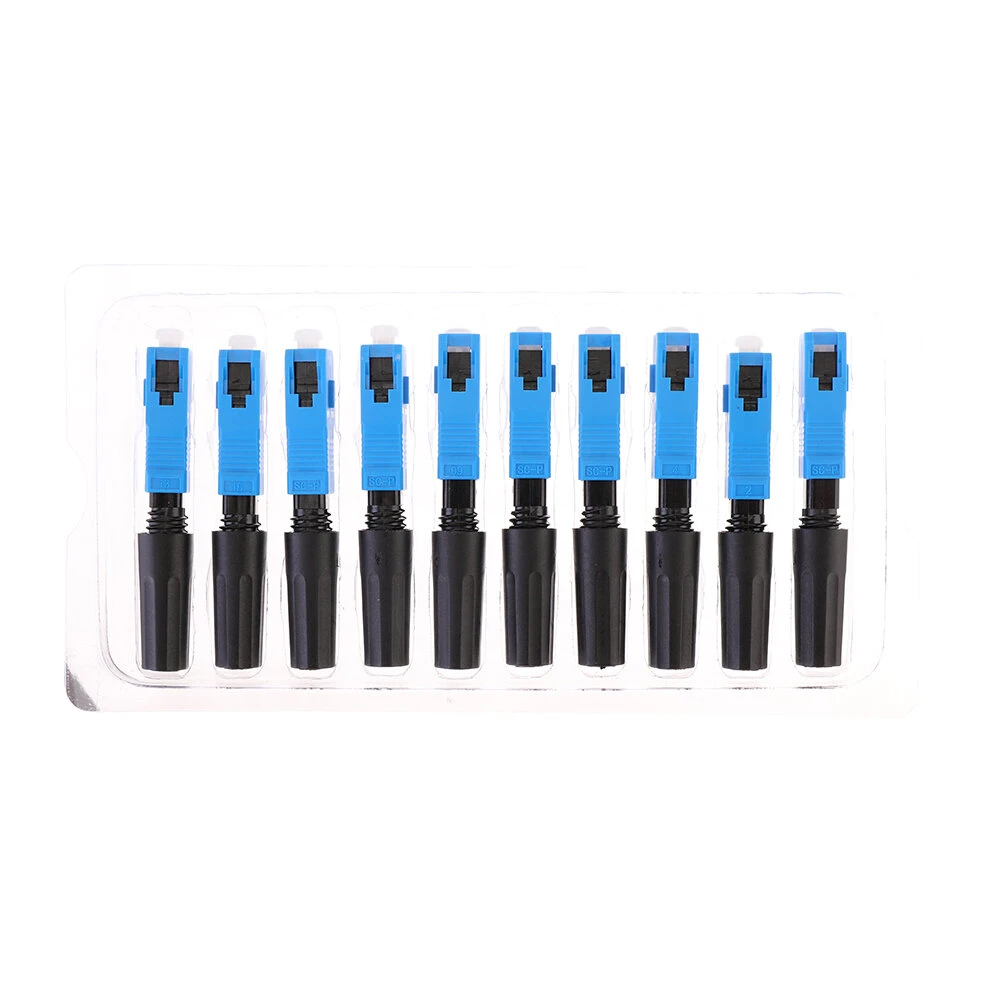

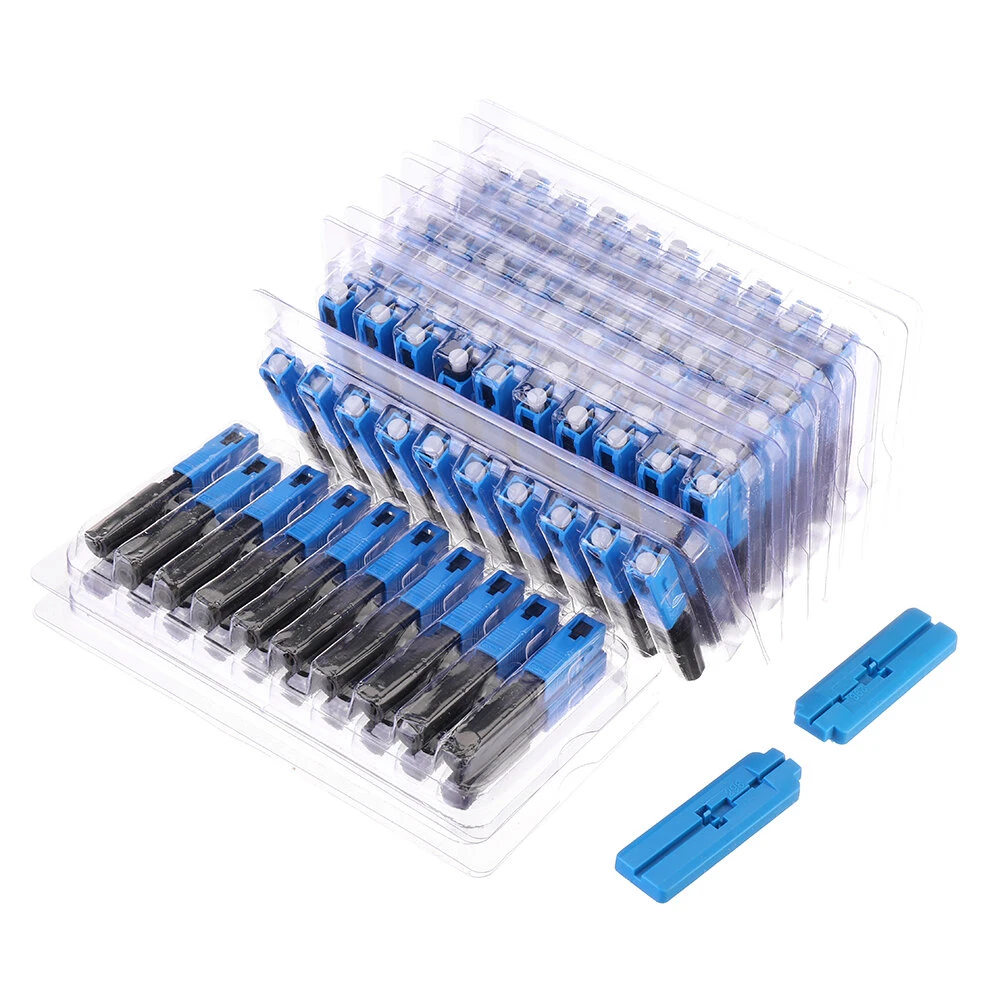

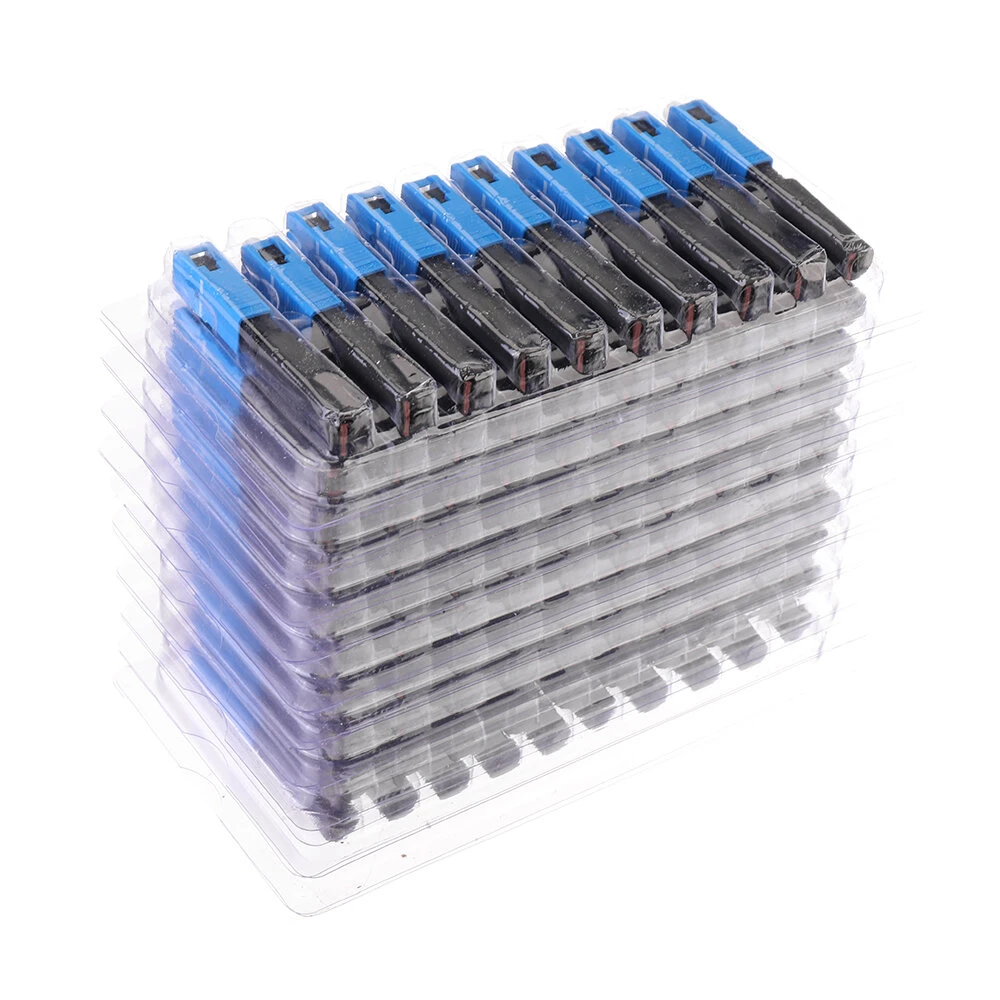

100pcs FTTH SC UPC Single-mode Fiber Quick Connector

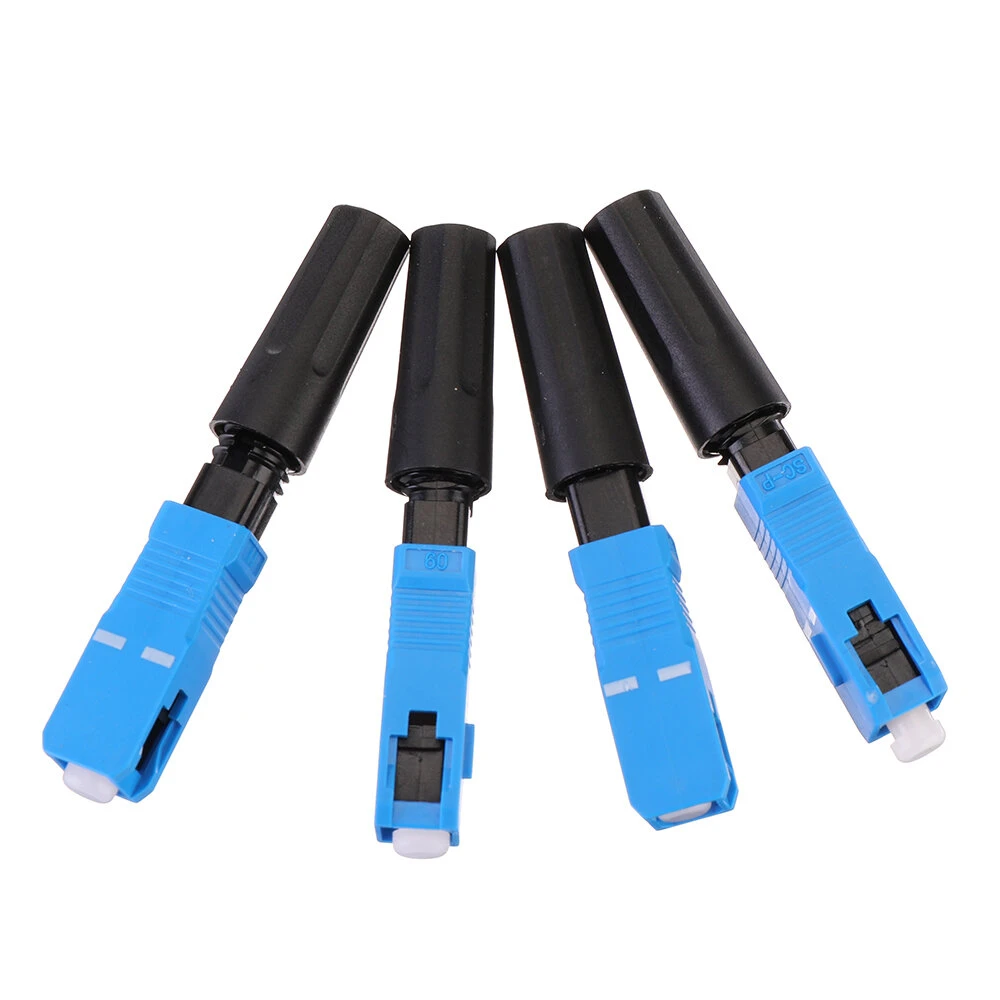

Details Pictures:
