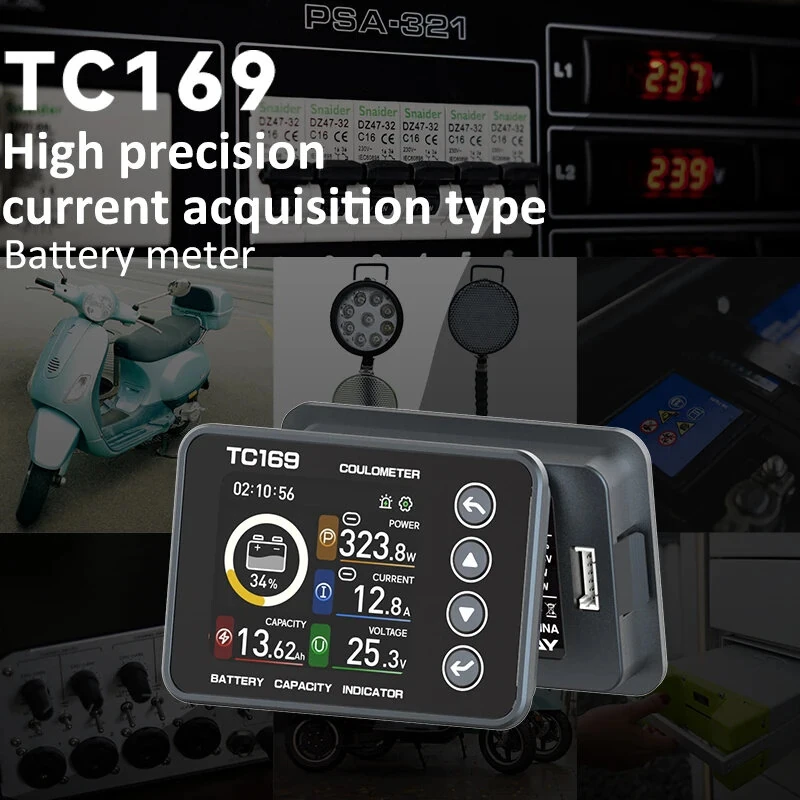

TC169 Battery Tester - 60V 75A Color Screen | Coulomb Counter & Voltmeter

Product Description

Specifications:

Model: TC169

Voltage Applicable Range: 6-60V

Display Screen: 280 x 240 pixels high color gamut

Current Applicable Range: CS30: 0-30A, CS50: 0-75A

Maximum Current Resolution: 1mA (0.001A)

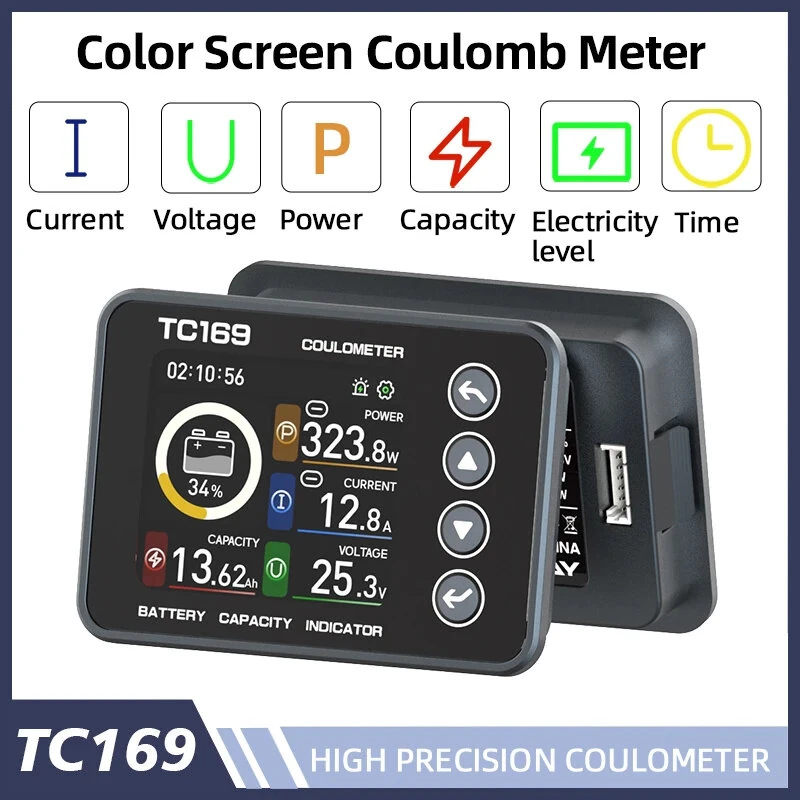

Display Content: Current, voltage, SOC (percentage), capacity, power, remaining time, sampling temperature, charging and discharging status

Working Power Consumption: 200-300mW

Sleep Power Consumption: 5.0-50mW

Features:

Highly Accurate Monitoring: Precisely measures voltage, current, power, capacity, and remaining time, keeping you informed of battery status.

Color Display: High-resolution 280 x 240 pixel color screen offers clear real-time data visualization.

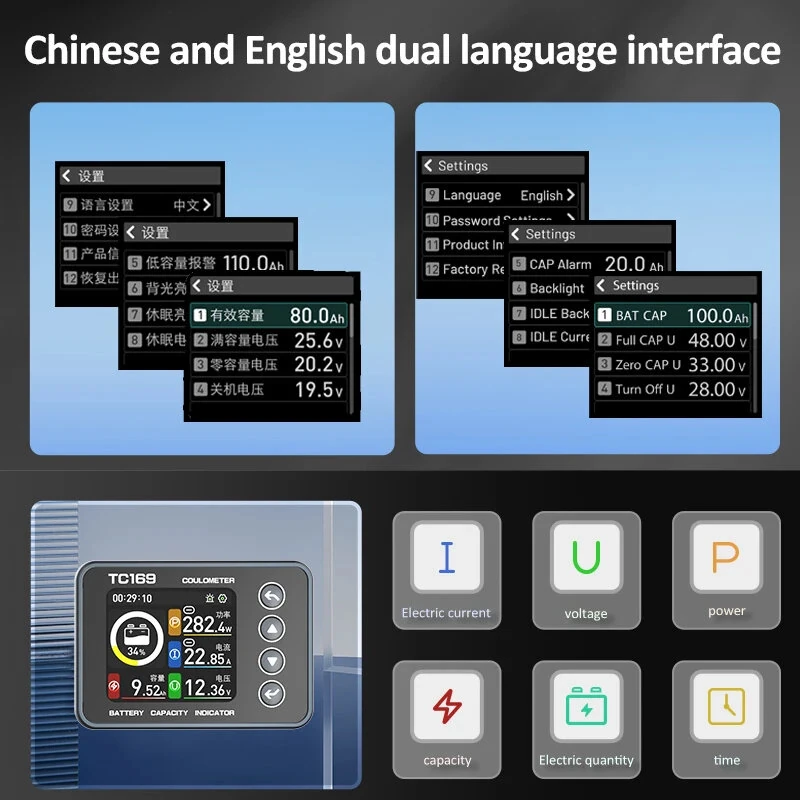

Customizable Settings: Supports custom low capacity alarms, zero/full capacity voltage settings, and brightness adjustments.

Multiple Current Ranges: Available in CS30 (0-30A) and CS50 (0-75A) models to suit different applications.

Energy Efficient: Low working power consumption (200-300mW) and extremely low sleep power consumption (5.0-50mW).

Package Included:

Type A:

1 x Battery Tester (0~30A)

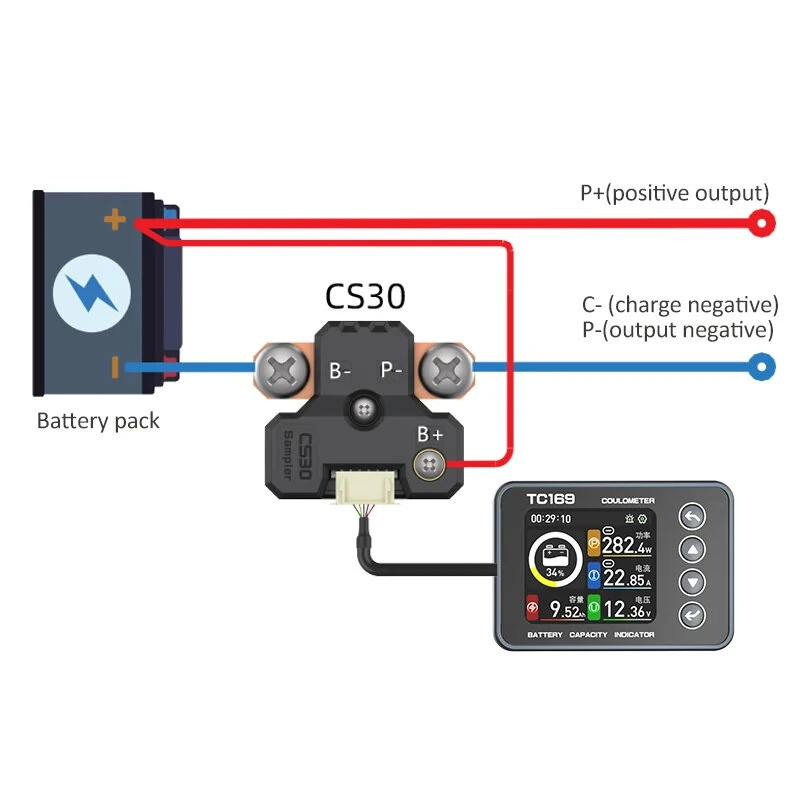

1 x B+ Connection Wire

1 x Plug Connection Wire

2 x Copper Nose

1 x User Manual

Type B:

1 x Battery Tester (0~75A)

1 x B+ Connection Wire

1 x 2m Shield Wire

1 x User Manual
