LCR-P1 Pro Smart LCR Tester - Capacitance Inductance Resistance ESR | 1.54-inch Color Screen & 1200mAh Battery

Product Description

>>Please click here to download the product manual<<

Specifications:

Model: LCR-P1 Pro

Capacitance Range: 1pf - 50mF, 0.1pf resolution

Inductance Range: 1uh - 2000H, 0.1uh resolution

Resistance Range: 10m?? - 20M??, 0.1m?? resolution

Power Source: 1200mAh lithium battery

Features:

Precise Measurements: Supports accurate automatic measurement of resistance, capacitance, inductance, and continuity.

Versatile Frequency Support: Offers 5 frequencies: 100Hz, 1kHz, 10kHz, 100kHz, and DCR (0Hz).

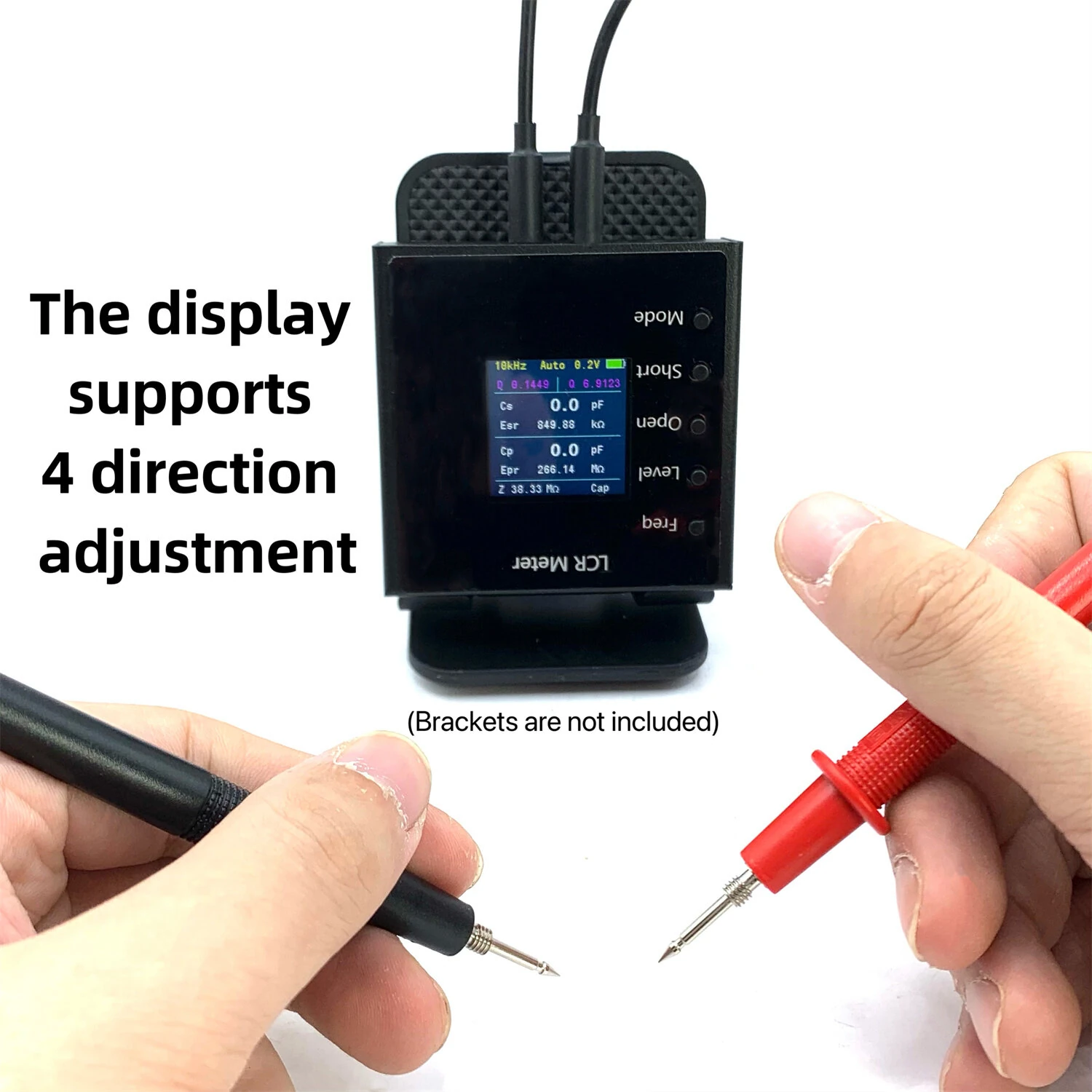

User-Friendly Display: Equipped with a 1.54-inch color screen and 4-direction content display.

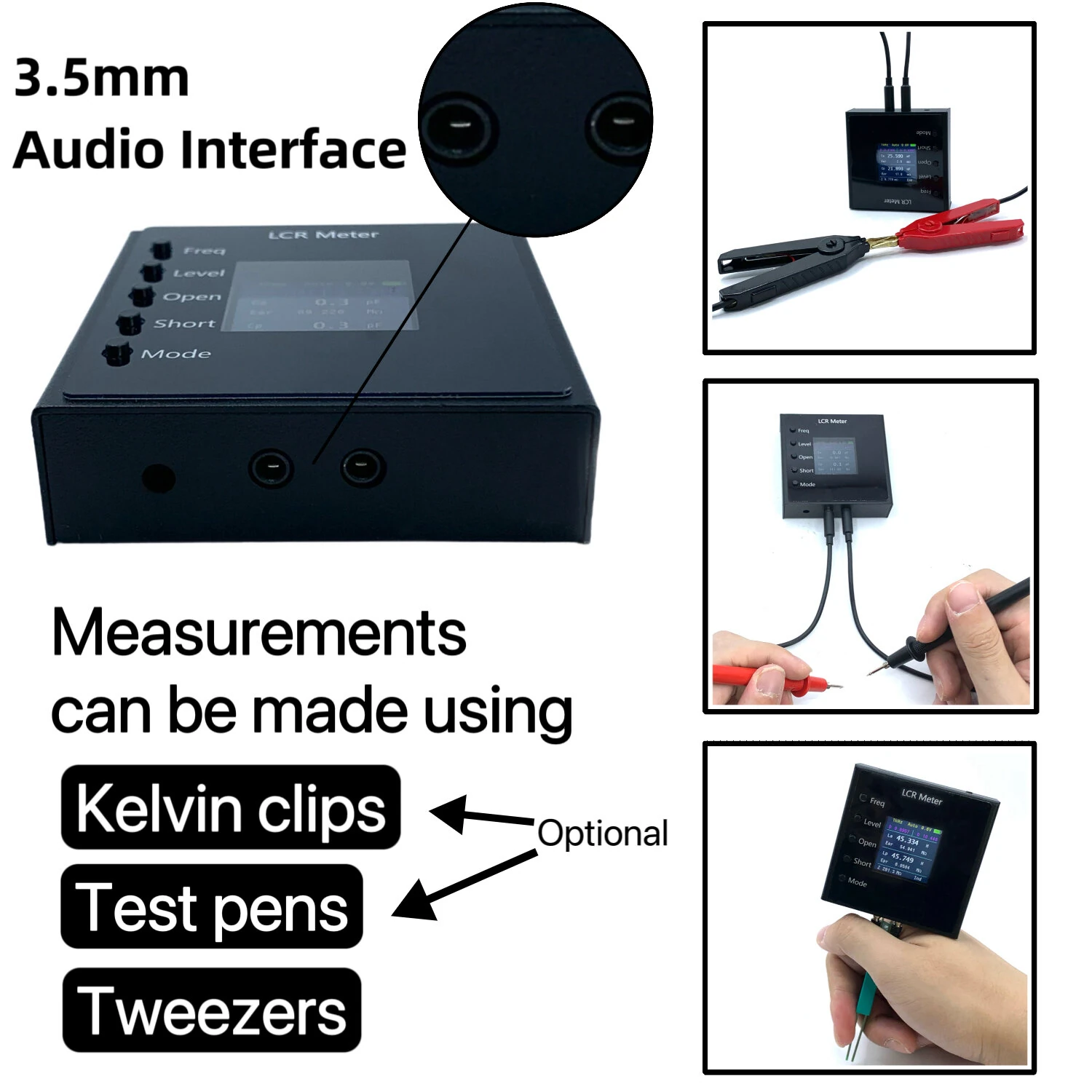

Convenient Testing Options: Utilizes a 3.5mm audio interface, compatible with probes, Kelvin clips, and tweezers.

Portable Design: Compact and lightweight at 772cm and 163g, ideal for various measurement scenarios.

Package Included:

Type A:

1 x Main Device

1 x Kelvin Clips

1 x Tweezers

Type B:

1 x Main Device

1 Pair of Probes

1 x Tweezers
