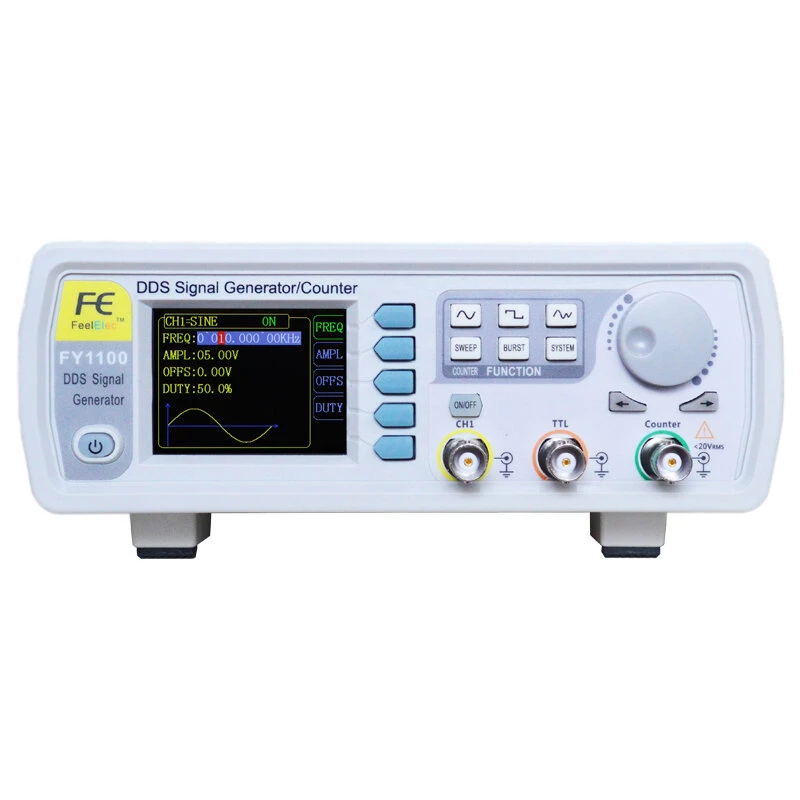

FeelTech FY1100-5M Signal Generator | DDS Function Frequency Meter | TTL Output

Product Description

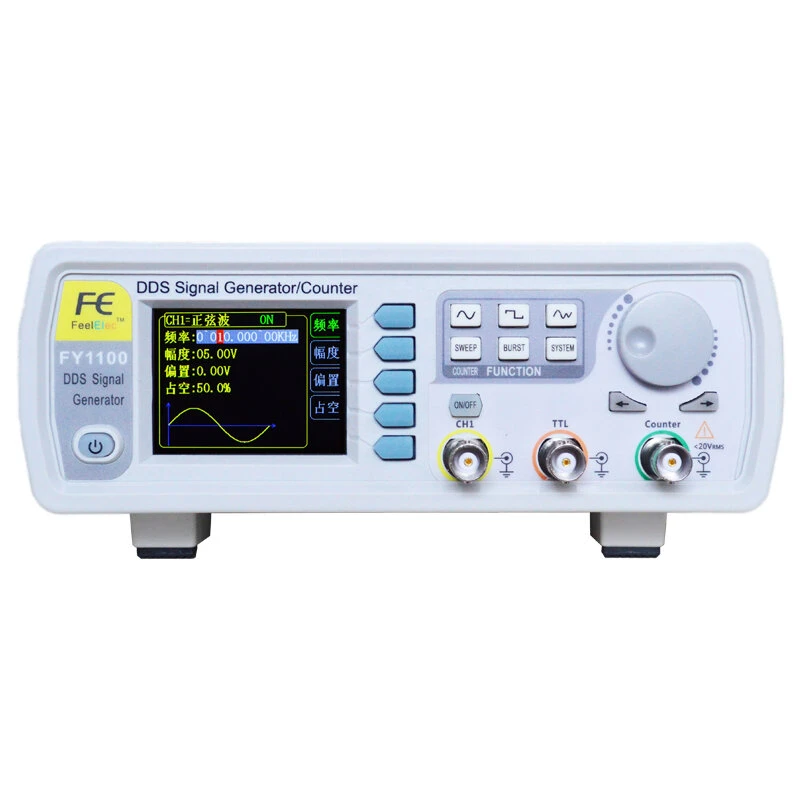

NOTE:The product supports Chinese and English switching??
Description:

FY1100 series single-channel signal generator is a portable, high-performance, cost-effective and multi-functional signal generator that integrates function signal generator, pulse signal generator, counter and frequency meter. The instrument uses a large-scale FPGA integrated circuit and a high-speed MCU microprocessor, and the internal circuit uses a high-precision active crystal oscillator as a reference, with high signal stability. The surface mount technology greatly improves the anti-interference and service life of the instrument. The instrument has a single-channel DDS signal and TTL level output, which can generate 13 kinds of waveform signals such as sine wave, square wave, triangle wave, sawtooth wave, etc. This instrument realizes the perfect combination of ease of use, excellent technical indicators and many functional characteristics in signal generation, waveform scanning, parameter measurement and use, which can help users complete work tasks faster. It is an electronic engineer, electronic laboratory, Ideal testing and measuring equipment for production lines, teaching and scientific research.
The FY1100 series single-channel signal generator has a user-friendly keyboard layout and instructions, providing users with an intuitive operation interface. The display interface adopts a 2.4-inch TFT color LCD screen with a high resolution of 320*240, which can simultaneously display the output signal parameters and prompt the current key functions. The shortcut keys greatly simplify the complicated operation process and greatly enhance the operation of the instrument Sex.
Features:
Adopt DDS direct digital synthesis technology to produce accurate, stable and low distortion output signal;Desktop design with ABS plastic shell and 5V (DC) DC voltage power supply;Adopt 2.4-inch (320*240 pixels) color display to display relevant waveform parameters;Sampling rate 150MSa/s, 12bits vertical resolution;
Various waveforms:Sine waveSquare wave (adjustable duty cycle)COMS wave (adjustable duty cycle)DC waveTriangle waveRising sawtoothFalling sawtoothStep triangle waveFull wavePositive half waveRandom noise waveAM waveformFM waveform
High frequency accuracy: frequency accuracy can reach 10^-2 orders of magnitudie;High frequency resolution: the full range of frequency resolution is 10mHz or 0.01Hz;High amplitude resolution: the minimum amplitude resolution can reach 10mV or 0.01V;With -7.5V~+7.5V DC bias function

Specifications:

Frequency characteristicsProduct model: FY1100-5MSine wave frequency range: 0~5MHzSquare wave frequency range: 0~2MHzTriangle wave frequency range: 0~3MHzTTL digital wave range: 0~5MHzOther wave frequency range: 0~3MHzMinimum frequency resolution: 10mHz (0.01Hz)Frequency accuracy: ??5x10^-6Frequency stability: ??1 x10^-6/ 3 hoursOutput impedance: 50??+10% (typical)
Wave characteristicsWaveform types: sine wave, square wave (adjustable duty cycle), COMS wave (adjustable duty cycle), DC wave, triangle wave, rising sawtooth wave, falling sawtooth wave, stepped triangle wave, positive full wave, positive half wave, Random noise wave, amplitude modulation waveform, frequency modulation waveformWaveform sampling rate: 150MSa/sWaveform vertical resolution: 12 bitsSine wave:Harmonic suppression: ??45dBc(<1MHz); ??40dBc(1MHz~5MHz);Total harmonic distortion: <0.8% (20Hz~20kHz, 0dBm)Square wave:Rise and fall time: ??15ns (VPP<5v)Overshoot: ??7.5%Duty cycle adjustment range: 0.1%~99.9%Sawtooth wave:Linearity: ??98% (0.01Hz~10kH)
Output characteristicsAmplitude range (peak-to-peak value): 10mVpp~15VppAmplitude resolution: 10mVAmplitude stability: ??0.5%/5 hoursAmplitude flatness: ??5% (<5MHz);
Wave outputOutput impedance: 50????10% (typical)Protection: All signal output terminals can work for more than 60S under load short-circuit conditions
DC biasBias adjustment range: ??7.5VMinimum offset resolution: 10mV
TTL outputLevel amplitude: >3VppFan-out factor: >8TTL loadLevel rise/fall time: ??15ns
CMOS outputLow level: <0.3VHigh level: 1V~7.5VLevel rise/fall time: ??25ns
External measurement functionFrequency counter function:Frequency measurement range: 0.01Hz~75MHzMeasurement accuracy gate time: 1S, 10S, 100S three-speed adjustmentCounter function:Counting range: 0-4294967295Measurement method: AC coupling methodCounting method: manualInput signal voltage range: 0.7Vpp~10VppPeriod measurement: 15ns resolution, maximum measurable 1S
Scan function (this function is only available for CH1 channel)Scan type: linear scan, logarithmic scanScanning object: frequency, duty cycleScan time: 0.1S~999.9S/stepFrequency setting range: arbitrary setting of starting point and ending pointFrequency sweep range: Determined by the set value of the sweep parameter
General technical specificationsDisplayDisplay type: 2.4 inch TFT color LCD displayStore and loadQuantity: 20 groupsLocation: 01 to 20 (The 01 storage location parameter is called by default after power-on)InterfaceInterface mode: using USB to serial interfaceCommunication rate: adopt industrial standard 115200bpsCommunication protocol: using command line mode, the protocol is openPower supplyVoltage range: DC 5VManufacturing process: surface mount technology, large-scale integrated circuit, high reliability, long service lifeBuzzer sound: users can turn on or off through program settingsOperating characteristics: all key operations, continuous knob adjustmentEnvironmental conditions Temperature: 0~40??C Humidity: ??80%Size: 200mm (length) X190mm (width) X90mm (height)Weight: 470g (host), accessories (150g)

Package includes:

1 x FY1100 single channel signal generator1 x Power adapter1 x USB-B data cable1 x BNC to clip cable (Q9 clip cable)1 x BNC-BNC connecting cable

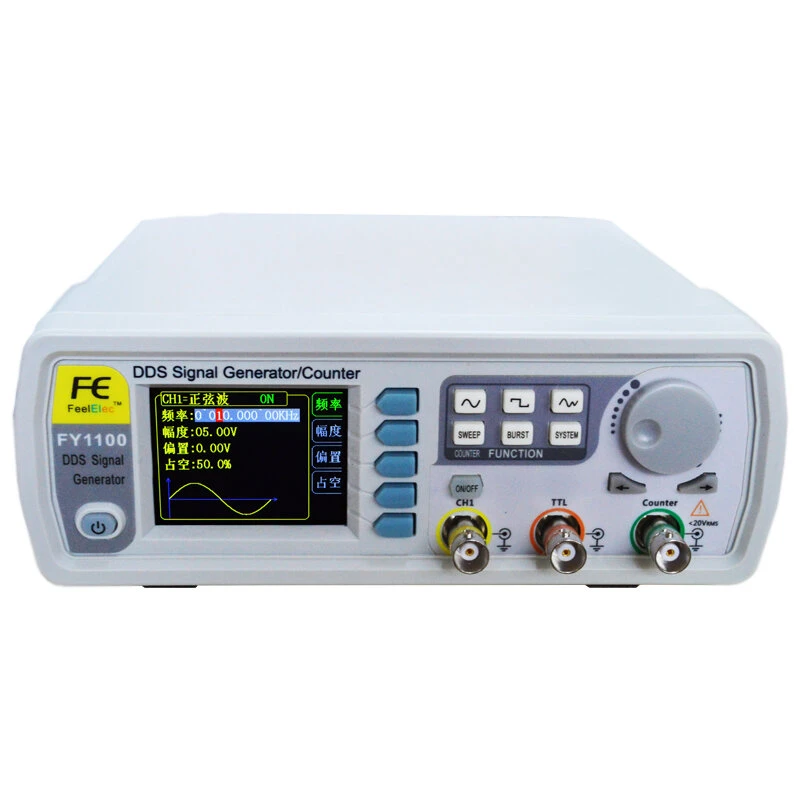

Details picture:
