V-212A MCH Dual Channel 20MHz Oscilloscope | 110V/220V with Frequency Meter
$595.00
$732.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:Analog Oscilloscope: - DC-20MHz - Dual channels/dual traces, X-Y mode - 6" display, imported high brightness oscilloscope tube - High sensitivity of triggering, up to 1mV/divison - TV synchronous separation circuit to observe stable TV signal -Triggering mode:AUTO/NORM/TV-V/TV-H - Vertical:CH1/CH2/ALT/CHOP/ADD - X-x10/Y-x5 - Polarity reversal - CH1 Sync output - Power supply:AC 220V and 110V( optional)
Specifications:
| Model | V-212A | |
| Specifications | CRT 6" rectangular screen with internal graticule,8??10div | |
| Vertical deflection | ||
| Display model | CH1,CH2,ADD,ALT,CHOP | |
| Deflection factor | 5mV/div to 5V/div ??3%,1mV/div to 1V/div??5%(??5),10steps | |
| Rise time | ??17.2ns | |
| Max. input voltage | 250V(DC+AC peak) ??1KHz | |
| Input coupling | AC,DC,GND | |
| Polarity selection | +or-(CH2 Only) | |
| Horizontal deflection | ||
| Display mode | 1,10,X-Y | |
| Time base | 0.2??s/div to 0.2s/div,9 ranges | |
| Sweep magnification | ??10 | |
| Accuracy | ??3% | |
| Trigger system | ||
| Trigger mode | NORM,AUTO,TV-V,TV-H | |
| Trigger source | CH1,CH2,VERT,LINE,EXT | |
| Sensitivity | 20Hz~20MHz(VERT) | |
| and frequency | AUTO,NORM | 0.5div(INT),0.5Vp-p(EXT) |
| TV-V,TV-H | At least 1 div or 1Vp-p | |
| Input impedance | 1M?? | |
| X-Y operation | ||
| X-Y phase difference | ??3??C,DC-50kHz | |
| Others | ||
| Calibration waveform | Frequency:1KHz??20%,Voltage:0.5V??10% | |
| Power supply | 220V/110V??10%;50/60Hz | |
| Dimensions | 310(W) ??130(H) ??370(D)mm | |
| Weight | 8.5KG | |

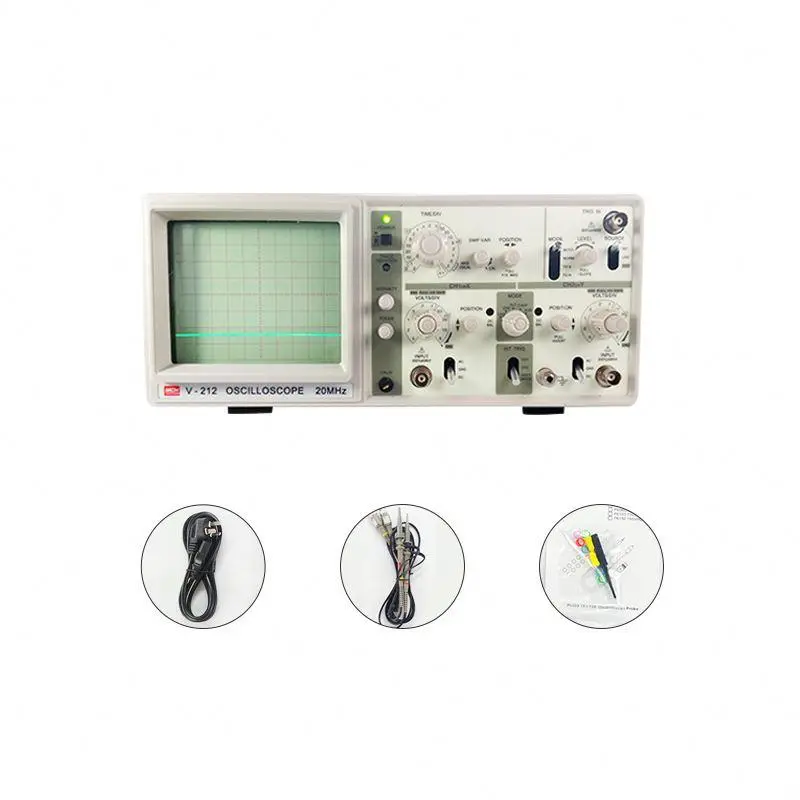

Package Inlcudes:
1 x Analog Oscilloscope
1 x Power Supply
1 x Pair of Test Probes
Note:
We will send you a plug adapter according to your country.

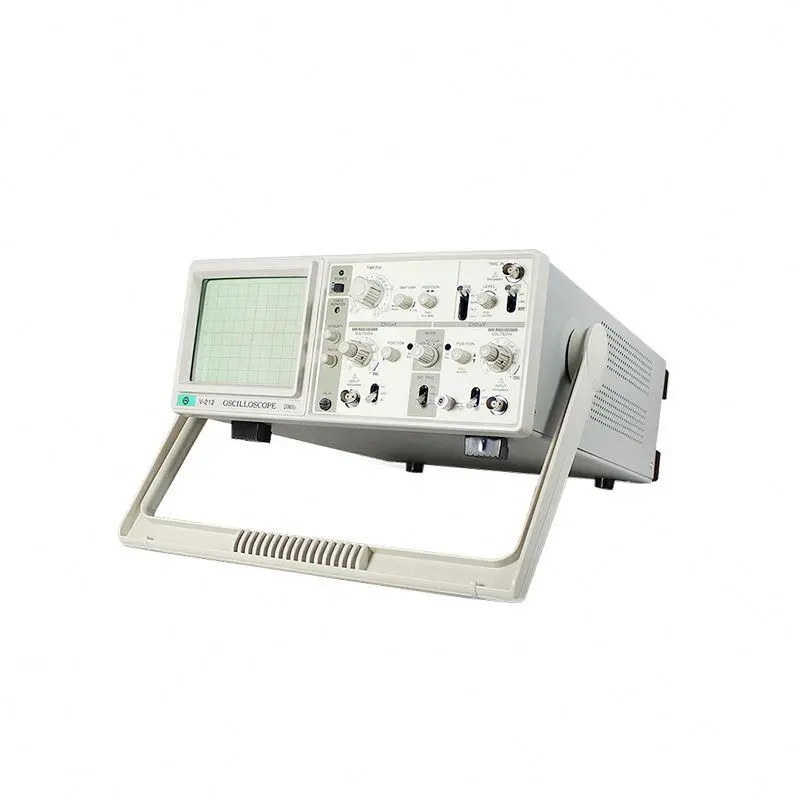

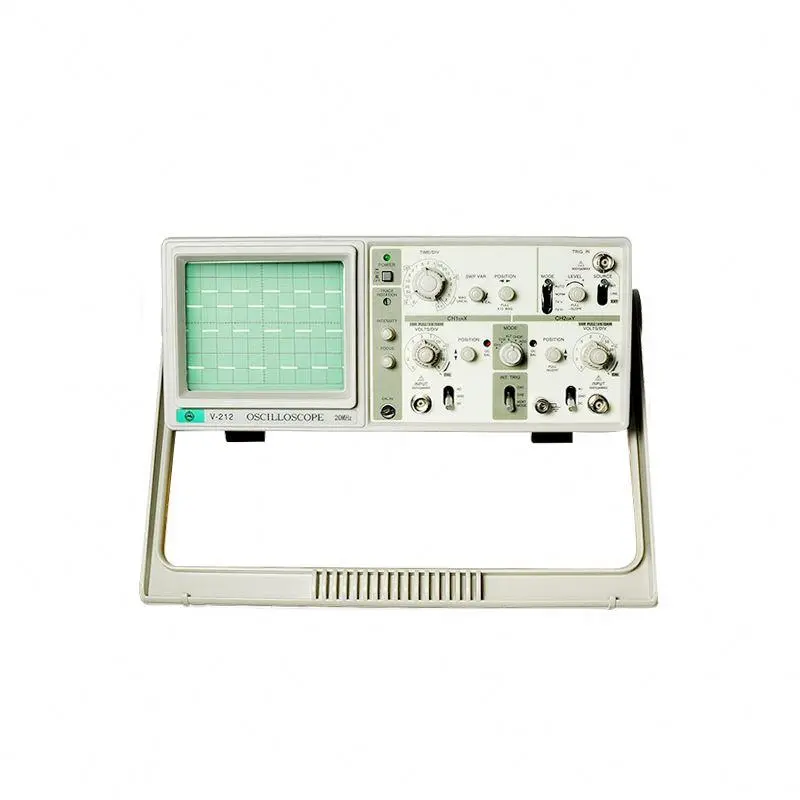

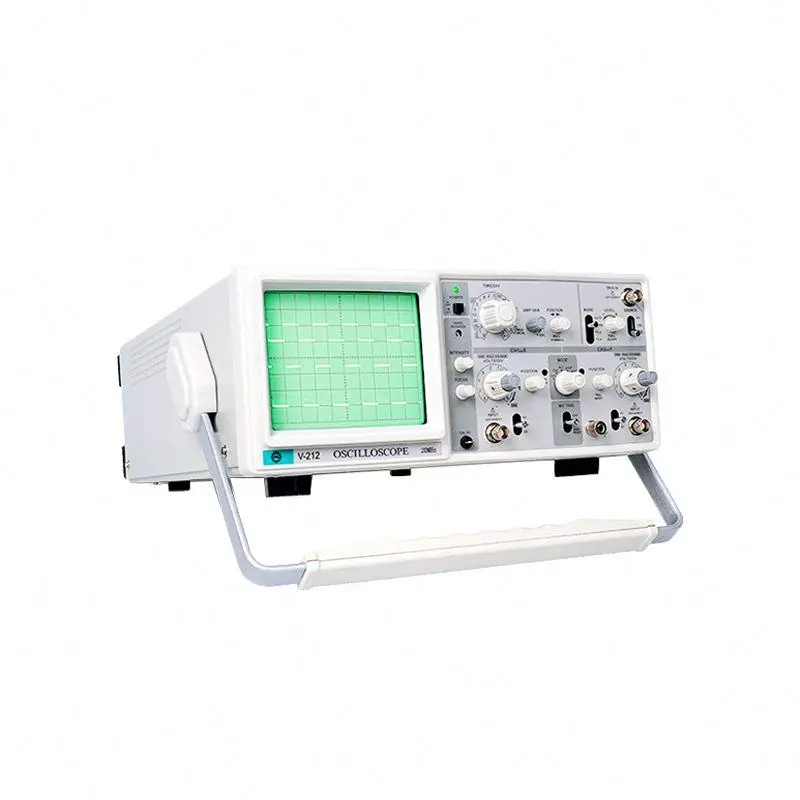

Details Pictures:
