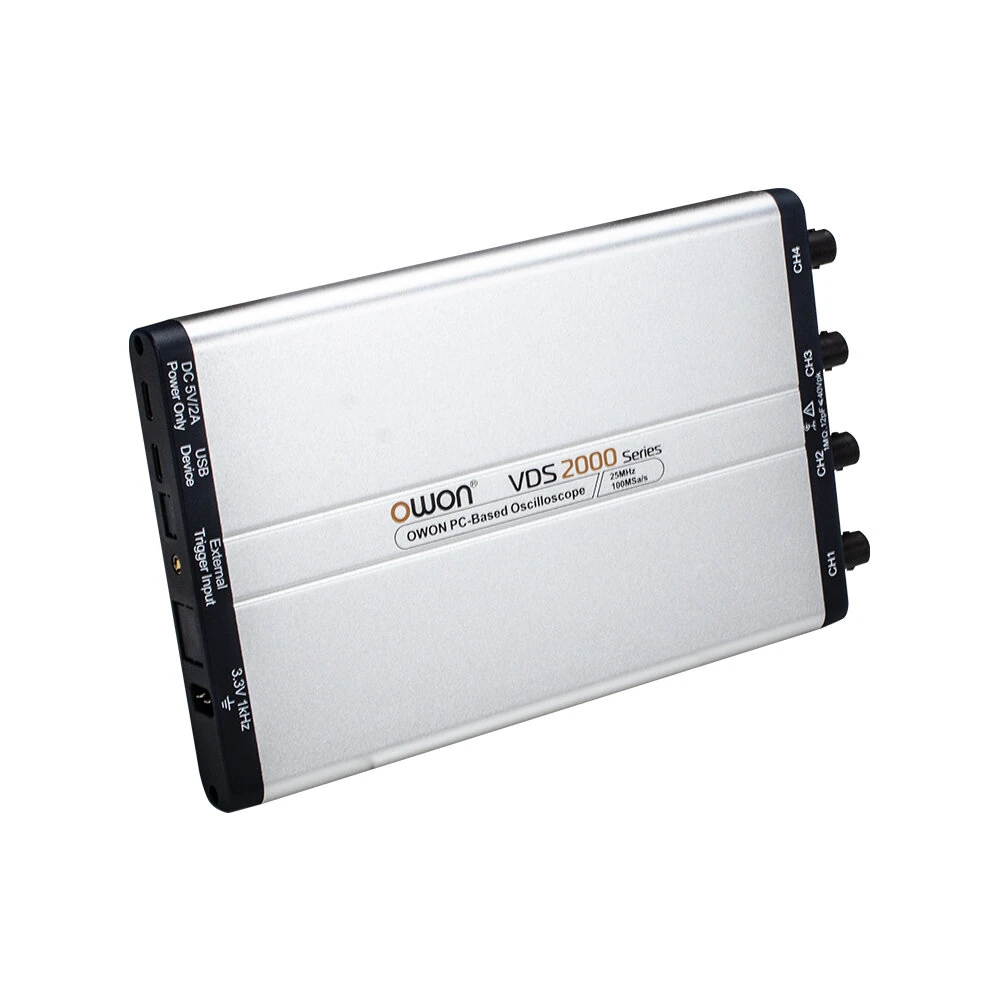

OWON VDS2000 Series PC Oscilloscope | 25MHz Bandwidth, 100MSa/s | USB

Product Description

Specifications:Bandwidth: 25 MHzVertical Resolution: 8 bitsChannel Number: 2 (VDS2252/VDS2252I), 4(VDS2254/VDS2254I)Sampling Rate: 100 MSa/sRise Time: ??14 nsHorizontal Scale: 5 ns/div ?C 1000 s/div, adjustable in steps of 1-2-5Sampling Mode: Sample, peak detect, averageRecord Length: 1 MInput Coupling: DC, AC, GroundInput Impedance: 1 M?? ?? 2%, parallel with 12 pF ?? 5 pFMax Input Voltage: VDS2252 & VDS2254: 40 V (DC + AC Peak); VDS2252I & VDS2254I: 400 V (DC + AC Peak)Channel Isolation: 100:1 @ 50 Hz; 40:1 @ 10 MHzDC Gain Accuracy: ??3%Vertical Sensitivity: 2 mV/div ?C 10 V/div, adjustable in steps of 1-2-5Trigger Type: Edge, Video, Slope, PulseTrigger Mode: Auto, Normal, SingleLine/Field Frequency: Supports NTSC, PAL, SECAM broadcast systemsAutomatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vrms, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, DelayCommunication Interface: VDS2252 & VDS2254: USB Device (Type C); VDS2252I & VDS2254I: LAN (Isolation for I/I Models)Power Source: DC 5VPower Consumption: VDS2252 and VDS2252I: ?? 5 W | VDS2254: ?? 6 W | VDS2254I: ?? 8 WDevice Dimensions: 190 x 18 x 120 mm (W x H x D)Weight: Approx. 0.38 kg
Features:a. Multi-Platform CompatibilityCompatible with Windows, For MacOS, For Linux, and Android systems through a tailored SDK, providing users with comprehensive access across operating environments for advanced testing and development.b. High Precision MeasurementOffers 100 MSa/s sampling rate, 8-bit vertical resolution, and a rise time ??14 ns, ensuring precise and accurate waveform analysis for critical testing scenarios.c. Industrial-Grade Input HandlingSupports a maximum input voltage of up to 400 V (DC + AC Peak for I-versions), making it suitable for high-voltage applications with secure circuit isolation on selected models.d. Versatile Trigger OptionsSupports edge, video, slope, and pulse triggers and automatic measurement functions, simplifying test setups and enabling in-depth waveform diagnostics in varied operational contexts.e. Compact Aluminum Alloy DesignThe lightweight aluminum alloy chassis improves portability while ensuring efficient long-term operation in both research labs and field testing environments.
Package Included:1 x Host2 x Probes1 x Quick Guide1 x USB Type-C Data Cable
