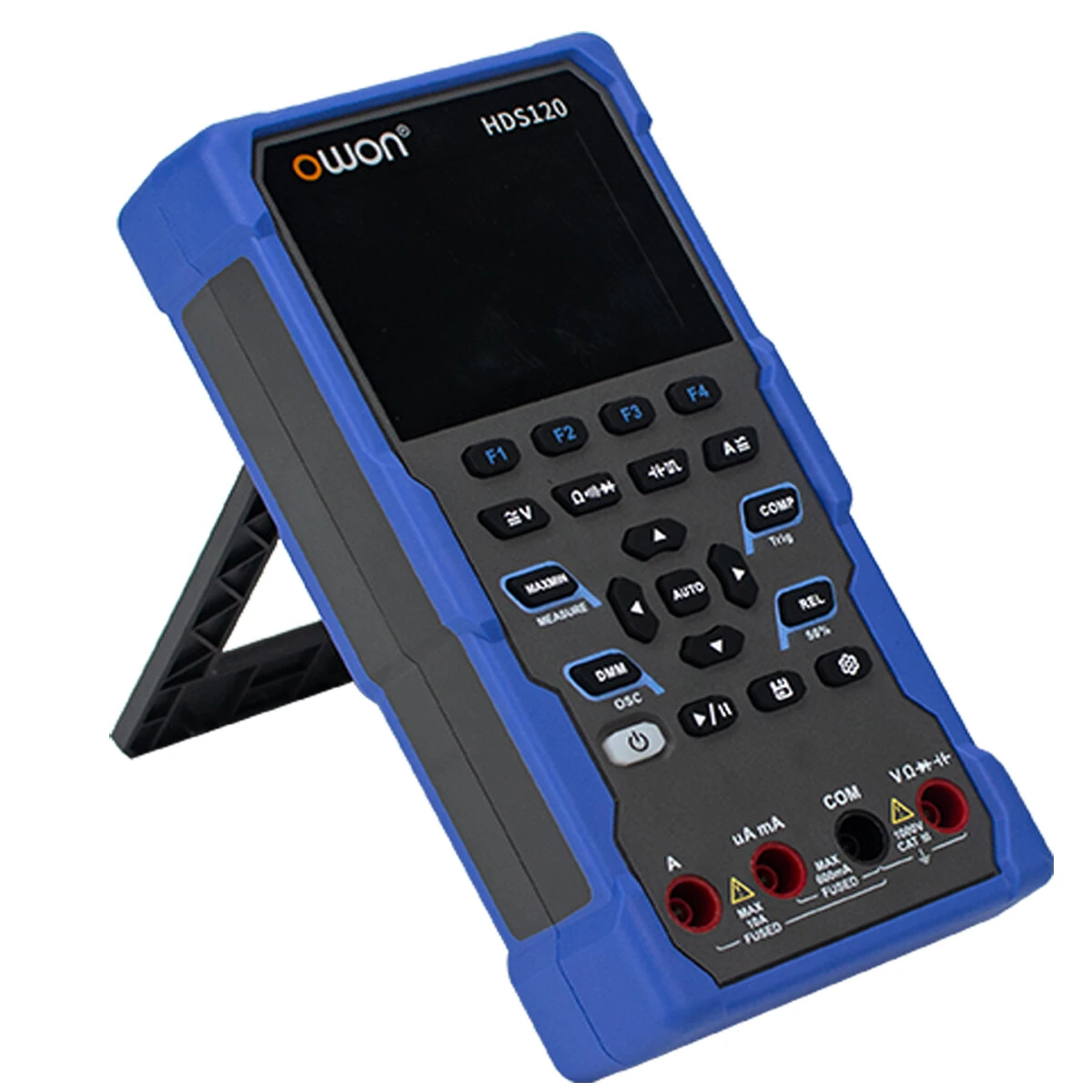

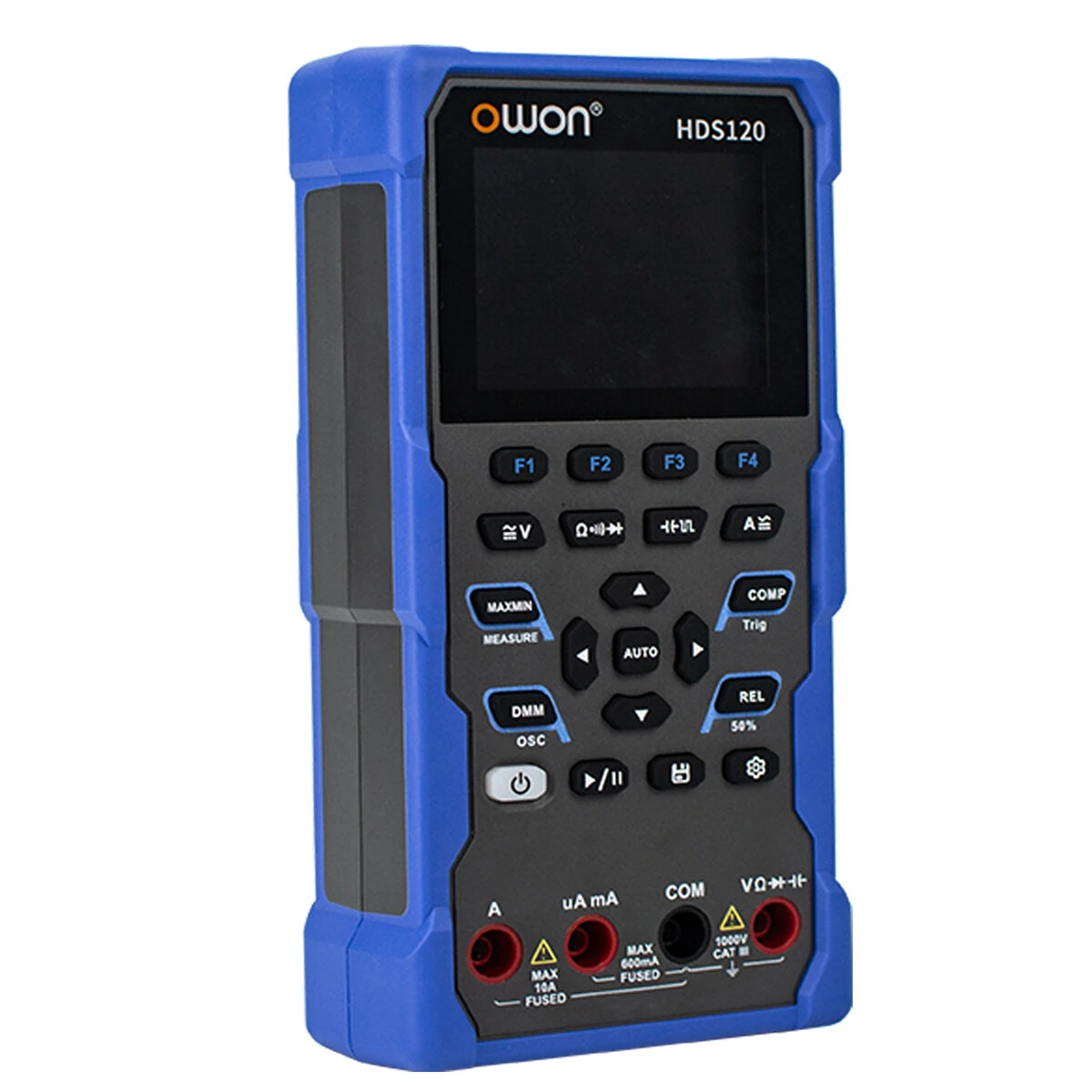

OWON HDS120 Digital Multimeter Oscilloscope | 1MHz Bandwidth | 1000V DC

Product Description

Click to download manual

Features:

Wide Measurement Range: Capable of measuring DC voltage from 20mV to 1000V, AC voltage up to 750V, and current both DC and AC up to 20A and 10A respectively. Ideal for diverse applications.

High Accuracy: Features high accuracy with DC voltage measurements of ??(0.1%+20 dig) for precise data collection; AC current accuracy is ??(2.5%+10dig) ensuring reliable readings.

Advanced Oscilloscope Functions: Equipped with a 1MHz analog bandwidth and 5.0Msps maximum sample rate, providing high-resolution waveforms for detailed analysis.

Multiple Trigger Modes: Includes Auto, Normal, and Single trigger modes, with rise and fall edge detection, tailored for capturing various signal types.

User-Friendly Design: Features at 2.8?? LCD backlit display, low battery indication, and sleep mode for enhanced usability and power management.

Specifications:

Brand: OWON

Measurement Range and Accuracy:

DC Voltage: 20mV - 1000V, ??(0.1%+20 dig)

AC Voltage: 20mV - 750V, ??(0.8%+10 dig)

DC Current: 20??A - 20A, ??(0.5%+10 dig)

AC Current: 200??A - 10A, ??(2.5%+10 dig)

Resistance: 200?? - 100M??, ??(0.3%+5 dig)

Capacitance: 2nF - 20mF, ??(3.0%+5 dig)

Frequency: 200Hz - 20MHz, ??(0.1%+5 dig)

Oscilloscope:

Analog Bandwidth: 1MHz (only ACV scale)

Time Base Range: 2.5??s - 10s/div

Voltage Vertical Sensitivity Range: 30mV - 500V/grid

Maximum Voltage Limit: 1000V DC+AC peak value

Maximum Current Limit: 15A DC+AC peak value

Other:

Safety Compliance: CATIII 1000V

Display: 2.8?? LCD

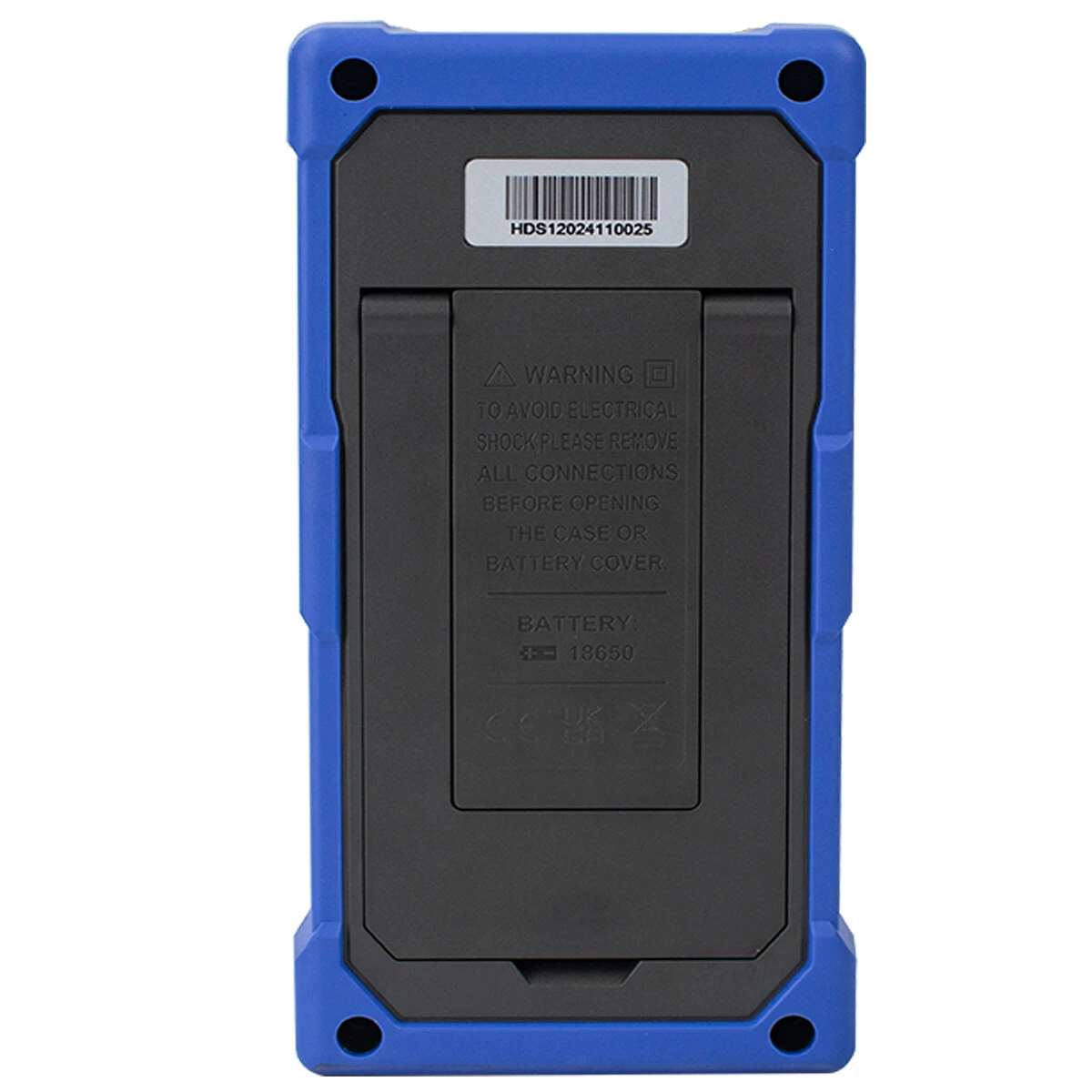

Battery: 18650

Dimension: (LWH) 93mm x 41.5mm x 188mm

Weight (without package): 0.35kg

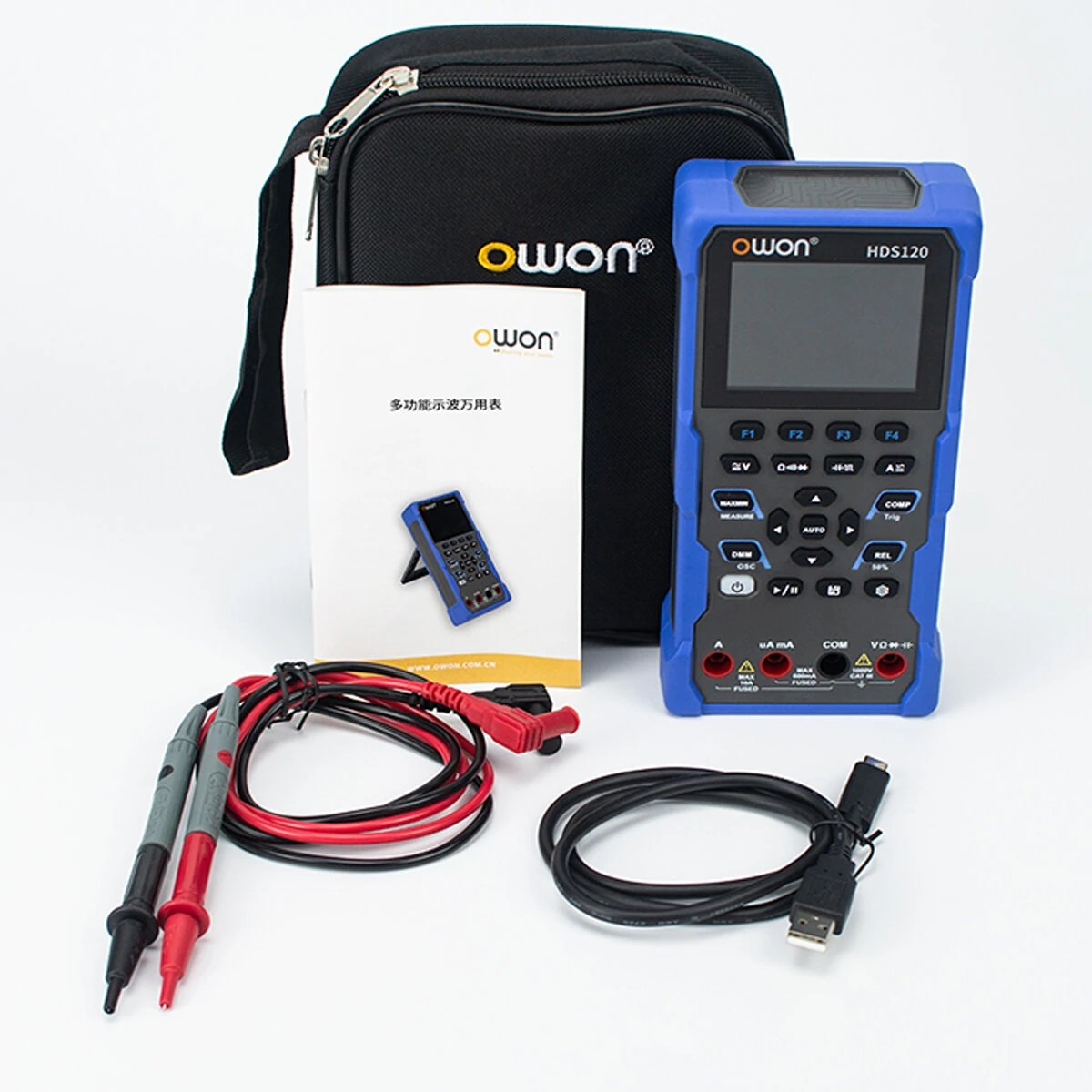

Package included:

1 x Multimeter

1 x Pair of Test Leads

1 x 18650 Battery

1 x User Manual
