OWON ADS804A Digital Oscilloscope 70MHz 4-Channel 12-bit High Resolution

Product Description

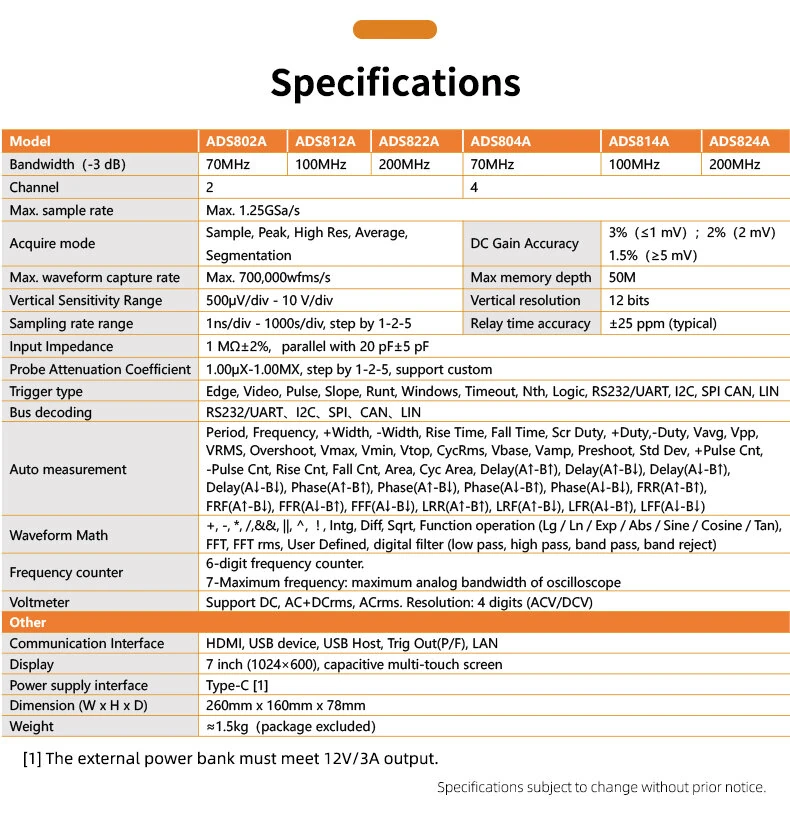

Specifications:

- Channel: 4

- Max. sample rate: 1.25GSa/s

- Acquire modes: Sample, Peak, High Res, Average, Segmentation

- Vertical resolution: 12 bits

- Max. waveform capture rate: 700,000 wfms/s

- Max. memory depth: 50M

- Vertical sensitivity: 500??V/div - 10V/div

- Record length: 50M

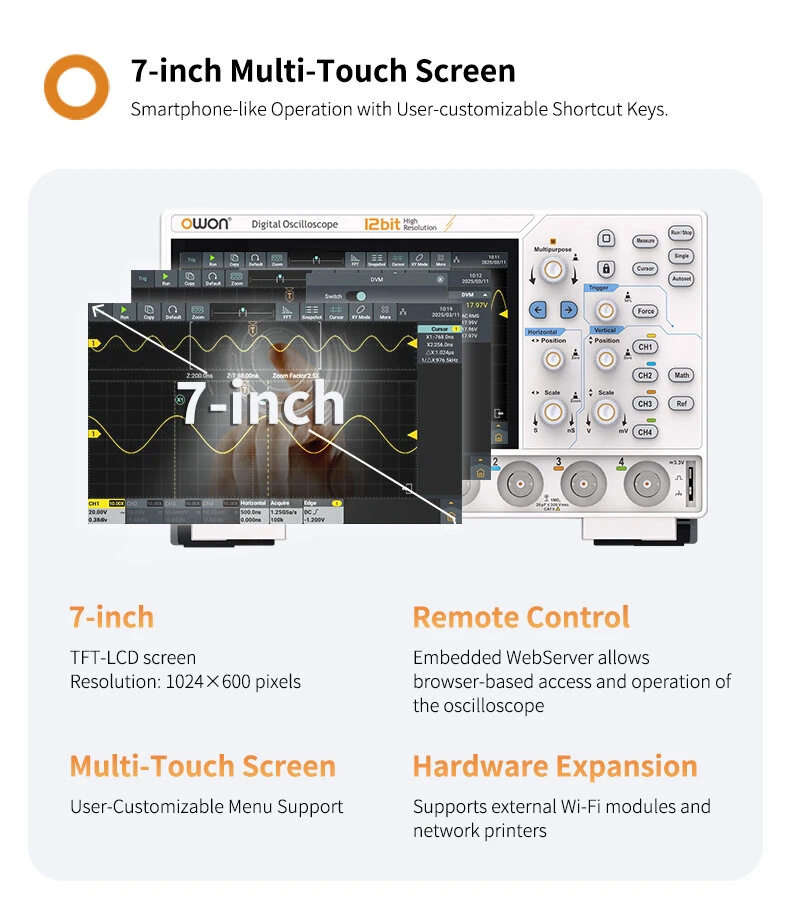

- Display: 7-inch (1024x600), capacitive multi-touch screen

- Input impedance: 1 M????2%, paralleled with 20 pF??5 pF

- Dimensions (W x H x D): 260mm x 160mm x 78mm

Type:

ADS804A: 70MHz Bandwidth(-3 dB)

ADS814A: 100MHz Bandwidth(-3 dB)

ADS824A: 200MHz Bandwidth(-3 dB)

Features:

1. High-Resolution Data Capture: Equipped with 12-bit ADC, enhancing the precision of captured signals, providing clear and detailed waveform viewing.

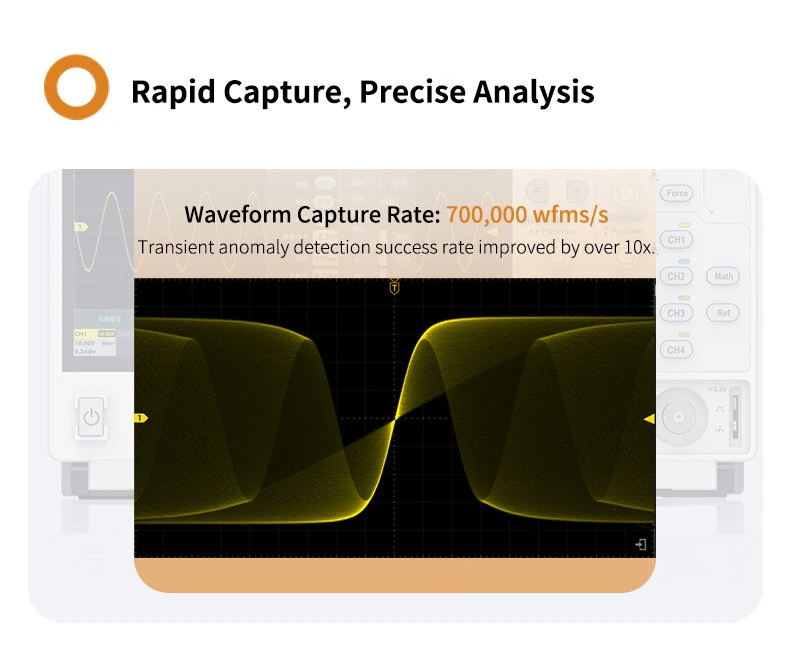

2. Rapid Waveform Acquisition: Achieves a maximum waveform capture rate of 700,000 wfms/s, allowing for swift and efficient data collection.

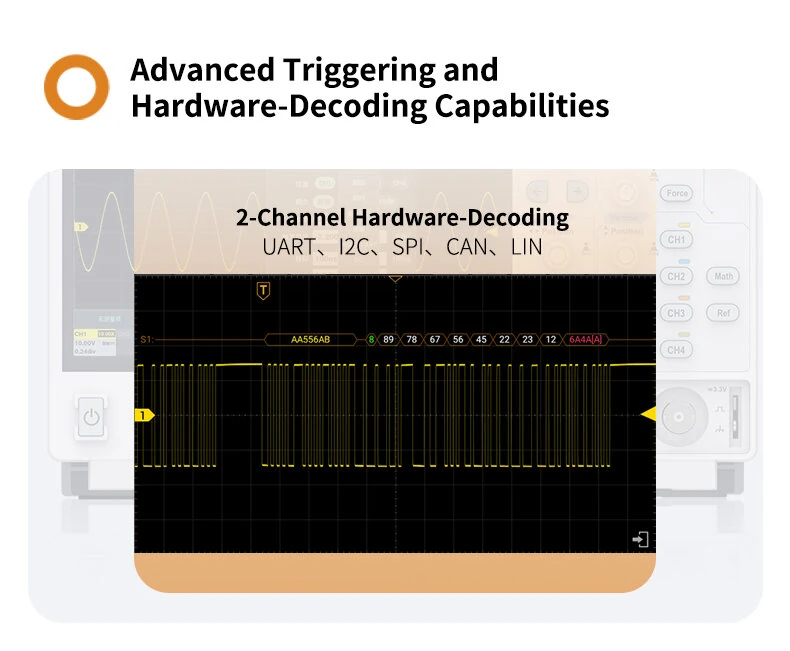

3. Versatile Input Options: Supports various triggering modes including edge, video, pulse, slope, runt, windows, and more, accommodating diverse testing needs.

4. Extensive Connectivity: Features HDM USB device, USB host and LAN interfaces for seamless data transfer and integration into your existing workflow.

5. Advanced Measurement Capabilities: Includes 43 auto measurements, offering comprehensive tools for thorough waveform analysis and data accuracy.

Package Included:

1 x Digital Oscilloscope Host

4 x Probes

1 x Power Cord(EU Plug)

1 x Power Adapter

1 x USB Cable

1 x Manual
