Micsig VATO2004 200MHz 4-Channel Automotive Oscilloscope | 1GSa/s Portable

Product Description

Features:

This automotive virtual oscilloscope model VATO2004200MHz offers a high maximum bandwidth including 4 analog channels, ensuring brilliant and efficient performance.

With a rapid rise time of 1.8ns and maximum sampling rate of 1GSa/s, this oscilloscope guarantees accurate data sampling and reliable readings.

It houses an impressive memory depth of 50Mpts and shows 2% accurate DC gain, which provides long-term and large data storage capacity.

The oscilloscope also comes with an optional 7.4V, 7500mAh Li-ion battery, providing you with mobile use flexibility and uninterrupted performance during power outages.

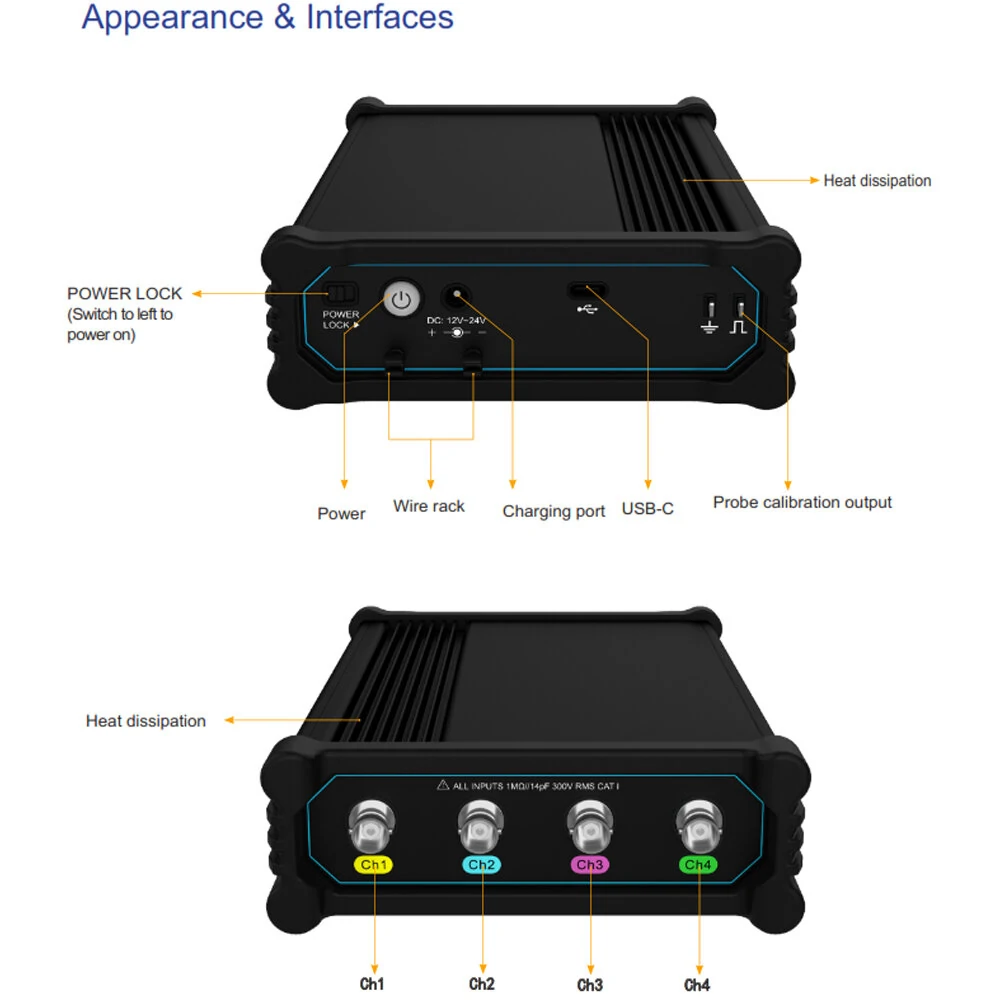

It is also equipped with USB Type-C and DC power interfaces, granting multiple options for power input and data transfer.

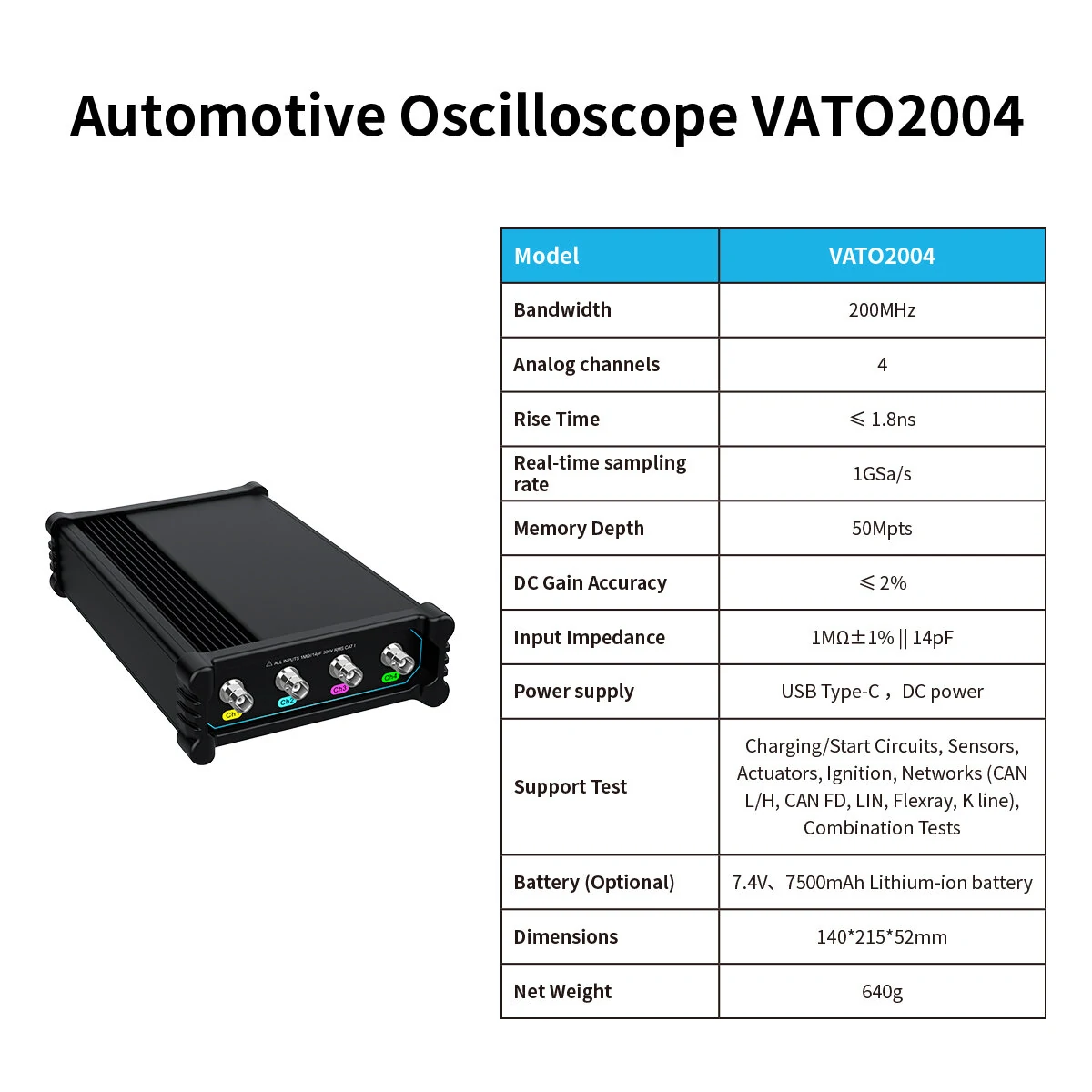

Specifications:

Brand: Micsig

Model: VATO2004

Max bandwidth: 200MHz

Analog channels: 4

Rise time: ??1.8ns

Max. sampling rate: 1GSa/s

Memory depth: 50Mpts

DC gain accuracy: ??2%

Input impedance: 1M?? ??1% || 14pF

Interfaces: USB Type-C, DC power

Battery: 7500mAh Li-ion battery

Dimension: 140*215*52mm

Net weight: 640g

Package included:

1 x Automotive Oscilloscope

2 x Passive BNC probes

4 x BNC to banana cable

4 x Alligator clips

4 x Pin needles

1 x Power cable

1 x Power adapter

1 x Type-c cable

1 x Calibration certificate

1 x Quick operation guide

1 x Manual
