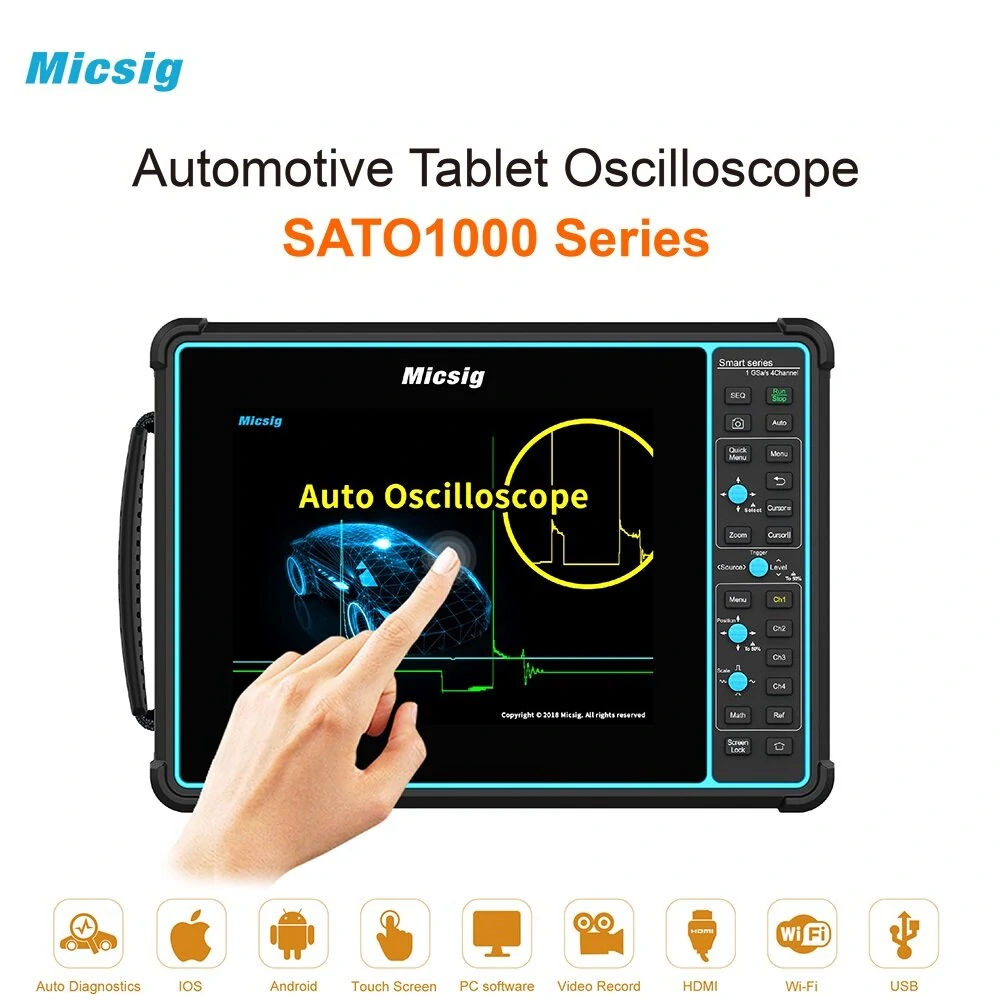

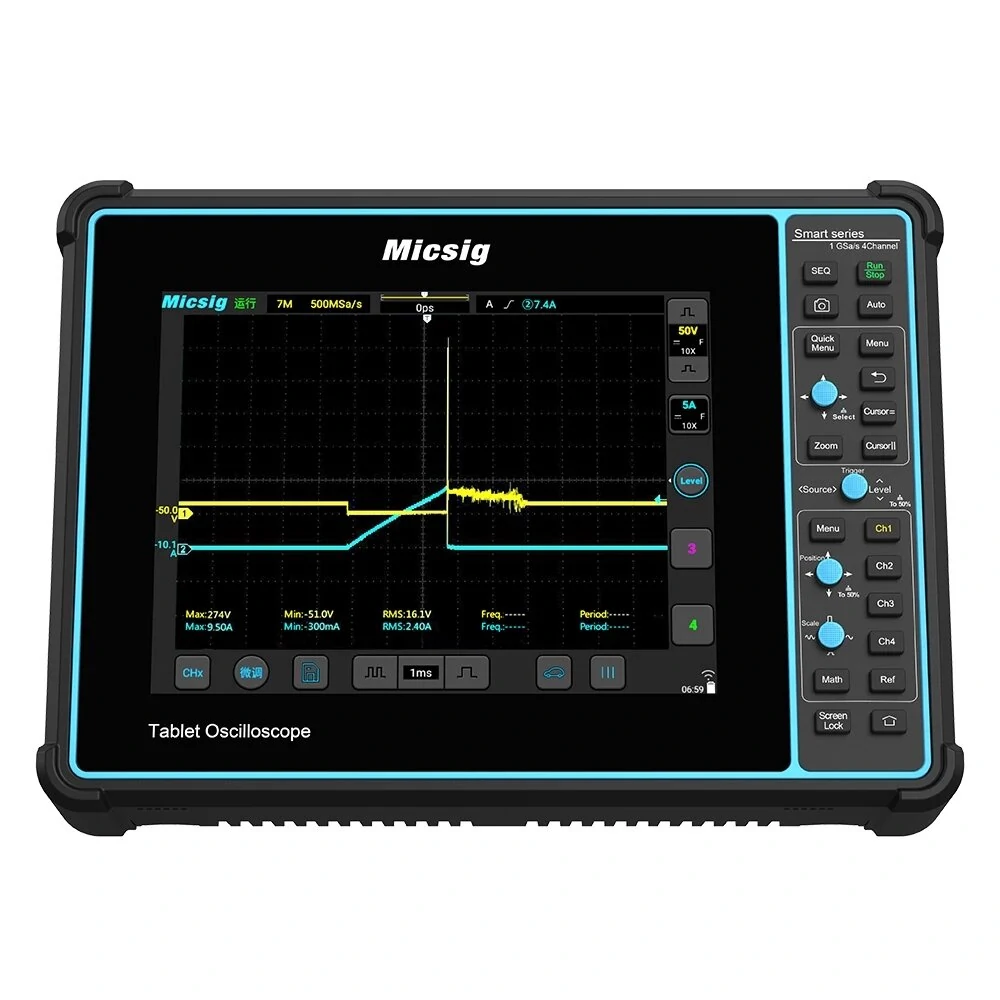

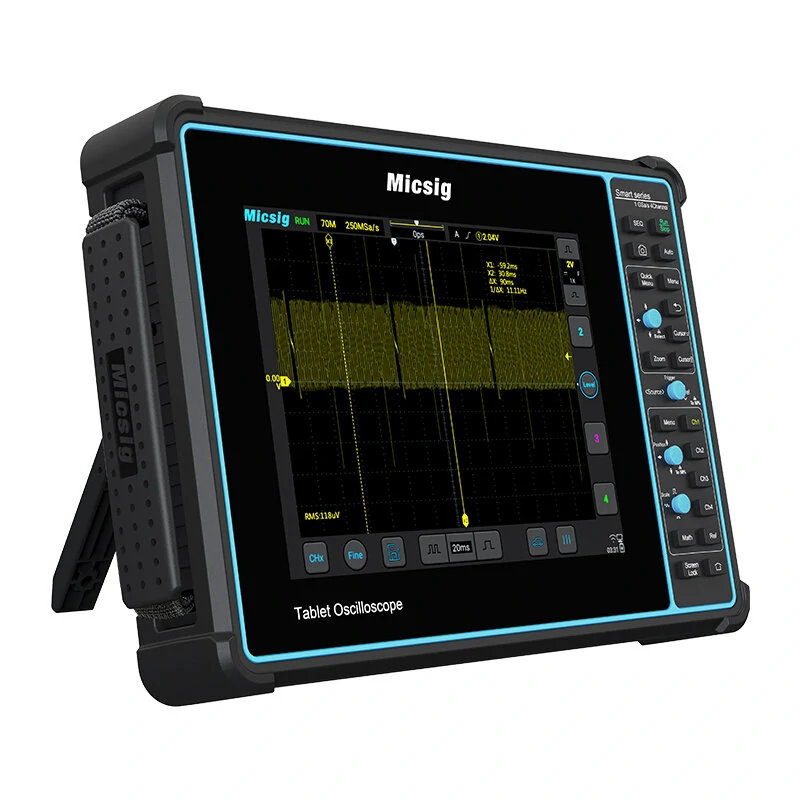

Micsig SATO1004 4-Channel 100MHz Tablet Oscilloscope | 1G Sa/s APP Control

Product Description

Features:

?? Portable tablet design with all-in-one functions

?? Comprehensive auto diagnostic presets package

?? Powerful signal capture and analysis capabilities

?? Support PC & Smartphone App remote control

?? HDMI function for training & demonstration

Specification:

Model: SATO1004

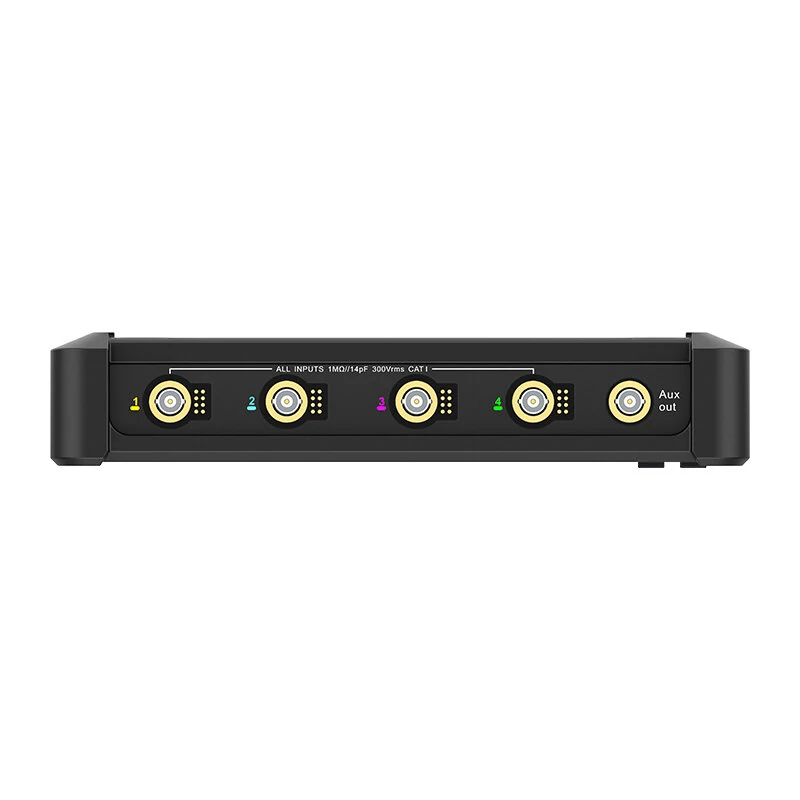

Analog Channels: 4

Bandwidth: 100MHz

Sampling Rate (Max.): 1GSa/S (single channel)

Memory Depth: 70Mpts (single channel)

Waveform Capture Rate (Max.): 130,000 wfms/s

Support Tests: Charging Circuits, Starter Circuits, Sensors, Actuators, lgnition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests

Bandwidth Filter: Full bandwidth, Low pass

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out

Display: Industrial 8" TFT-LCD (800*600), 14*10 grids

Dimension 1 Net Weight: 265* 192*50mm 1 1.9kg (with battery)

Battery: Built-in 7.4V, 7500mAh, Li-ion battery

Package Includes(SATO1004 Standard Kit):

1 x SATO1004 Automotive Tablet Oscilloscope

1 x Power Cord (EU Plug)

1 x Adapter

2 pair x Alligator Clips

2 pair x Soft Pin Probes

4 x BNC to Banana Leads

2 x Passive Probes

>>Please click here to download the English manual<<
