Micsig DP700 DP1500 DP3000 High-Voltage Differential Probe | 100MHz 3000V

Product Description

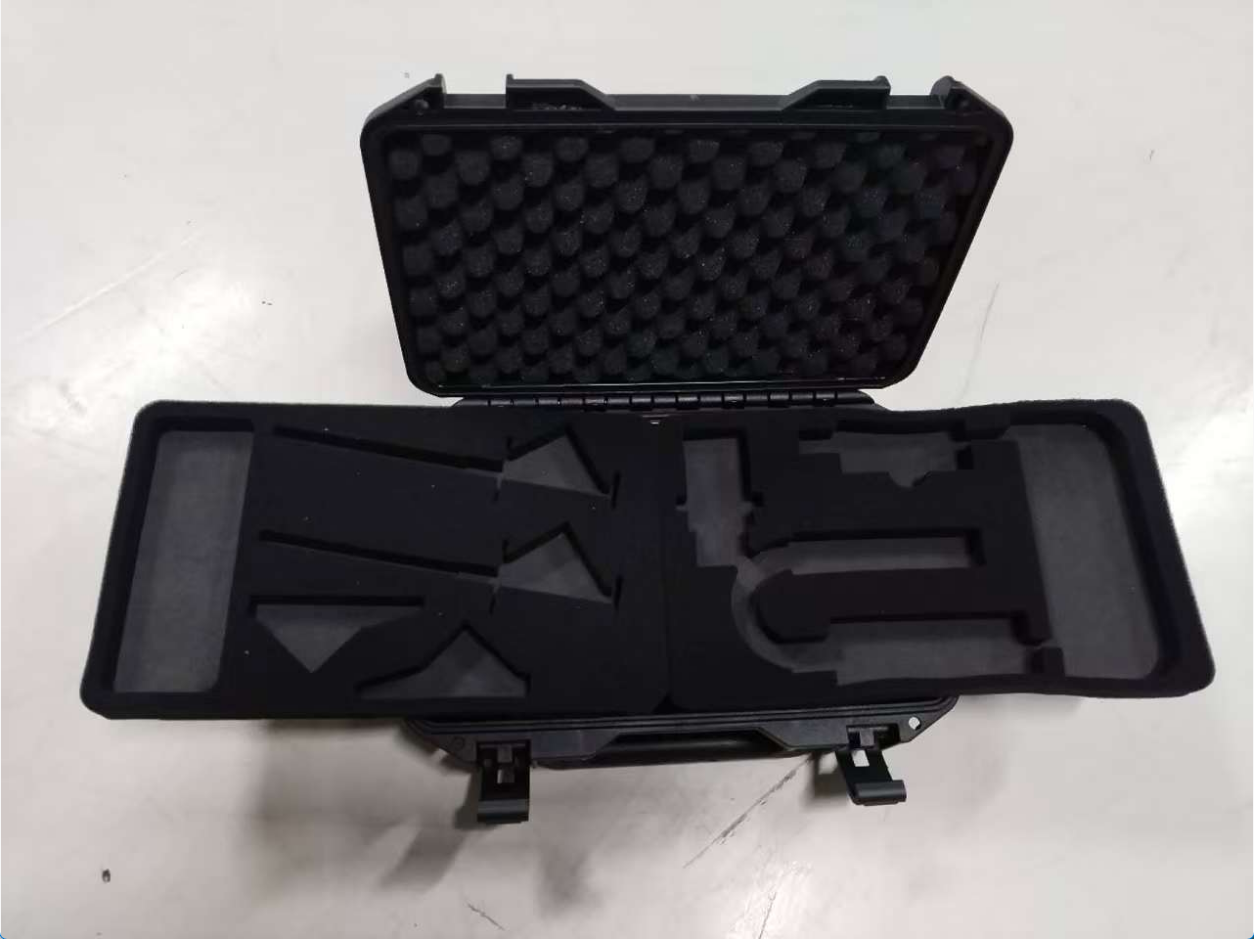

Note: The DP700 packaging has changed, as shown in the picture below. Both old and new packaging will be shipped randomly.

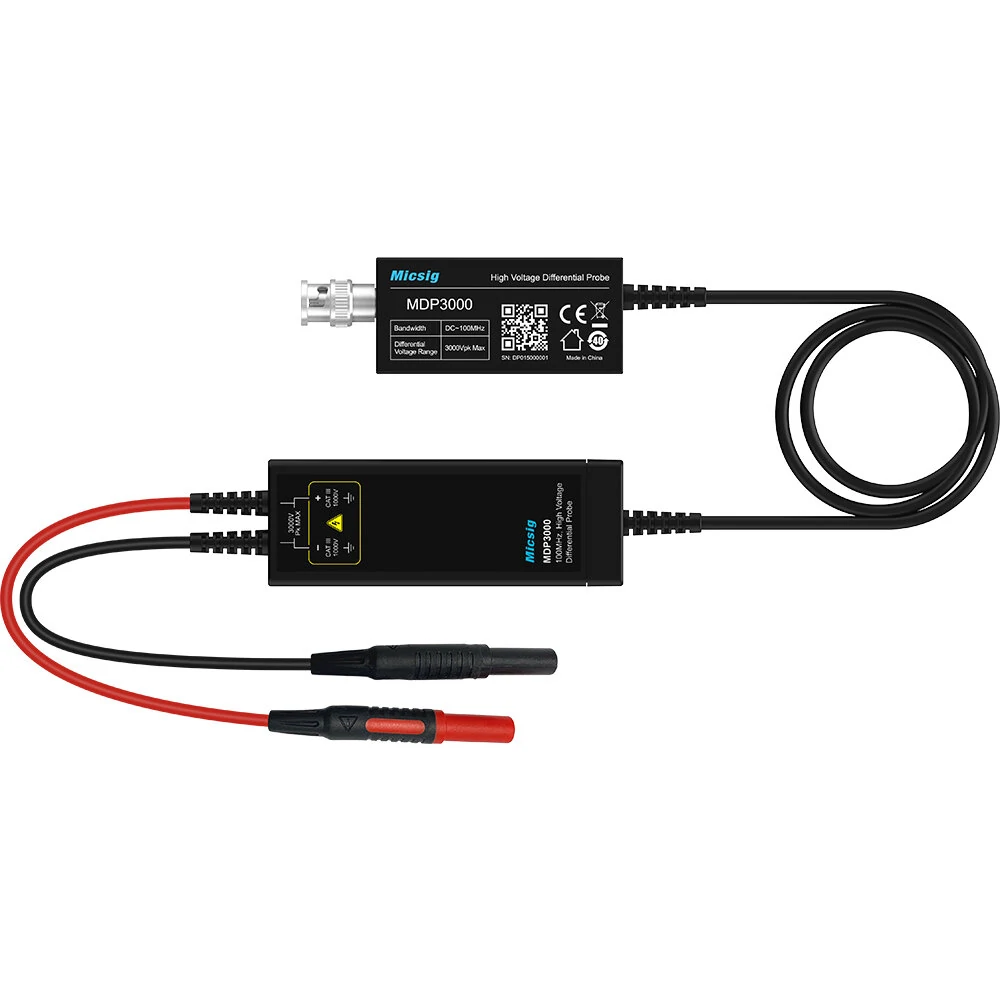

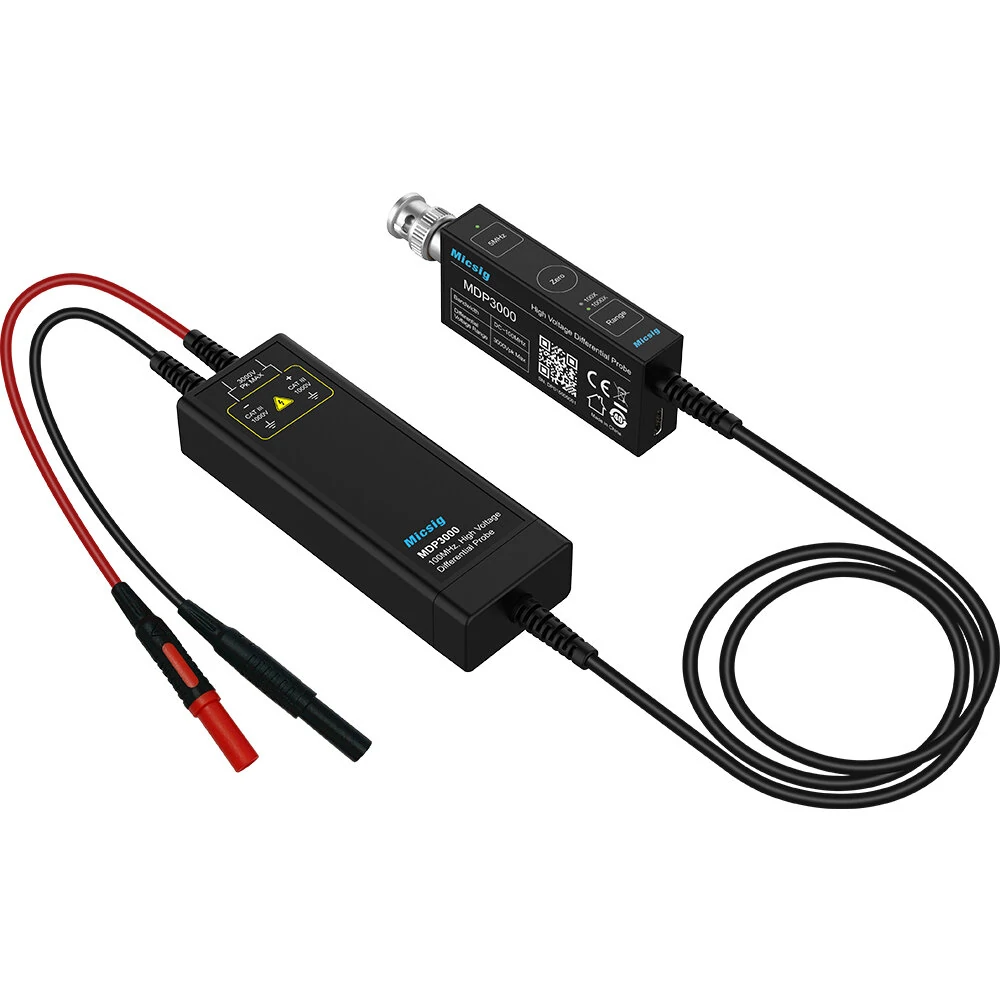

Notice: The new version of DP3000 is being shipped from China, as shown in the picture below. Other models are still the old version.

Features:

Advanced Optical Isolation Technology: Redefining the MDP series, this high-voltage differential probe boasts ultra-low noise, commendable frequency amplitude characteristics, and an industry-leading common mode suppression ratio. This ensures clearer readings, devoid of interference.

Universal Compatibility with BNC Interface: Designed with a standard BNC interface, this probe seamlessly pairs with oscilloscopes across all brands. Its 5MHz bandwidth limitation is especially tailored for measuring the switching frequency of FETs in most switching power supplies, effectively filtering out high-frequency noise.

One-Click Zeroing and Dual Range Selection: With the simple push of the 'Zero' button, the probe can be instantly zeroed, optimizing the accuracy of your measurements. The added advantage of dual-range selection enhances the signal-to-noise ratio, catering to diverse circuit testing needs.

Exceptionally Low Base Noise: By short-circuiting the input probes and connecting to an oscilloscope channel set at 1X attenuation, 1mV/div vertical scale, and a 2ms time base, you achieve an exceptionally low noise level, ensuring the clearest of readings.

Compact and Versatile Design: With a length of just 10CM, this probe is incredibly compact. Plus, the over-voltage alarm feature adds an extra layer of safety, ensuring you're always informed in case of any voltage anomalies.

Incorporating these features, Micsig's differential probe elevates the standard of high-voltage testing, delivering both precision and safety.

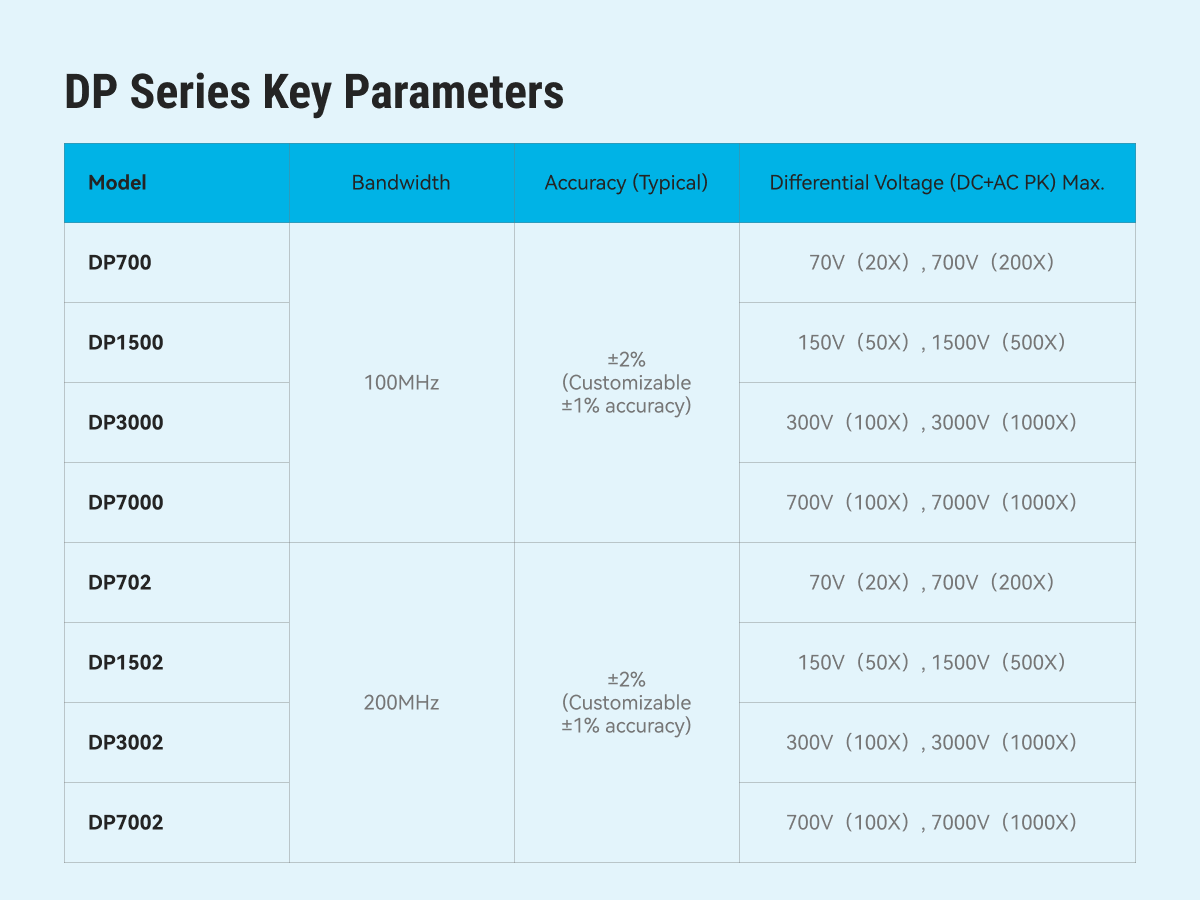

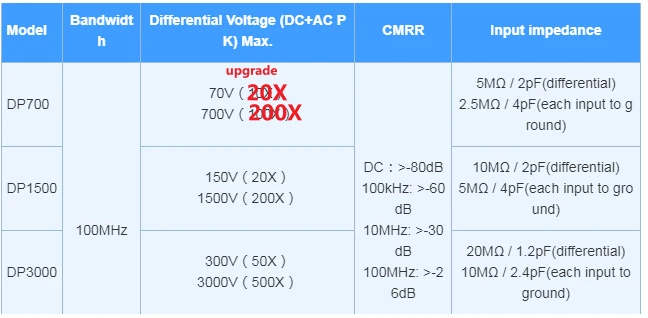

Specifications:

Series: MDP

Bandwidth: 100MHz

Voltage: 700~3000V

Amplitude Fluctuation: <0.5dB

Interface: BNC and Type-C

Zeroing: One-click zeroing

Range: Dual range selection

Base Noise: Ultra-low

Optional Type: MDP700/MDP1500/MDP3000

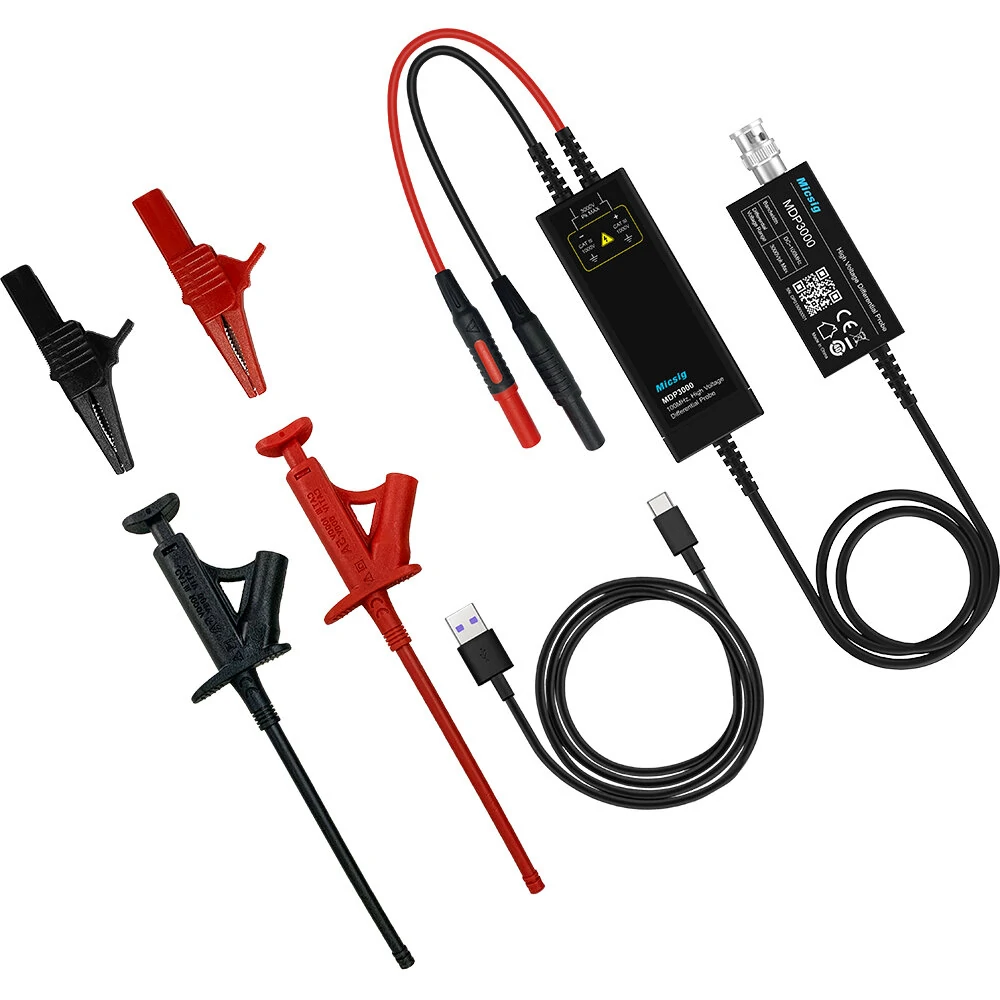

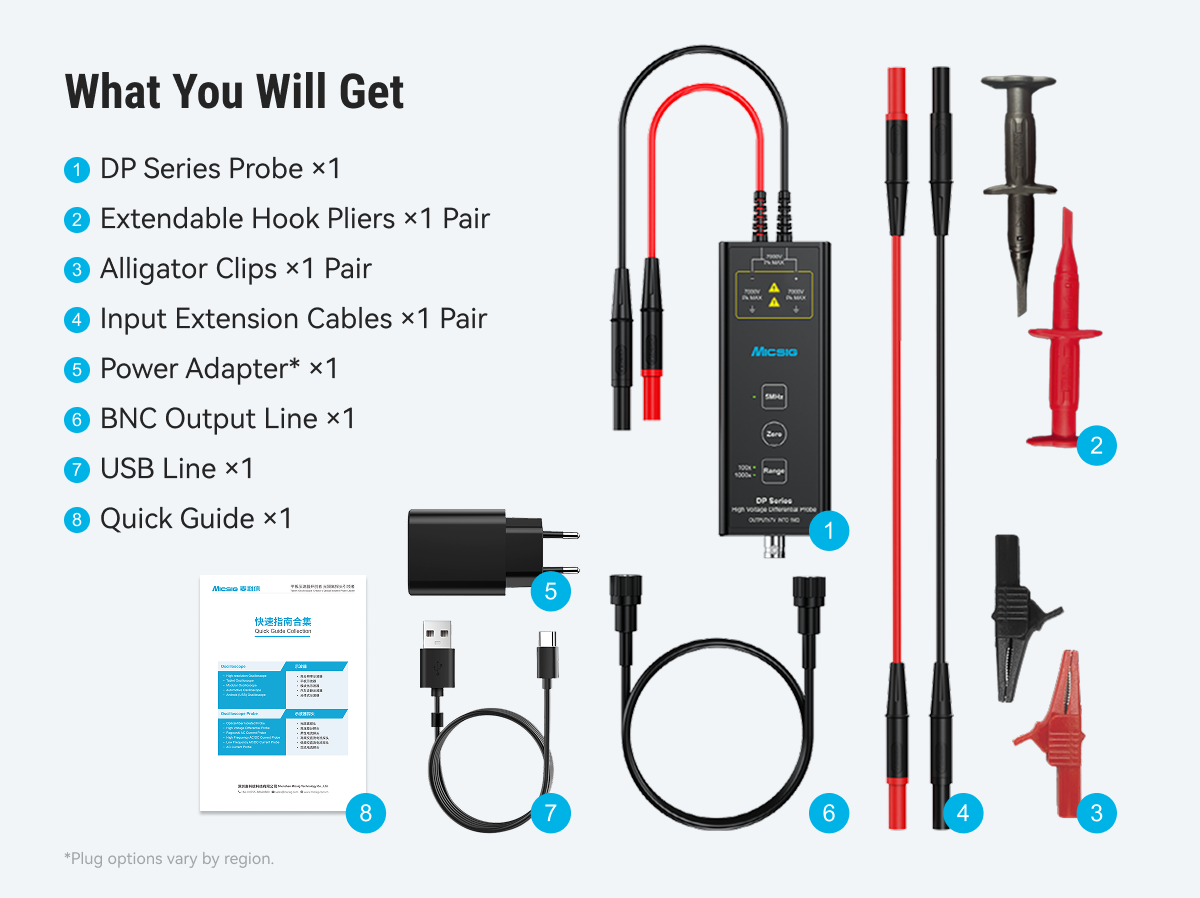

Package Includes:

1 x MDP Series Differential Probe (Type as your choice)

1 x Type-C Power Cable

1 x Red Alligator Clip

1 x Black Alligator Clip

1 x Red Probe Hook

1 x Black Probe Hook
