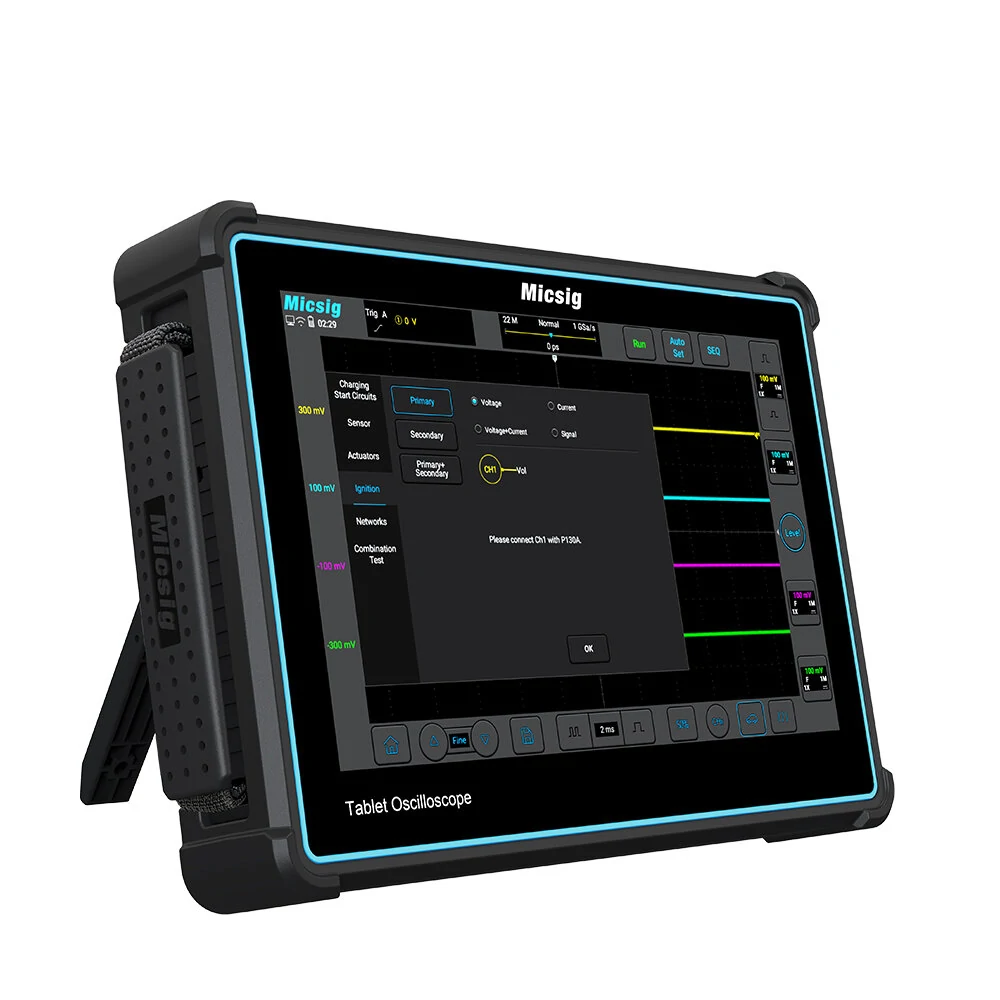

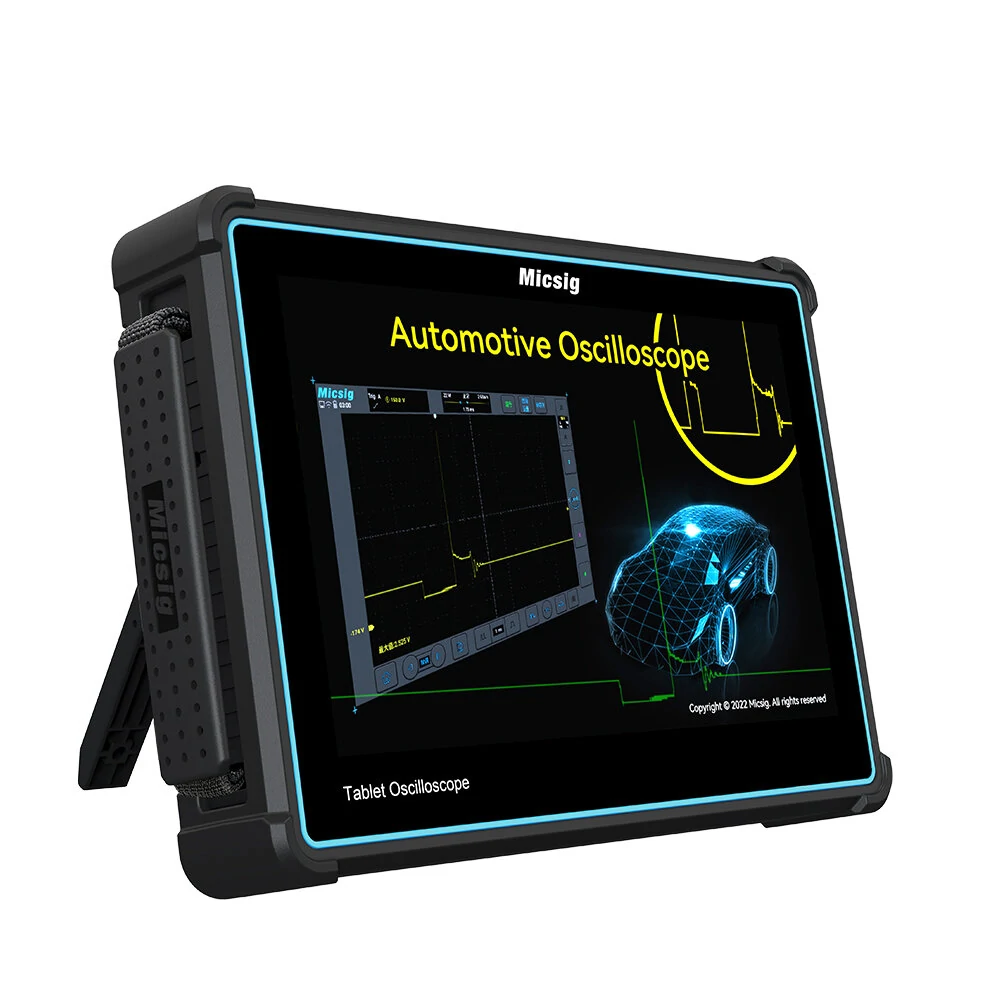

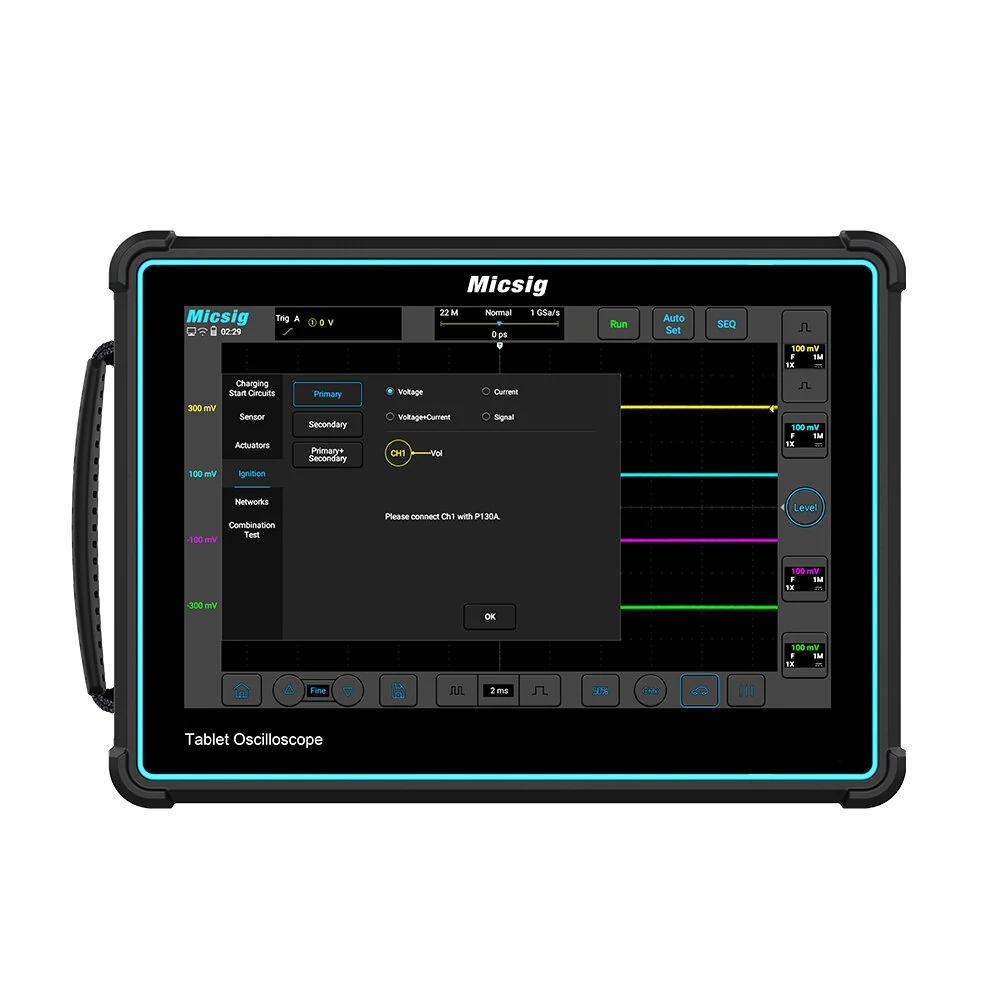

Micsig ATO2002 Automotive Tablet Oscilloscope | 200MHz 1GSa/s | 10.1 TFT-LCD

Product Description

Features:

High-Quality Display with Intuitive Control: Featuring an industrial-grade 10.1" TFT-LCD display with a resolution of 1280*800, the Micsig ATO2002 offers clear and precise readouts. The full touch control provides an interactive user experience, streamlining the diagnostic process.

Extensive Vehicle Test Support: From charging circuits to ignition systems, sensors to actuators, and inclusive of intricate networks like CAN, LIN, and Flexray ?C this oscilloscope is adept at running diagnostic tests across a broad spectrum of automotive systems.

Multitude of Connectivity Options: With built-in Wi-Fi, multiple USB ports (including USB 3.0 and Type-C), HDMI, and trigger out ?C the ATO2002 ensures that transferring, displaying, or saving data is a easy.

Dependable and Long-Lasting Power: A robust 7500mAh Li-ion battery not only gives the device a substantial standalone time but also adds to its portability, ensuring that it's ready for use whenever and wherever needed.

With these attributes, the Micsig ATO2002 , providing a meticulous and comprehensive diagnostic solution for modern vehicles.

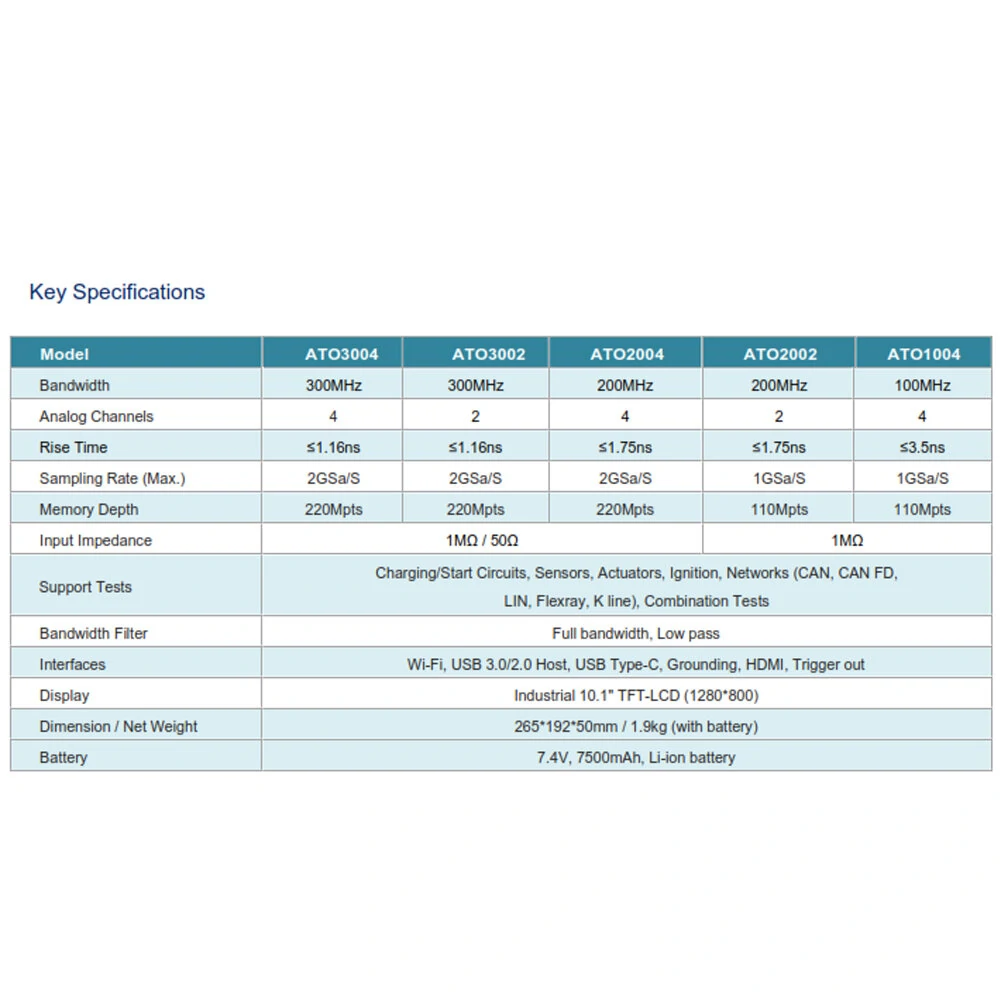

Specifications:

Model: ATO2002

Bandwidth: 200MHz

Analog Channels: 2

Rise Time: 1.75ns

Sampling Rate (Max.): 1GSa/S

Memory Depth: 110Mpts

Input Impedance: 1M??

Tests Supported: Charging/Start Circuits, Sensors,Actuators,Ignition,Networks (CAN.CAN FD. LIN.Flexray,K line),Combination Tests

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out

Display: 10.1" TFT-LCD (1280*800)

Dimensions/Weight: 265*192*50mm / 1.9kg (with battery)

Battery: 7.4V, 7500mAh, Li-ion

Package Includes:

1 x Micsig ATO2002 Automotive Oscilloscope Tablet

1 x User Manual

1 x Power Adapter
