Jinhan ASG102 Digital Handheld Signal Generator - 2 Channel Automotive Kit With Data Function
$147.00
$180.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
?Features:1.Supporting USB Storage Device: Connecting with PC, transferring test data to PC.2.CAN line tester is mainly used to test whether the CAN bus of various types of vehicles communicates normally. The test rates are 10K, 20K, 33.3K, 50K, 62.5K, 83.3K, 125K, 250K, 500K and 1M.3.Ultra-low power consumption and ultra-long standby: 5 hours continuous work. A single battery can work for 5 hours. There are two batteries in the battery storage, one power supply/one standby battery, which can be recharged and recycled after use.4.3.2-inch HD display: 320*240 resolution, large LCD display, clear display interface logiic. The panel operation is clear and convenient for operators to operate quickly.5.Signal characteristics can be adjusted in real time: the waveform, amplitude, frequency and number of missing teeth can be adjusted at will in the signal output department, which greatly facilitates the fault determination in the process of vehicle maintenance.
Descriptions:1.It is an professional high precision signal generator for car.
Specifications:
Model: ASG102Material: ABSColor: BlackChannel: Dual ChannelSignal generator:Waveform: square iwave, sine wave, square iwave X+Y, sine wave X+Y, DC voltageFrequency: 1HZ-5KHZRange: 0-20VDuty ratio: 1-100%X: 1-199Y: 1-9CAN reception:Receiving data: Open or stop, open and receive, receive and parse in real time, turn the page to view the latest 50 frames of data (temporary)Baud rate: 10K, 20K, 33.3K, 50K, 62.5K, 83.3K125K, 250K, 500K, 1MSpecial Wave Rate Selection: Manual or Automatic ScanningLanguage: English and ChineseBrightness: 1-5, the greater the value, the brighterVoice: On/off
Package information:
Package size: 300x200x100mm/11.79x7.86x3.93inPackage weight: 900g/31.75ozGeneral Box Package
Package Included:
1X ASG102 host 1X BNC-Alligator Clip Line 1X BNC-BNC Line 1X USB data cable 4X Banana connector cable 1X Aviation Head-Banana Head1X Battery clamp cable1X Solenoid valve drive box 1X HD film 1X CD manual2X 0.7mm broken thread needle (red or black??1X Battery charger

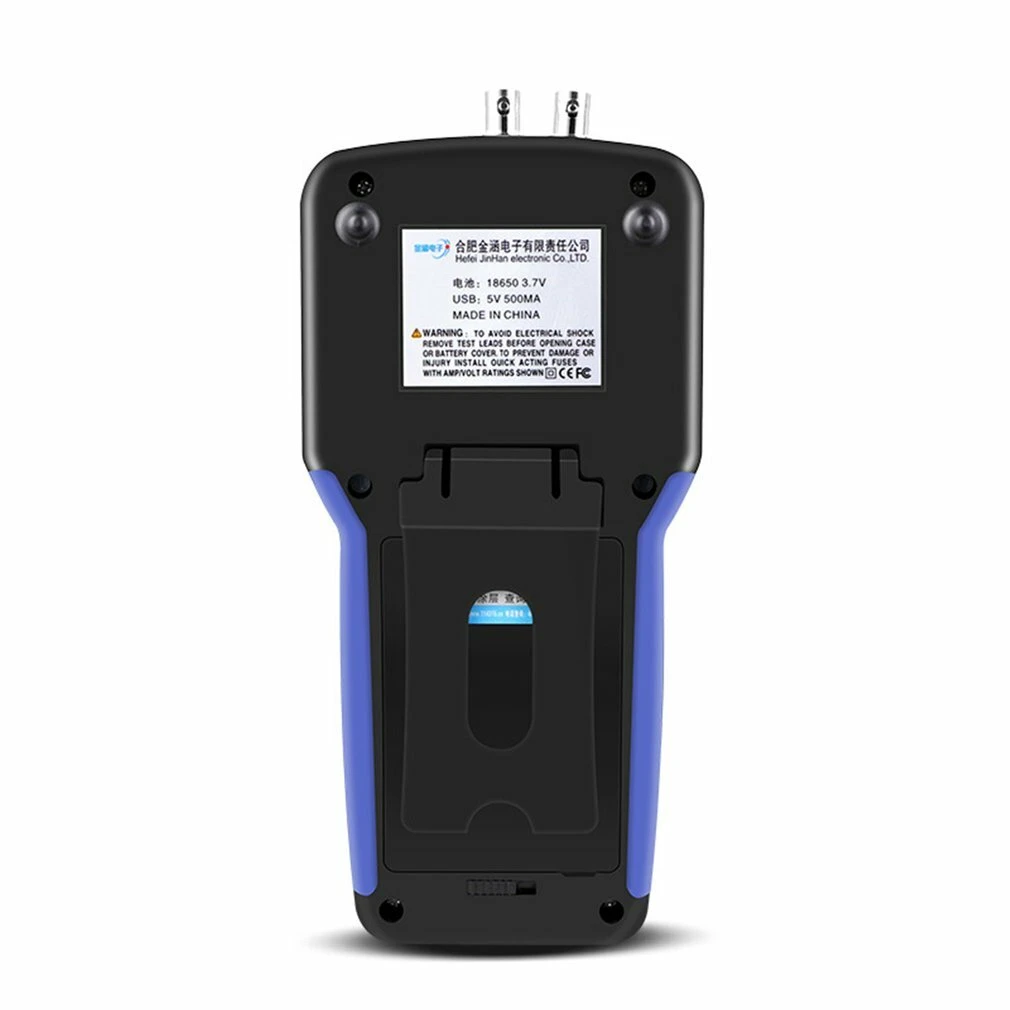

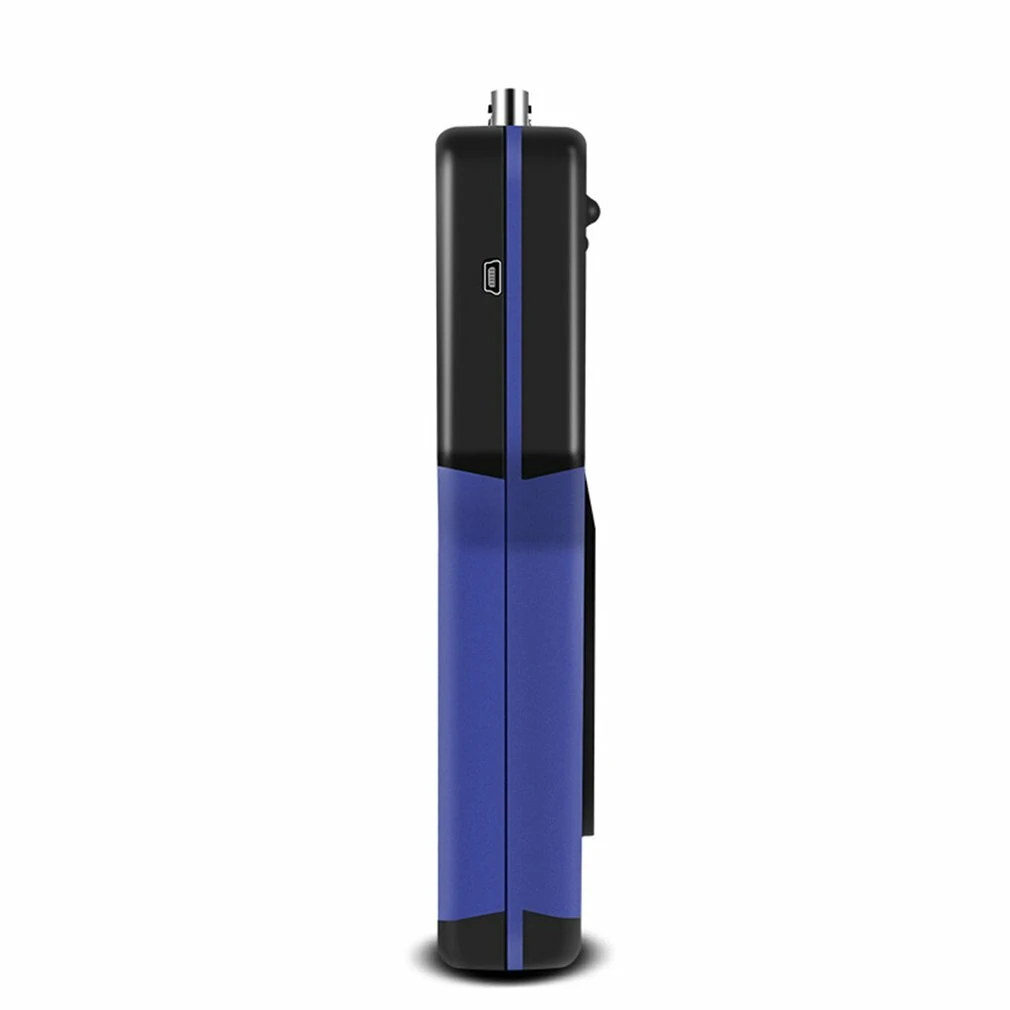

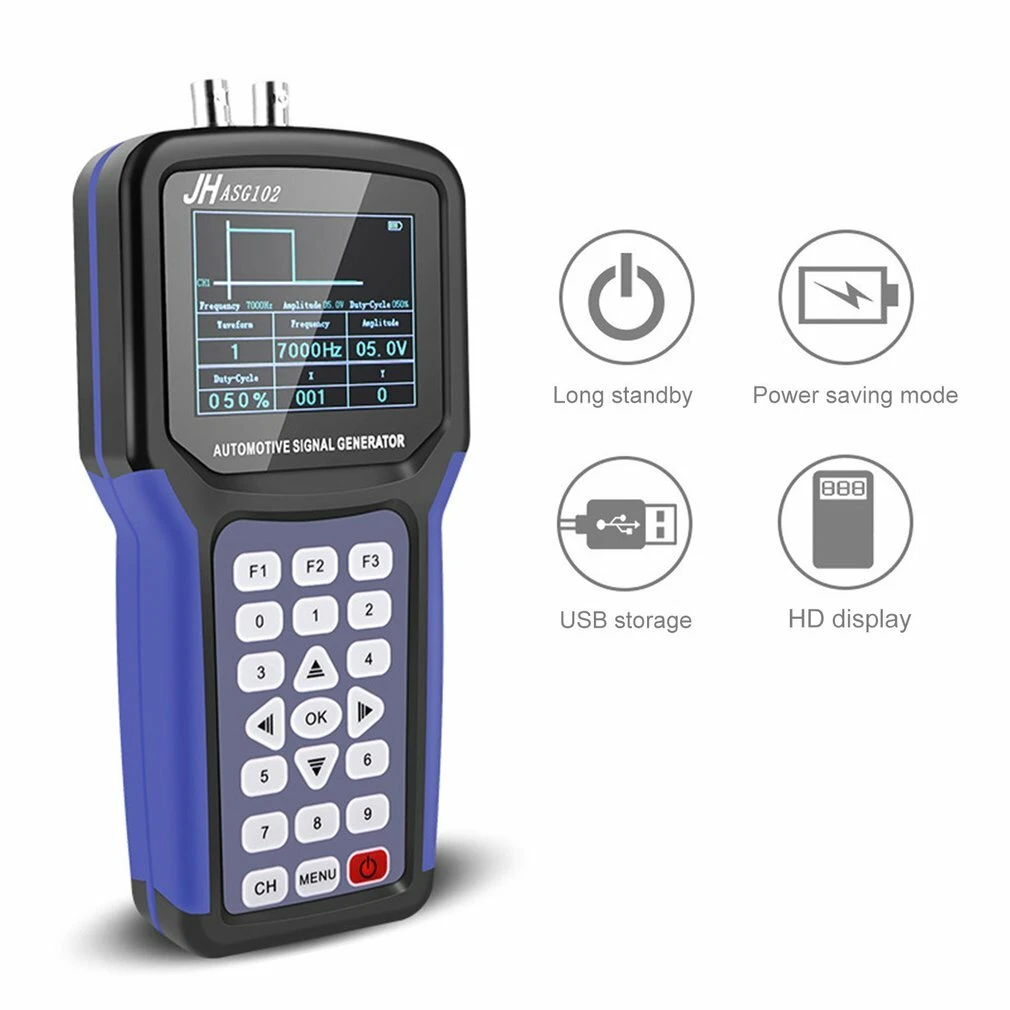

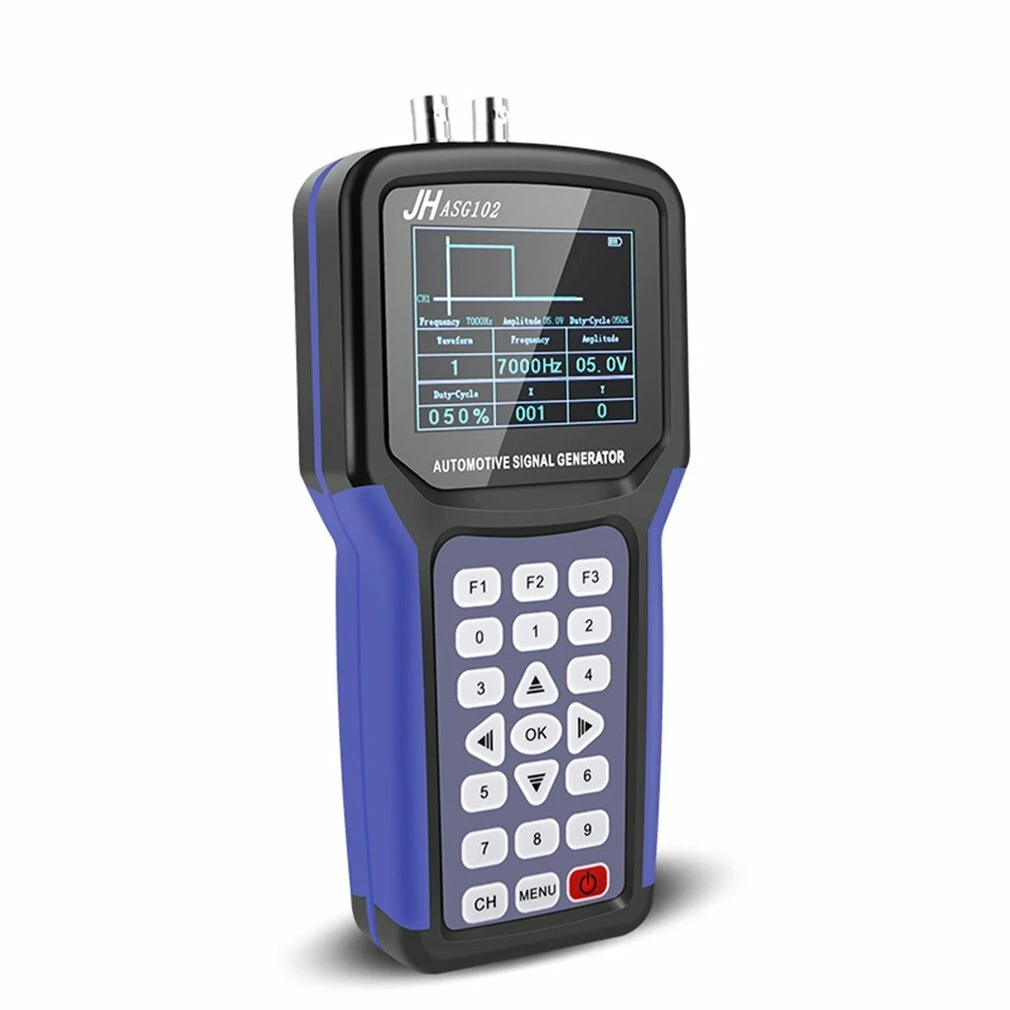

Details Pictures:
