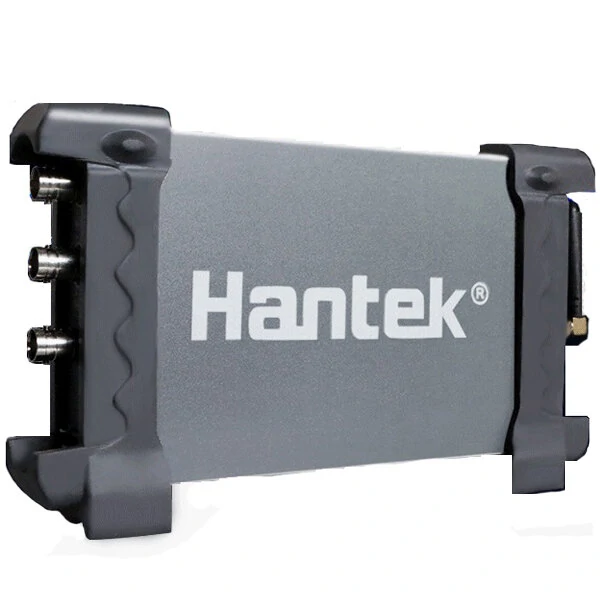

Hantek IDS1070A 70MHz Oscilloscope - 2 Channel, 250MSa/s, WiFi & USB
$273.00
$335.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:?The IDSO is WLAN dual-channel digital storage oscilloscope geared towards tablet computers, it's a small, lightweight, portable, battery powered, fully featured two channel oscilloscope. The oscilloscopes is ideal for production test, research and design and all of the applications involving analog circuits test and troubleshooting, as well as education and training.

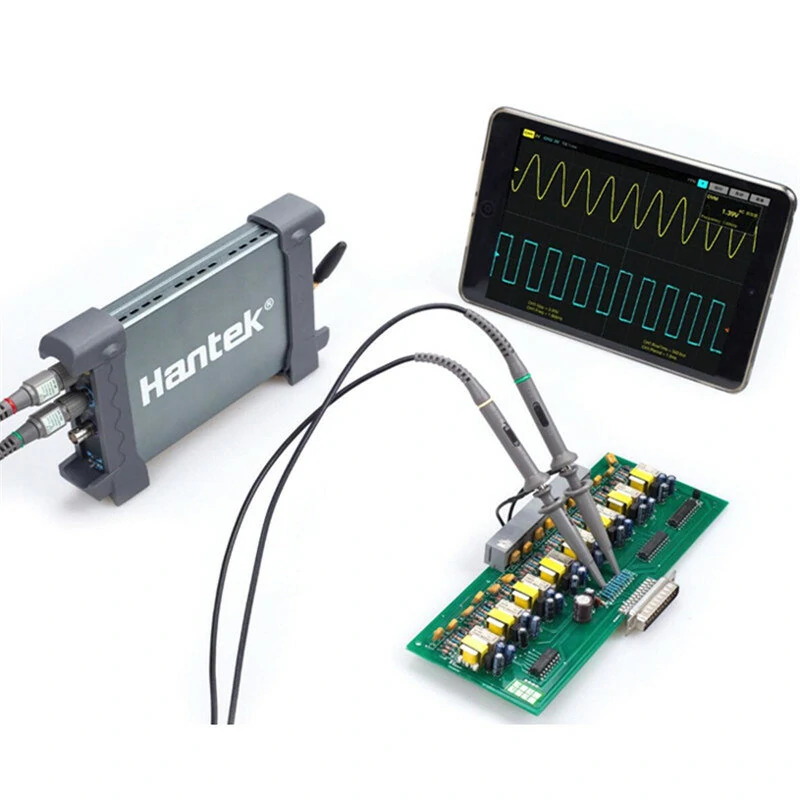

?Instead of a built-in screen it uses your tablet iOS, Android or PC (Windows) to display the measurements. Data exchange between the tablet and the oscilloscope is via Wlan, there are no cables. Also, as there is no physical connection between the oscilloscope and the tablet, it is a very safe instrument to use. Due to the wireless principle, the oscilloscope and the ??screen?? do not need to be at the same location.
?The communication protocol between the oscilloscope and the tablet is freely available, so it is easy for third-party developers to develop applications for other purposes. Finally, it is equipped with a USB port for charging of the internal battery. If desired, it can also connect to a PC via the USB port, instead of wireless.
Features:
1. Excellent industrial design-the same anodised aluminium casing, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.2. USB2.0 interface, USB power source required, easy to use.3. Li-ion rechargeable battery include.4. DVM readouts.5. 20 measurement functions, PASS/FAIL Check, be suitable for technical application.6. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.7. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.8. FFT.
9. System requirements: iOS, Android 4.0, Windows XP or higher, Tablet or PC. Specification:
| Model | IDSO1070A |
| Bandwidth | 70MHz |
| Channels | 2 |
| real-time sampling rate | 250MSa/s (Single), 125MSa/s (Double) |
| Sampling Mode | Sample, VPP, Vavg |
| Average Sampling | Average waveform, Time: 4, 8, 16, 32, 64, 128 |
| Memory Depth | 6K |
| Rise Time | ??5ns |
| Timebase Accuracy | ??50ppm |
| Timebase range | 5ns/div-500s/div |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1M?? 25pF |
| Attenuation | 1??, 10??, 100??, 1000?? |
| Max. Input VoltageS | 35Vpk (DC+peak) |
| Waveform Interpolation | Step, Linear, Sin(x)/x |
| Input Sensitivity | 10mV/div |
| Vertical resolution | 8Bit |
| Vertical adjustable | 10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe; |
| 1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe | |
| Range | ??4division |
| Low Frequency Response | ??10Hz (at input BNC) |
| DC Gain Accuracy | ??3% |
| Bandwidth Limitation | 20MHz |
| Trigger Mode | Auto, Normal and Single |
| Trigger Type | Rising edge, falling edge |
| Trigger Accuracy | ??4division |
| Trigger Range | ??4V |
| Trigger Sensitivity | 0.02 |
| Trigger Source | CH1, CH2, EXT |
| Waveform Calculation | +,-,x,??,FFT,Invert |
| Temperature | Operation: 0??-40??; Non-operation: -20??-60?? |
| Humidity | <35??, relative humidity??90%; 35??-40??, relative humidity??60% |
| Cursor Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Size | 190mm x 100mm x 35mm |
| Net weight | 0.7KG |

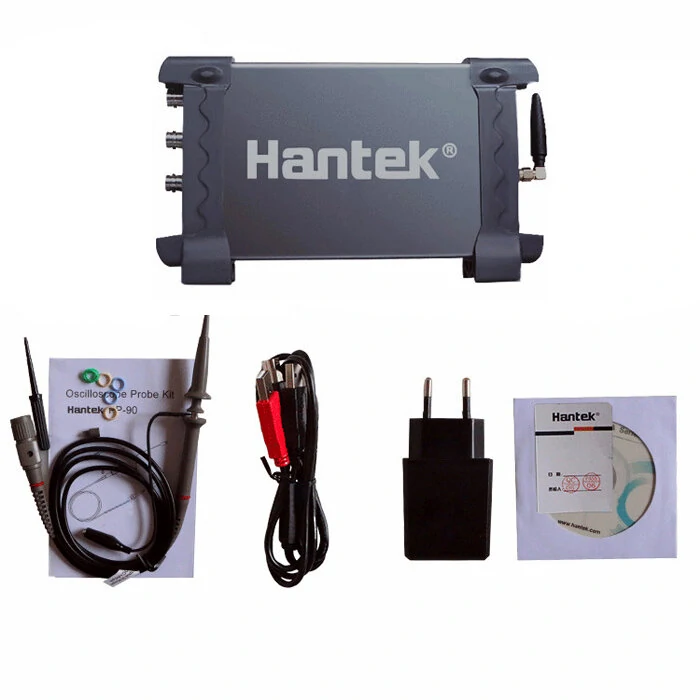

Package included:
1 x Hantek IDS1070A WIFI USB Storage Oscilloscope
1 x Test Probe
1 x USB Cable
1 x Power Adapter
1 x CD
1 x English User Manual
1 x Gift Box

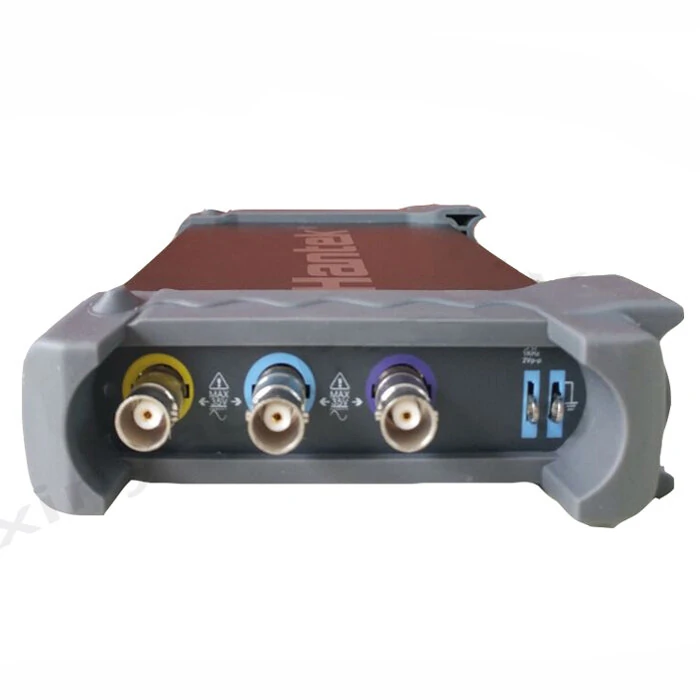

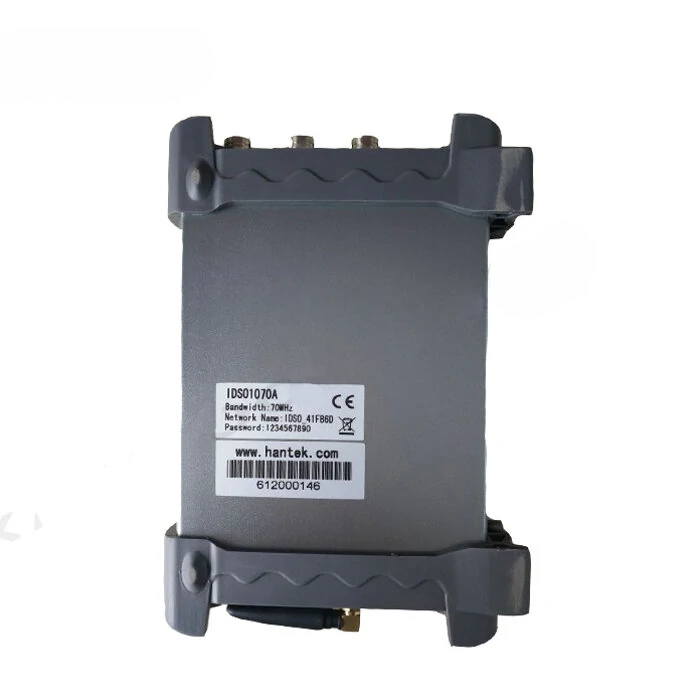

Detail Pictures:
