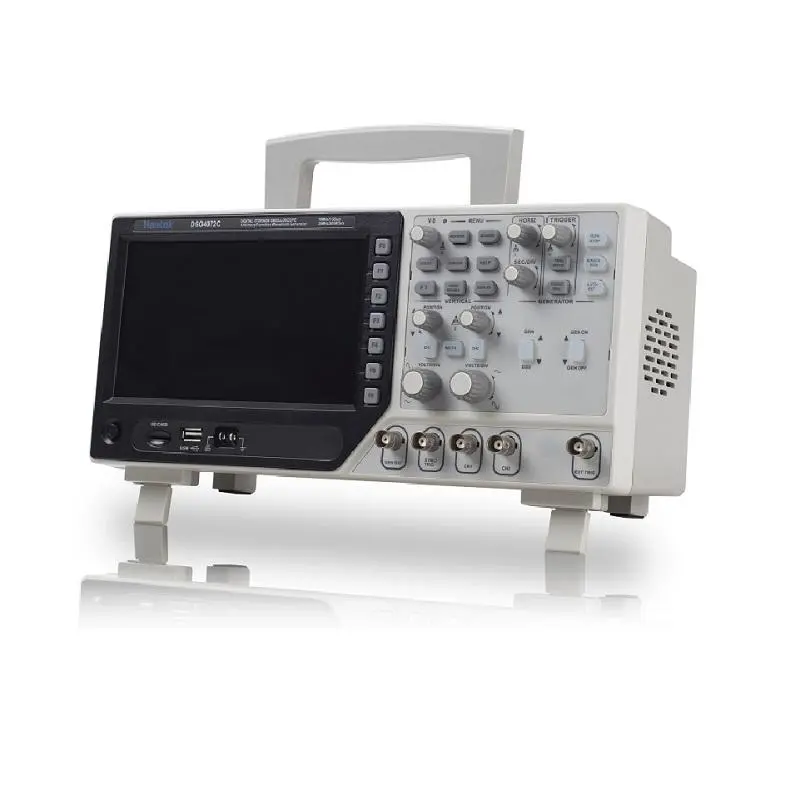

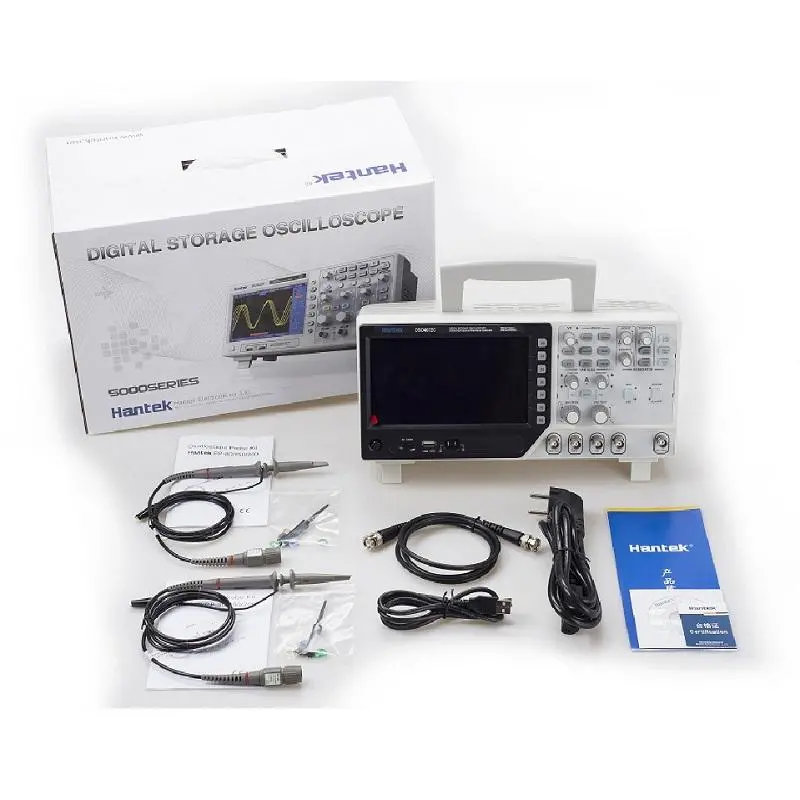

Hantek DSO4202C 2-Channel Digital Oscilloscope | 1-Channel Waveform Generator

Model

DSO4202C

Sample Rate

Sampling Rate Range: 1GSa/s

Equivalent Sample Rate: 25GSa/s

Normal

Normal data only

Peak Detect

High-frequency and randon glith capture

Average

Wavefom Average, selectable 4,8,16,32,64,128

Inputs Coupling

AC, DC, GND

Inpits Impendance

1M????2% 20pF??3pF

Probe Attenuation

1X, 10X

Supported Probe Attenuation Factor

1X, 10X, 100X, 1000X

Maximum Input Voltage

CAT I and CAT II: 300VRMS (10??)

CAT III: 150VRMS(1??);

Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at
3MHz* and above. For non-sinusoidal waveforms, peak value must be less
than 450V. Excursion above 300V should be of less than 100ms
duration. RMS signal level including all DC components removed through
AC coupling must be limited to 300V. If these values are exceeded,
damage to the oscilloscope may occur.

Sample Rate Range

1GS/s

Waveform Interpolation

(sin x)/x

Record Length

40K

SEC/DIV Range

2ns/div to 40s/div

Sample Rate and

??50ppm(at over any ??1ms time interval)

Delay Time Accuracy

Position Range

2ns/div to 10ns/div;

(-4div x s/div) to 20ms;

Vertical Resolution

8-bit resolution, all channel sampled simultaneously

Position Range

2mV/div to 10V/div

Bandwidth

200MHz

Rise Time at BNC( typical)

1.8ns

Analog Bandwidth in Normal and
Average modes at BNC or with probe, DC Coupled

2mV/div to 20mV/div, ??400mV; 50mV/div to 200mV/div, ??1V

500mV/div to 2V/div, ??40V; 5V/div, ??50V

Math

+, -, *, /, FFT

FFT

Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman;

1024 sample point

Bandwidth Limit

20MHz

Low Frequency Response (-3db)

??10Hz at BNC

DC Gain Accuracy

??3% for Normal or Average acquisition mode, 5V/div to 10mV/div;

??4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

DC Measurement Accuracy,
Average Acquisition Mode

When vertical displacement is zero, and N ??16:?? (3% ?? reading + 0.1div + 1mV)
only 10mV/div or greater is selected;
When vertical displacement is not zero, and N??16: ?? [3% ?? (reading + vertical position)
+ 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div;
add 50mV for settings from 200mV/div to 5V/div

Volts Measurement Repeatability,
Average Acquisition Mode

Delta volts between any two averages of ??16 waveforms acquired
under same setup and ambient conditions

Trigger Types

Edge, Video, Pulse, Slope, Over time, Alternative

Trigger Source

CH1, CH2, EXT, EXT/5, AC Line

Trigger Modes

Auto, Normal, Single

Coupling Type

DC, AC, Noise Reject, HF Reject, LF Reject

Trigger Sensitivity
(Edge Trigger Type)

DC(CH1,CH2):

1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;

DC(EXT):

200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;

DC(EXT/5):

1V from DC to 100MHz;1.75V from 100MHz to 200MHz;

AC: Attenuates signals below 10Hz;

HF Reject: Attenuates signals above 80kHz;

LF Reject: Same as the DC-coupled limits for frequencies above
150kHz; attenuates signals below 150kHz

Trigger Level Range

CH1/CH2: ??8 divisions from center of screen;

EXT: ??1.2V;

EXT/5:??6V

Trigger Level Accuracy( typical)
Accuracy is for signals having rise
and fall times ??20ns

CH1/CH2: 0.2div ?? volts/div within ??4 divisions from center of screen;

EXT: ?? (6% of setting + 40mV);

EXT/5: ?? (6% of setting + 200mV);

Set Level to 50%(typical)

Operates with input signals ??50Hz

Video Trigger Type

CH1, CH2: Peak-to-peak amplitude of 2 divisions;

EXT: 400mV;

EXT/5: 2V

Signal Formats and Field Rates,
Video Trigger Type

Supports NTSC, PAL and SECAM broadcast systems for any field or any line

Holdoff Range

100ns ~ 10s

Pulse Width Trigger Mode

Trigger when (< , >, = , or ??); Positive pulse or Negative pulse

Time Range

20ns ~ 10s

Over Time Mode

Rising edge or Falling edge

Time Range

20ns ~ 10s

Trigger on CH1

Internal Trigger: Edge, Pulse Width, Video, Slope

Trigger on CH2

Internal Trigger: Edge, Pulse Width, Video, Slope

Readout Resolution

6 digits

Accuracy (typical)

??30ppm (including all frequency reference errors and ??1 count errors)

Frequency Range

AC coupled, from 4Hz minimum to rated bandwidth

Signal Source

Pulse Width or Edge Trigger modes: all available trigger sources

The Frequency Counter measures trigger source at all times, including when the
oscilloscope acquisition pauses due to changes in the run status, or acquisition
of a single shot event has completed.

Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude
inside the 1s measurement window that qualify as triggerable events, such as narrow
pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.

Edge Trigger mode: The oscilloscope counts all edges of sufficient
magnitude and correct polarity.

Video Trigger mode: The Frequency Counter does not work.

Cursor Measurement

Voltage difference between cursors: V

Time difference between cursors: T

Reciprocal of T in Hertz (1/??T)

Auto Measuerment

Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time,

+Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid,

Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH,

FRF, FFR, LRR, LRF, LFR, LFF

Waveform Impedance

DC-25MHz

Sample Rate

200MHzDDS

Output Waveform

Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC

Frequency Resolution

0.1%

Waveform Depth

4KSa

Vertical Resolution

12bit

Frequency Stability

<30ppm

Waveform Range

??3.5V Max

Output Impedance

50

Output Current

50mA Ipeak=100mA

System BW

25M

Harmonic Distortion

-50dBc(1KHz),-40dBc(10KHz)

General Features

Display

Display Type

7 inch 64K color TFT (diagonal liquid crystal)

Display Resolution

800 horizontal by 480 vertical pixels

Display Contrast

Adjustable (16 gears) with the progress bar

Probe Compensator Output

Output Voltage( typical)

About 5Vpp into ??1M?? load

Frequency(typical)

1kHz

Power Supply

Supply Voltage

100-120VACRMS(??10%), 45Hz to 440Hz, CAT

120-240VACRMS(??10%), 45Hz to 66Hz, CAT

Power Consumption

<30W

Fuse

2A, T rating, 250V

Environmental

Size

Length 385mm, Width 200mm, Height 245mm

Weight

3.5KG(with Packing); 2.08KG(without Packing)
