Four-in-One Multifunctional Pen Tester - 400KHz Bandwidth, 2MSa/s, Voltage & Diode

Product Description

Features:

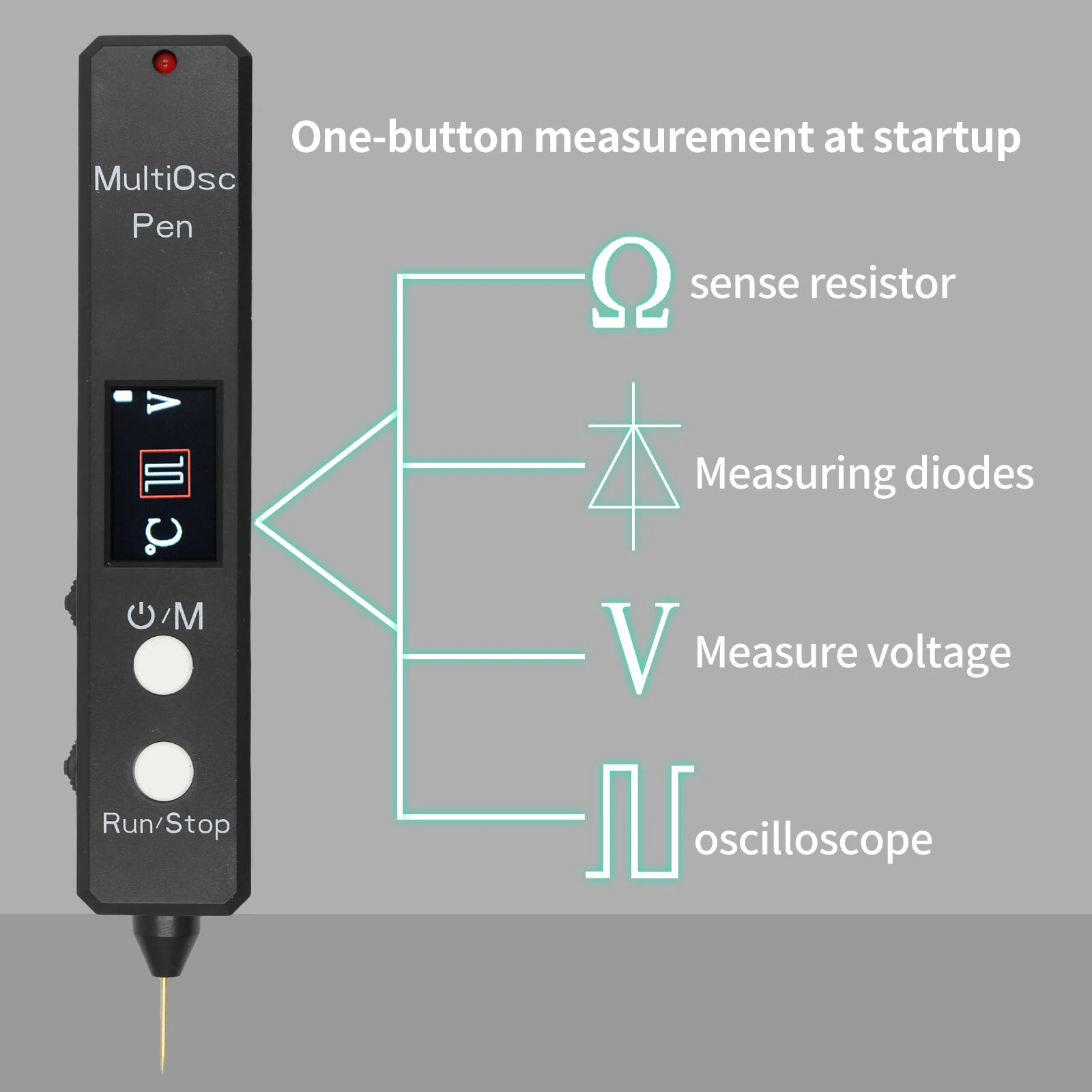

High Precision Voltage Meter Experience accurate voltage measurements with an impressive ??1% accuracy, ensuring precise diagnostics for your electronic projects.

Versatile Resistance Measurement Easily measure resistance across a wide range, making it ideal for various applications from professional electronic repairs to hobbyist projects.

Efficient Diode Testing Simplify diode testing with quick and accurate assessments, ensuring proper functionality and efficient troubleshooting.

Advanced Oscilloscope Testing With a sampling rate of 2MSa/s and 400KHz bandwidth, this pen offers advanced oscilloscope testing to capture and analyze waveforms effortlessly.

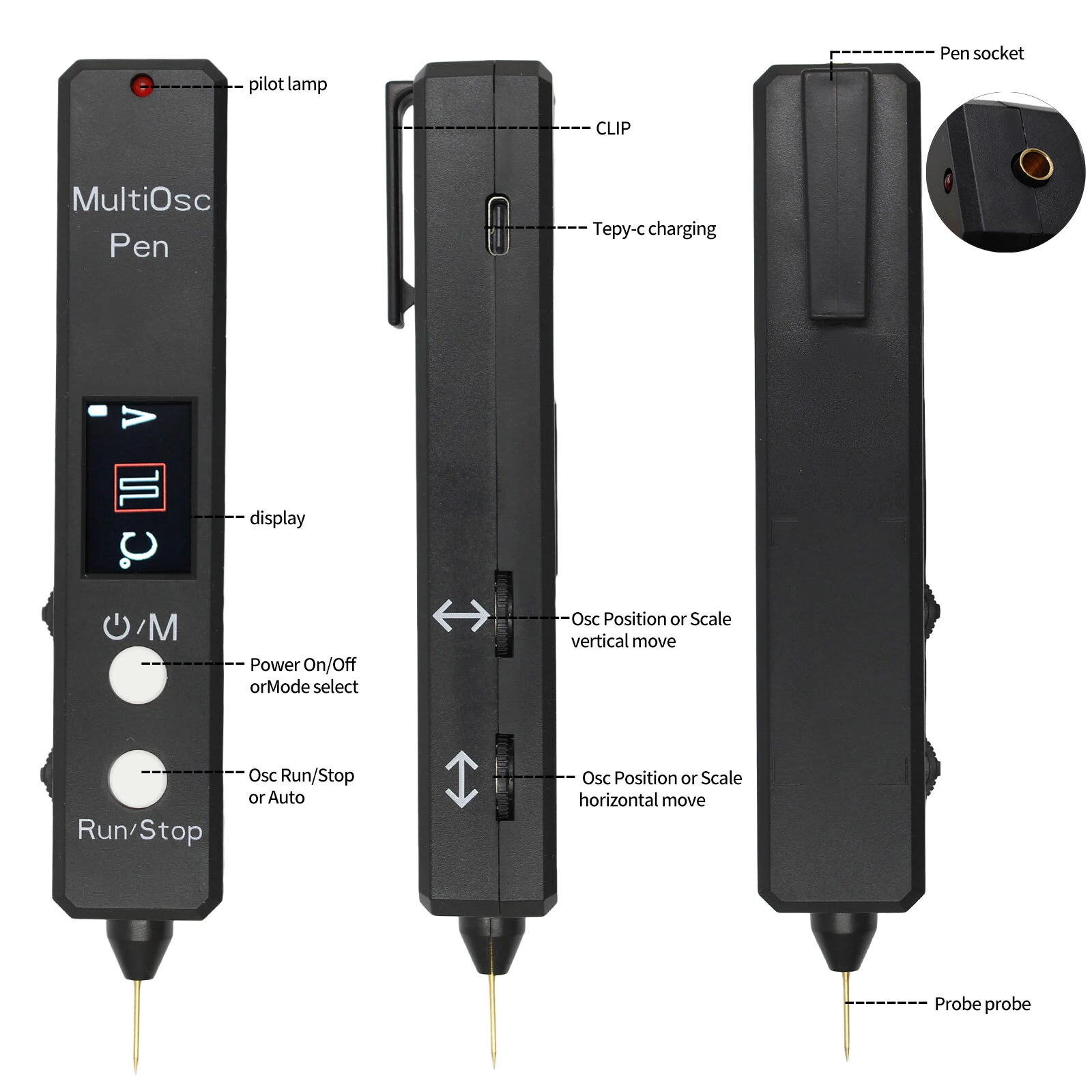

Compact and Portable Design Combining multiple functions in one pen-sized tool, it's perfect for on-the-go technicians and engineers who need reliability in a portable package.

Specifications:

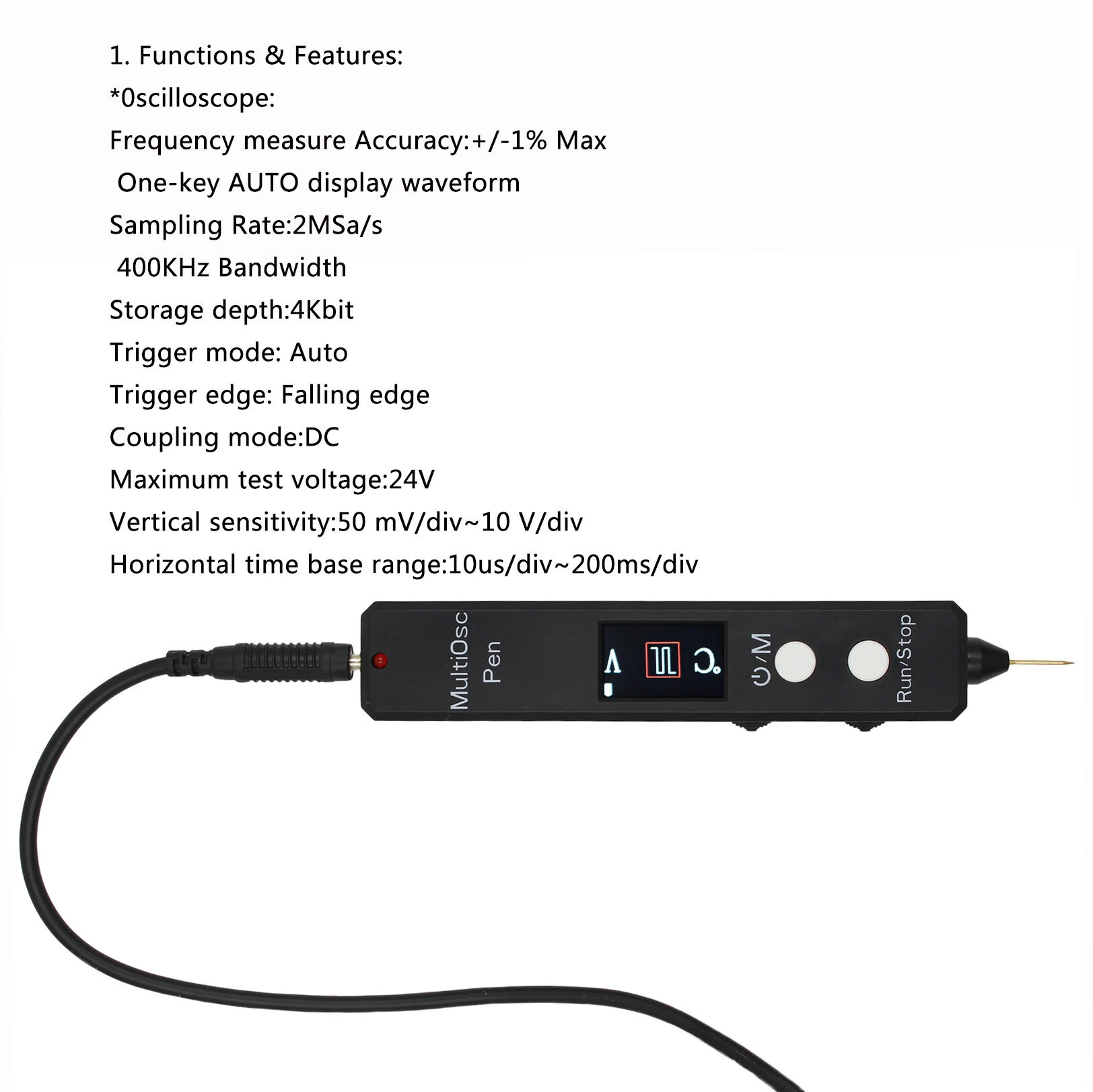

Oscilloscope

Frequency Measure Accuracy: +/-1% Max

One-key AUTO display waveform

Sampling Rate: 2MSa/s

Bandwidth: 400KHz

Storage Depth: 4Kbit

Trigger Mode: Auto

Trigger Edge: Falling Edge

Coupling Mode: DC

Maximum Test Voltage: 24V

Vertical Sensitivity: 50 mV/div~10 V/div

Horizontal Time Base Range: 10us/div~200ms/div

Package Included:

1 x Four-in-One Multifunctional Pen
