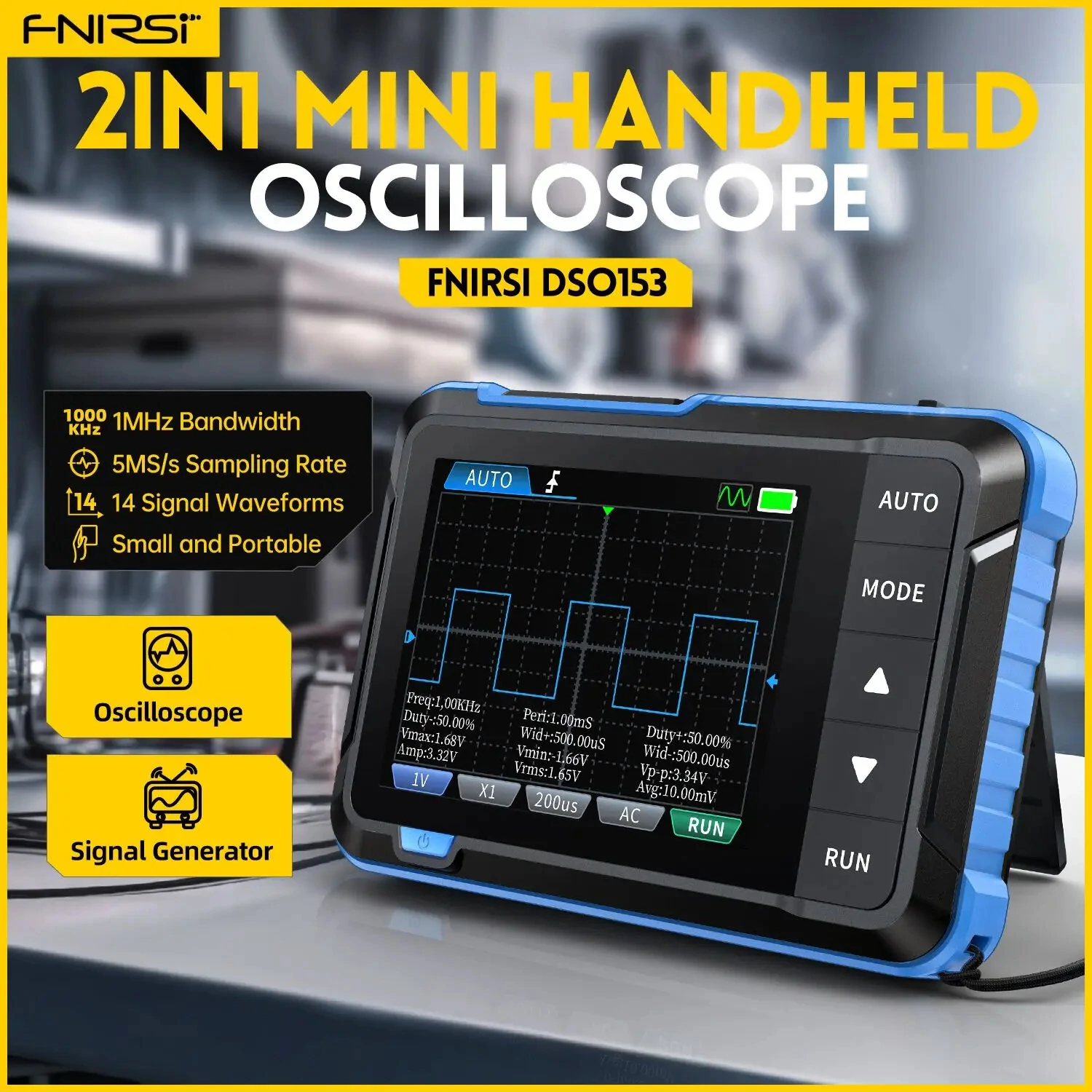

FNIRSI DSO153 Oscilloscope & Signal Generator | 1MHz Bandwidth, 5MS/s

Product Description

Features:
1. High-performance: This portable oscilloscope is designed with a bandwidth of 1 MHz and a 5 MSa/s sampling rate, ensuring accurate and rapid results in the field of electronics repair and maintenance.
2. Versatile Signal Generator: Features an integrated signal generator, capable of producing a wide range of waveforms including sine wave, rectangular wave, sawtooth wave, and more, with a duty cycle ranging from 0-100%.
3. Compact and Lightweight: Weighing just 100 grams and with dimensions of 99 x 68.3 x 19.5 mm, this device is easy to carry and perfect for on-the-go engineers.
4. User-friendly Interface: Equipped with a 2.8-inch display with 320 x 240 PPI resolution, providing a clear view of readings and waveforms.
5. Long-lasting battery: Powered by a 1000mAh lithium battery for sustained use, and can be conveniently charged via USB (5V/1A).

Specifications:
Brand: FNIRSI
Model: DSO153

* Mini Oscilloscope *
Sampling rate??5MSa/s
Bandwidth??1MHz
Vertical sensitivity??10mV/Div-20V/Div??Progress according to the 1-2-5 way
Time base range??500ns/Div-20s/Div??Progress according to the 1-2-5 way
Voltage range??X1:ʿ40V (Vpp:80V) X10: ʿ400V (Vpp :800V)
Trigger method??Auto / Normal / Single
Coupling method??AC/DC

* Signal generator *
Frequency??0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *
Display??2.8 inches/PPI:320*240
USB charging??5V/1A
Lithium battery capacity??1000mAh
Size??99x68.3x19.5mm
Weight??100g


Package included:
Type A: Standard Version
1 x Host Device
1 x Alligtor Clip Probe
1 x Charging Cable
1 x Lanyard
1 x User Manual
1 x Packaging Color Box

Type B: Upgraded Version
1 x Host Device
1 x P6100 High Voltage Probe
1 x Adapter
1 x Alligator Clip Probe
1 x Charging Cable
1 x Lanyard
1 x User Manual
1 x Packaging Color Box
