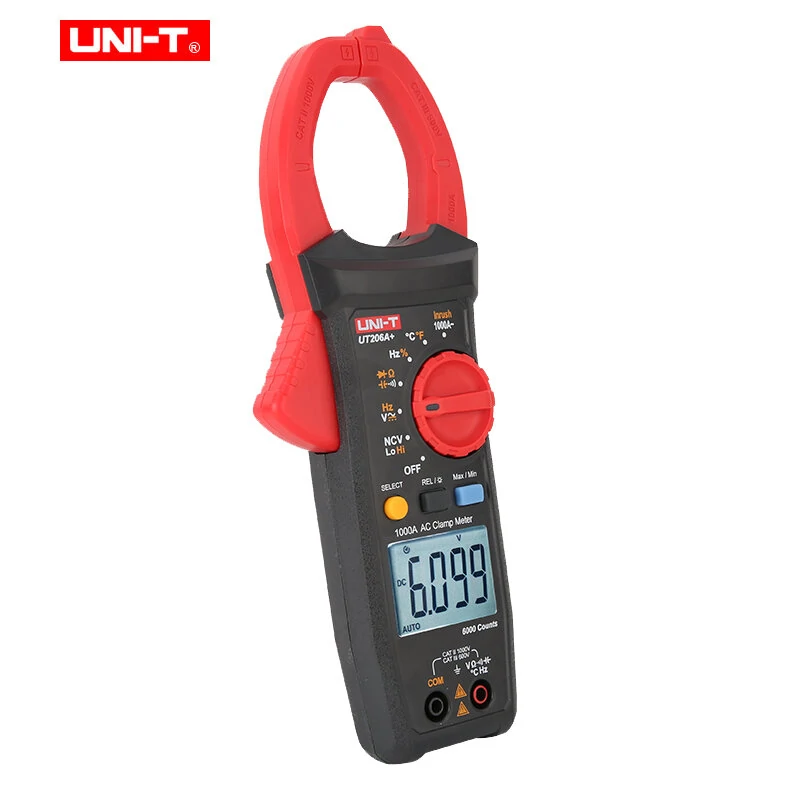

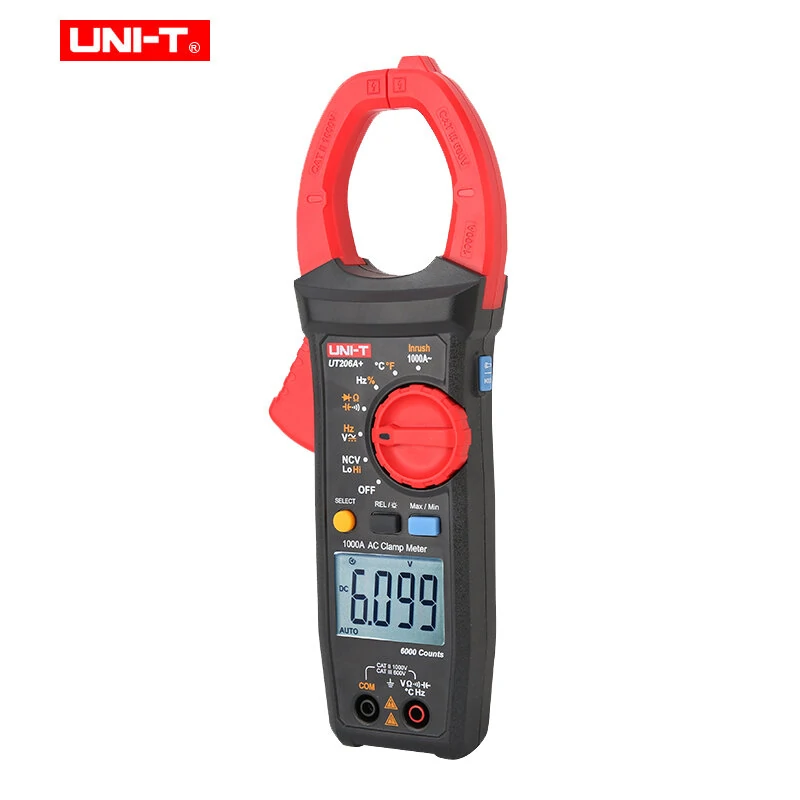

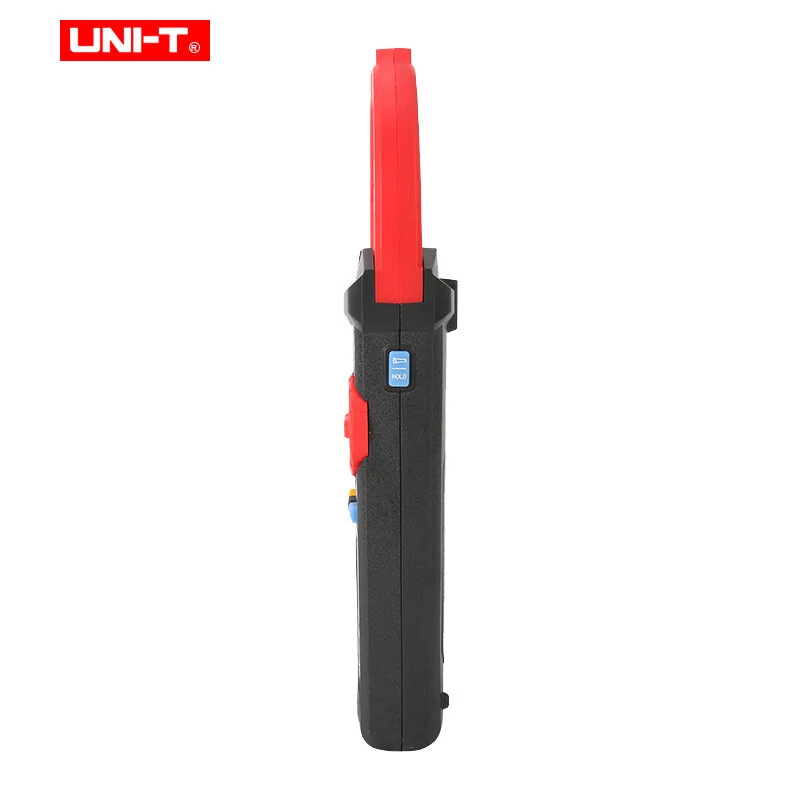

UNI-T UT206A+ Digital Clamp Meter - 1000A AC DC Current & 1000V Voltage Tester
Product Description
UT206A+ is a handheld automatic range AC clamp meter, designed according to safety standard EN61010-2010 CAT III 600V/CAT II 1000V class, with full-featured anti-burnout protection, to meet the high reliability and safety operation requirements; the product includes the basic functions of electrical measurement, current grade with high accuracy measurement, and UT206A+ has the function of inrush current and temperature, NCV measurement. The UT206A+ has both inrush current and temperature, NCV measurement functions, and is the preferred electrical measurement tool for electronic electricians.
| Specifications | Range | UT206A+ |
| AC current (A) | 1000A | ??(1.5%+5) |
| Inrush current (A) | 600A | ??(5%+10) |
| AC voltage (V) | 1000V | ??(1.0%??2) |
| ACV frequency (Hz) | 10Hz??10kHz | ??(1.0%??5) |
| DC voltage (V) | 1000V | ??(0.7%??3) |
| Resistance (??) | 60M?? | ??(0.8%+2) |
| Capacitance (F) | 60mF | ??(4%+5) |
| Frequency (Hz) | 10.00Hz??10.00MHz | ??(0.1%+4) |
| Temperature (??/?H) | ?C40?桫1000??/?C40?H??1832?H | ??4??/??5?H |
| Display count | 6099 | |
| Jaw opening | 45mm | |
| Auto range | ?? | |
| Duty cycle | ?? | |
| NCV | ?? | |
| Diode test | ?? | |
| Continuity | ?? | |
| Low battery | ??2.5V approximately | ?? |
| Indication | ?? | |
| Data hold | ?? | |
| Auto power off | Approximately 15 minutes | ?? |
| Max/Min | ?? | |
| Flashlight | ?? | |
| Backlight | ?? | |
| Safety rating | CAT II 1000V/CAT III 600V | ?? |

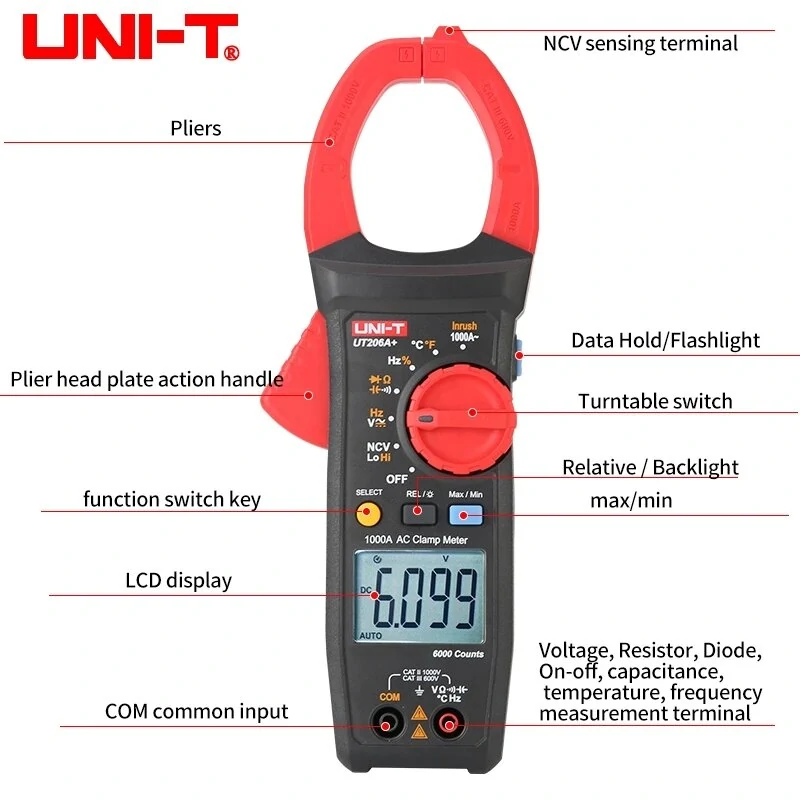

Features:
1.1000A AC current measurement
2.1000V AC/DC voltage measurement
3.600A inrush current measurement
4.Temperature
5.NCV
6.ACV frequency 10Hz??10kHz
7.Jaw opening: 45mm
8.Resistance/capacitance/frequency measurement
9.Auto range/backlight/low battery indication
10.ACV frequency 10Hz??10kHz
11.Jaw opening: 45mm
12.Resistance/capacitance/frequency measurement
13.Auto range/backlight/low battery indication
14.Continuity/diode/duty cycle
15.MAX/MIN
16.Data hold/flashlight/relative mode
17.Auto power off
18.CAT II 1000V/CAT III 600V
Package included: 1 x UT206A+ 1 x Test Pen 1 x Temperature Probe UT-T10K 1 x Carring Bag
