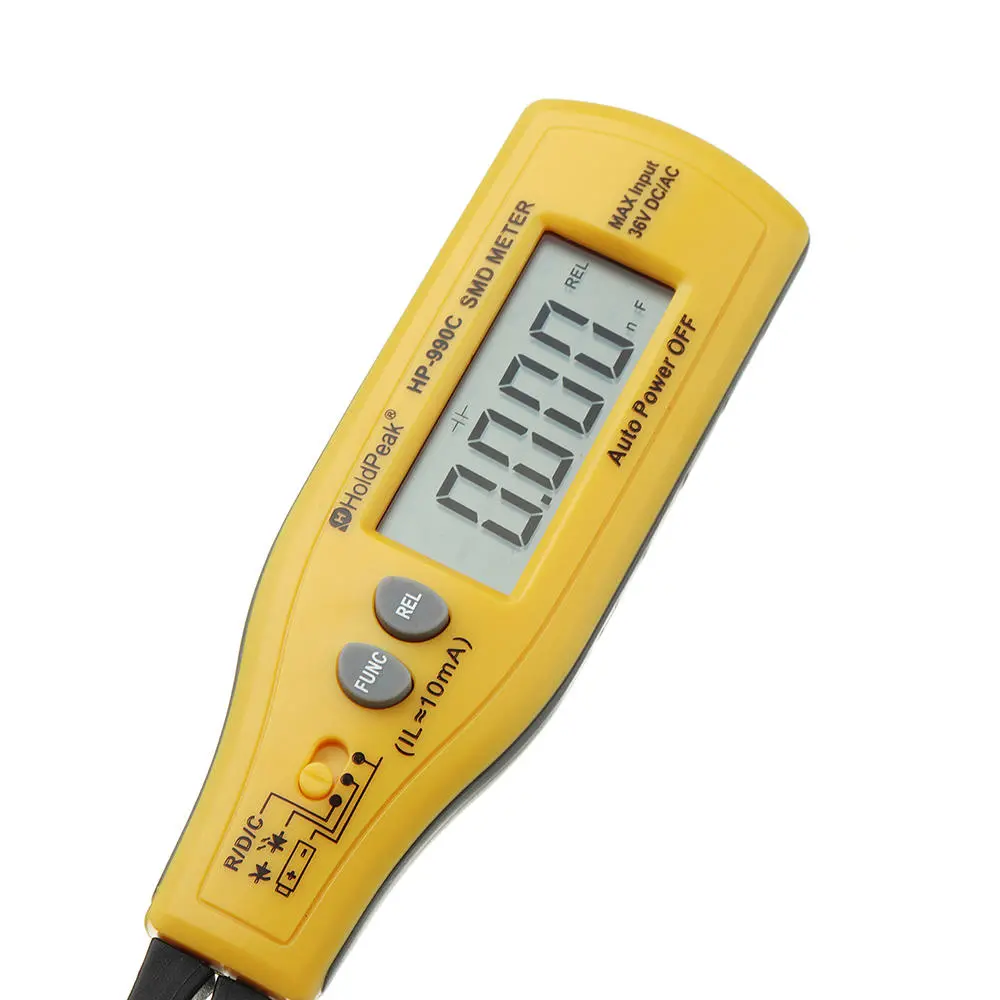

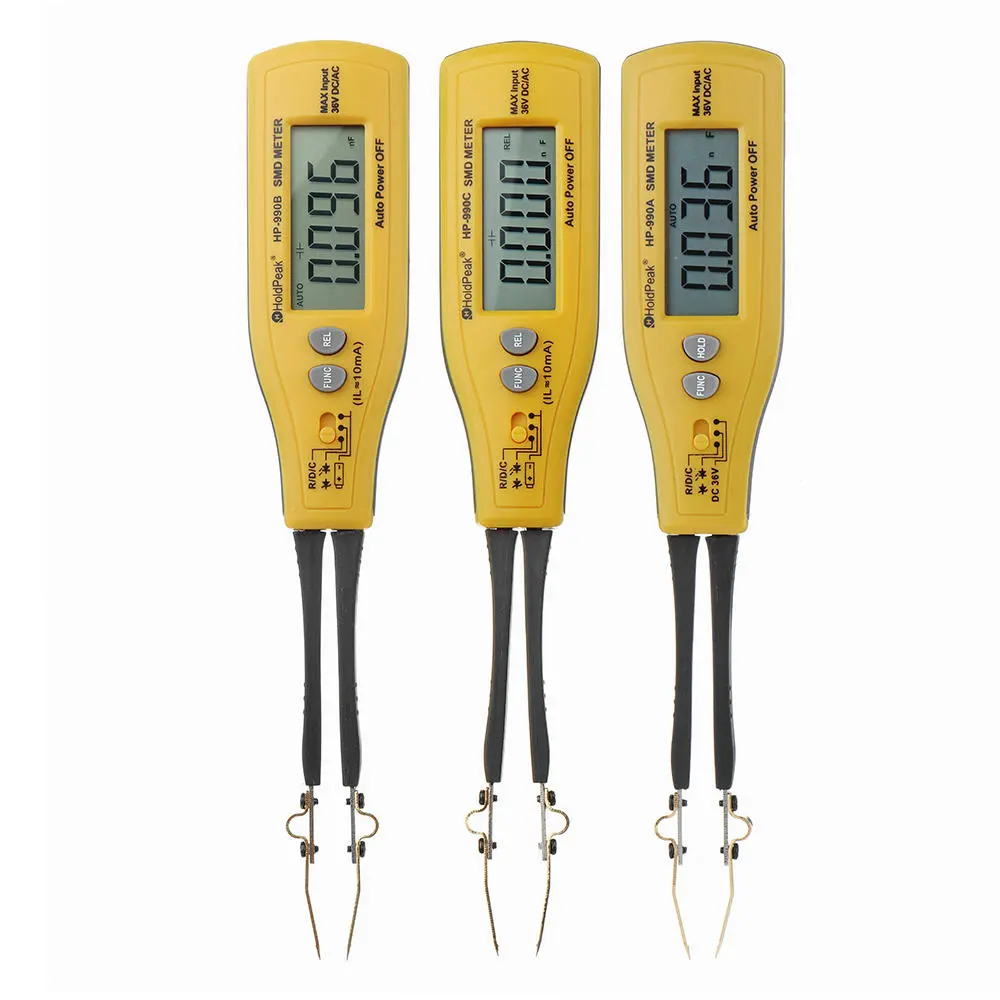

HoldPeak HP-990A/B/C Digital Multimeter SMD Tester | Resistance Capacitance Meters | Diode Test | Professional SMT Component Tester
$42.00
$51.18
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:- HP-990A/B/C is a handheld and battery operated very convenient small Tool, that is specially used to measuring SMD(Surface Mounting Device),there are resistor, Capacitor, Diode, Zener and LED.
- HP-990A/B/C is designed to meet IEC1010-1 standard and Stipulation of 2-Pollution Grade.
- HP-990A/B/C conform to the European Union's following Requirement:CE regulation 89/336 (EMC Electromagnetic Compatibility).

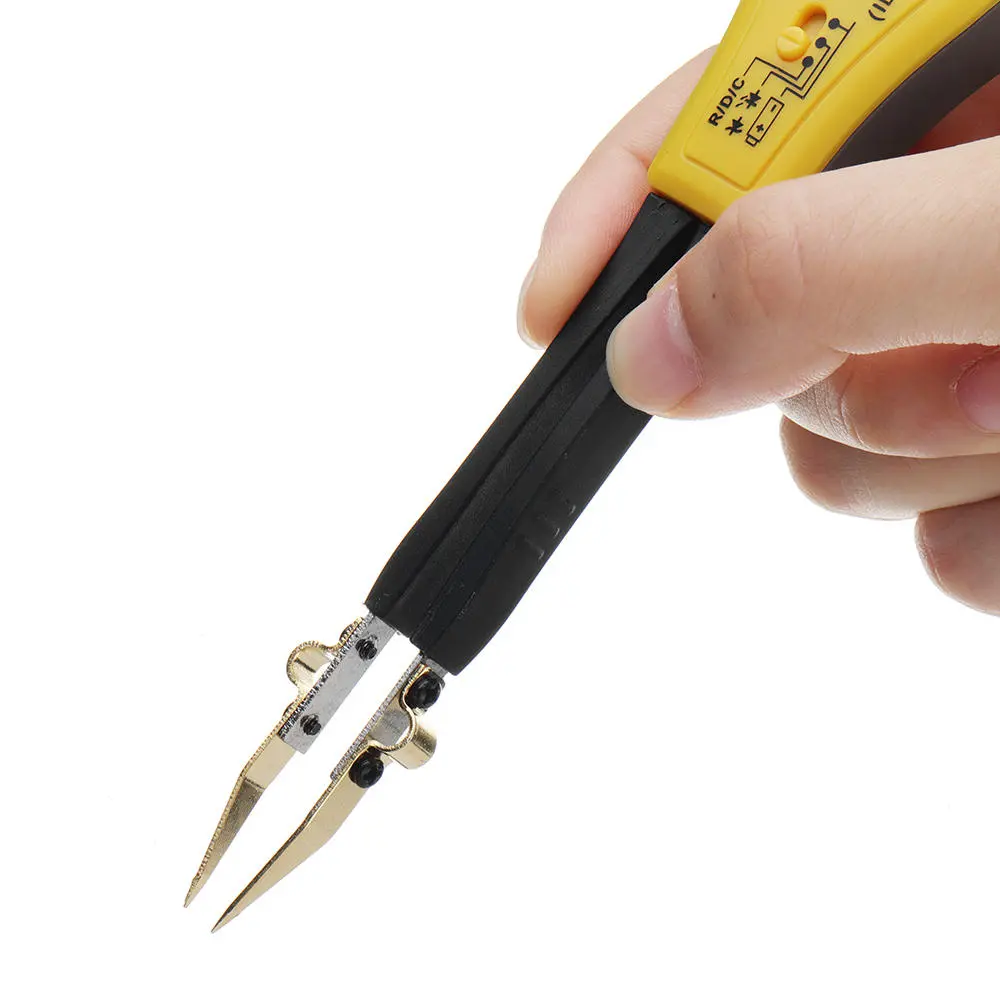

- The entire outer surface of the Meter case has been with thermo plastic elastomer, and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty.
- HP-990A have the continuity checking function,MAX DC 36V Measurement.
- HP-990B/C have the continuity checking function,battery power Measurement.
990A-General Feature:
?? 2999 count LCD display.
?? Full automatic measurement:
Auto scanning the Resistance/Capacitance/ Dilde.
?? Function selection by one "FUNC" Push Button
?? Data Hold function
?? Continuity Checking function
?? Zenger diode Test
?? LED Test
?? DC 36V (MAX) Test
??Specialized SMD TEST or TEST DIP Component with leades.
??Resistance: 300??~30M??
??Capacitance: 3nF~300mF
990B-990C General Feature:
??3999(only 990B)5999(only 990C) count LCD display.
??Auto ranges.
??Over-rang indication display "OL"
??Zener diode Test
??LED Test
??Battery Power Test
??Specialized SMD TEST or TEST DIP Component with leade.
?? Low Batteery Indication
??Resistance: 400??~40M??(only 990B) / 600??~60M??(only 990C)
??Capacitance: 4nF~200??F(only 990B) / 9.999nF~99.99mF(only 990C)
Specifications:

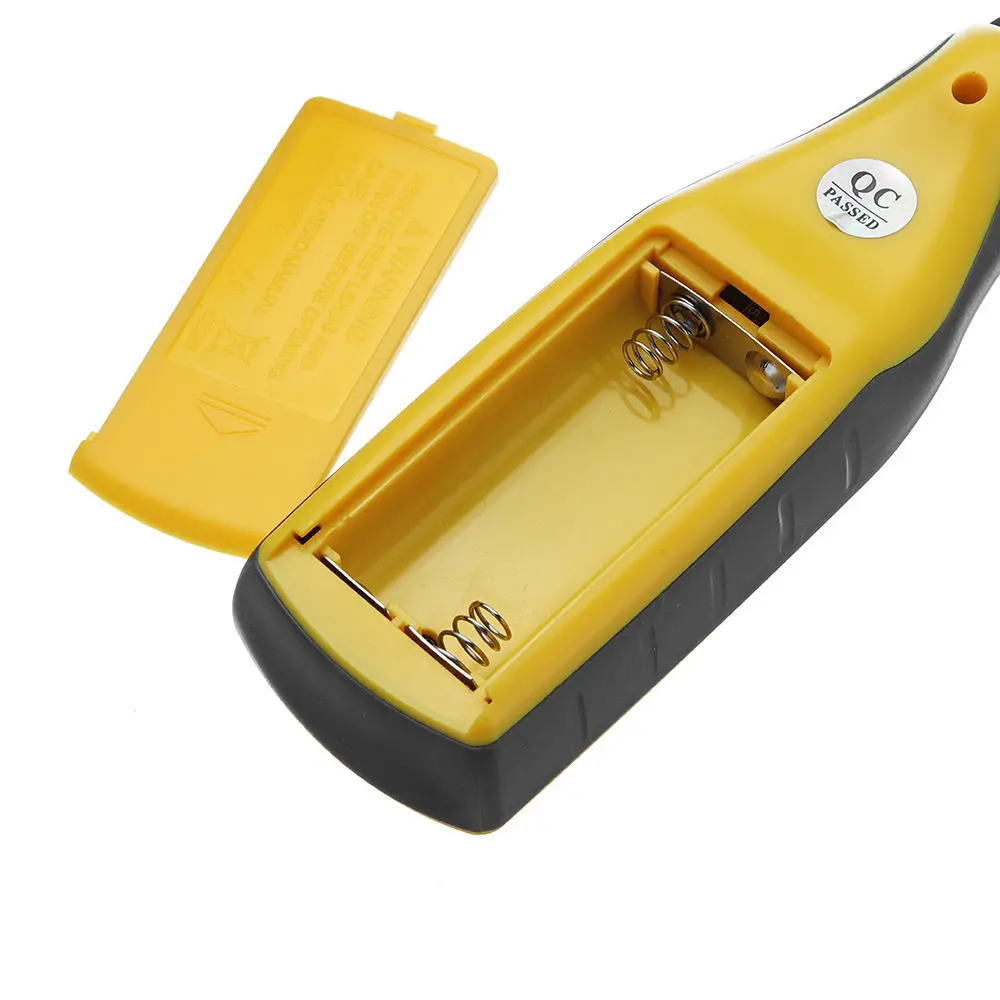

Power Supply: 1.5V(AAA)??2 Battery (Not included)
Operating temperature &Humidity:0-40'C(32-104 'F ) &<80%RH
Storage temperature & Humidity:-10-50
perating temperature &Humidity:0-40'C(32-104'F) &<80%RH
Safety Class:IEC1010-1,CAT II
Auto Power OFF:lf the Meter is idle for more than 15 minutes,the Meter
automatically tums the power off.
EMC:According to CE regulation 89/336.
Dimension(L??W??H) & Weight: 207*36*24mm,Approx.50g
Package Includes:
1 x SMD Tester(batteries not included)
1 x Carring box
2 x Test pin

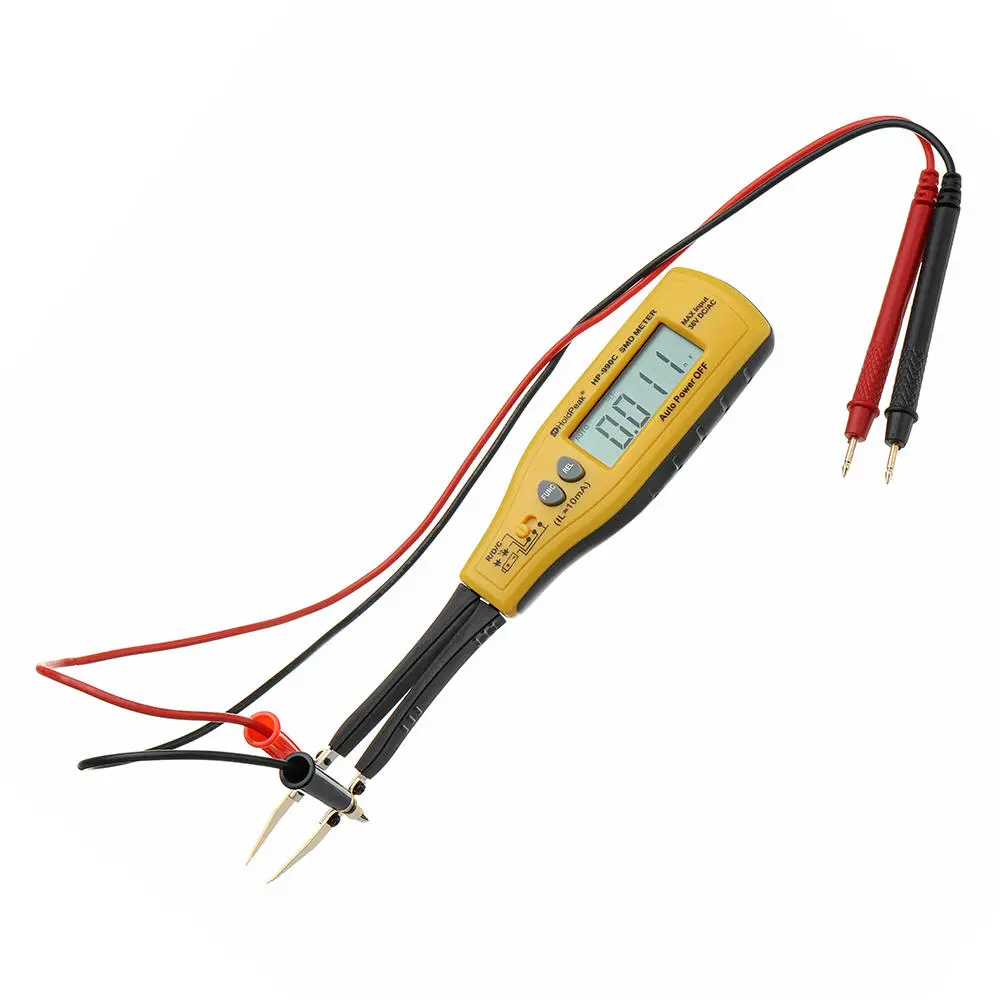

1 x Pair of test leads
1 x English user manual
Detials Pictures:
