ETCR9000B Wireless Clamp Meter - AC 0mA-1200A High/Low Voltage Ammeter
Product Description
Description:
ETCR9000B H/L Voltage Clamp Current Meter adopts CT technology and mask digital integration technology, the instrument composed of special clamp current meter and high voltage insulation rod, Wireless transmission of test data, equipped with wireless receiver, can receive the tested data within 30M straight-line distance, If not use insulation rod, which can be used as high accuracy low voltage clamp current meter.
ETCR9000B H/L Voltage Clamp Current Meter connect with insulation rod, which can use for hight voltage line current measurement of the wire with insulation skin below 60KV or bare wire below 35KV, online current measurements, also with data hold and data storage and so on function, the special clamp current meter convenient to clamp or withdraw the tested wire operate by push or pull back the insulation rod.It is widely used in substations, power plants, industrial and mining enterprises, inspection stations, electrical maintenance departments for current detection and electrical field operations. It can replace the H/L voltage transformations ratio tester, which can measure the H/L voltage current of the primary circuit and the secondary circuit respectively, and then calculate the H/L voltage transformations ratio. The insulation rod is light, has the characteristics of moisture-proof, high temperature resistance, impact resistance, bending resistance, high insulation, scalable and so on.
Specification:
| Function | H/L voltage AC current measurement |
| Power Supply | DC 6V??1.5V AAAx4?? |
| Test Mode | Clamp CT, integration method |
| Transmission Mode | 433Hz wireless transmission, transmissiondistance 30M |
| Display Mode | 4 digital LCD display, backlight function, suitable for dim place |
| LCD Size | 47mm??28.5mm |
| Meter Size | Detector: 76mm??255mm??31mm; Receiver: 78mm??165mm??42mm |
| CT Size | ??48mm |
| Sampling Rate | 2 times/second |
| Measurement Range | 0mA??1200A (50/60Hz automatic) |
| Max Resolution | 1mA |
| Shift | 0mA??1200A full-automatic |
| Test Accuracy (23???5?棬below80%RH) | 0mA??99.9A: ??1%??5dgt |
| 100A??599A: ??1.5%??5dgt | |
| 600A??1200A: ??2%??5dgt | |
| Data Storage | 99 groups, in storage process "MEM" symbol display, "FULL" symbol flashes display indicate storage full |
| Line Voltage | Below 110kV current test , operate with insulation rods ( below 500kV can be customized??only for ETCR9000B) |
| Data Hold | Press HOLD key to hold data in test mode, ??HOLD?? symbol display, press HOLD key once again cancel this function |
| Data Access | "MR" symbol display, can look up all storage data |
| Overflow Display | Exceed measure range overflow function: "OL A" symbol display |
| No Signal Indication | When the receiver has not received transmit signal, dynamic display ??no- -??symbol |
| Auto Shut Down | 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption |
| Battery Voltage | When battery voltage is lower than 4.8V, low battery voltage symbol will display and remind to replace battery. |
| Meter Weight | 3630g (include insulation rod) |
| Working Environment | -10??~50?棻below 80%rh |
| Store Environment | -10??~60?棻below 70%rh |
| Interference | No interference of 315MHz and 433MHz same frequency signals |
| Insulation Rod Size | ??32mm??1m/pcs??5pcs?? |
| Insulation Strength | AC110kV/rms??all 5PCS insulation rod connect, between the two ends?? |

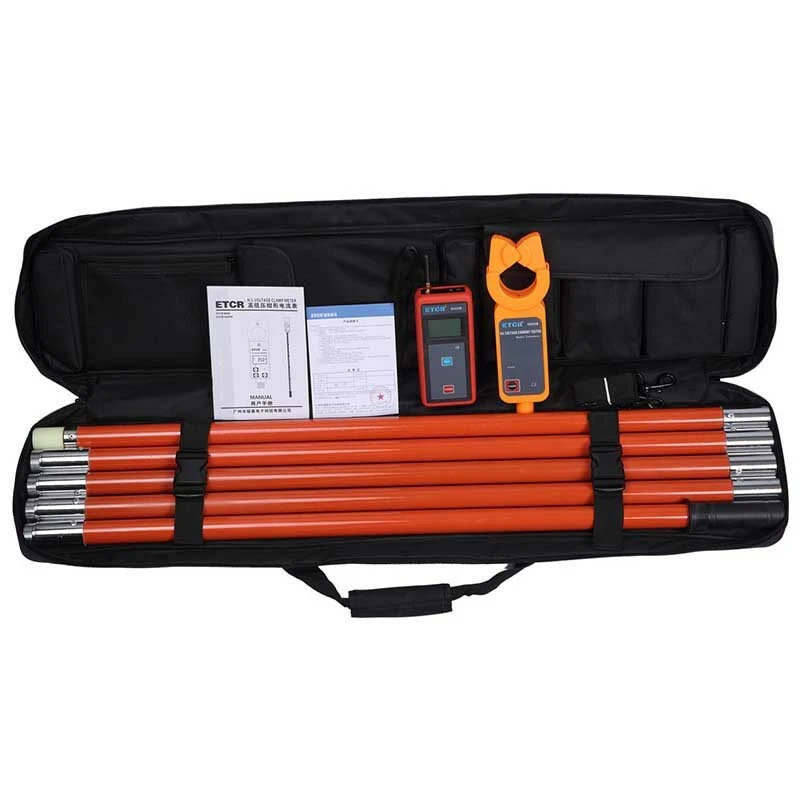

Package Includes:
1 x Detector (Battery not included)
1 x Receiver (Battery not included)
1 x Wireless Antenna
5 x Insulation Rod??1M??
1 x Tool Bag
1 x User Manual

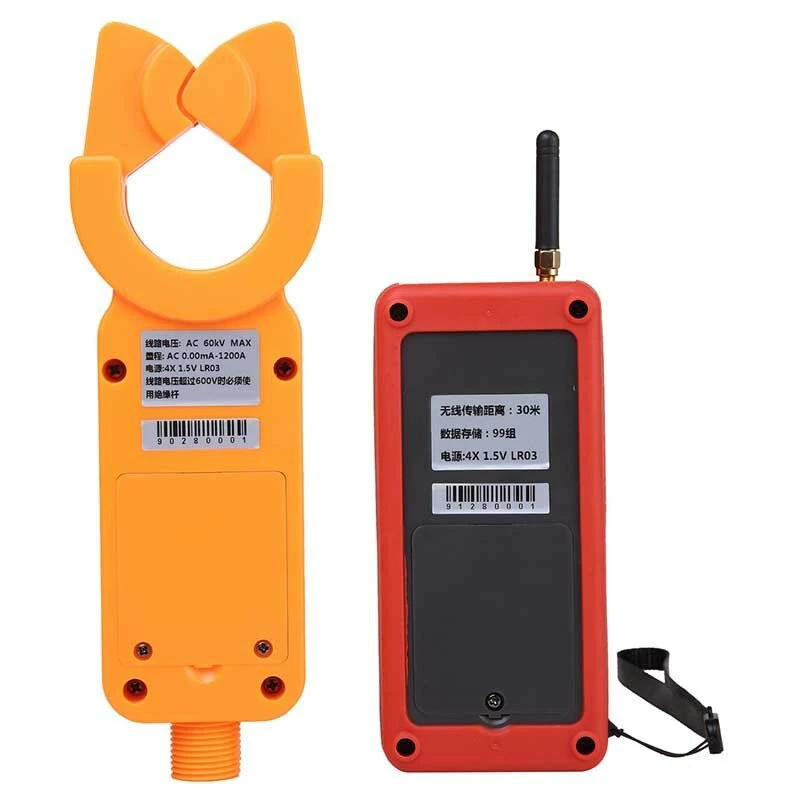

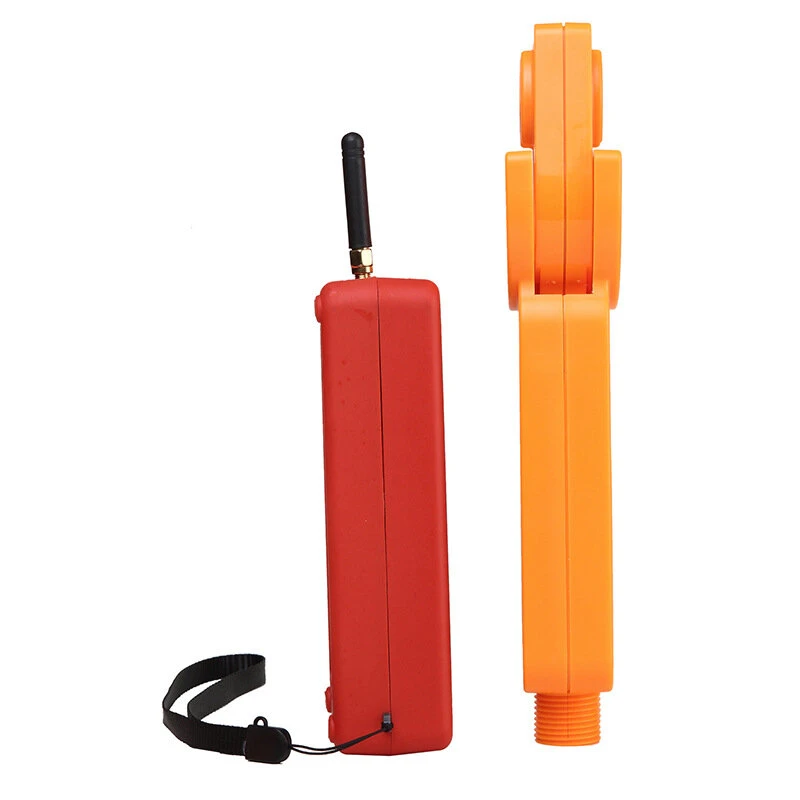

Details Picture:
