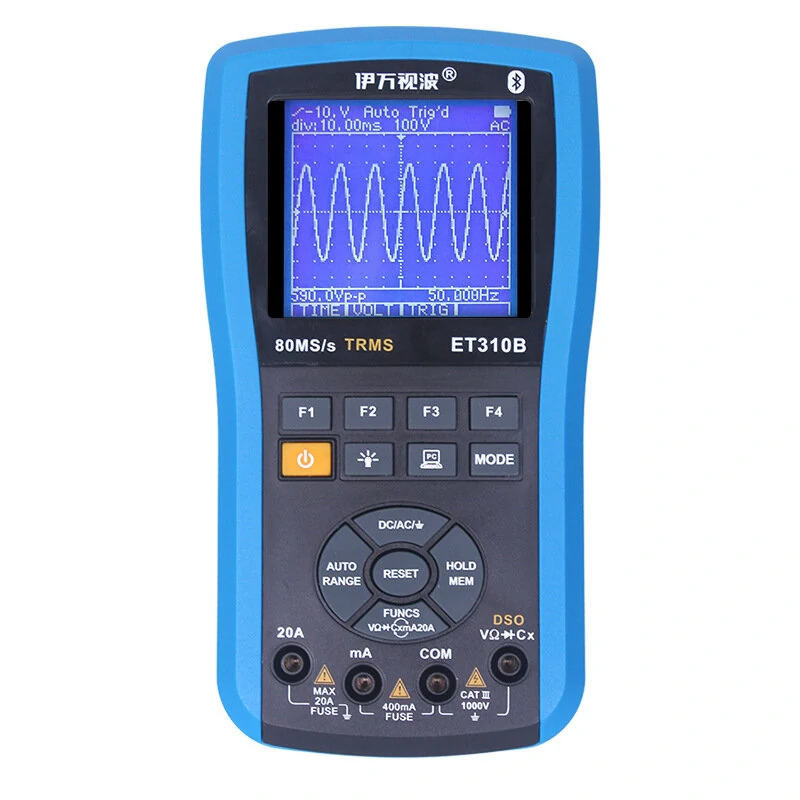

ET310B 20MHz Bluetooth Oscilloscope Multimeter | True RMS Handheld Digital
$195.00
$239.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:ET310B It's the perfect combination of the auto-range TRMS digital multimeter & 80M sampling 20MHz bandwidth digital Oscilloscope! Uniquely, it adopts the bluetooth wireless extended design which enables users easily deal with the measuring datas and waveforms on Android phone and tablets!
Features:

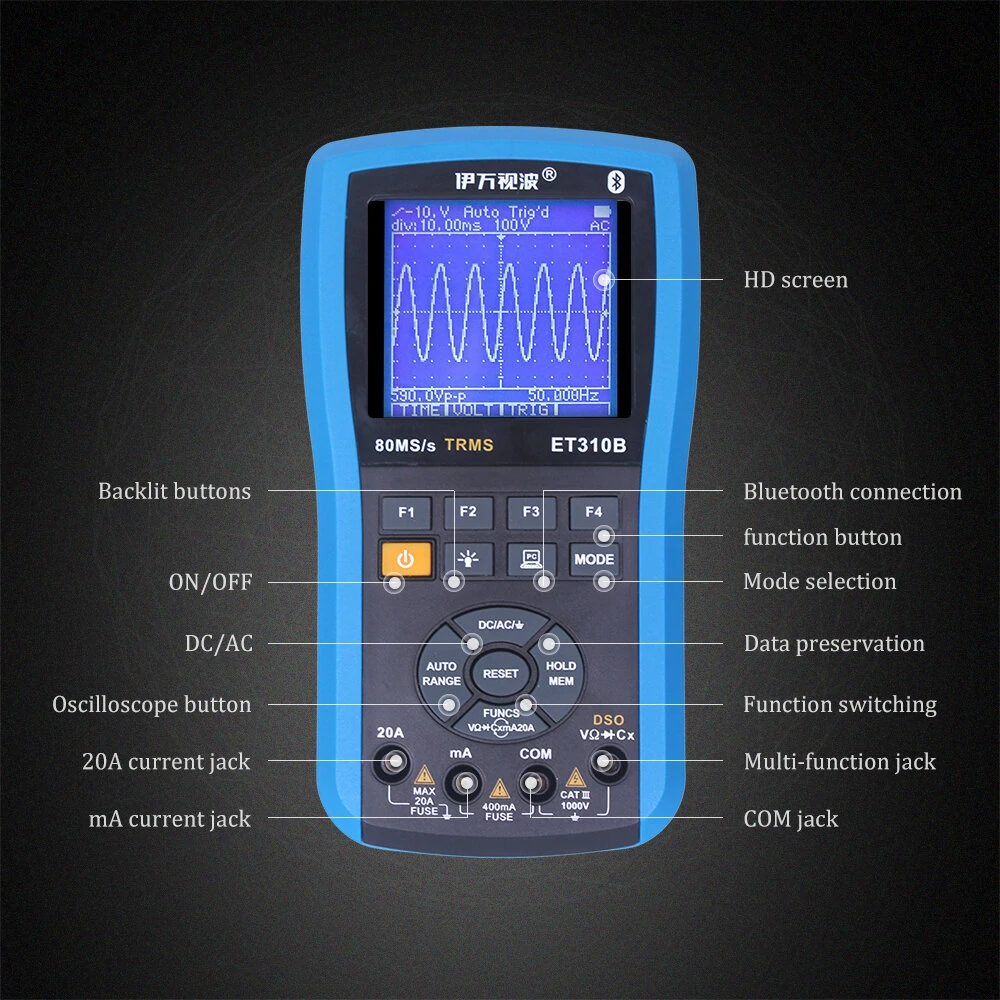

1. LCD display Oscilloscope and TRMS Multimeter in 1 lab meter, portable design, more convenient and cost-effective. Adjustable LED backlight, timed work available.2. Connectable to Android phone and tablet via bluetooth, remote testing available, suitable for test in difficult environment.3. Oscilloscope functions: 80M sampling rate, 20MHz analog bandwidth, one-key oscilloscope, auto waveform capture, three trigger modes: single, normal, auto. Manual/auto setting of V/div and t/div. DSO Auto measure: Vp-p, Vavg, Vrms, dBm. DSO Cursor readout: dV, dt, 1/dt (frequency).4. Multimeter functions: 4000-count, automatic range, TRMS, AC/DC voltage, AC/DC current, resistance, frequency, capacitance, diode test, duty ratio, continuity test.5. Display maximum value, minimum value, difference value and relative value on the same screen. Storage/readout 100 sets waveforms and 100 sets datas. Software calibration technology, memory calibration factor.
Specification:

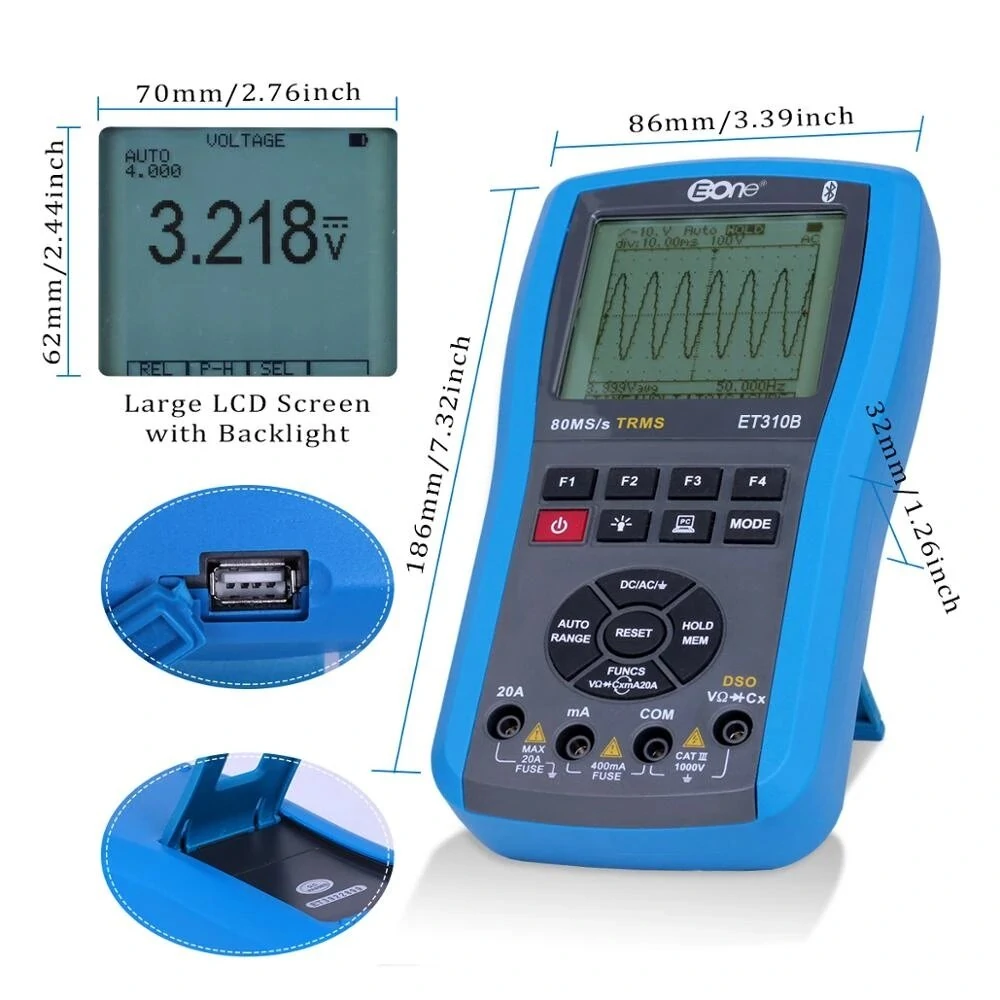

Dimensions: 86mm x 186mm x 32mmweight: 325g (excluding other accessories)display: 128 x 128 dot matrix LCDobservation area: 72mm X 72mmBacklight: white, adjustable brightness, two levelsinput resistance: 10M??battery: 1000mAH lithium polymer batteryCharging time: 2-3hworking hours: about 10 hoursstorage capacity: 100 sets DMM datas and 100 sets DSO waveformsuse environment: 0 ~ +40??storage conditions: -10 ~ +60??power adapter: 100V~250V, switching power supply
Oscilloscope functions:80M sampling rate, 20MHz bandwidth, 1 channelOne-key conversion to oscilloscope, automatic display of waveformsManual/auto setting of V/div and t/divTrigger mode: auto/normal/singleAuto measure: Vp-p, Vavg, Vrms, dBmCursor readout: dV, dt, 1/dt(frequency)Storage 100 sets datas and 100 sets waveformsVertical Resolution: 8 bitsSoftware calibration technology, memory calibration factor
Multimeter functions:4000 counts, auto-range, TRMSDC Voltage: 1000VAC Voltage(TRMS): 750VDC Current: 20AAC Current(TRMS): 20AResistance: 40M??Capacity: 51.2nF-100??FFrequency: 5.12Hz-5.12MHzDuty ratio: 0.1~99%(AC 1Vp-p)Diode test, continuity test
Package included:
1 x ET310B oscilloscope multimeter1 x User manual1 x Charger1 x Convenient carrying bag2 x Testing probes
