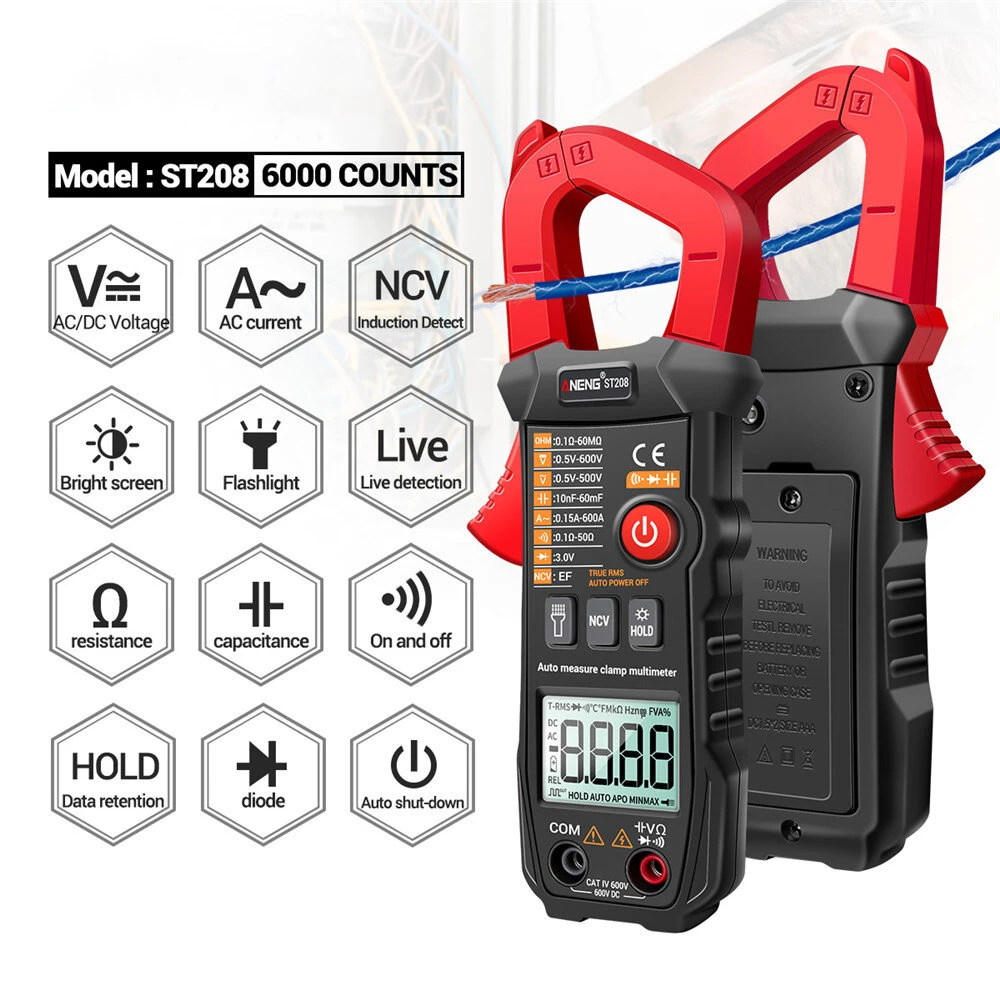

ANENG ST208 True RMS Clamp Meter - 6000 Count AC Current Clamp Multimeter
Product Description
Features:
The 6000 counts is a pocket-sized auto-scaning digital meter that does not require a dial to select a function.The meter will automatically recognize and measure based on the input voltage/current/resistance/current.It has stable performance,high precision,high reliability,clear reading and overload protection.

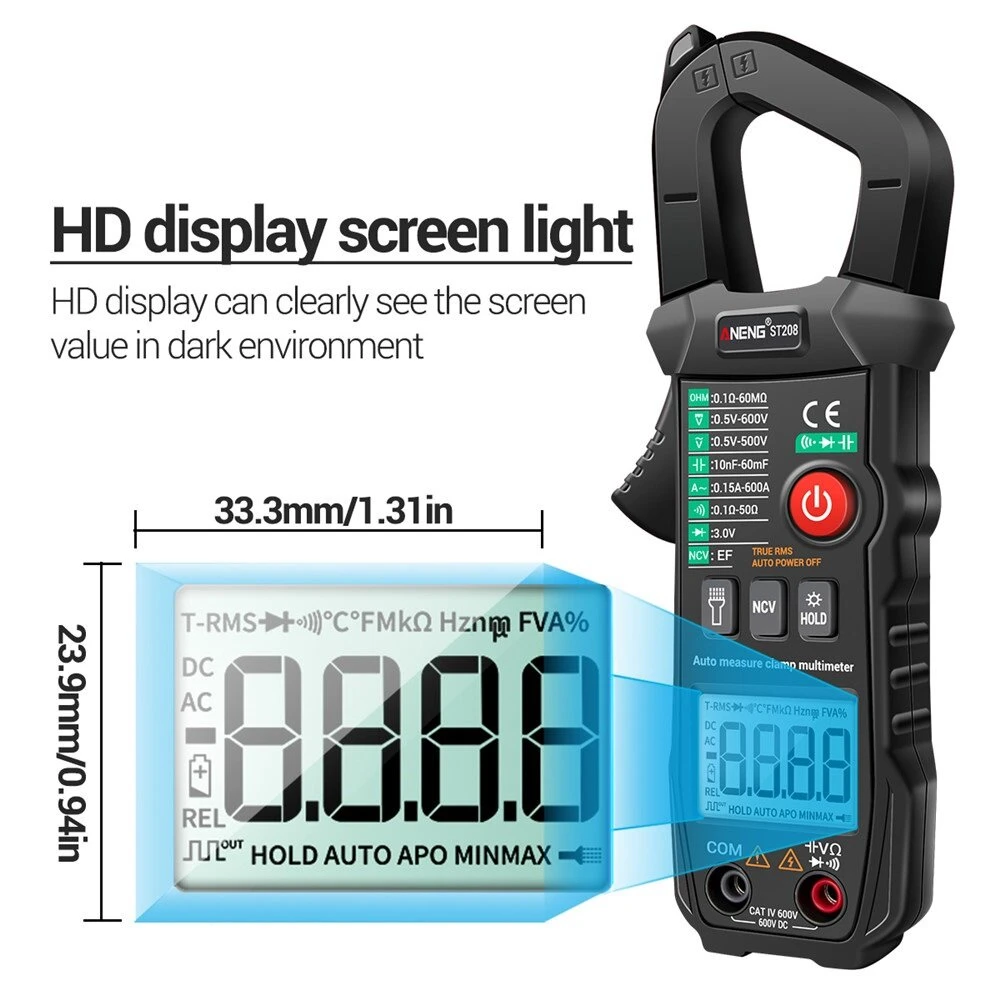

1. Display: liquid crystal display (LCD);
2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows"OL";
6. Working environment:(0??40)??,relative humidity??80%;
7. Power: AAA 2* 1.5V battery;
8. Volume (size): 176??67??33mm(L??W??H);
Specification:
1. DC voltage / AC voltage automatic scanning test (DCV / ACV)
Accuracy/Range | 6000 counts | Resolution |
DC/AC 6V | +-(0.5%+3) | 0.001V |
DC/AC 60V | +-(0.5%+3) | 0.01V |
DC/ 700V | +-(0.5%+3) | 0.1V |
AC/ 500V | +-(0.8%+10) | 1 |
2. Resistance(??)
Accuracy/Range | 6000 counts | Resolution |
600?? | +-(0.8%+5) | 0.1?? |
6k?? | +-(0.8%+3) | 1?? |
60k?? | +-(0.8%+3) | 10?? |
600k?? | +-(0.8%+3) | 100?? |
6M?? | +-(0.8%+3) | 1k?? |
60M?? | +-(2.5%+3) | 10k?? |
3. Capacitance(C)
Accuracy/Range | 6000 counts | Resolution |
10nF | +-(3.5%+20) | 10pF |
100nF | +-(3.5%+20) | 100pF |
1uF | +-(3.5%+20) | 1nF |
10uF | +-(3.5%+20) | 10nF |
100uF | +-(3.5%+20) | 100nF |
1mF | +-(3.5%+20) | 1uF |
10mF | +-(3.5%+20) | 10uF |
60mF | +-(5%+3) | 100uF |
4. AC current
Accuracy/Range | 6000 counts | Resolution |
60A | +-(2%+30) | 0.001A |
600A | +-(2%+30) | 0.01A |
Package includes:
1 x Clamp Ammeter
1 x English User Manual
1 x Test Lead Probe
1 x Storage Bag

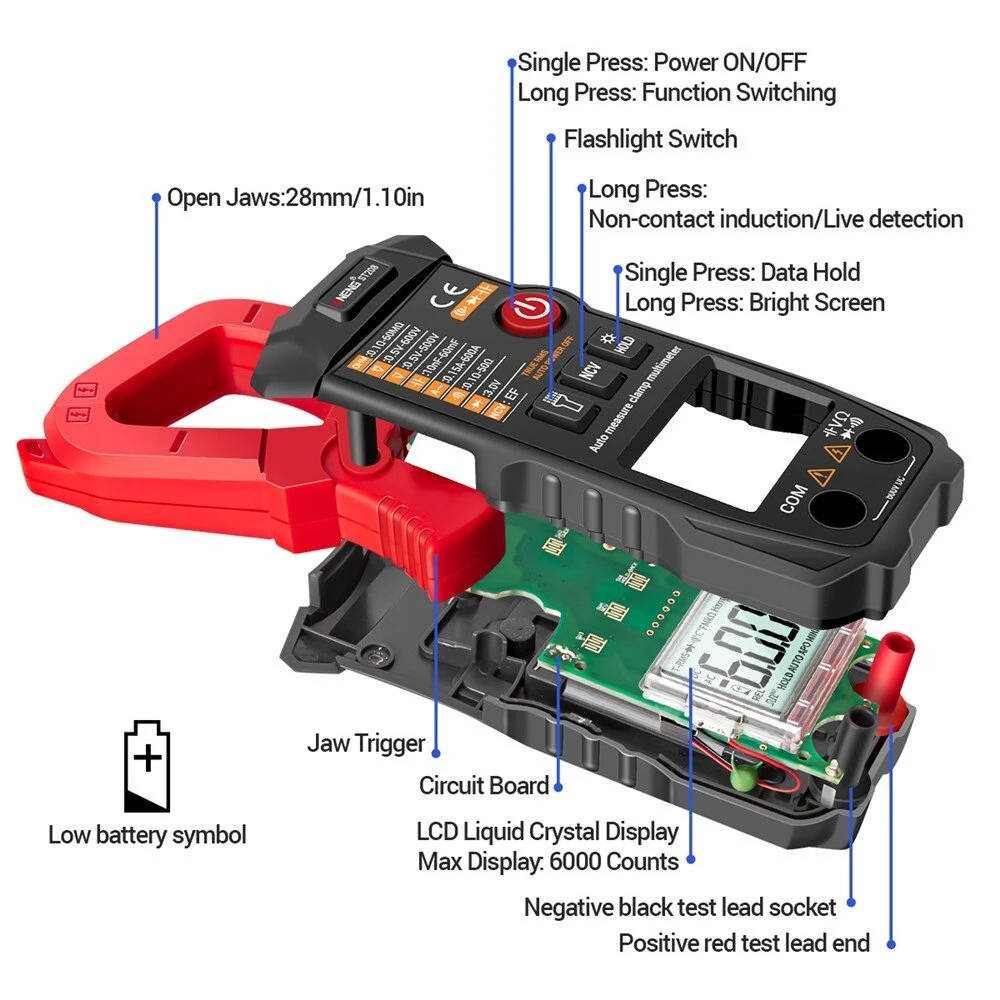

Details picture:
