ANENG AN8002 True RMS Multimeter - 6000 Counts | AC/DC Voltage, Current, Temp
$27.00
$33.58
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:It is a Auto-ranging digital MultiMate using double-integral style A/D transform as the core. Can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc. The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use. Features:
Auto Range. True RMS measurement. Resistance capacitance frequency file high voltage 550V protection. Large screen display, the maximum of 6000 words. Sampling rate: about 3 times per second. Temperature measuring. Backlight display. Data retention. Polarity automatic recognition. Low voltage display. 10A large current measurement MA level small current measurement Automatic shutdown. Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance. Diode / off measurement, frequency and duty ratio measurement. Specification:
| Function | Range | Resolution | Accuracy | MAX.Value | Other |
| DC Voltage | 6.000V | 0.001V | ??(0.5%+3) | 1000V | Input Resistance:10M?? |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 1000V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
| AC Voltage | 6.000V | 0.001V | ??(1.0%+3) | 750V | Input Resistance:10M??(600mV range, >60M??) Frequency Response: 40Hz-1kHz |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 750V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
| DC Current | 6.000A | 0.001A | ??(1.2%+3) | 10A | MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA | ||||
| AC Current | 6.000A | 0.001A | ??(1.5%+3) | 10A | |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA |
| Resistance | 600.0?? | 0.1?? | ??(0.5%+3) | 60M?? | No Voltage input at this mode | |||||
| 6.000k?? | 0.001k?? | |||||||||
| 60.00k?? | 0.01k?? | |||||||||
| 600.0k?? | 0.1k?? | |||||||||
| 6.000M?? | 0.001M?? | |||||||||
| 60.00M?? | 0.01M?? | ??(1.5%+3) | ||||||||
| Capacitance | 9.999nF | 0.001nF | ??(5.0%+20) | 9.999mF | No Voltage input at this mode | |||||
| 99.99nF | 0.01nF | ??(2.0%+5) | ||||||||
| 999.9nF | 0.1nF | |||||||||
| 9.999??F | 0.001??F | |||||||||
| 99.99??F | 0.01??F | |||||||||
| 999.9??F | 0.1??F | |||||||||
| 9.999mF | 0.001mF | ??(5.0%+5) | ||||||||
| Frequency | 99.99Hz | 0.01Hz | ??(0.1%+2) | 9.999MHz | ||||||
| 999.9Hz | 0.1Hz | |||||||||
| 9.999kHz | 0.001kHz | |||||||||
| 99.99kHz | 0.01kHz | |||||||||
| 999.9kHz | 0.1kHz | |||||||||
| 9.999MHz | 0.001MHz | |||||||||
| Duty Cycle | 1%~99% | 0.1% | ??(0.1%+2) | |||||||
| Diode | ??(DC forward current is 5mA, voltage is 3V) | No Voltage input at this mode | ||||||||
| Continuity | ??(no more than 50??) | |||||||||
| Temperature | -20~1000?? | 1?? | ??(2.5%+5) | 1000?? | ||||||
| -4~1832?H | 1?H | 1832?H | ||||||||
Measurement mode: double-integral style A/D transform Sample rate: 3 times per second Over range indication: OL Powered by 2 x AAA batteries (Not included). Working Environment: 0-40 degrees relative humidity: <80% Product size: approx. 130 x 65 x 30mm/5.11 x 2.55 x 1.18'' Net weight: approx. 170g Gross weight: approx.238g

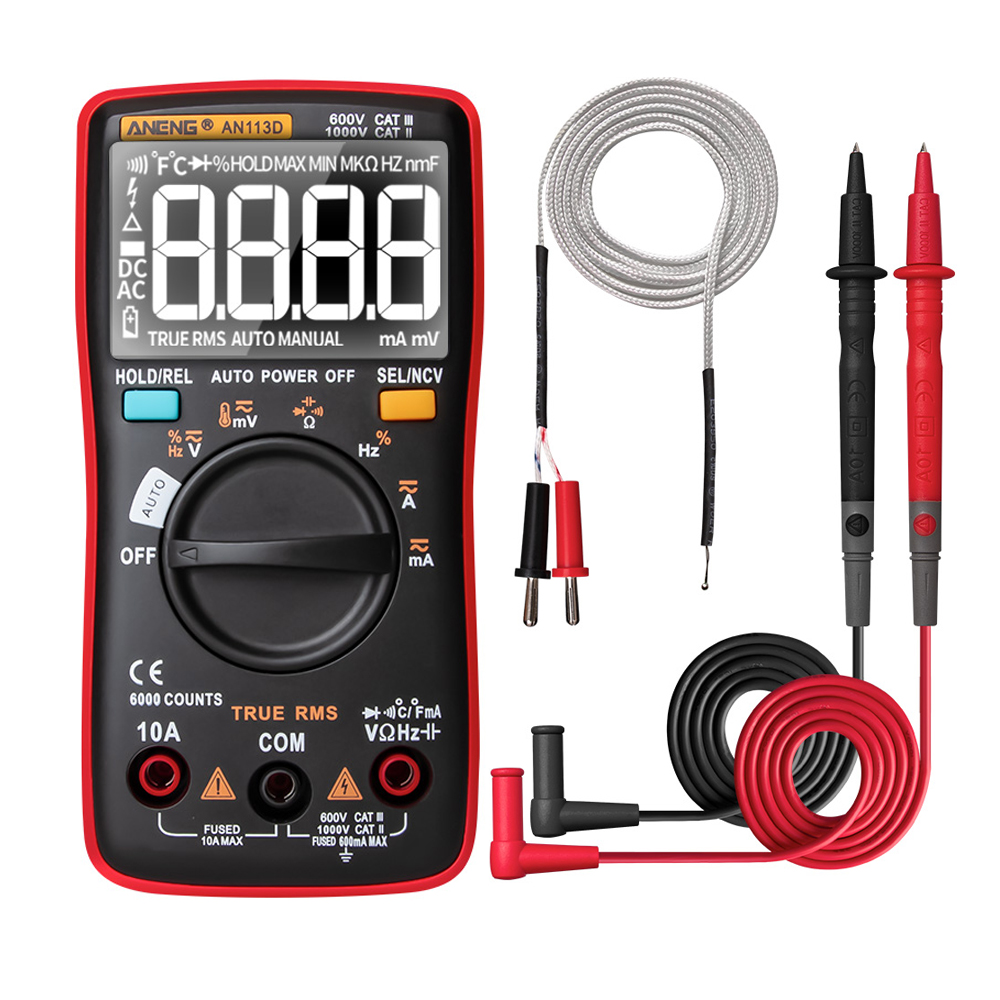

Good News ! ANENG AN113D the upgrade version of ANENG AN8002 has already released. This new product not only has the Manual gear as AN8002,but also added an automatic measurement button which is more convenient measurement and more friendly operation for the novices. Annnnd,It also equipped with a Black EBTN Screen, which can be clearly displayed without backlighting!!!
More Details Please Click>>>
Package included:
1 x ANENG AN8002 Digital Ture RMS 6000 Counts Multimeter 2 x Test Lead Set 1 x Temperature Sensing Cable 1 x Storage Bag 1 x English User Manual
Detail Pictures:
