ANENG AN8002 True RMS Multimeter - 6000 Counts | AC/DC Voltage, Current, Temp
$34.00
$41.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:
It is a Auto-ranging digital MultiMate using double-integral style A/D transform as the core. Can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc.The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use. Features:
Auto Range. True RMS measurement. Resistance capacitance frequency file high voltage 550V protection. Large screen display, the maximum of 6000 words. Sampling rate: about 3 times per second.Temperature measuring.Backlight display. Data retention. Polarity automatic recognition. Low voltage display. 10A large current measurement MA level small current measurement Automatic shutdown. Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance. Diode / off measurement, frequency and duty ratio measurement. Specification:
| Function | Range | Resolution | Accuracy | MAX.Value | Other |
| DC Voltage | 6.000V | 0.001V | ??(0.5%+3) | 1000V | Input Resistance:10M?? |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 1000V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
| AC Voltage | 6.000V | 0.001V | ??(1.0%+3) | 750V | Input Resistance:10M??(600mV range, >60M??) Frequency Response: 40Hz-1kHz |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 750V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
| DC Current | 6.000A | 0.001A | ??(1.2%+3) | 10A | MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA | ||||
| AC Current | 6.000A | 0.001A | ??(1.5%+3) | 10A | |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA |
| Resistance | 600.0?? | 0.1?? | ??(0.5%+3) | 60M?? | No Voltage input at this mode | |||||
| 6.000k?? | 0.001k?? | |||||||||
| 60.00k?? | 0.01k?? | |||||||||
| 600.0k?? | 0.1k?? | |||||||||
| 6.000M?? | 0.001M?? | |||||||||
| 60.00M?? | 0.01M?? | ??(1.5%+3) | ||||||||
| Capacitance | 9.999nF | 0.001nF | ??(5.0%+20) | 9.999mF | No Voltage input at this mode | |||||
| 99.99nF | 0.01nF | ??(2.0%+5) | ||||||||
| 999.9nF | 0.1nF | |||||||||
| 9.999??F | 0.001??F | |||||||||
| 99.99??F | 0.01??F | |||||||||
| 999.9??F | 0.1??F | |||||||||
| 9.999mF | 0.001mF | ??(5.0%+5) | ||||||||
| Frequency | 99.99Hz | 0.01Hz | ??(0.1%+2) | 9.999MHz | ||||||
| 999.9Hz | 0.1Hz | |||||||||
| 9.999kHz | 0.001kHz | |||||||||
| 99.99kHz | 0.01kHz | |||||||||
| 999.9kHz | 0.1kHz | |||||||||
| 9.999MHz | 0.001MHz | |||||||||
| Duty Cycle | 1%~99% | 0.1% | ??(0.1%+2) | |||||||
| Diode | ??(DC forward current is 5mA, voltage is 3V) | No Voltage input at this mode | ||||||||
| Continuity | ??(no more than 50??) | |||||||||
Temperature | -20~1000?? | 1?? | ??(2.5%+5) | 1000?? | ||||||
| -4~1832?H | 1?H | 1832?H | ||||||||

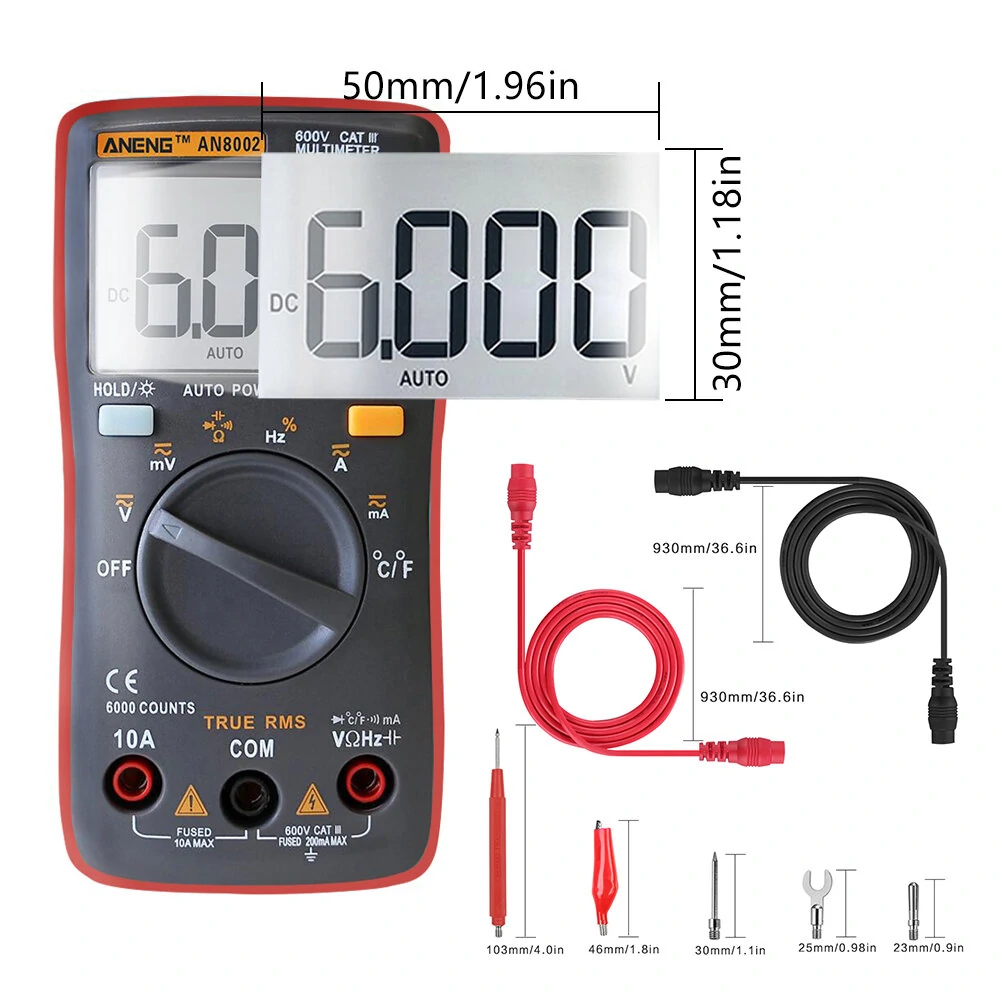

Measurement mode: double-integral style A/D transform Sample rate: 3 times per second Over range indication: OLPowered by 2 x AAA batteries (Not included).Working Environment: 0-40 degrees relative humidity: <80% Product size: approx. 130 x 65 x 30mm/5.11 x 2.55 x 1.18'' Net weight: approx. 170g Gross weight: approx.238g
Special note: (when the digital multimeter is in the millivolt position, the value jumps.) Millivolts value jump is a normal phenomenon. The display of the multimeter MV gear is not 0, mainly the following.1: If the ambient temperature and humidity in the air change too much.2: There is a strong electric field or magnetic field interference around.3: The multimeter itself has failed. When the MV gear of multimeter appears to be non-zer'o, it can be judged as follows:Dial the multimeter to the mV position.The corresponding input hole is inserted into the red and black pen line.Directly connect the red and black test leads.At this time, the multimeter displays "0000" to judge that the non-return phenomenon of the multimeter is due to environmental factors. The non-return to zer'o in this state does not affect the use of the multimeter, but it is recommended to eliminate environmental interference factors so as not to affect the measurement accuracy and produce erroneous measurements result. Package included:

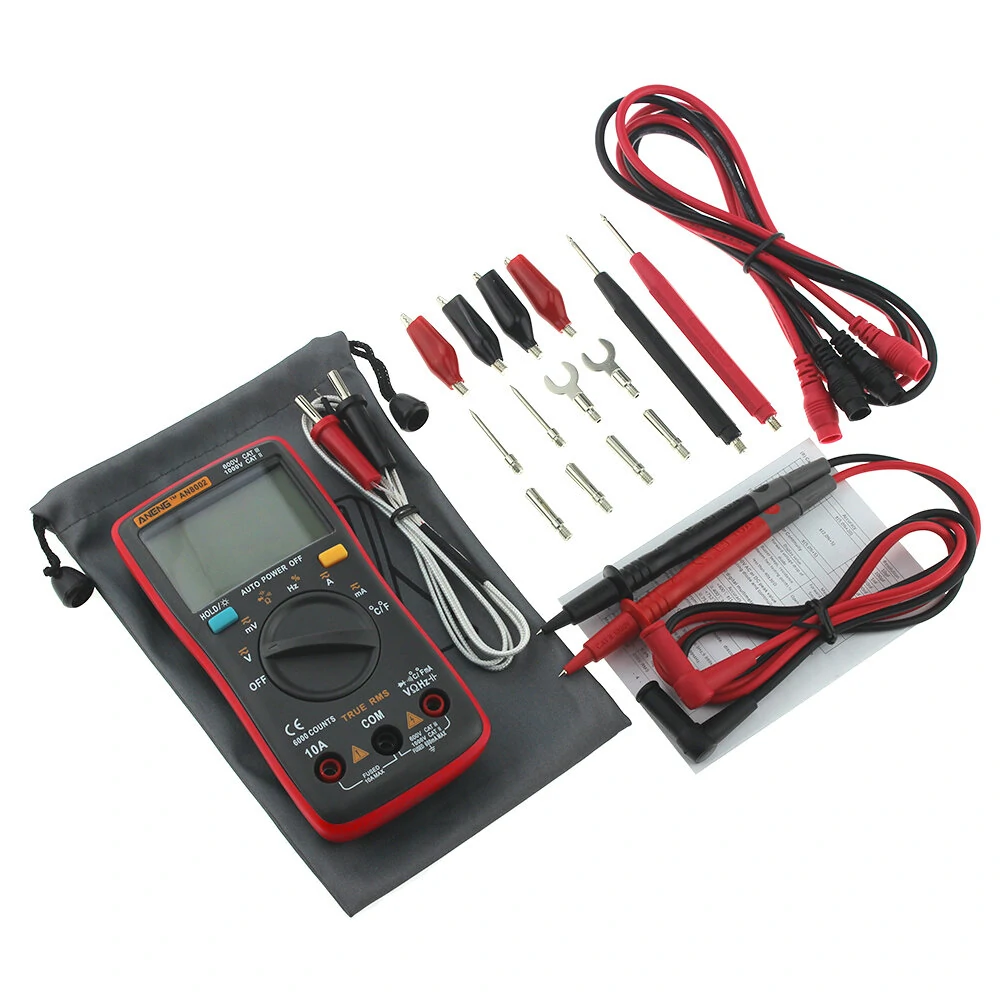

1 x ANENG AN8002 Digital Ture RMS 6000 Counts Multimeter1 x Test Lead Set( Showing as Pictures)
1 x Test Probe1 x Temperature Sensing Cable 1 x Storage Bag 1 x English User Manual
Detail Pictures:
