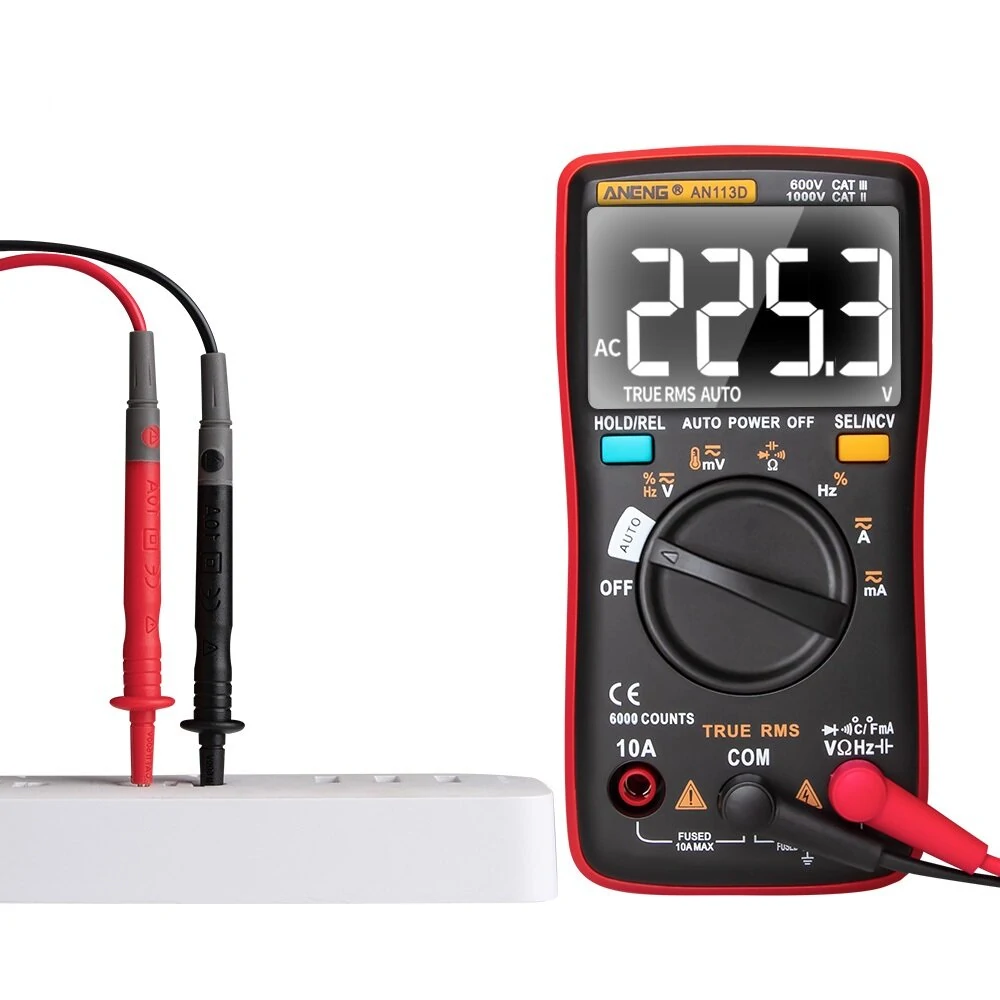

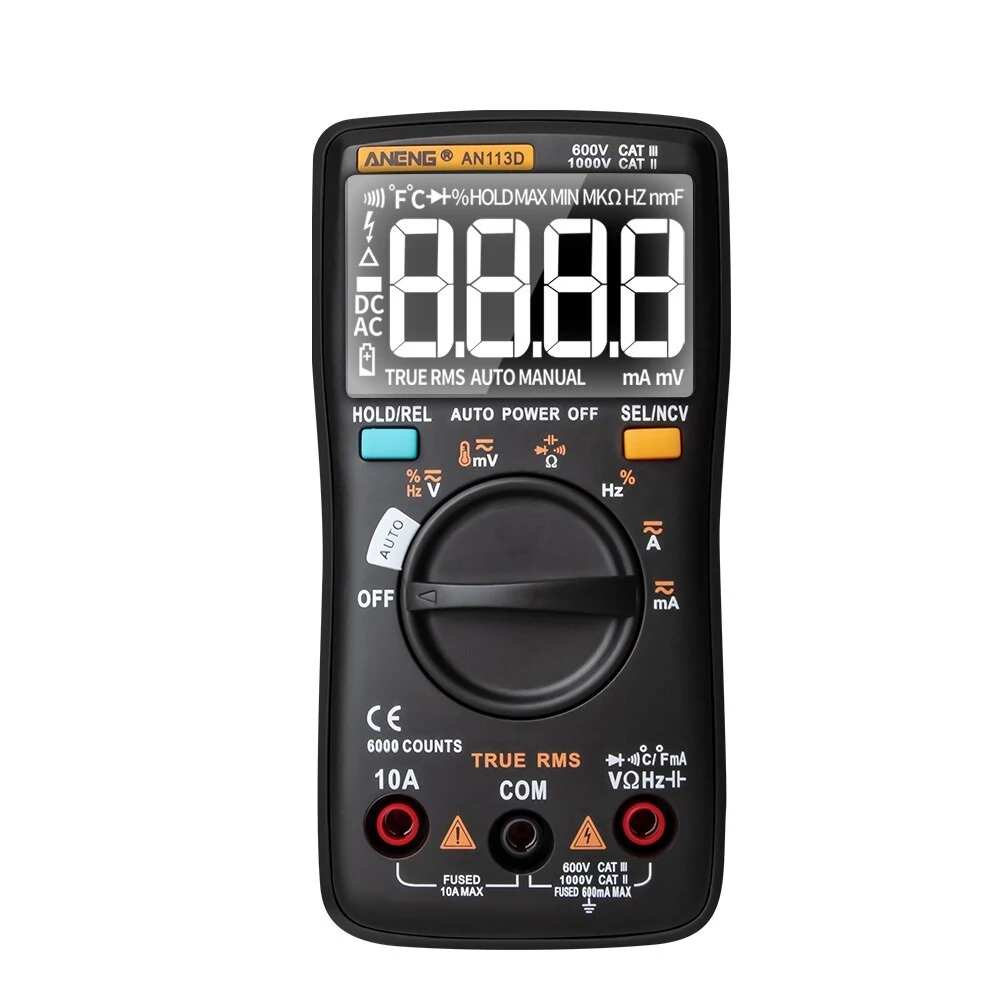

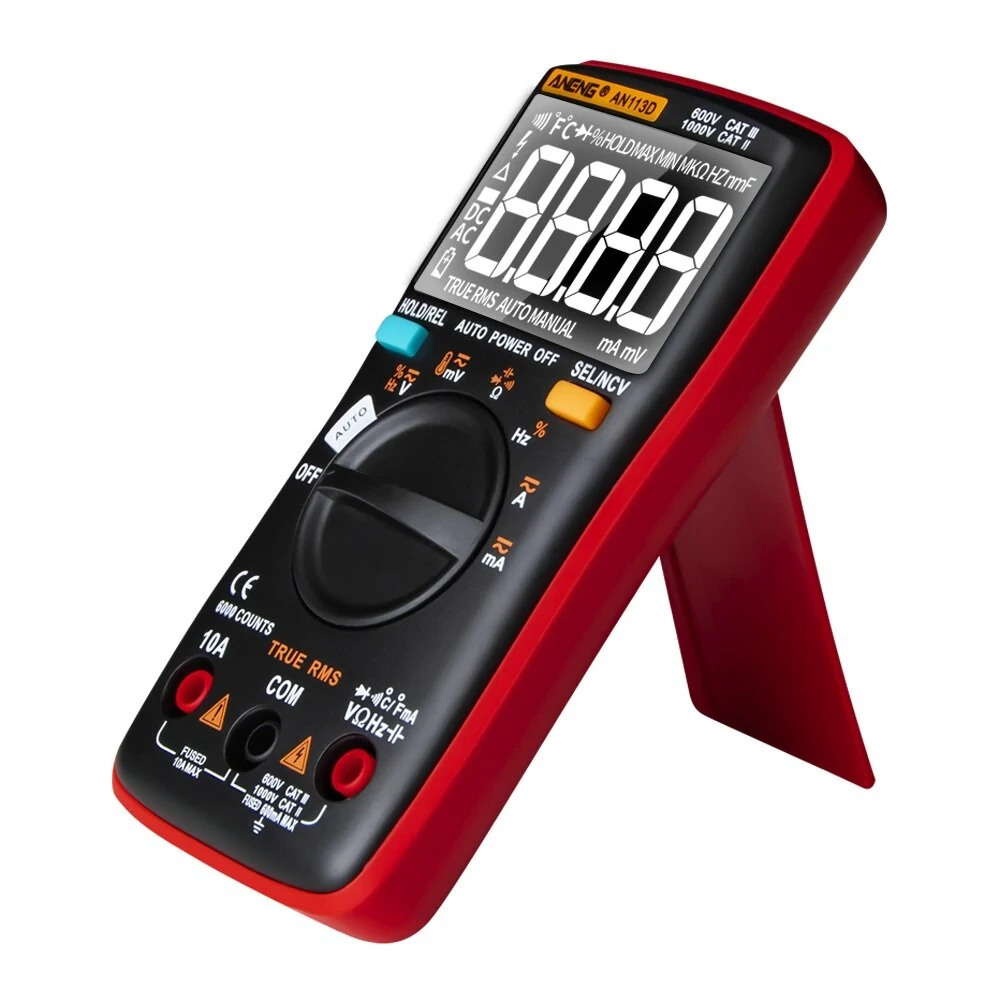

ANENG AN113D True-RMS Digital Multimeter - 6000 Counts, Auto-Ranging, Temperature Tester
$27.00
$33.58
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Good News!
ANENG AN113D the upgrade version of ANENG AN8002 has already released.
This new product not only has the Manual gear as AN8002,but also added an automatic measurement button which is more convenient measurement and more friendly operation for the novices.
Annnnd,It also equipped with a Black EBTN Screen, which can be clearly displayed without backlighting!!!
Features:
Specification:
Display(LCD): 6000 counts Ranging :Auto Material: ABS/PVC Update Rate: 3 times / second Low Battery Indication: ?? Product Weight :114g (batteries not included) Product Dimension :130*65*32mm
OperatingStorage: Temperature 0~40?? Humidity <75%
OperatingStorage :Temperature -20~60?? Humidity < 80% DC Voltage : 6.000V (0.001V) / 60.00V( 0.01V)/ 600.0V (0.1V )/1000V (1V) ??(0.5%+3)
DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ??(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ??(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ??(1.0%+3)
DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ??(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ??(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ??(1.5%+3)
Resistance : 600.0?? (0.1??)/6.000k??(0.001k??)/60.00k?? (0.01k??) /600.0k??(0.1k??) / 6.000M?? (0.001M??) ??(0.5%+3) /60.00M?? (0.01M??) ??(1.5%+3)
Capacitance : 9.999nF(0.001nF) ??(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999??F (0.001??F)/ 99.99??F(0.01??F)/ 999.9??F (0.1??F)??(2.0%+5) / 9.999mF (0.001mF) ??(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ??(0.1%+2)
Duty Cycle 1%~99% 0.1% ??(0.1%+2)

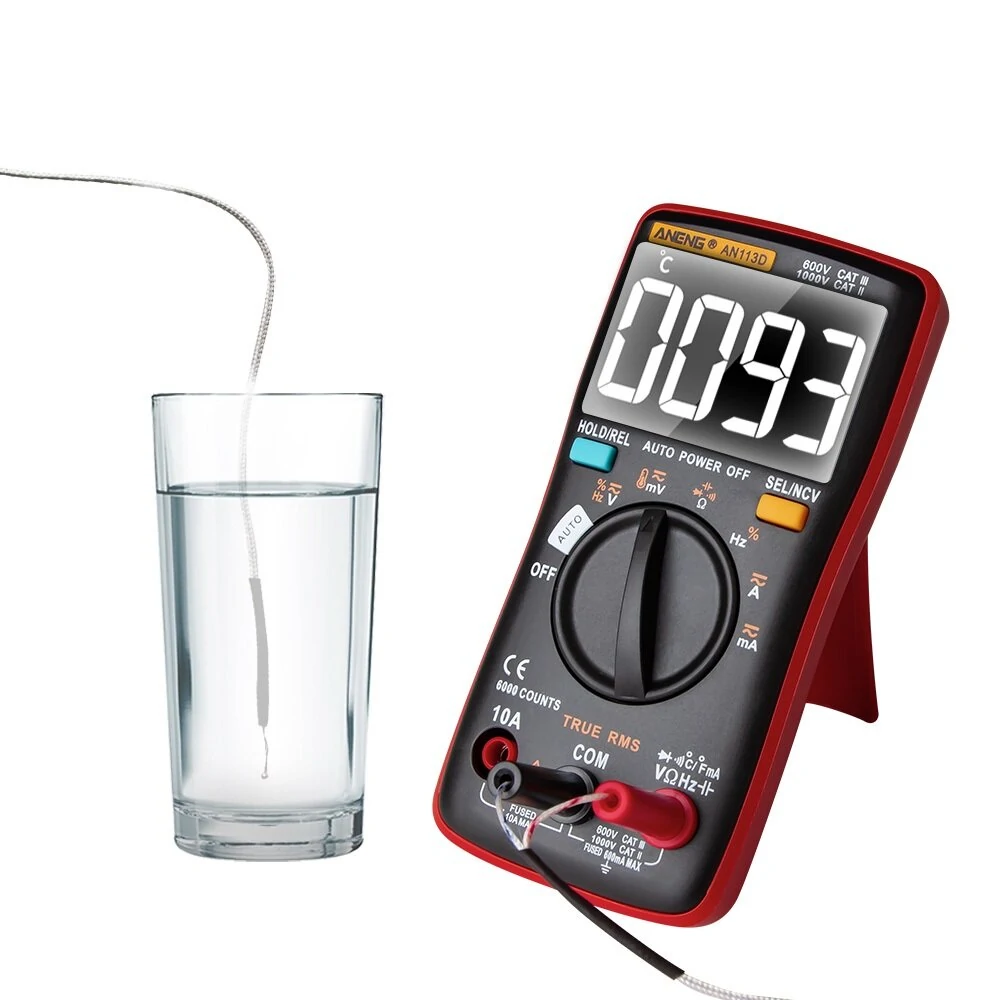

Temperature (-20~1000)?? 1?? ??(2.5%+5)1000?? (-4~1832)?H 1?H 1832?H Diode: ??
Continuity :?? >>Please Click Here to Download the English User Manual<<

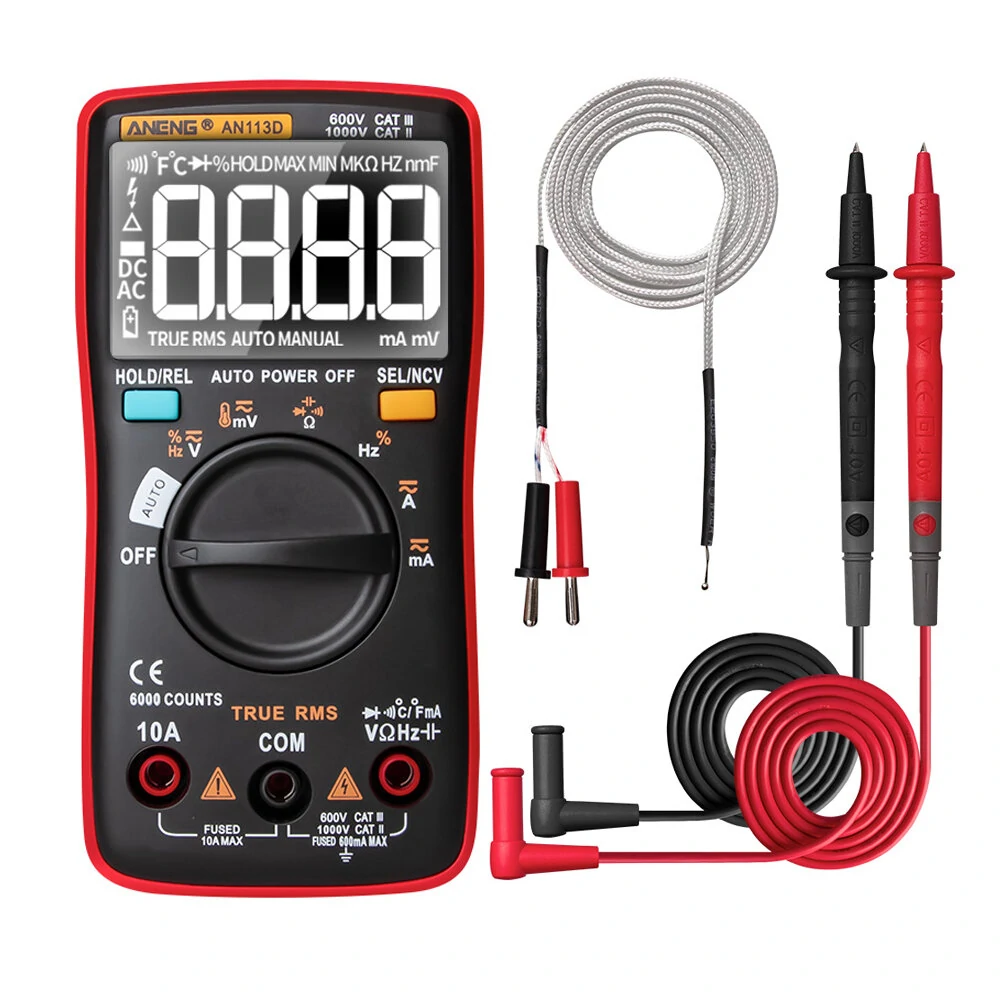

Package Includes:
1 x Multimeter
1 x Pair of test leads
1 x Thermocouple
1 x English user manual
Details Pictures:
