AN8000 Digital Multimeter - AC DC Voltmeter Ammeter Ohmmeter Tester
$26.00
$31.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Auto ranges 550V protection in Resistance,Capacitance and Frequency ranges Large LCD display,MAX display 4000 counts Sample rate: 3 times per second Backlight Data hold Relative measurement Polarity identification Low voltage indication 10A high current and low current measurement Auto power off Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Diode and Continuity Testing,Frequency and duty cycle. Specifications:
?Capacitance :4nF(??5.0%+4),40nF(??2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(??3.5%+4) ?DC volts: 400mV/4V/40V(??0.5%+4),400V/600V(??0.8%+4) ?AC volts: 400mV(??1.5%+4), 4V/40V/400V(??1.2%+4),600V(??1.5%+4) ?DC current: 40mA/400mA(??1.0%+4),10A(??1.5%+4) ?AC current: 40mA/400mA/10A(??2.0%+4 ,50-200Hz) ?Resistance: 400??/4K/40K/400K/4M(??0.8%+4),40M??(??2.0%+4) ?Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (??0.08%+2) ?Duty cycle: 0.1% to 99.9%(??0.08%+2) ?Measurement mode: mode ?Over range indication: OL ?Working environment: 0~40??, relative humidity< 80% ?Supply power: 3V (1.5V AAA batteries * 2 Pcs)(Not included) ?Frequency: 1Hz to 10MHz ?Capacitance : 10pF to 4000uF ?AC volts: 0.1mV to 750V ?DC volts: 0.1mV to 1000V ?AC current: 0.1uA to 10A ?DC current: 0.1uA to 10A ?Resistanc: 0.1?? to 40M?? ?Duty cycle: 1% to 99% ?Product size: approx. 130*65*30mm >>>Click here to find Red ANENG AN8000
Package includes:

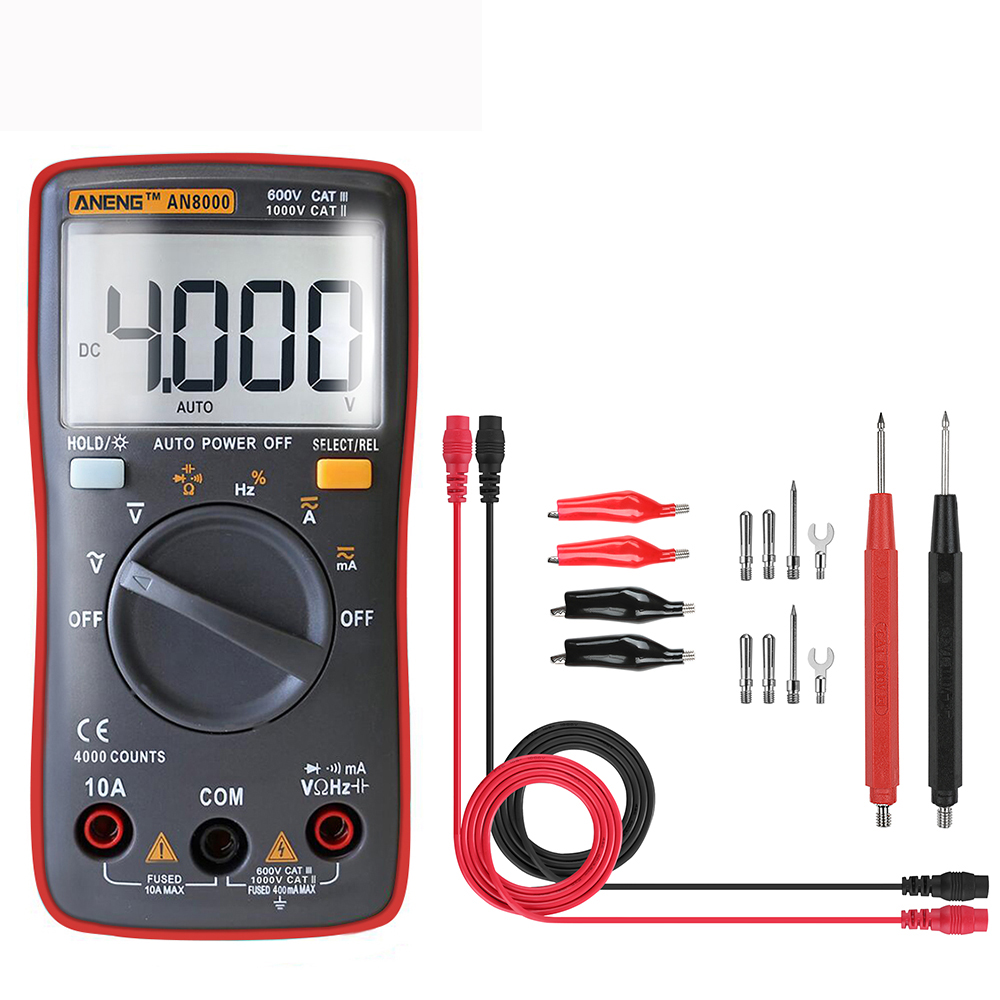

1 x Digital Multimeter 2 x Test Lead 1 x Storage Bag 1 x User Manual 1 Set Multifunction Digital Multimeter Probe Test Leads / Alligator Clip

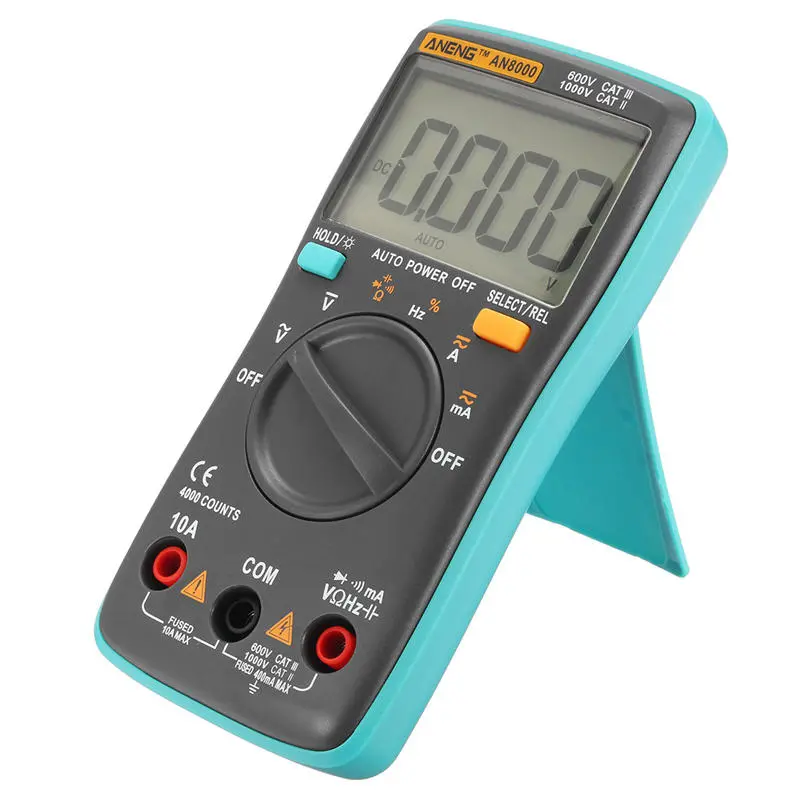

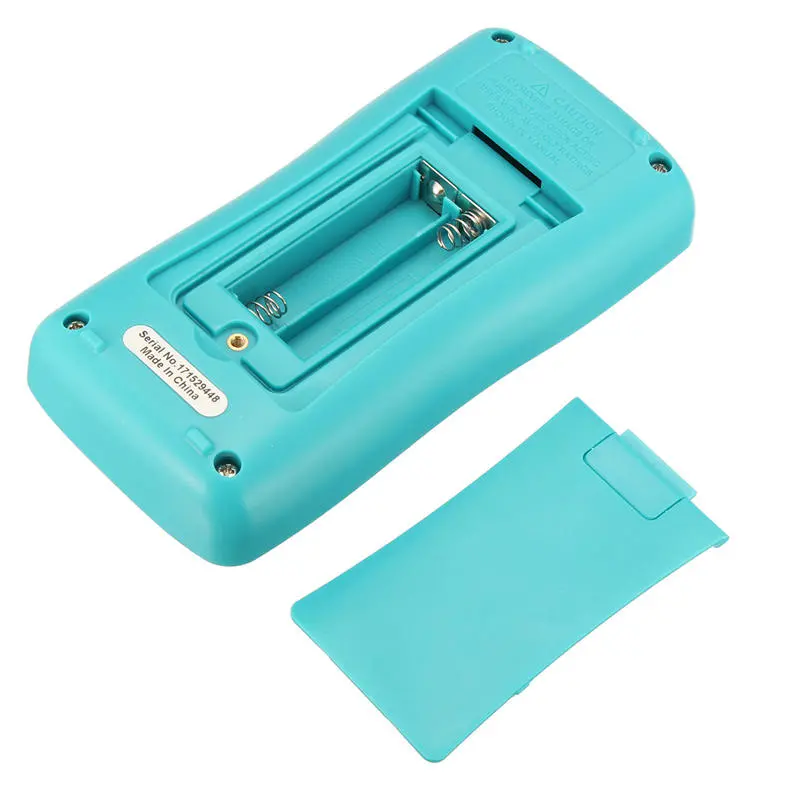

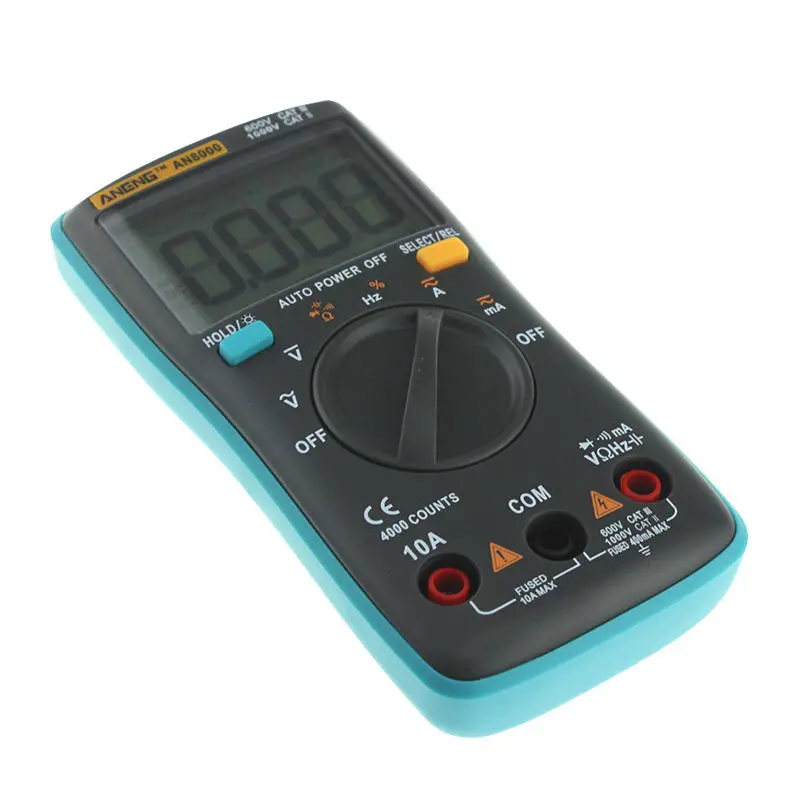

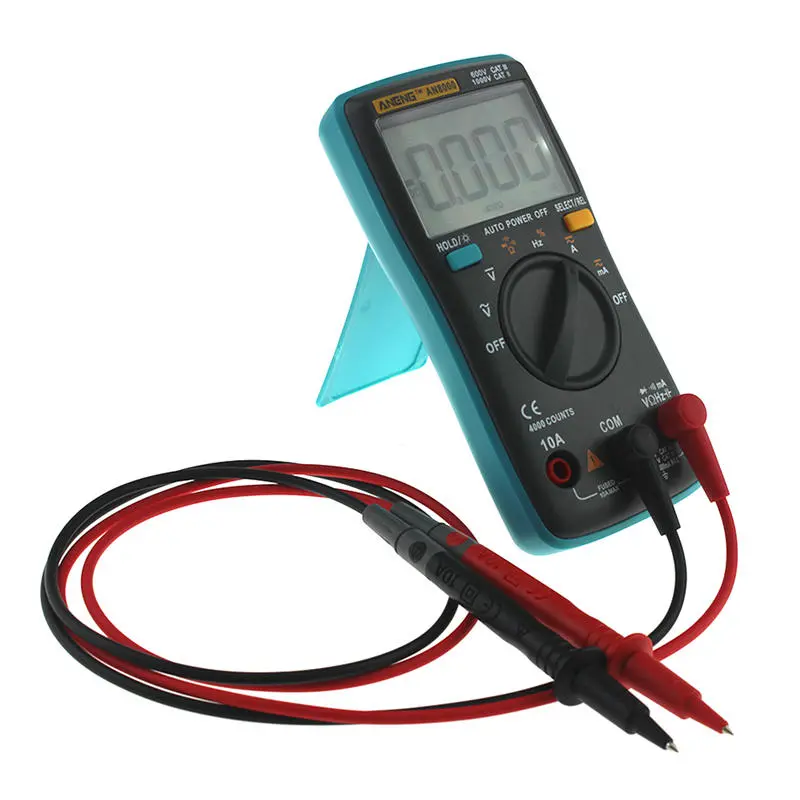

Detail pictures:
Customer Reviews
No reviews yet. Be the first to review this product!
