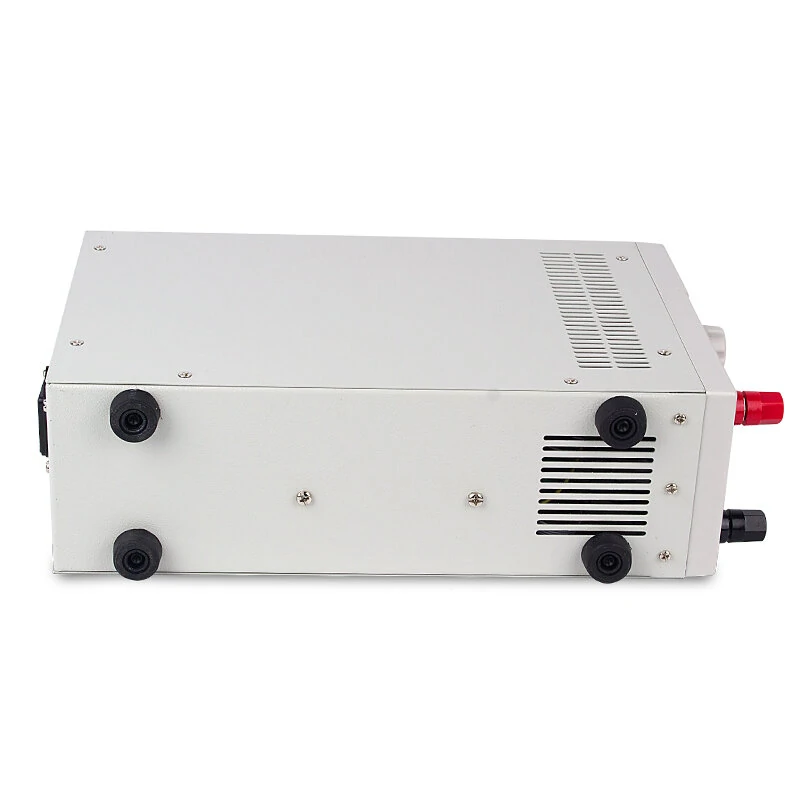

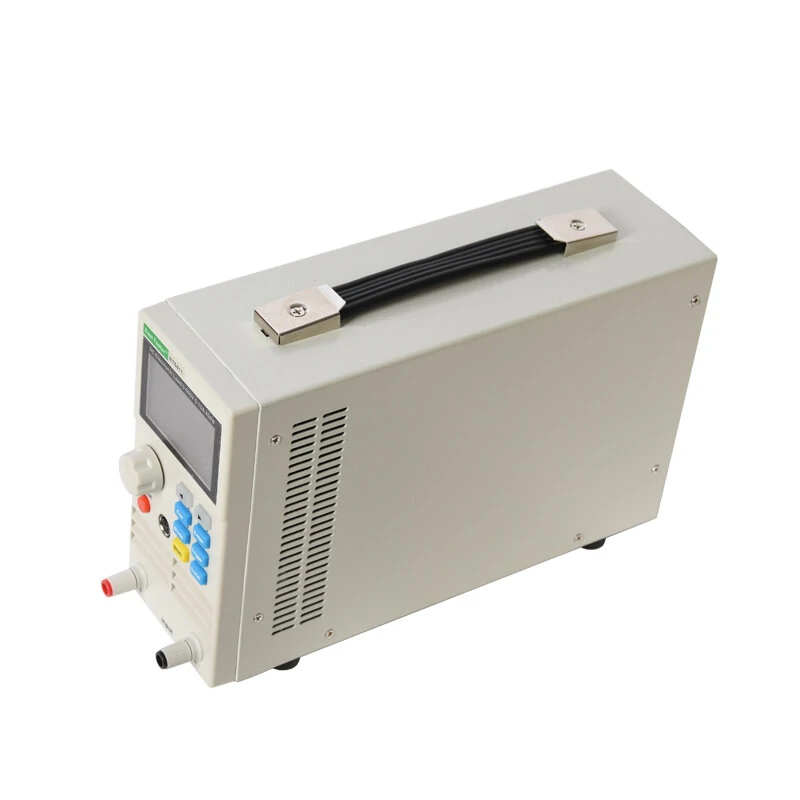

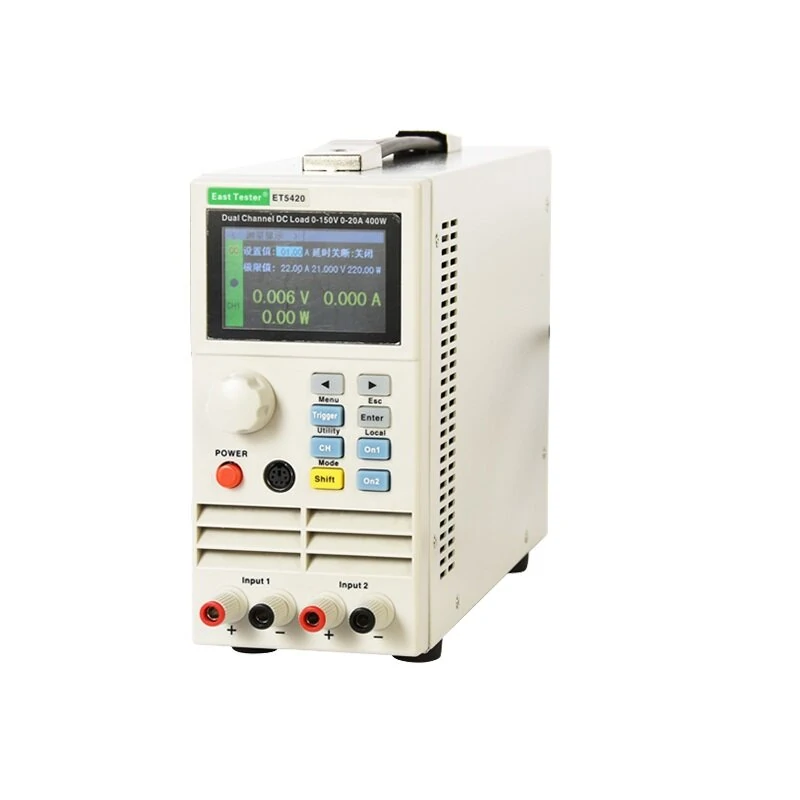

ET5420 Professional Battery Tester - Programmable DC Electronic Load & USB Charging Tester
$369.00
$454.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

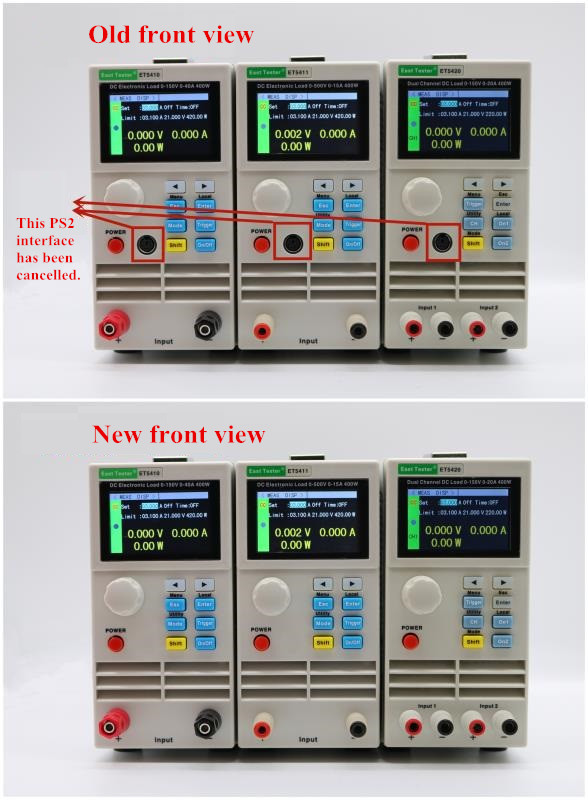

NOTE: In consideration of practical practicability, the PS2 keyboard interface has been cancelled for the latest ET5410, ET5411, ET5420 series electronic loads.
Descriptions: ET54 series single/double channel programmable dc electronic load, USES the high performance chip, high speed, high precision design, provide 1mV.1mA resolution, superior performance, can be widely applied to the charger, switching power supply, linear power supply, production test of all kinds of batteries and other industries, scientific research institutions such asthe test research and development. Features: humanized design. 2.8-inch TFT LCD display, rich display content, support Chinese and English displaySimple and convenient operation process, with intuitive interface display system, easy to use;It has the function of key lock to prevent misoperation. high-performance load: The basic measurement modes of CC, CV, CR, CP, CC+CV, CR+CV are provided.Provide professional battery test and LED test;Dynamic test mode, can test the dynamic power output performance;Scanning test mode can test the continuity of power output within a certain range.List mode, which can simulate various loaded state changes;Short circuit test for simulating load short circuit;The measurement model of the far end can improve the measurement accuracy when the current is high.Support external trigger input;Built-in buzzer alarm;Power off to maintain data storage function;Remote operation can be carried out through RS-232 interface and USB Device interface.With PS2 interface, support external keypad to set data values; safety protection: With overvoltage, overcurrent and overpower protection functions, overvoltage and overcurrent parameters can be set flexibly to effectively protect the load.It has the function of secondary over-temperature protection to realize the double over-temperature protection of software and hardware.It has the function of intelligent fan speed control, which can effectively reduce the working fan noise.With output polarity reverse protection; Specifications:

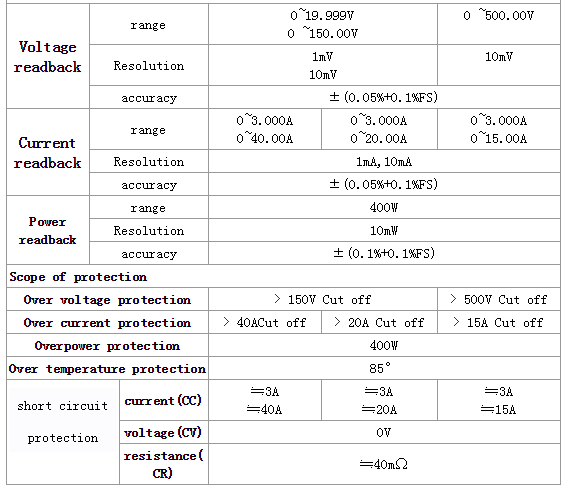

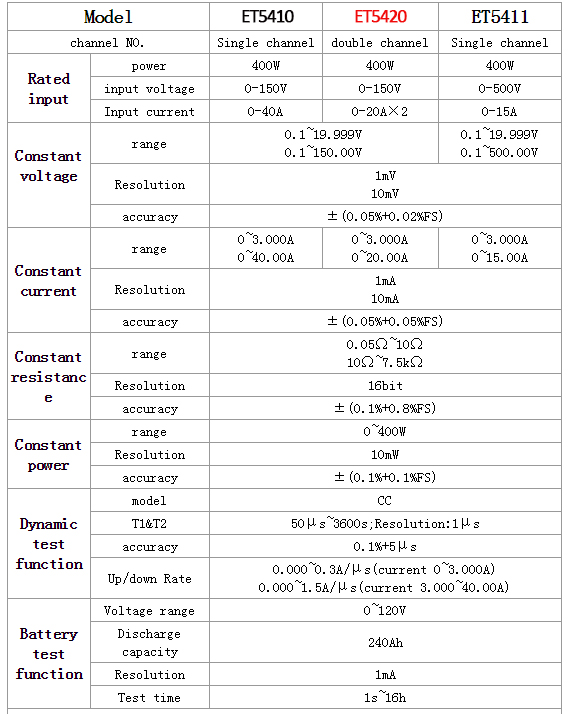

Measuring range
Power voltage: 220Vac??10%, optional 110Vac??10%, 45-65hzDisplay: 2.8-inch TFT LCD, resolution 320 x 240Operating temperature: 0 ?? to 40 ??Storage temperature: - 10 ?? to 70 ??Relative humidity: < 80%Interface: standard USB Device, RS232(or 485)Size: 90mm * 190mm * 300mm (width * height * depth)
>>Please Click Here to Download the English User Manual<<
Package Includes: 1 x ET5420 Load Host1 x English User Manual1 x Power Plug(EU)1 x Fuse Note:We will send you a plug adapter according to your country. Details Pictures:
