HANPOSE Nema 23 Stepper Motor | 76mm 2.8A 189N.cm | CNC Laser Engraving Machine

Product Description

Description:

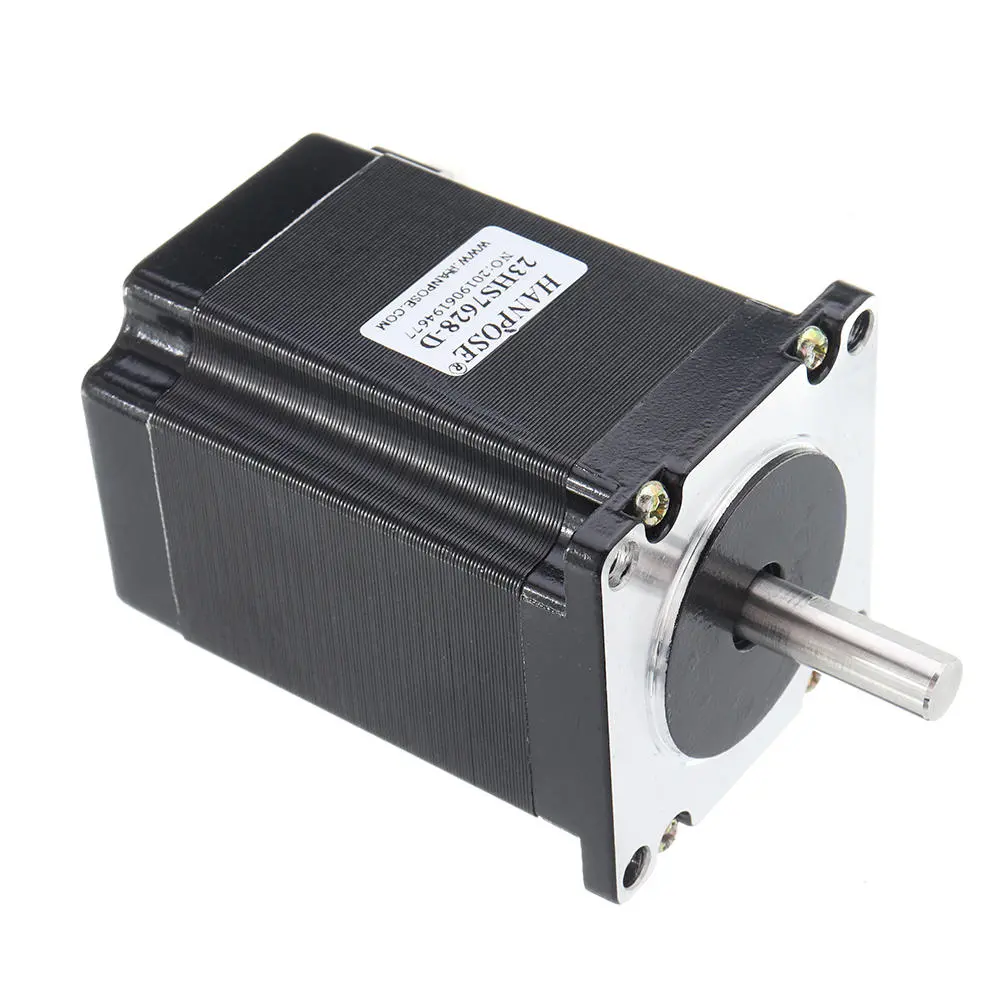

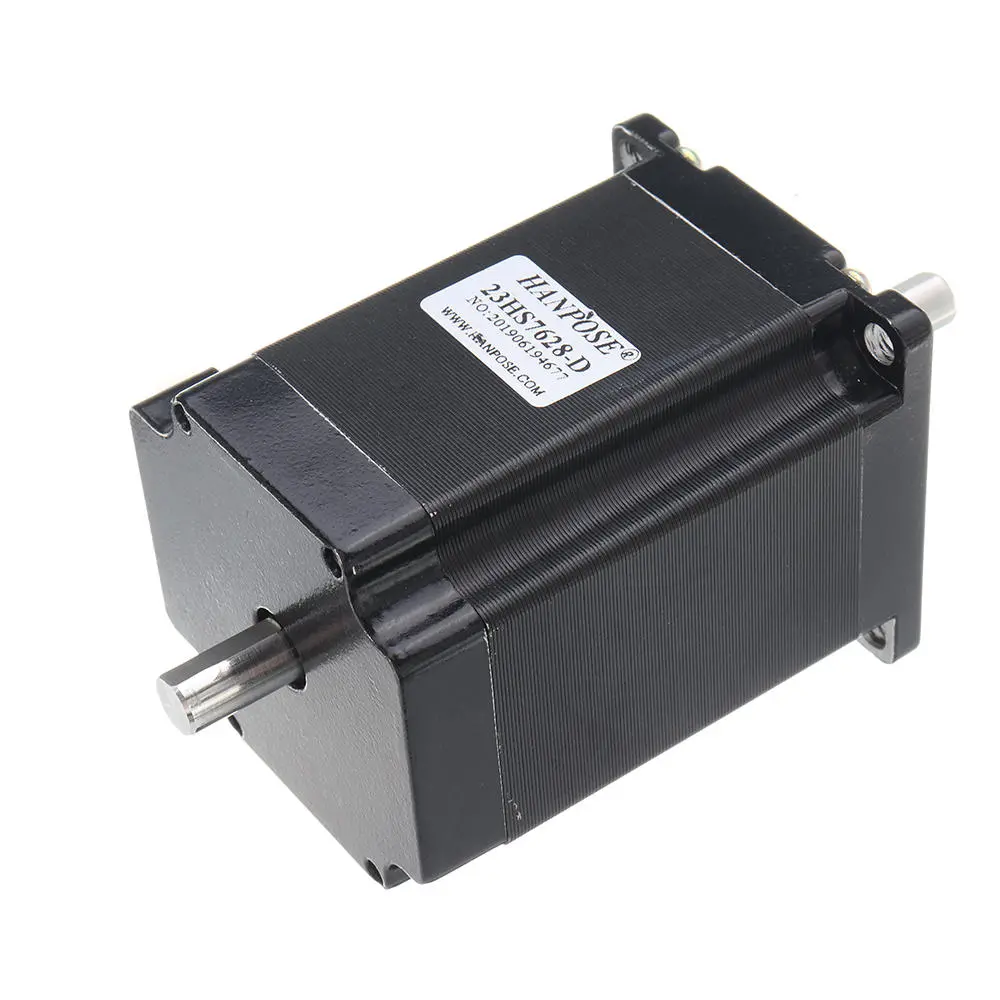

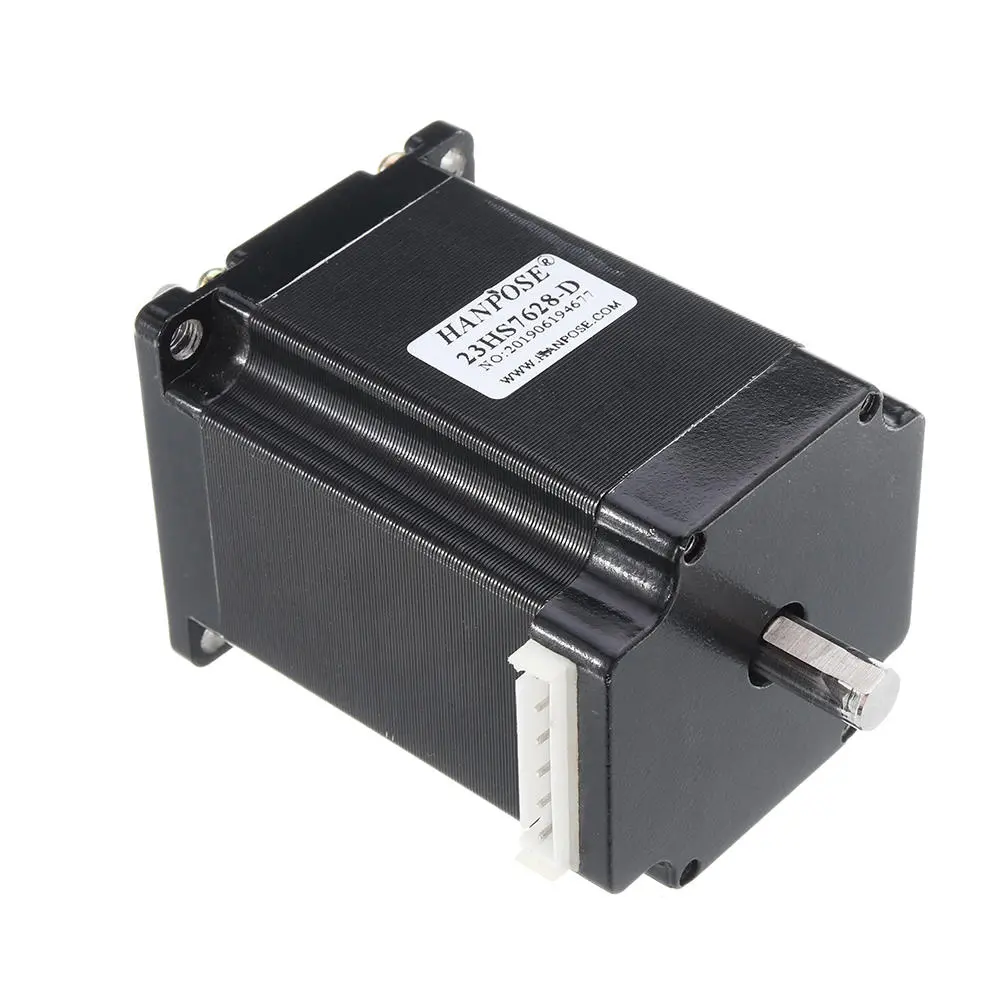

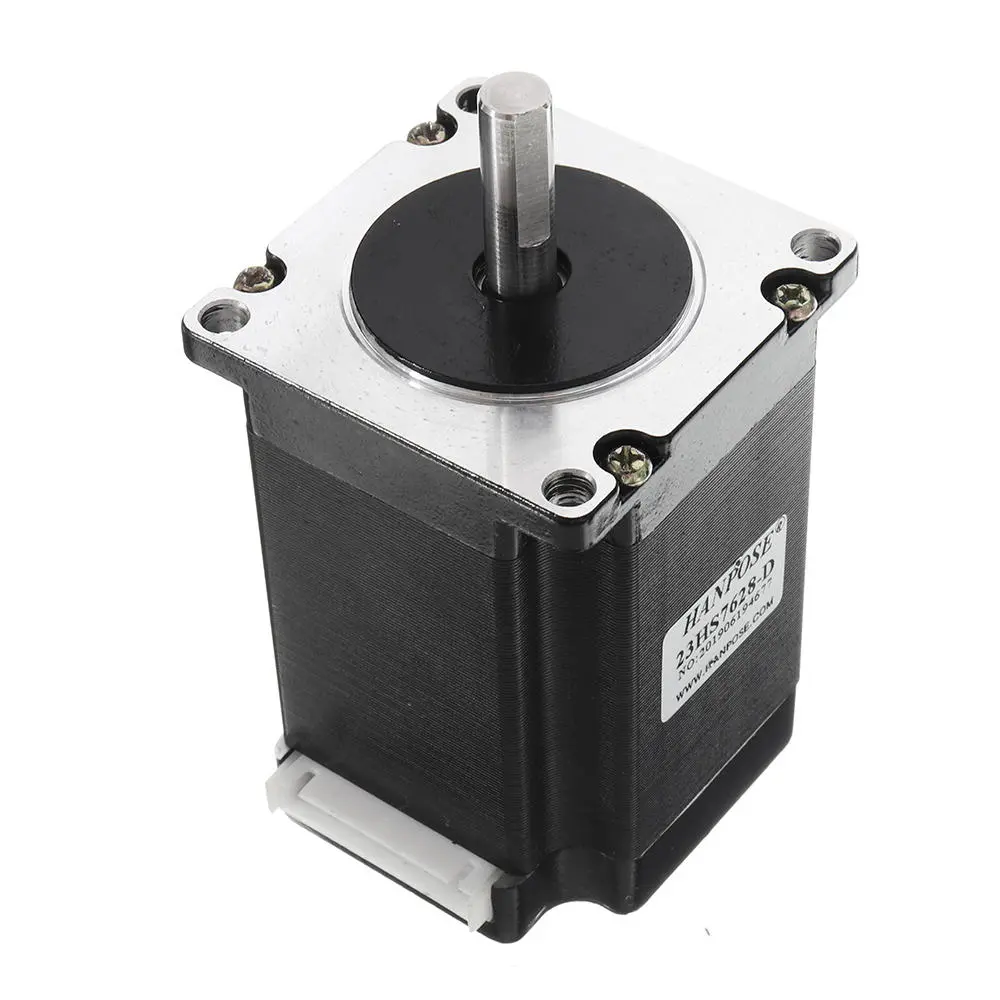

HANPOSE Double Shaft 23HS7628-D 76mm Nema 23 Stepper Motor 57 Motor 2.8A 189N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine
Certification: CE, ROSH, ISO, FCC
Specification:

Model	23HS7628-D
Phase	2
Step Angle	1.8??
Motor Size	57 x 76mm
Shaft	"D" shaft 22x??8 + 15x??8mm
Outlet way	"4" plug line
Motor leads	30cm Wire
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Voltage	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	Lead
	( ??)	(L)mm	(V)	(A)	(??)	(mH)	(N.cm)	(G. cm2)	(No.)
23HS7628-D	1.8	76	3.2	2.8	1.13	3.6	189	480	4

General Specification:

Precision angle step	??5% (full step, no charge)
Resistance accuracy	??10%
Precision inductance	??20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20??)-(+ 50??)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. Package Included:
1 X 23HS7628-D Stepper Motor
