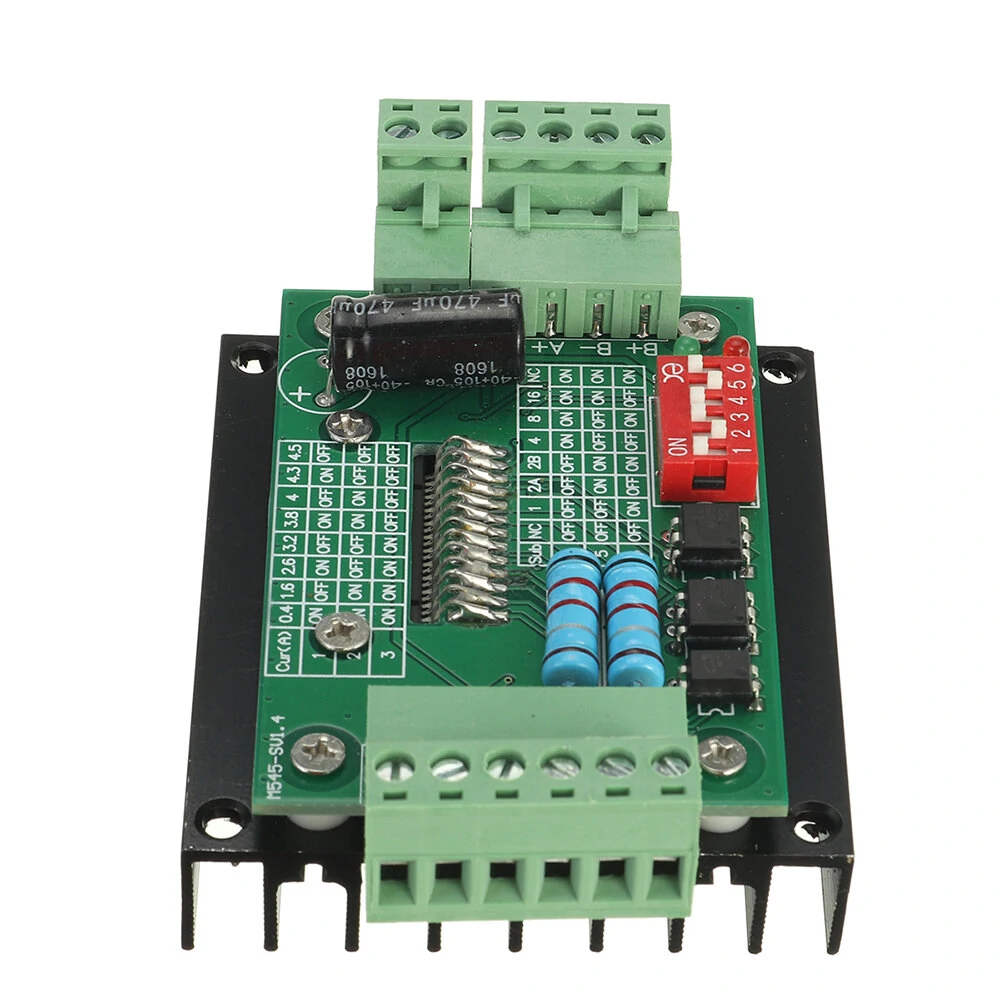

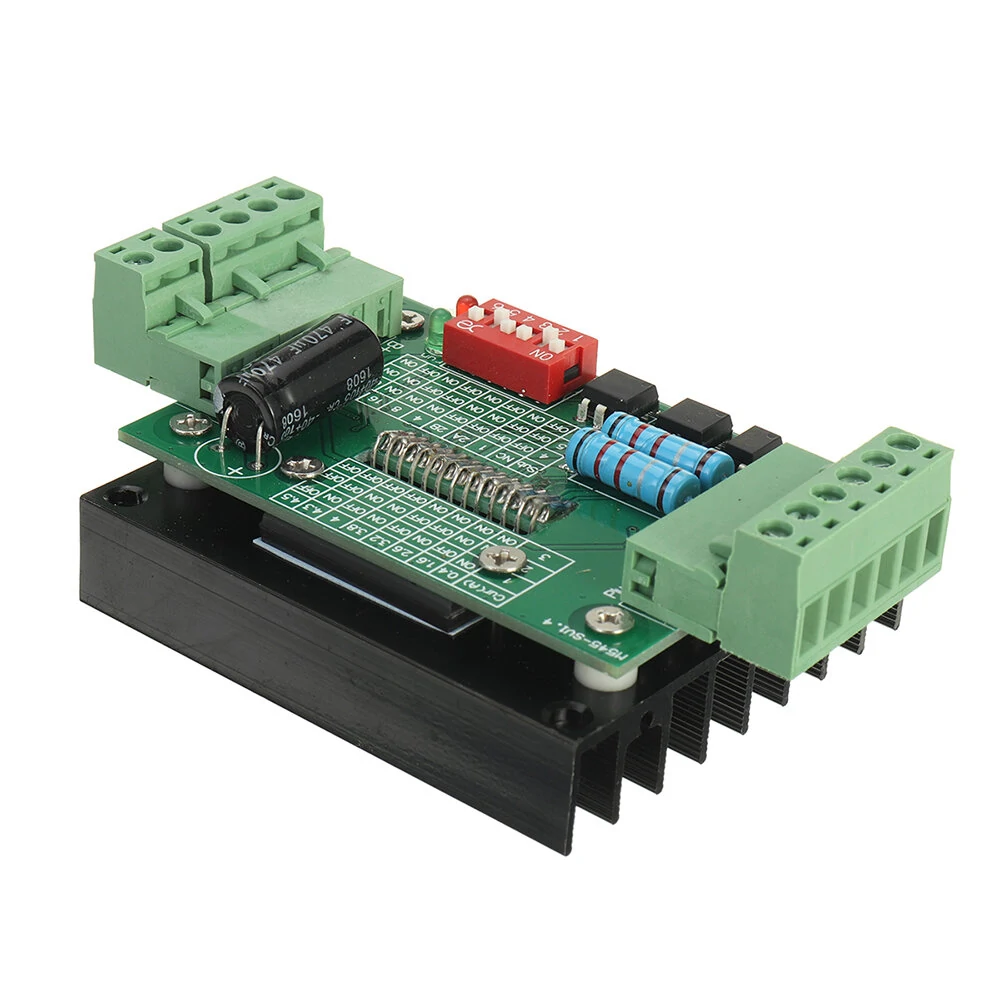

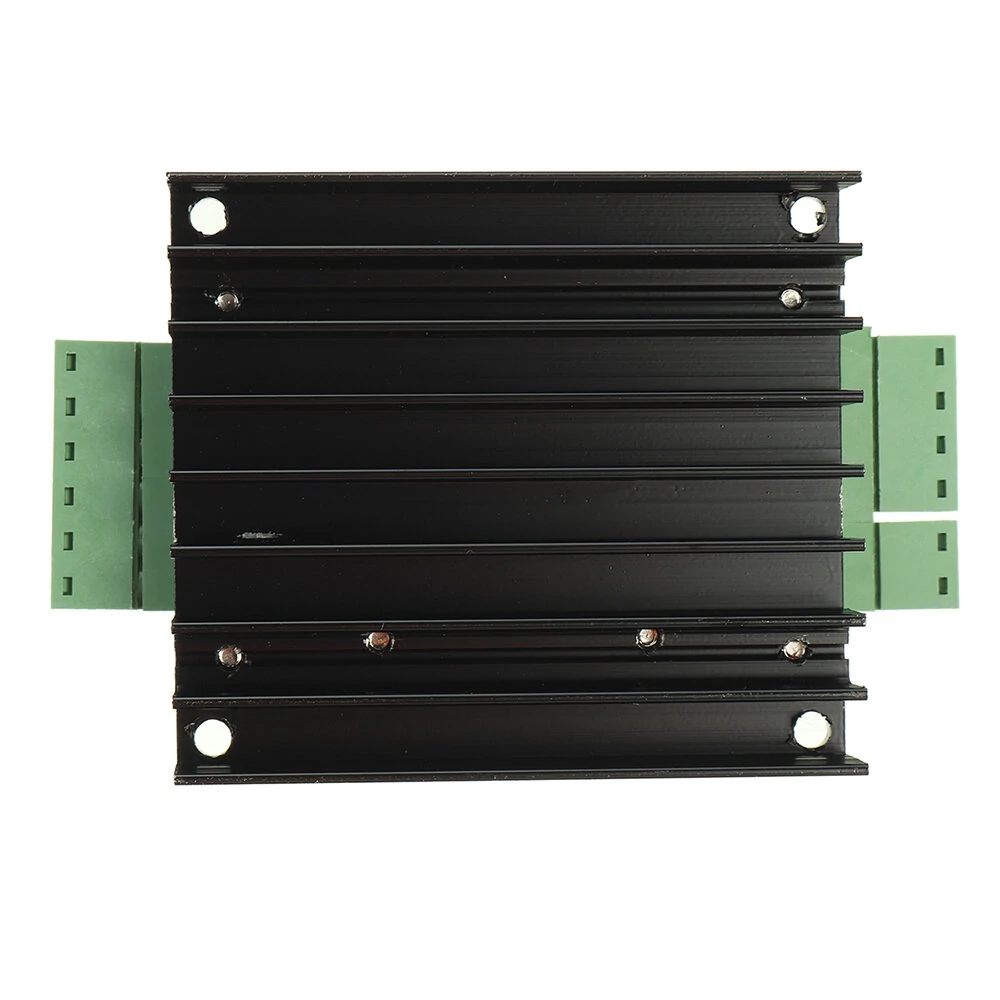

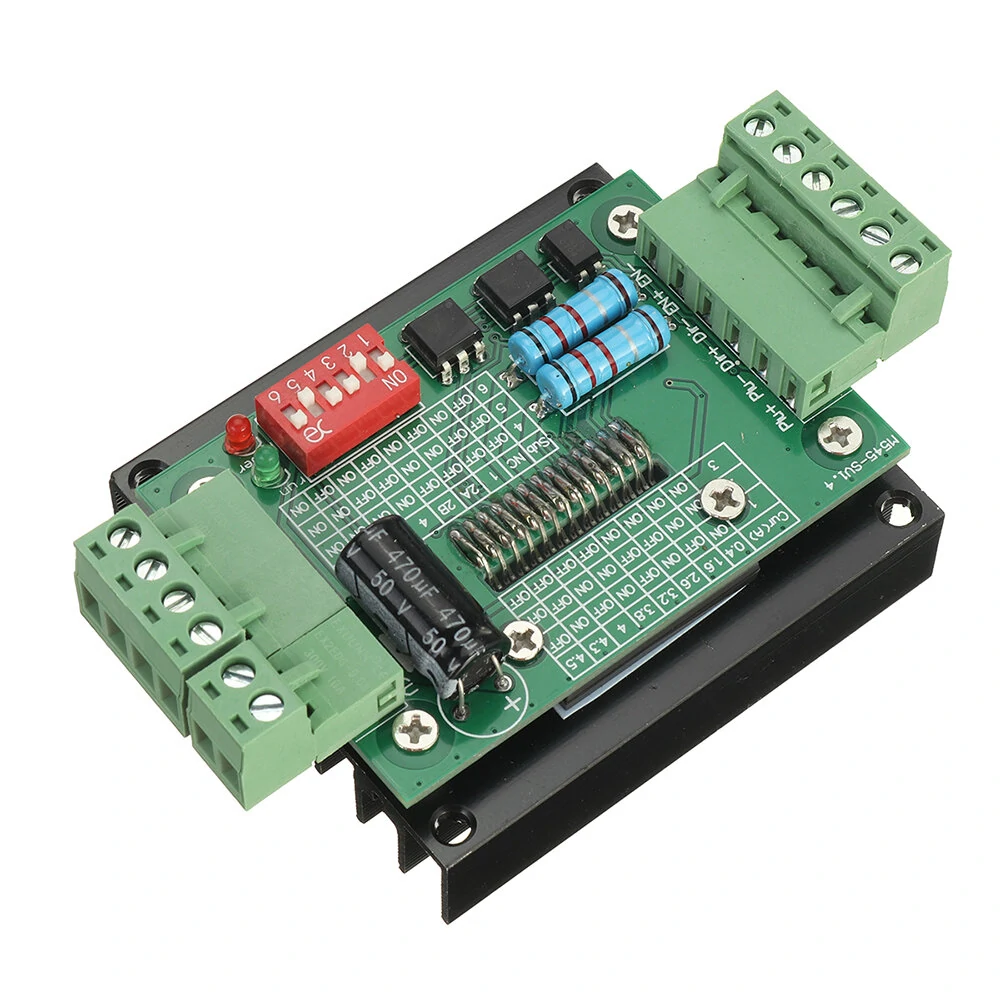

TB6600 Stepper Motor Driver 4.5A 40V | Nema 17/23 | DIY Engraving Printing
$23.00
$28.78
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Descriptions:
TB6600 Nema17/23 Stepper Motor Driver 4.5A 40V Instead Of TB6560 2-phase Stepper Motor Driver DIY Engraving Printing
Specifications:
| Product Name | Stepper Motor Driver |
| Material | Plastic, metal |
| Output current | IOUT = 5.0A (peak, within 100ms) |
| Rated output | IOUT = 4.5 A |
| Input pull-down resistor | 100 K?? |
| Output alarm pin current | Ialert = 1mA |
| Output monitor pin (MO) | Imo = 1mA |
Features:
- Single chip bipolar sinusoidal microstepping stepper motor driver
- Latest BiCD 0.13 nm process
- Up to 50V withstand voltage
- On-resistance (up + down) = 0.4 ??
- Forward and reverse rotation control
- 5 subdivision modes are available (1/1, 1/2, 1/4, 1/8, 1/16 steps)
- With reset and enable pins
- With standby function.- Break through the traditional single power supply
- Built-in thermal protection (TSD) circuit
- Built-in undervoltage protection (UVLO) circuit
- Built-in overcurrent detection (ISD), circuit
Package Included:
| 1 Pc x | Stepper Motor Driver |
More Details:
